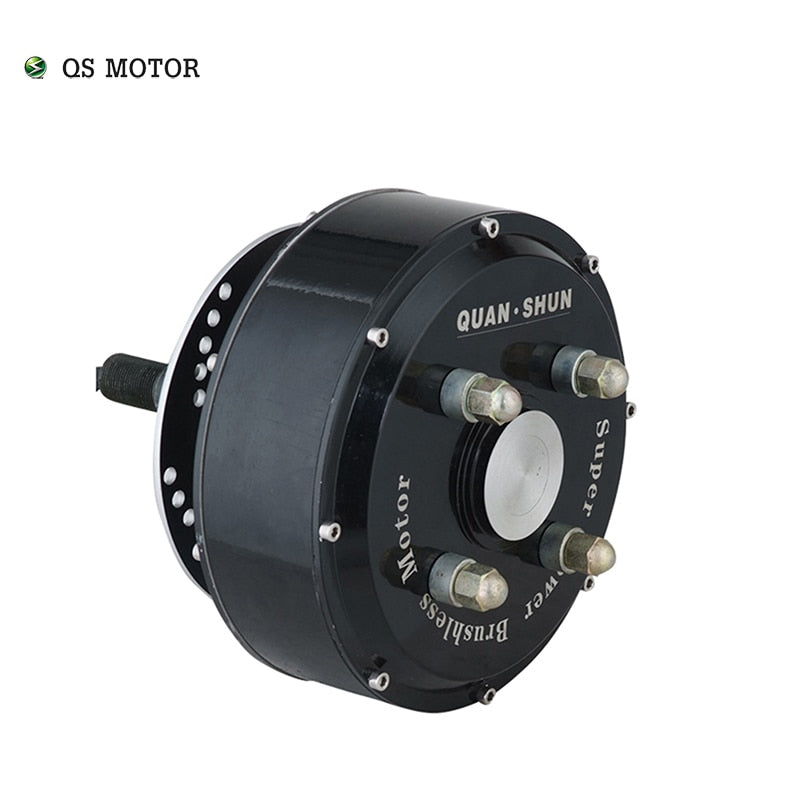

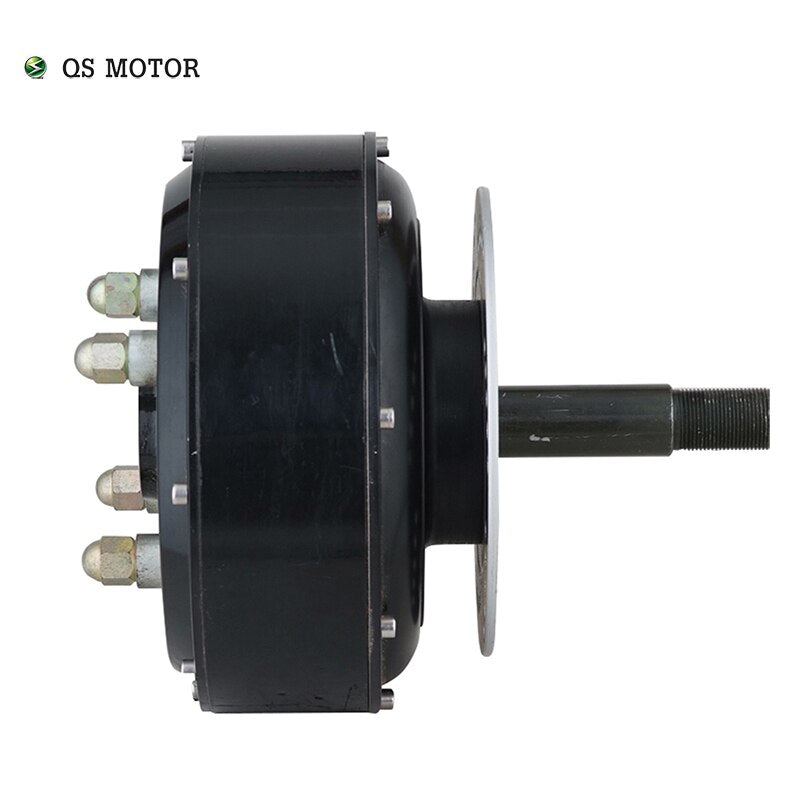

QS Motor E-car 205 3000W 205 50H V3 electric wheel hub motor
For 205 E-Car wheel hub motor, it could be used for electric scooter, tricycle, mini/golf car.
205 motor means the diameter of iron ring of rotor is 205mm, for all 205 motor, e.g. 10inch & 12inch 205 e-scooter hub motor,
205 spoke hub motor, 10inch & 12inch 205 single shaft hub motor, 205 E-car Hub motor etc., the configuration & performance is the same as 10inch 205 Hub Motor.
3000W Electric Wheel Hub Motor
Optional Aluminium cover
Key Features
1). Simplify to make a light electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product description
Genearlly Spec:
-
Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
-
Brand: QS Motor, QSMOTOR
-
Motor Design: Single axle without moped rim (Integrated)
-
Matching Rim Size:12inch, 13inch & above wheel rim, CB=60mm or CB≥65mm,PCD ≤110mm(PCD 4*100mm, CB60mm as default)
-
Magnet Height: 50mm, 16 pole pairs
-
Stator: Aluminum Core
-
Rated Power: 3000W
-
Speed: 24KPH-80KPH, it's customized, genearlly we will design as 72V65KPH.
-
Work Voltage range: 48V-96V, will be 72V as default.
-
Max Torque approx 196.4N.m
-
KV: 6.25/7.29/8.33/9.03/11.9/16.32(optional)
-
Thermic Probe: KTY83-122 (as default, optional)
-
Max Efficiency approx 84%
-
Working Temperature: 70-120℃ , peak 150 ℃
-

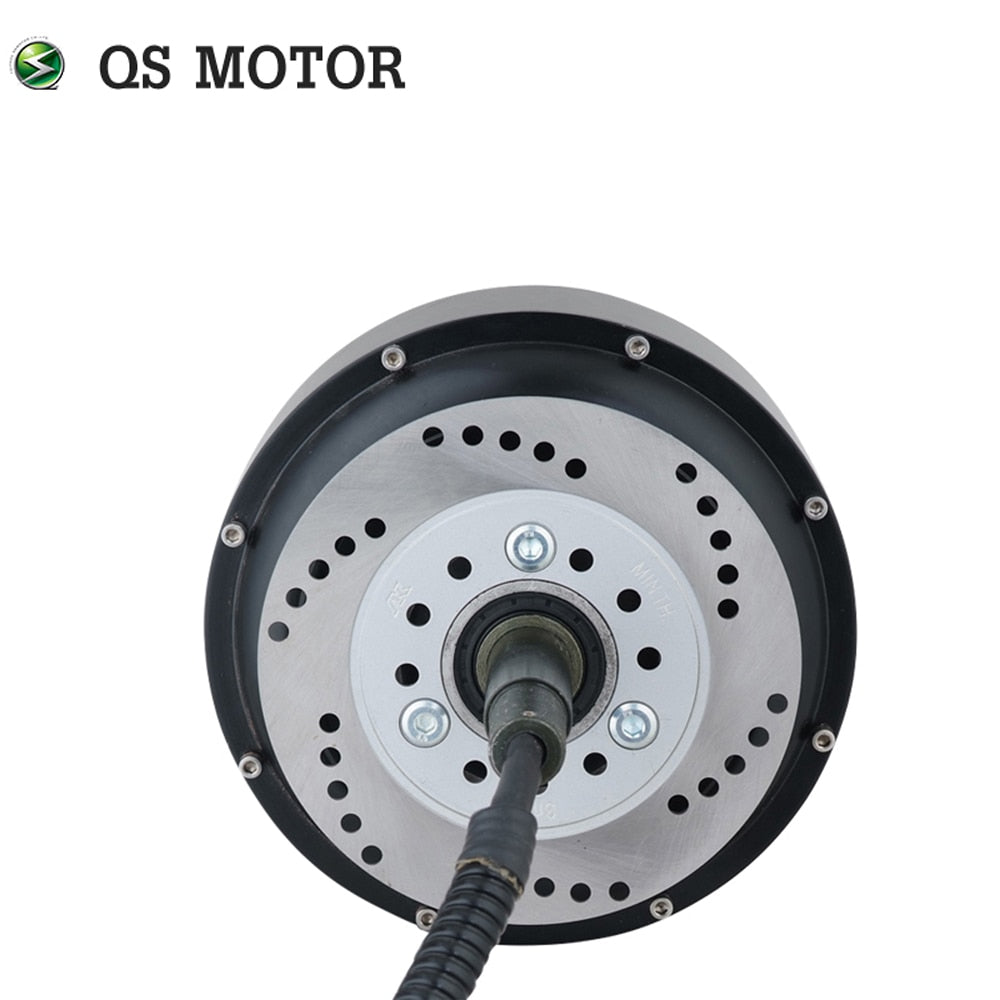

Brake type:MopedDisc brake (as default), PCD: 3*80mm, CB: 58MM
-

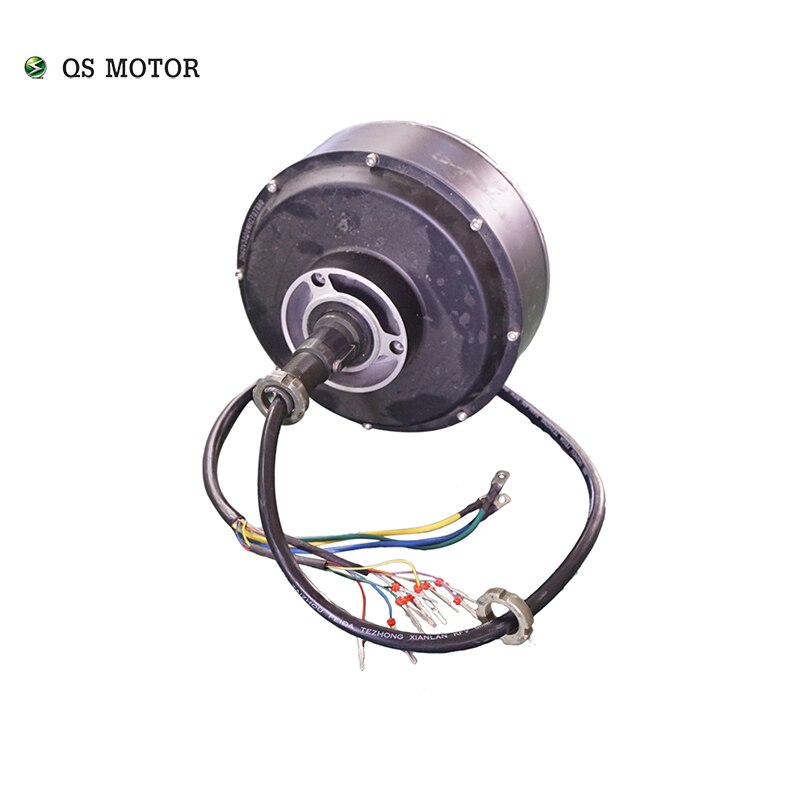

Dual Halls with waterproof connectors(One for using, one for spare
-
12mm axle flats
-
10mm² Cross Section of Phase Wire(not including insulation layer)
-
Waterproof Grade: IP54
-
Color: Black (As default)
-
N.W/ G.W: 17.0kg/18.5kg
-
Note: CB can be designed to be 60mm or ≥65mm

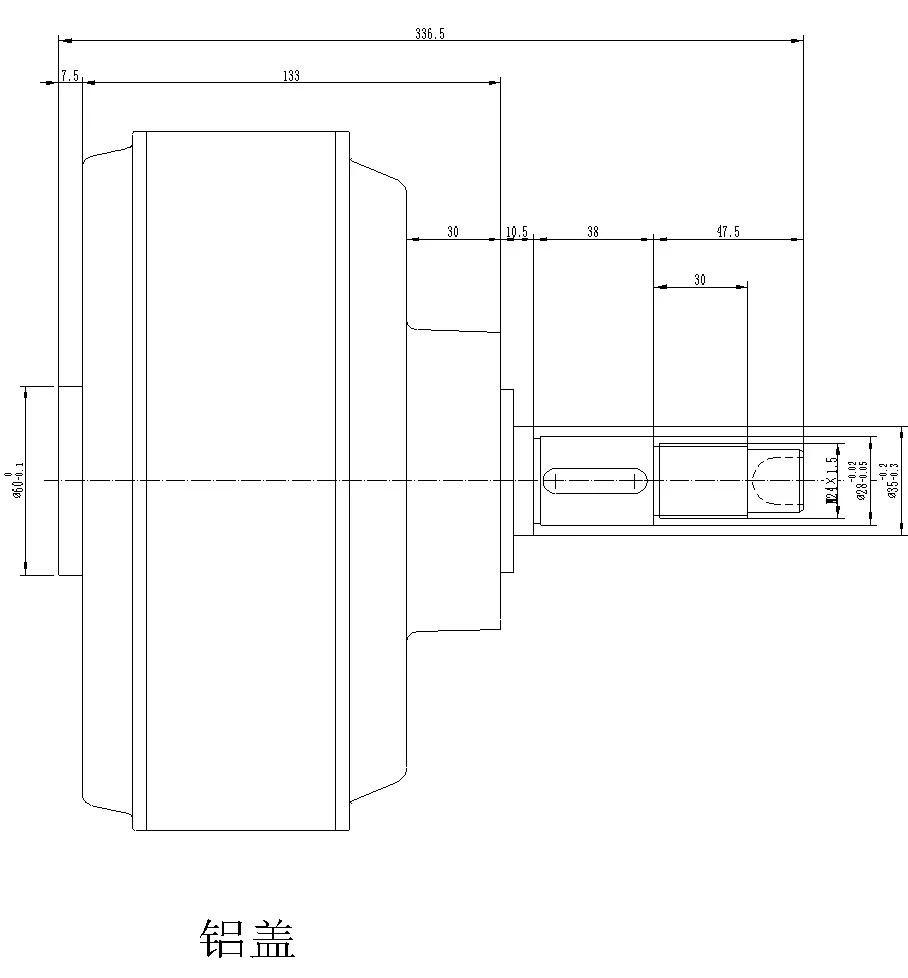

Dimension Drawing:
-

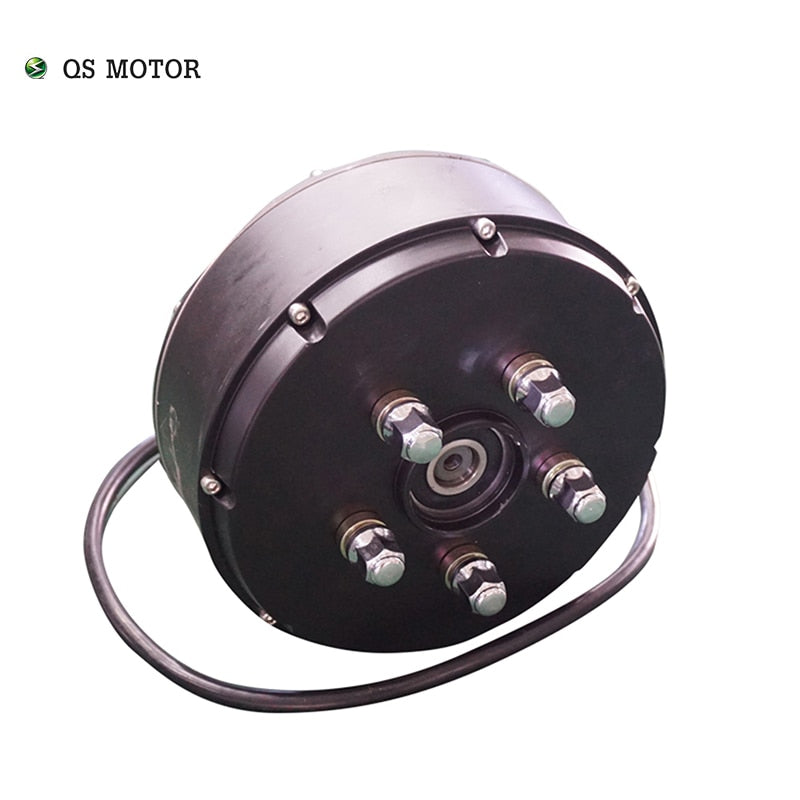

QS 205 e-car hub motor(Iron cover)
QS 205 e-car hub motor (Aluminum cover)
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.

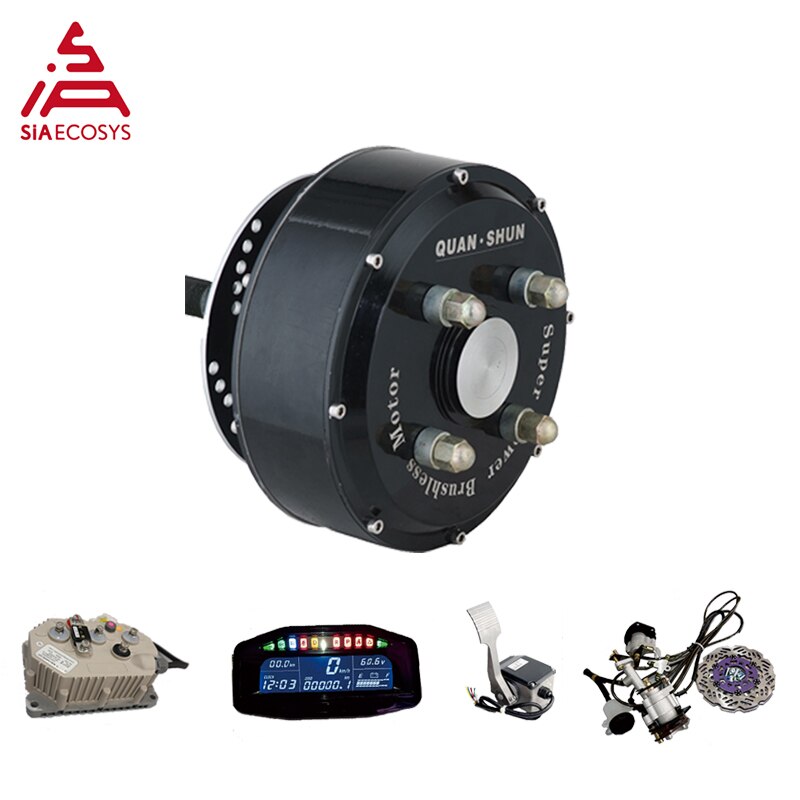

Conversion kits for 205 3kW E-Car hub motor
We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
Application for E-Car hub motor
