QS Motor 273 8000W 4wd 96V 120kph BLDC Brushless Electric Car Hub Motor Conversion Kits With APT96600 Motor Controller

QS Motor 273 8000W 4wd 96V 120kph BLDC brushless electric car hub motor conversion kits with APT96600 motor controller

For 273 8000W V3 electric car hub Motor kit assembly, it could be used for high power electric car, which could be 120KPH by 4wd.

e.g. Light Retro Electric Car

E-car weight, approx 815kg+285kg

Tire: 185/65 R14

Speed: continuous 120km/h @96V by 4wd,

Climbing slope: 25°@1100kg by 2wd

Battery: 96V200Ah or 110V200Ah lithium(with more speed)

Normal Car

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: Continuous 95km/h @72V by 4wd, peak 100km/h when fully charged

Climbing slope: 20°@1280kg by 4wd

Battery: 72V200Ah

Range: 200km

Normal Car

EV weight, approx 1200kg+400kg

Tire: 195/55R15

Speed: continuous 67km/h @48V by 4wd, peak 72km/h when fully charged

Climbing slope: 20°@1280kg by 4wd

Battery: 48V300Ah

Range: 200km

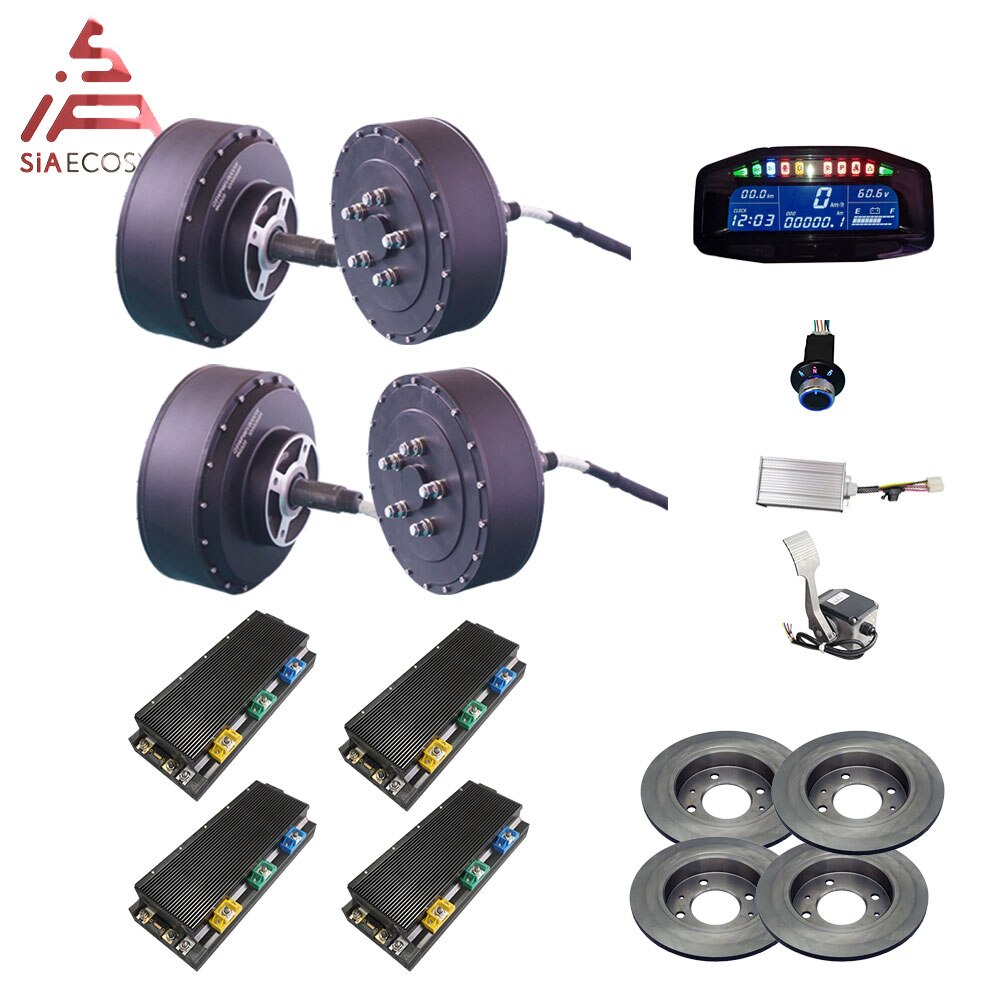

One set including below kits

1.4pc X QSMOTOR 273 8000W 273 50H V3 E-Car Hub Motor with new disc brake cover

2.4pc X APT96600 controller

3. 1pc X X8-E Speedometer

4. 1pc X 0-5V Electric Car Throttle Pedal

5. 4pc X Disc plates

6. 1pc X DNR gear switch

7. 1pc X DC DC converter 96V

Key Feature

1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.

2. It could be installed in wheels, and easy to be hybrid car.

3. Easily to make 4-wheel drive, which could spot turn.

4. Support regenerative braking

5. High efficiency: 85~92%

Product description

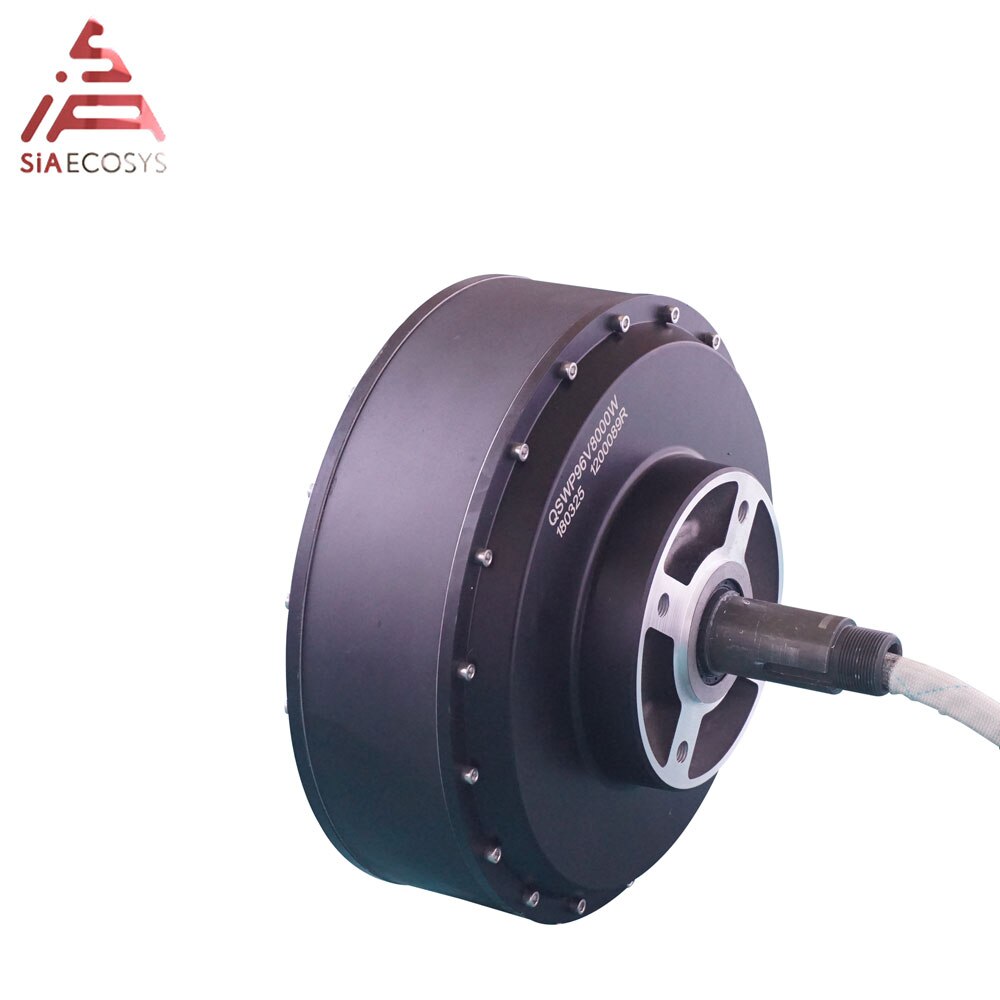

Item: QSMOTOR 8000W 273 V3 Electric Car Single Shaft In Wheel Hub Motor

·Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor,QSMOTOR

·Motor Design: Single axle without rim

·Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)

·Stator: Aluminum Core

·Rated Power: 8000W (19000kW peak in few seconds)

·Rated Voltage: 96V

·Speed: 1200RPM/930RPM/627RPM no load, approx 120km/h@96V  95km/h@72V 67km/h@48V

·kV: 12.5kV

·Max Torque: approx 350N.m

·Max Efficiency: approx 88%

·Continuous Battery Current: 132 A (96V)

·Peak Battery Current: 180A (96V)

·Suggest Peak Phase Current: 591A

·Thermic Probe: KTY83/122 (as default, optional)

·Working Temperature: 70-120℃ , peak 150 ℃

·Brake type: Car Disc brake,  PCD 4*114.3mm, M12(as default)

·Dual Hall Set with waterproof connectors

·2*8mm² Cross Section of Phase Wire (not include insulation layer)

·Hall Sensor Phasing angle: 120 degree

·Waterproof Grade: IP65

·Color: Black

·N.W./G.W.: approx 23.0/24.7kg (TBD)

·Package Dimension: 43cm*43cm*43cm/piece

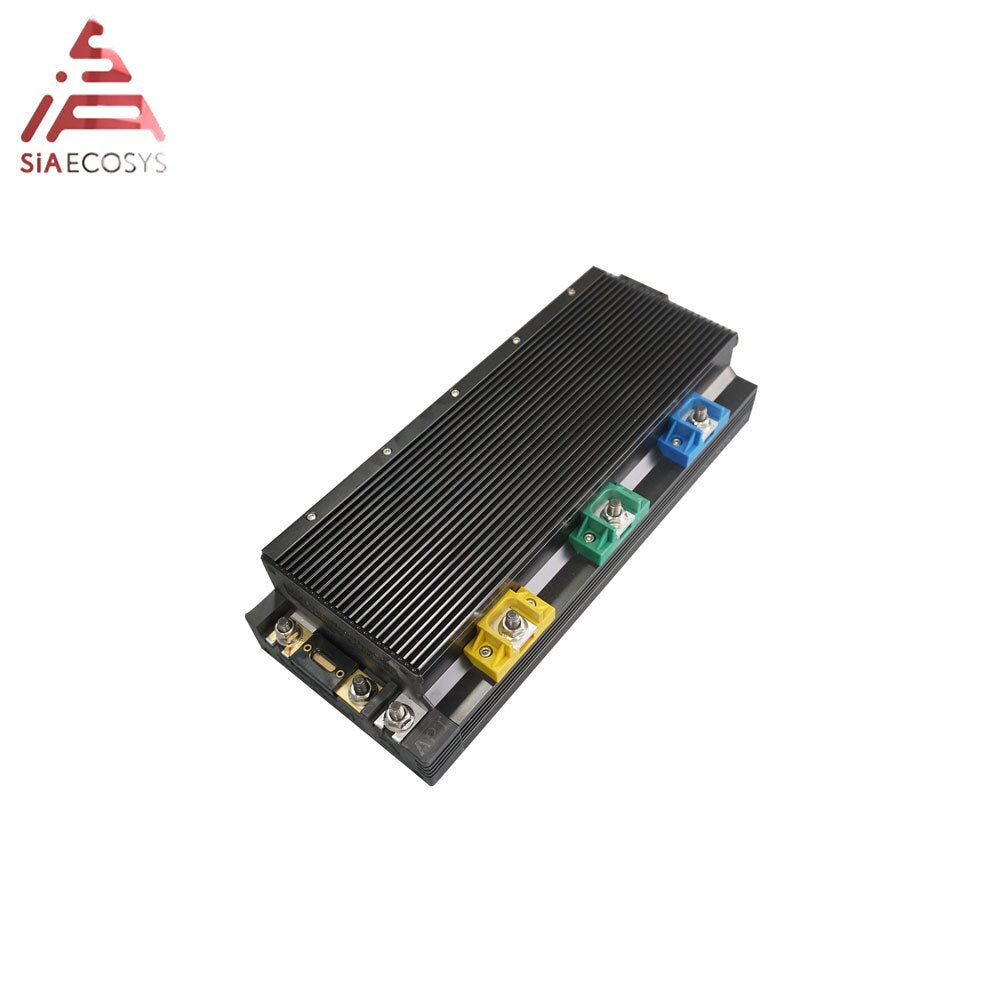

2. APT96600 600A Sine Wave Controller

It's special design for QS brushless motor controller for electric car hub mtor Conversion Kits, which can match with QS HUB MOTOR Rated Power 8000W.

Key Features

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Quality Guarantee

4). Programmable

 Generally SPEC

1. Programable, with Reverse function, support regenerative braking

2. Configurable battery voltage range, B+. Max operating range: 42V to 120V.

3. Peak Phase Current: 600A.

2. Product Size: 346mm*148mm*76mm    Net Weight: 5.9kg

4. Testing way: Hall sensor

5. CANBus is avaialbe for sample (cost will increase according to communication protocol )

6. Package Including: 1pc controller + 1pc GX16-10 to RS232 cable + 1pc Function harness

+1pc USB to RS232 Converter Cable (programming cable).

P.S.: The controller extremely suit for electric trycycle, mini e-car, in spide of the size.

For Software & Manual, please contact with us freely.

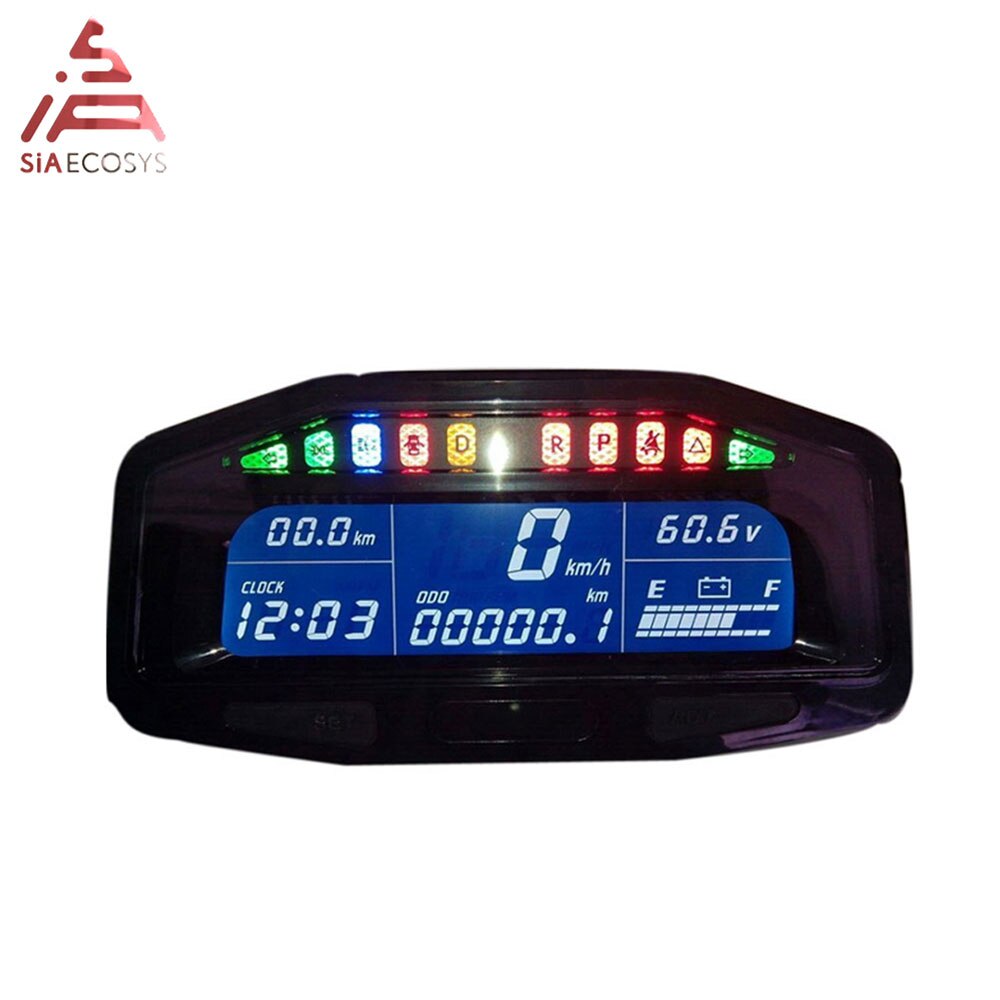

3. X8-E 48-96V Programmable Electric Car Speedometer

Programmable

Rated Voltage: 48V-96V

Work voltage: 0-120V

With DNR, Time, driving distance, speed, voltage, electric quantity

Communication: Hall

PS. New 7.5inch TFT speedometer with CAN BUS is under developing.

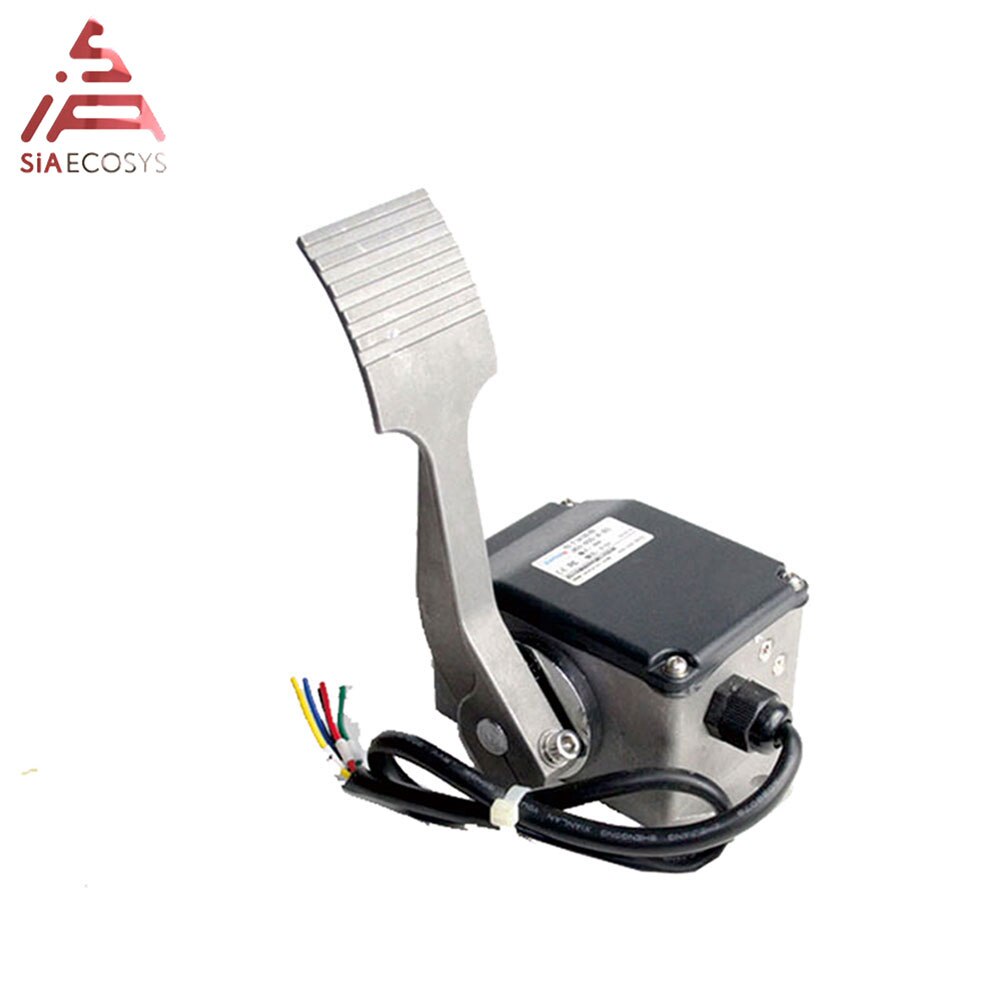

4. 0-5V Electric Car Throttle Pedal

Throttle Pedal Hall type : JKH model  (match with our motor & controller)

Input voltage: 5V

Output voltage: 0.8-4.2V

4 or 5 wires with switch

PS. Consider safety, we use 0.8-4.2V instead of 0-5V now.

5. Brake Disc

We offer brake disc to fit with motor, u could use original brake calipers.

PCD: 4*114.3mm

CB: 76mm

10mm thickness

Diameter: 258mm

6. DNR gear switch

Include D N R three gears

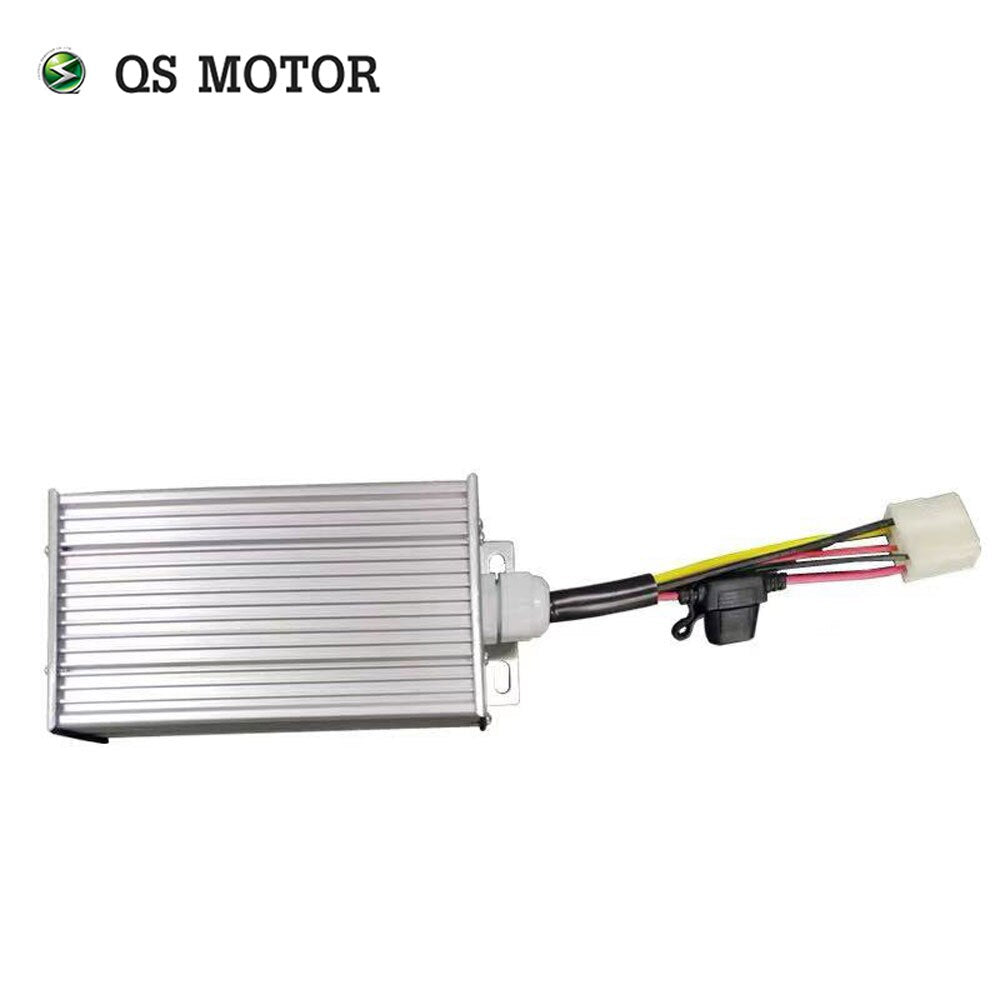

7.DC DC converter

96V to 12V, 25A

Application

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
