QS Motor 205 3kw V3TI Spoke Hub Motor Electric Bicycle Kit with TFT H6 speedometer
For 205 3kw Electric Bicycle Kit, it could be used for high power electric bike.Three has three power options, 3kW/2kW/1.5kW versions.
e.g. Electric high power bike with 3kW 205 spoke hub motor
E-bike weight, approx 47kg+80kg
Tire diameter: 2.50-19
Speed: 72V 70km/h
Climbing slope: 25°@127kg
Battery: 72V40h lithium battery

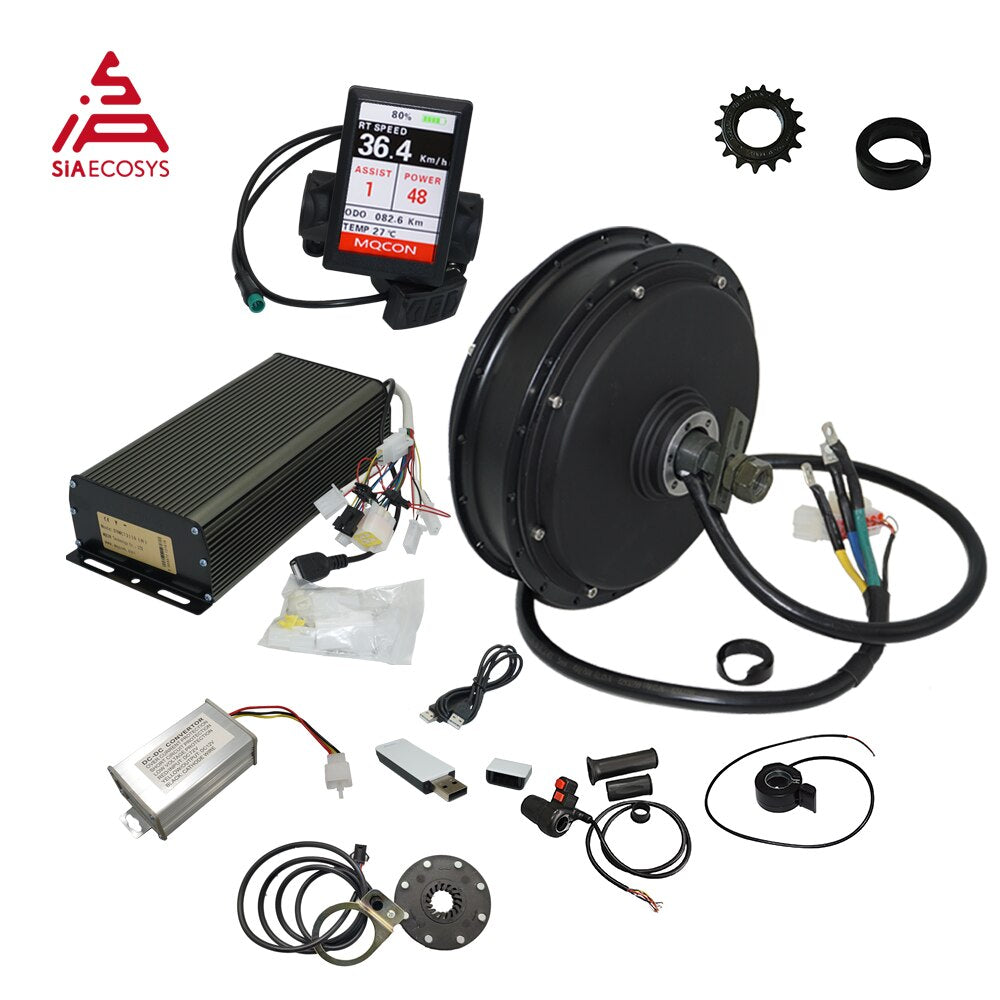

One set including below kits
2. 1pc X Motor Spacer(for free)
3. 1pc X Freewheel
4. 1pc X Sabvoton controller (customized for TFT speedometer) with bluetooth adapter
5. 1pc X H6 speedometer
6. 1pc X Half Twist Throttle
7. 1pc X Thumb Throttle
8. 1pc X DC DC converter 72v to 12V 10A
9. 1pc X PAS
Key Features
1. QS Motor with high quality and service.
2. Sine Wave controller, Bluetooth wireless connection are optional, Highest Reliability!
3. Parameter Programmable
4. Higher Torque & Higher Efficiency
5. No noisy
6. Temperature sensor inside and Lower overheating
7. Regenerative braking
Product Description

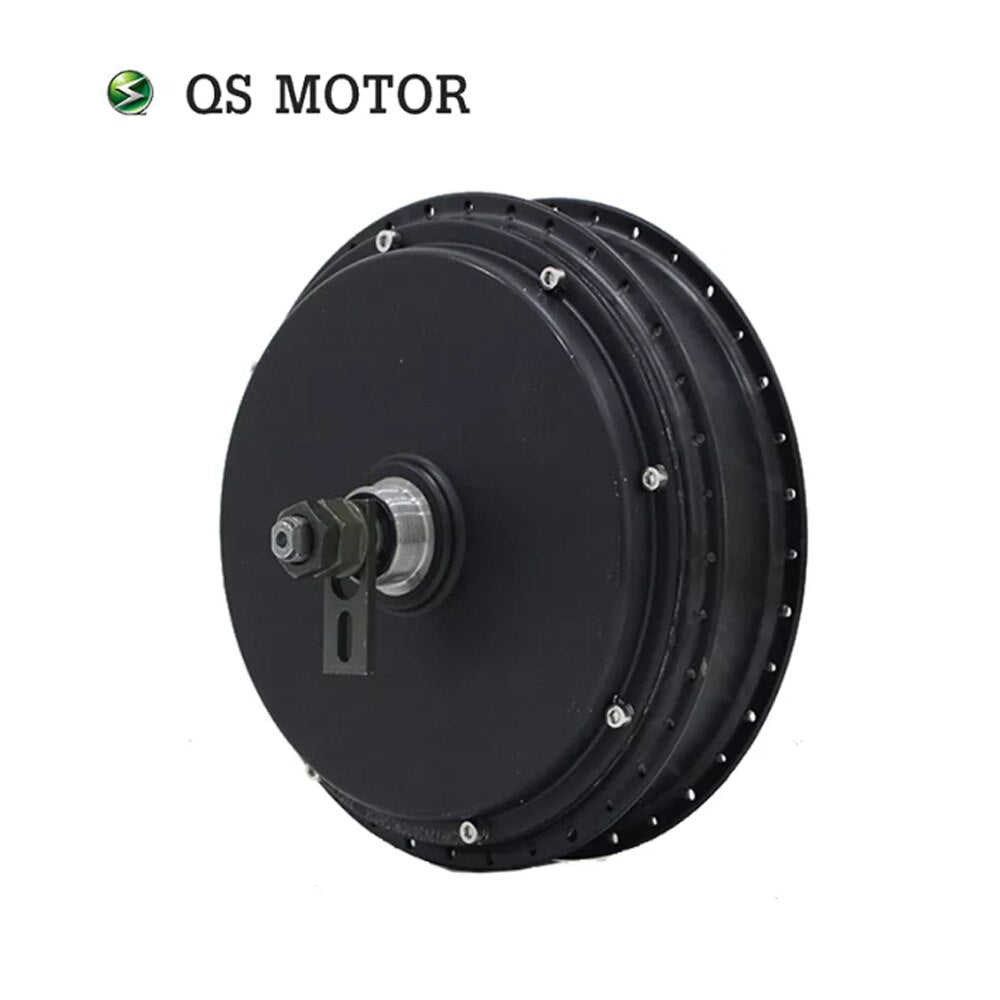

Item 1: QSMOTOR 3000W 205 50H V3 electric spoke hub Motor
Dimension drawing
Power train test Report:
For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.
Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7
Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer
We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.
2. Motor Spacer
To protect motor phase wire
3. Freewheel
1. Single speed 1/2*3/32*16T, only 16T is available now
2. Black
3. English System Thread
4. Suit for QS Spoke Motor (English thread)

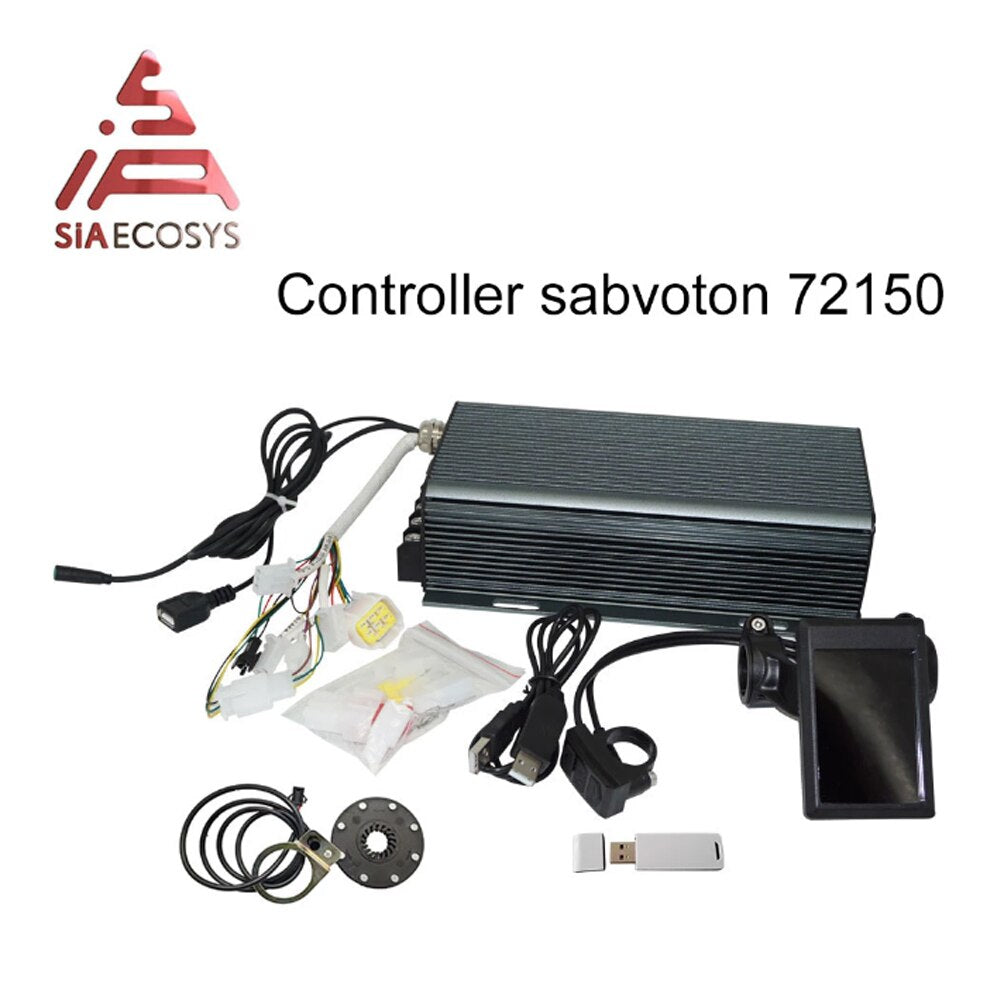

4. Sabvoton 72150 motor controller (customized for H6 speedometer)
1). Sine wave controller, programmable, with regen function
2). DC Current Limit: 150A
3). Max. Phase Current: 350A
4). Protect Phase Current: 450A
5). Battery Voltage: 24V-72V rated, Max. 95V
6). Including one controller
7). Controller size: 247mm*146mm*62mm
8). Net weight: 2kg
9). Default including bluetooth adapter.
10). Default function: Hall, Throttle, Electric brake, High Brake Level, speed switch
11). Special functions: Waterproof
P.S. We provide Sabvoton72150 V2 as default.
5. TFT H6 color speedometer display
· 3.2 inch color TFT screen
· 48V/60V/72V power supply
· Shutdown leakage current <1Ua
· Supply controller terminal operating current 100mA
· Normal operating temperature of the instrument -20~65°C
Display functions:
1. Battery display: 5 segments of power indication, the voltage value of each segment can be set according to customer requirements;
2. Speed mode: real-time speed RT SPEED, maximum speed MAX SPEED, average speed AVG SPEED;
3. Speed display: display range 00.0. ~ 99.9, unit Km / h km per hour, MPH miles per hour;
4. Assist gear position: 0~9 files, of which 0 gear is neutral and no boost, 1~9 corresponds to boost gear, and P is displayed in 6Km push mode;
5. Headlight display: displayed when the headlights are on;
6. motor temperature: monitor motor temperature in real time;
7. Mileage mode: cumulative mileage ODO, single mileage Trip
8. WH.KM: the controller power consumption ,wh/km
9. Motor temperature.
10. Regen Ah:Cumulative Ah while controller in regen mode .
11. Clock: Built-in battery, user set up;
12. Clock: Built-in battery, user set the year, month, day, hour, minute and second.
Display picture

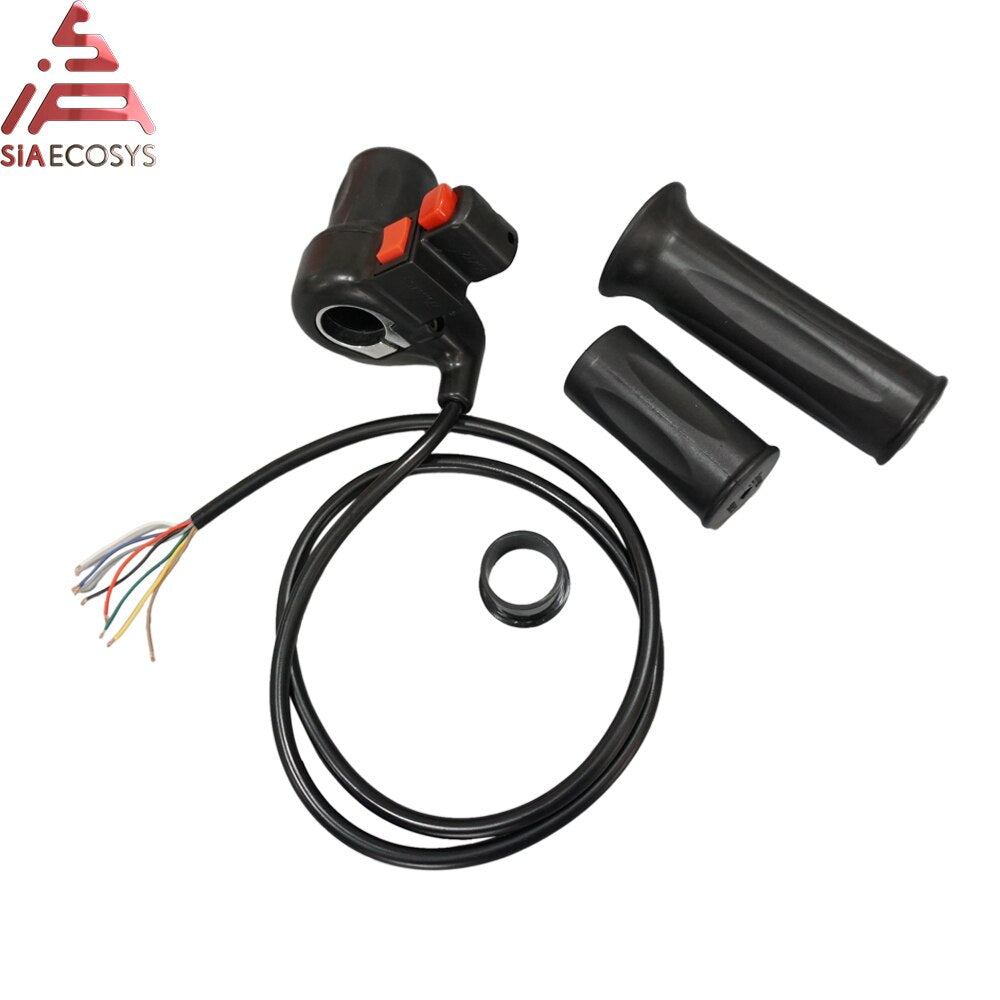

6. Half Twist Throttle with 3 speed toggle switch

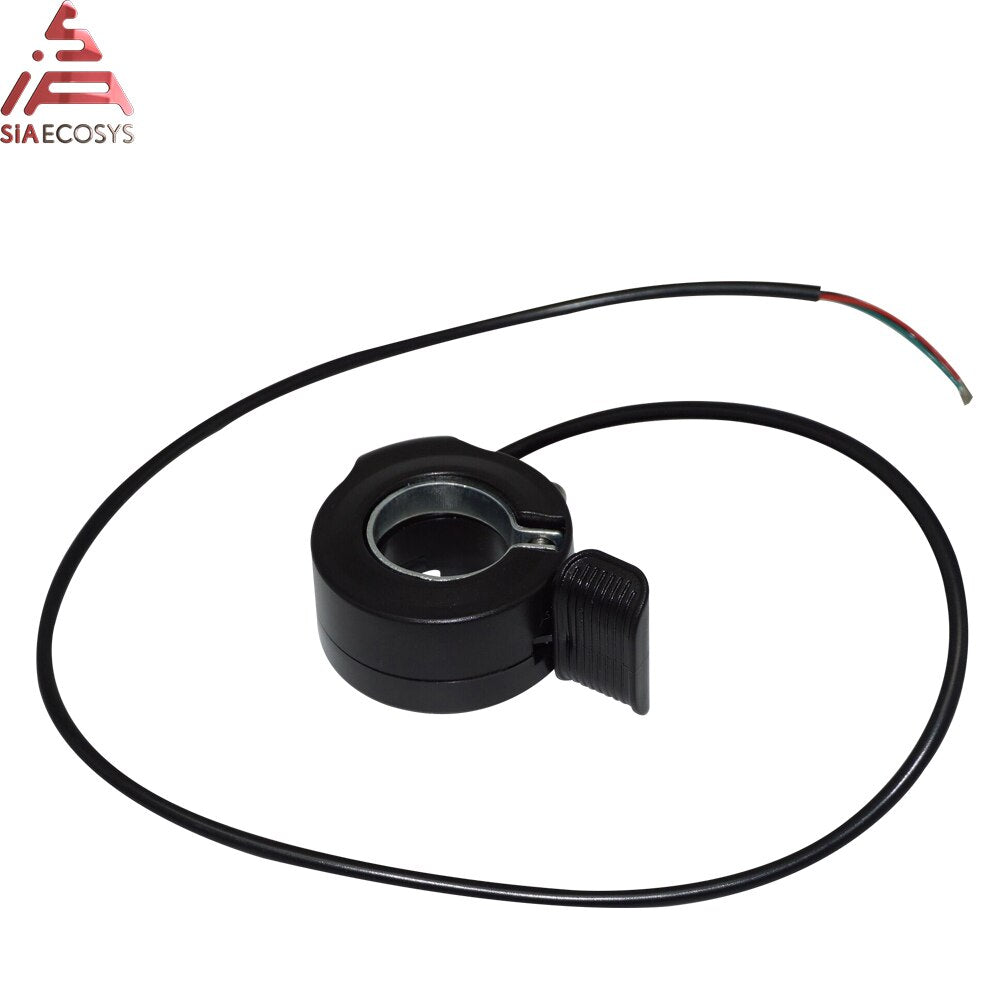

7. Thumb Throttle for 0-5V variable regen brake
It could be mounted in left hand
8. 72V to 12V DC DC Converter
72V to 12V, 10A
9. PAS
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Application for QS 205 3000W 205 V3 electric spoke hub Motor
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
