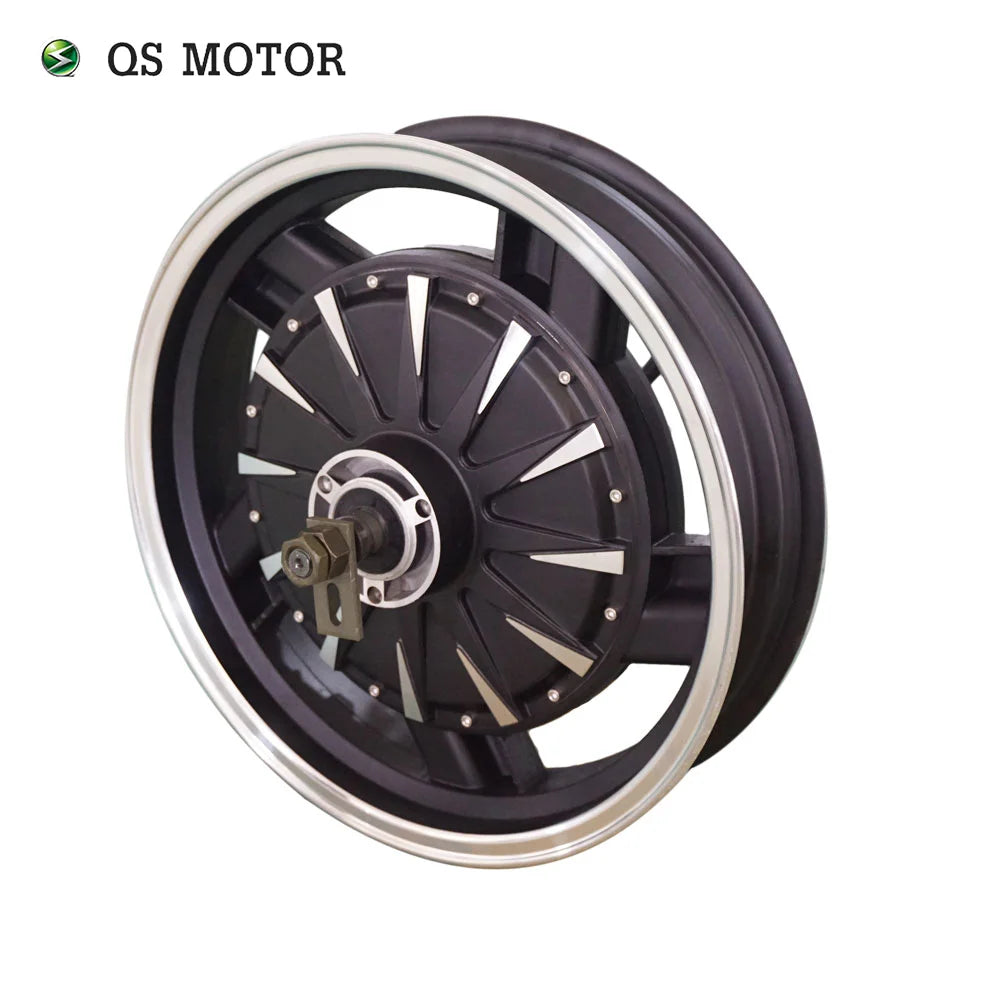

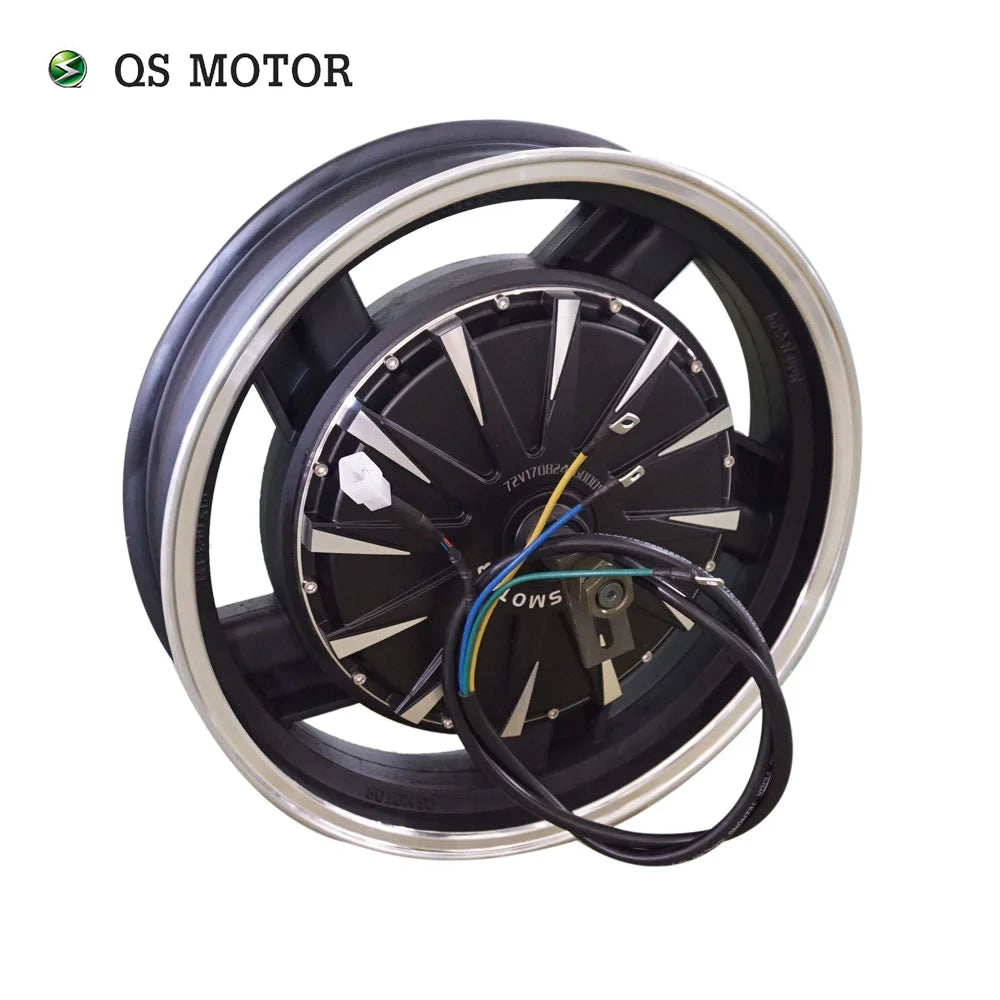

QS Motor 16inch 5000W 260 45H V4 Brushless DC Electric Scooter Motorcycle Hub Motor

QS Motor 16inch 5000W 260 45H V4 Brushless DC Electric Scooter Motorcycle Hub Motor

For 16inch E-Motorcycle wheel hub motor, it could be used electric motorcycle.

It's high cost effective compare to 16inch 273 E-scooter Hub Motor.

260 motor means the diameter of iron ring/hoop of rotor is 260mm, for all 260 motor, e.g. 12inch,13inch & 14inch 260 e-scooter hub motor, etc., the configuration & performance are the same.

There has only one width of wheel:

Narrow Tire 16X3.5inch (as default), max. 5000W 260 45H V4, it's integrated wheel design.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 260 16inch electric scooter wheel hub motor, 48V~96V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Double axle with 16inch moped rim (integrated)

• Rim Size:16x3.5inch(Narrow Tire as default), matched tire: 120/70-16 etc

• Magnet Height: 45mm, 16 pole pairs

• Stator: Aluminum Core

• Rated Power: 5000W

• Speed: 30KPH-90KPH, it's customized, genearlly we will design as 72V85KPH.

• Work voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 261.00N.m

• KV: 7.3/9.2/10.6/11.7/14.4/16.5(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

• Drop-outs: 200mm

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 10mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

Dimension Drawing:

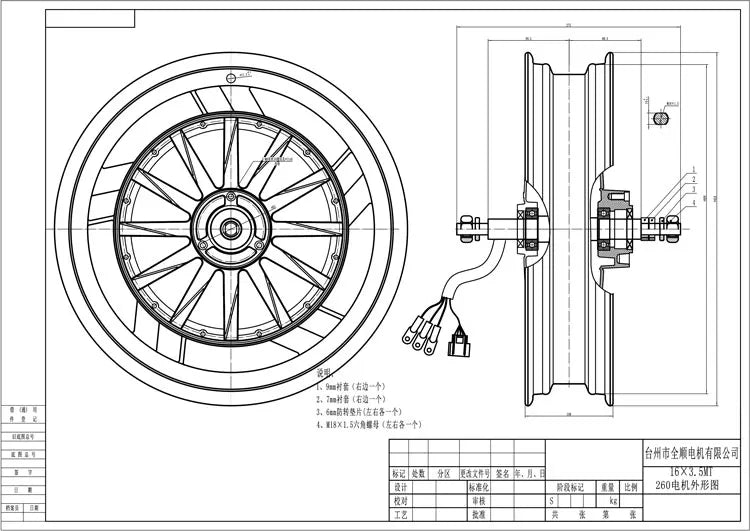

• 16*3.5inch 260 in-wheel hub motor(Integrated)

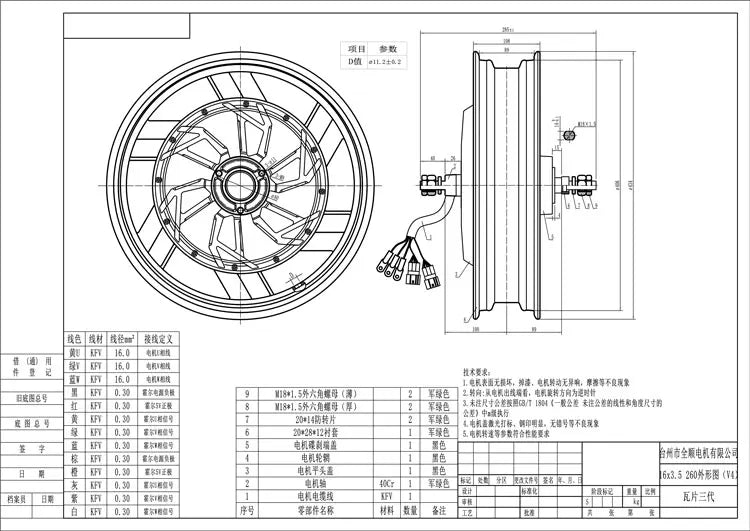

• 16*3.0inch 260 V4 in-wheel hub motor(Integrated)

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 16inch in-wheel hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for 16inch in-wheel hub motor
