QS 72V 5000W 200mm Dropout Ebike Brushless Hub Motor Wheel Max Speed 90-100km/h Motorcycle Wheel Electric Bicycle Motor Wheel
QS 72V 5000W 200mm Dropout Ebike Brushless Hub Motor Wheel Max Speed 90-100km/h Motorcycle Wheel Electric Bicycle Motor Wheel
QS 72V 5000W 200mm Dropout Ebike Brushless Hub Motor Wheel Max Speed 90-100km/h Motorcycle Wheel Electric Bicycle Motor Wheel
Packaging list

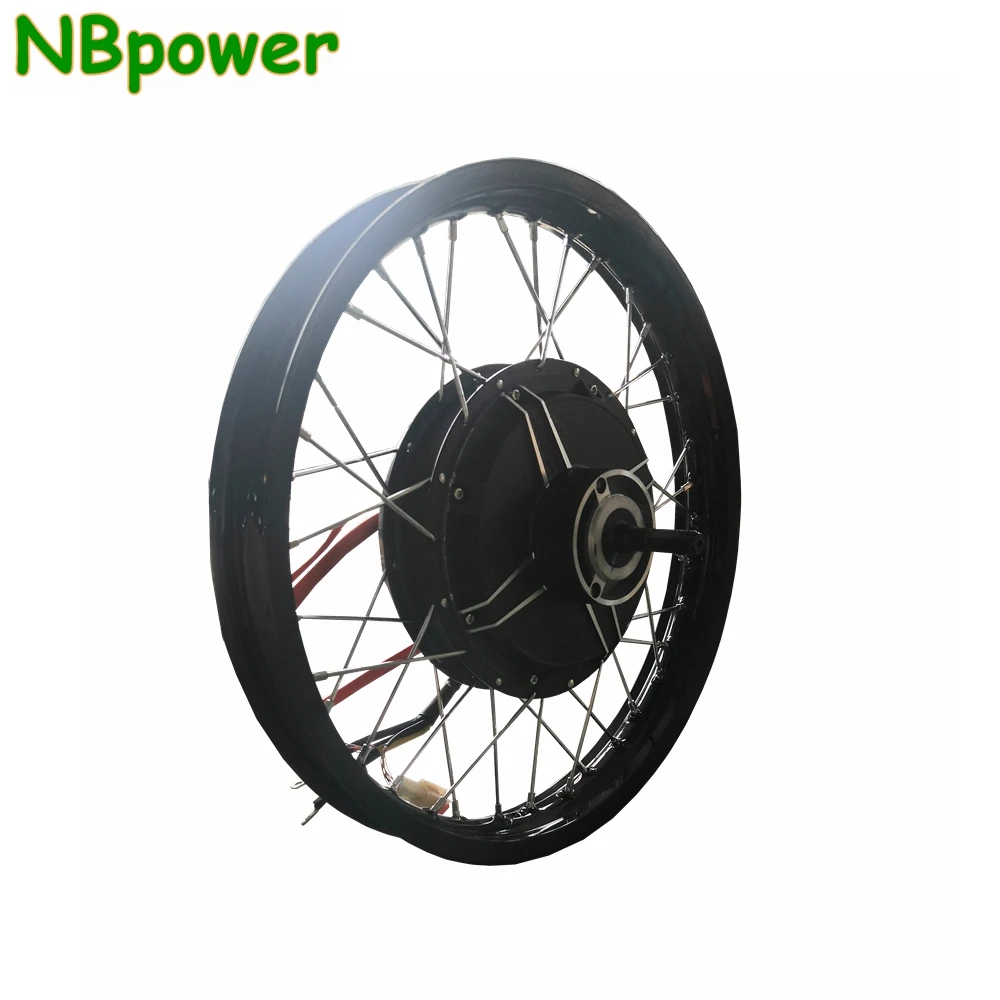

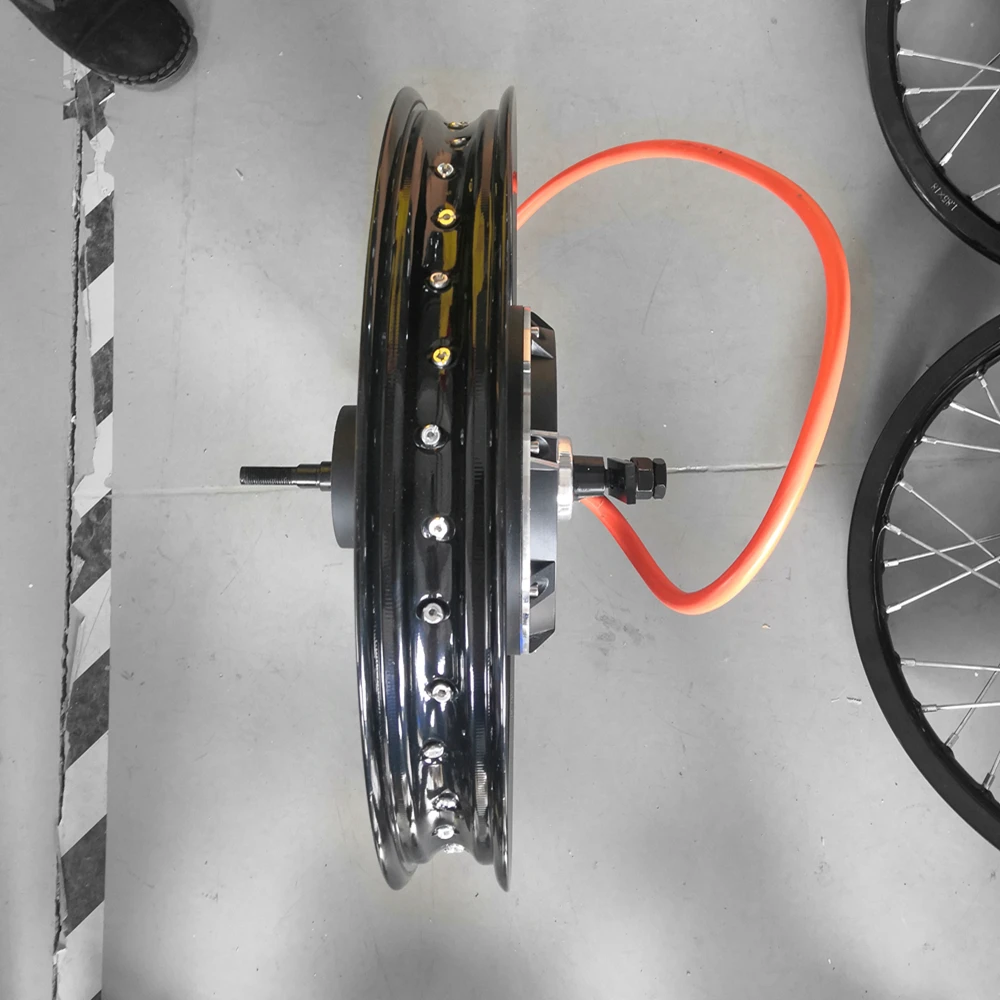

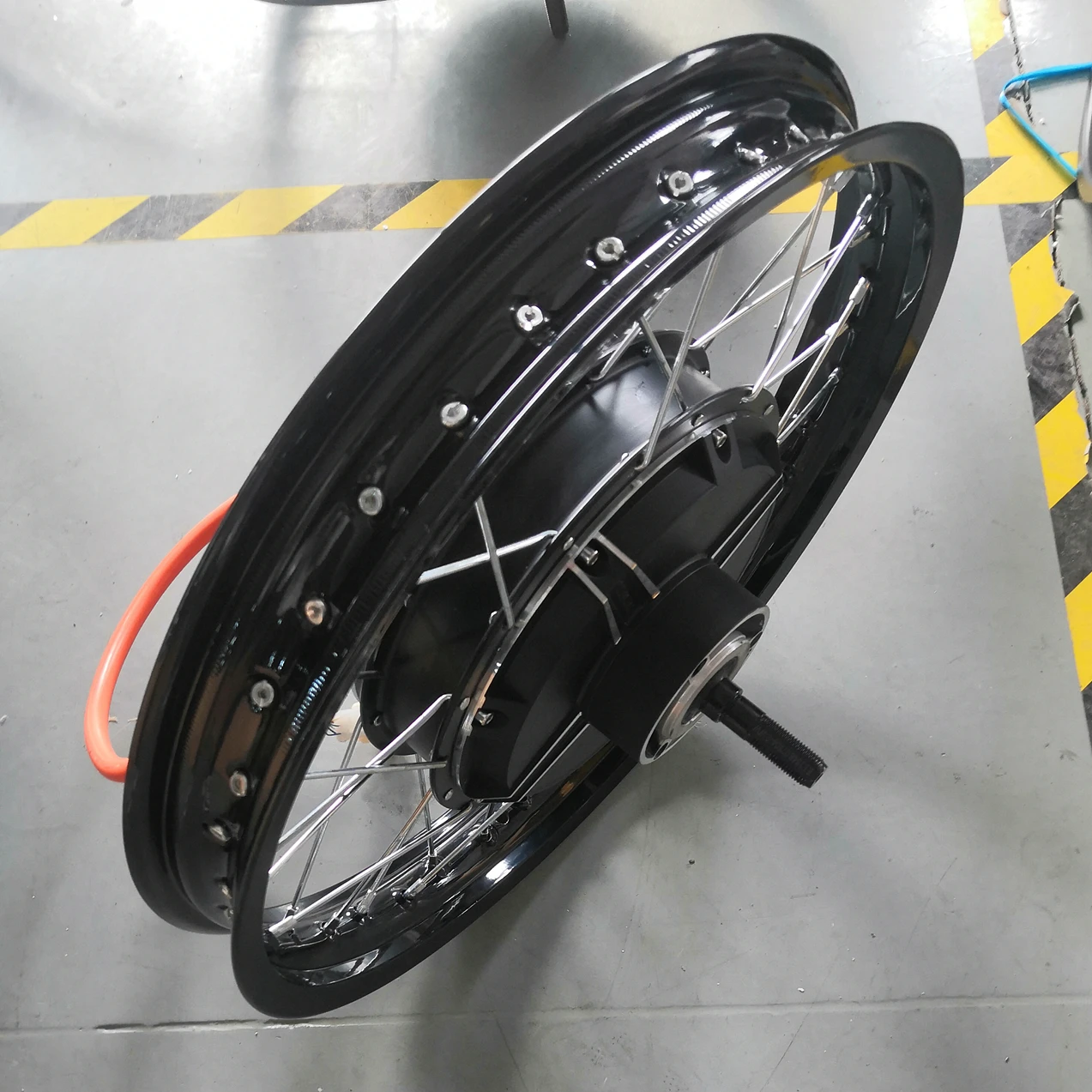

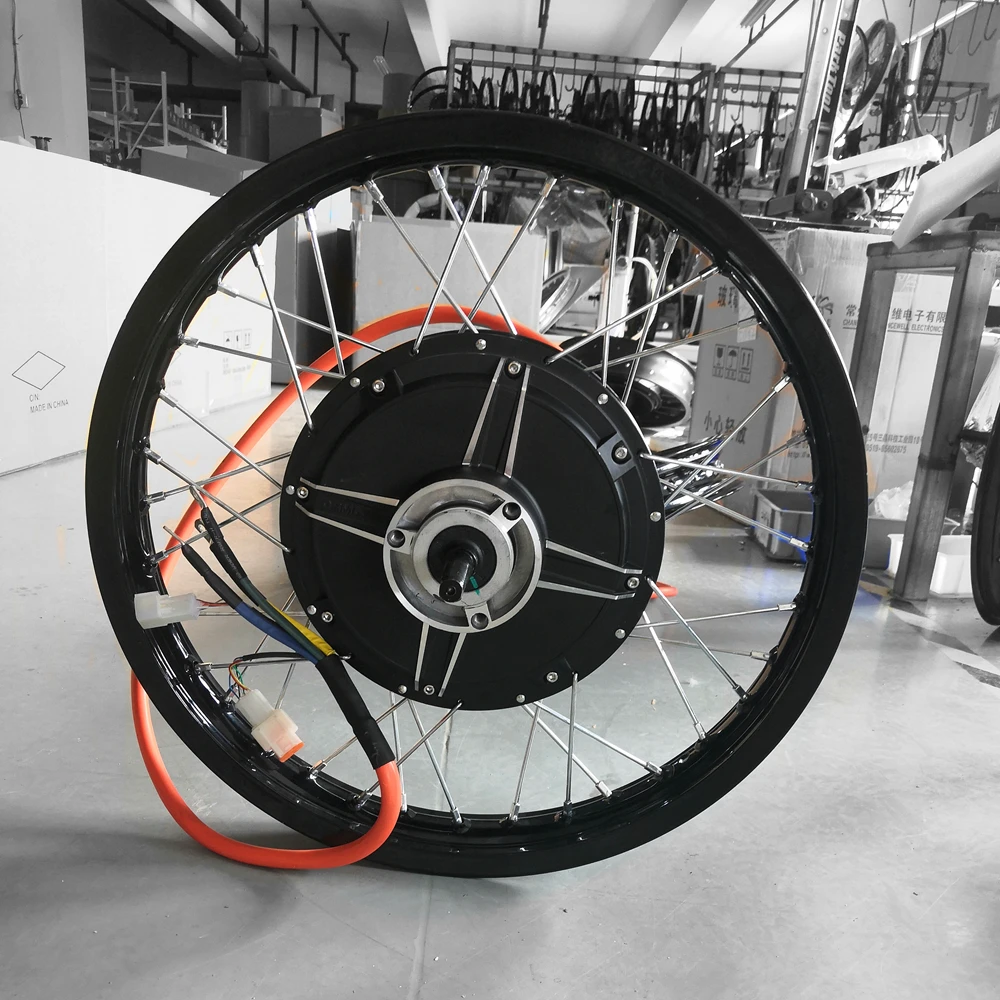

QS 72V 5000W 200mm dropout Electric bike rear hub motor wheel
1. Generally SPEC
Motor Type: In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
Matched Tire: 17/18/19/21inch
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 6000W in few seconds
Rated Voltage: 48-72V
Speed: 960rpm
Drop-outs: 200mm
Max Torque: approx 181N.m
Max Efficiency: approx 91%
Continues Battery Current: 44A(72V)
Peak Battery Current: 100-150A(72V)
Suggest Peak Phase Current: N/A
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Hall Sensor: Dual hall set with waterproof connector
Phase Wire:2*5mm²Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
