QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake

Sale price $2,987.68 Regular price $3,052.68

QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake

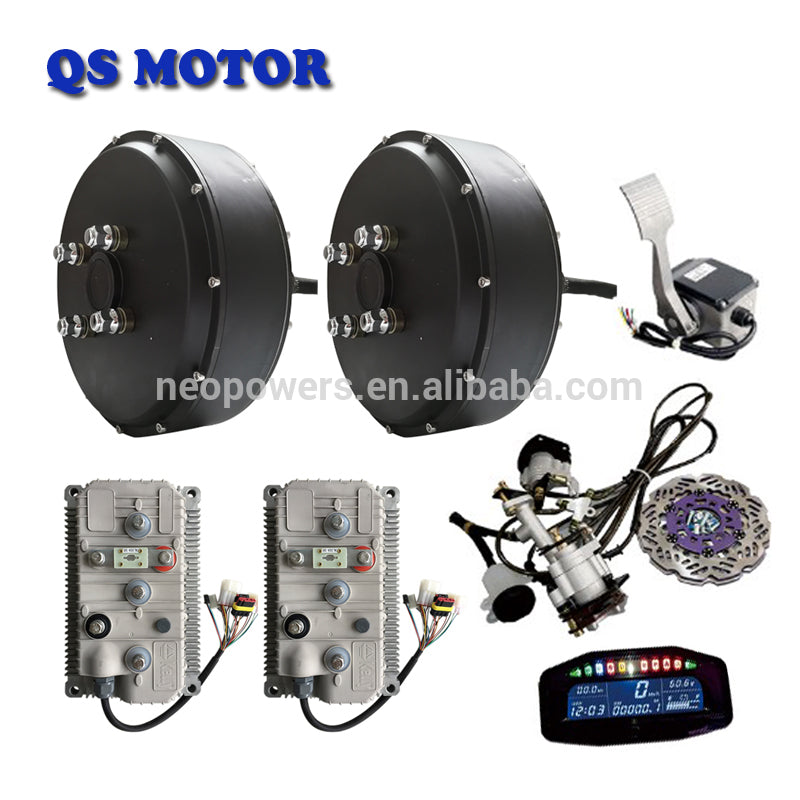

The parts list as follows,



2 pcs x 260 5000W E-Car Hub Motor
2 pcs x KLS7275H Controller
1 pcs x Throttle Pedal
1 pc  x  Speedometer
1 set x 1 tow 2 Hydraulic Disc brake system





1. QS Motor 260 Model 5000W 60V/72V Single Shaft Car Hub Motor

QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake

260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.



1.      Motor Type: BLDC Hub Motor with Permanent Magnets
2.      Motor design: 260 Single shaft out
3.      Bolts Pattern: 4 x 100MM
4.      Magnet: 45H Curved Magnets with SH(340Degree) Lever
5.      Pole Pairs: 16 Pairs
6.      Rated Power: 5000W
7.      Peak Power: 10000W
8.      Rated Voltage: 72V( 60V-96V Can be optional)
9.      Max No-load RPM: 1320RPM
10.  Max Torque: 230N.M
11.  Max Efficiency: 90%
12.  Brake type: Disc brake
13.  Winding Core material: Aluimium
14.  Cross Section of Phase wire: 16mm2
15.  Hall sensor phasing angle: 120 degree
16.  Temperature Sensor: Optional
17.  Max. Working Temperature: 70 degree, Peak 120 degree
18.  Waterproof Grade: IP54
19.  N.W./ G..W. : 18kgs / 20kgs
20.  Package Size: 44*43*41CM

QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake


2. Programmable Sine Wave Controller Kelly KLS7275H with Brake Regenerative Function

Key Features:

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Quality Guarantee(generally no after-sale issue)

4). Programmable

5). For KLS-H models, default including fuse, IP67 waterproof grade, good heat dispersion.



Generally SPEC

1. Sine wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds:500A

3. Motor Current Limit, continuous:200A

4. Battery Voltage: 24V-72V rated, max. 90V

5. Thermic Probe: KTY83-122

6. Including one controller + USB convertor cable + matched plug

7. Controller size: 288mm*185mm*94.8mm

8. Net weight: 5kg

9. Waterproof IP67

10. Default not including bluetooth; CAN BUS are optional.



QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake









3. 0-5V Electric Car Throttle Pedal



Throttle Pedal Hall type : JKH model (match with our motor & controller)

Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V

Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V

Deafult: 5v input voltage (depends on controller design, for our matched controllers, you can choose 5v input voltage), 0-5v output voltage.

QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake









 4. 48-100V Programmable Electric Car Speedometer



Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

 QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake







5. Disc Brake Assembly for Electric Car 1 tow 2



a left caliper and a right caliper
hydraulic service brake on foot (optional by hand)
hoses 240cm + 2 x 80cm
T-shape hose connector
parking brake cable 42cm + 2 x 140cm (optional)
220mm disc brake plate and screws (180mm optional)



QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake

QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake


The QS 260 5000W 72V Electric Car Hub Motor Conversion Kit, 10kw Car Hub Motor and Kelly Controller KLS7275H with Regenerative Brake is the yin, to your yang. You've found what you're looking for.
