QS138 3000W V3 5500W Max continuous 72V 110kmh 115 KPH IPM with 1:2.35 gear box Mid drive Motor conversion kit with Fardriver ND72530 Controller
Q: How about the Duty & Tax ?
A: "seller's shipping method" is DDP, the buyer don't have to pay tax and duty. (except for Australia)
The relevant tax and duty need to be paid by the buyer if choose FEDEX or UPS shipping. We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing. (If EU buyer want tax free air shipping, please contact us to confirm)
Q: How long is the delivery time ?
A: "seller's shipping method" is about 1.5month.
UPS or Fedex about7-10working days. But if no stock(the stock on this page is not exact), preparing time is about 1-2weeks.
For138 motor powertrain kits, it could be used for electriclight motorcycle, which could be 72V100KPH.
e.g. Dirt bike
E-motorcycle weight, approx 128kg+2*80kg
Speed: continuous 100km/h
Gear ratio: 1:3 (single steps transmission )
Climbing slope: 25°@5kph @208kg
One set including below kits
1.1pc X QS 138-c 3kW Mid drive motor with 14T 428 sprocket adapter
2.1pcs X ND72530 sine wave motor controller
3.1pcs X DKD LCD speedometer
4.1pcs X Z6 throttle with combination switch
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description

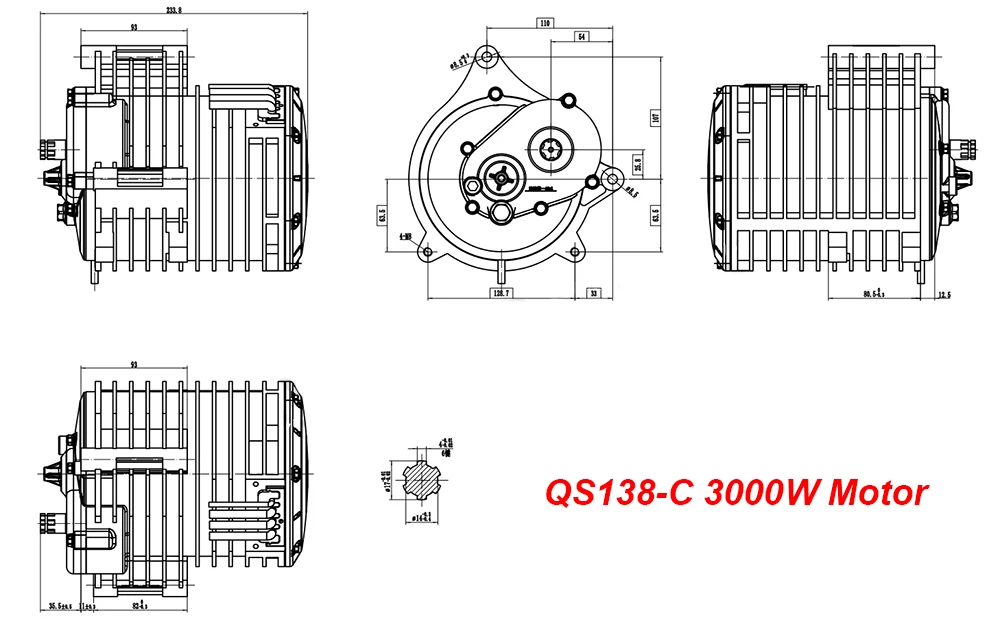

1.QSMOTOR 138 3000W Mid drive motor with 14T 428 sprocket adapter

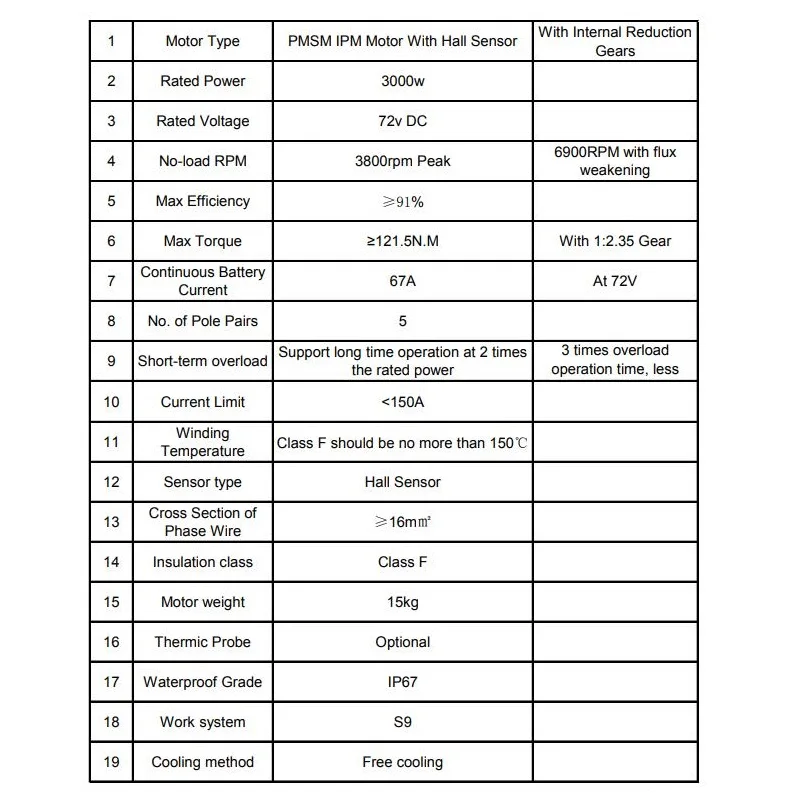

Test report

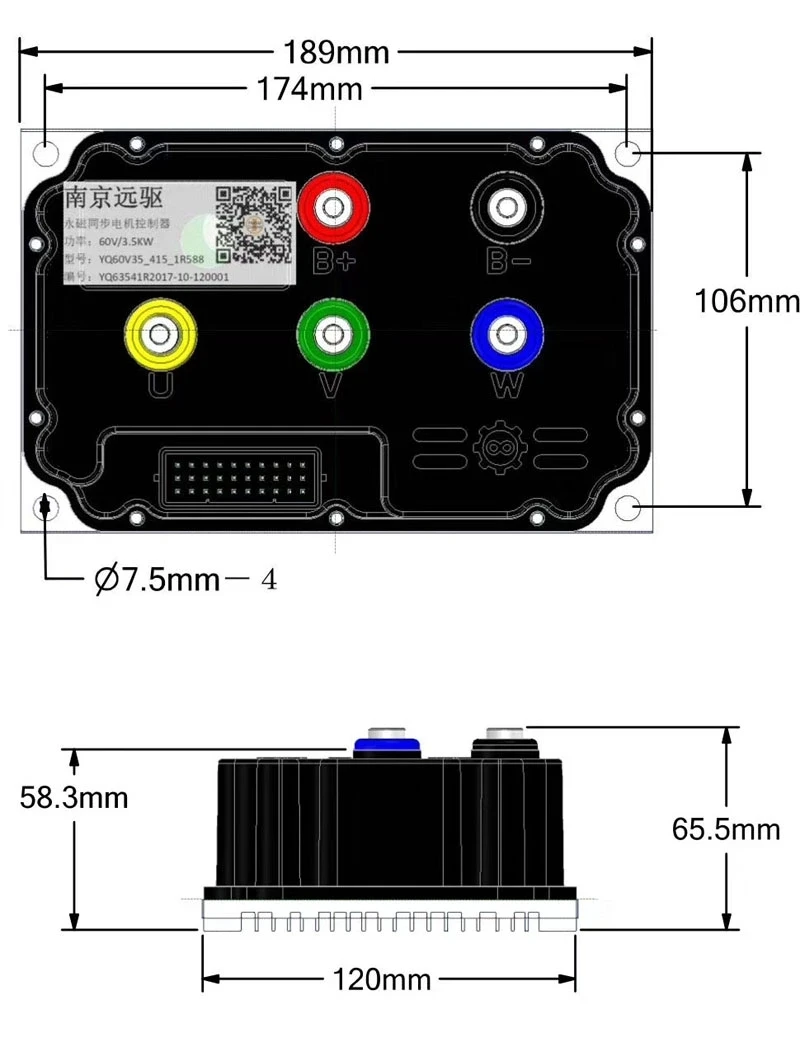

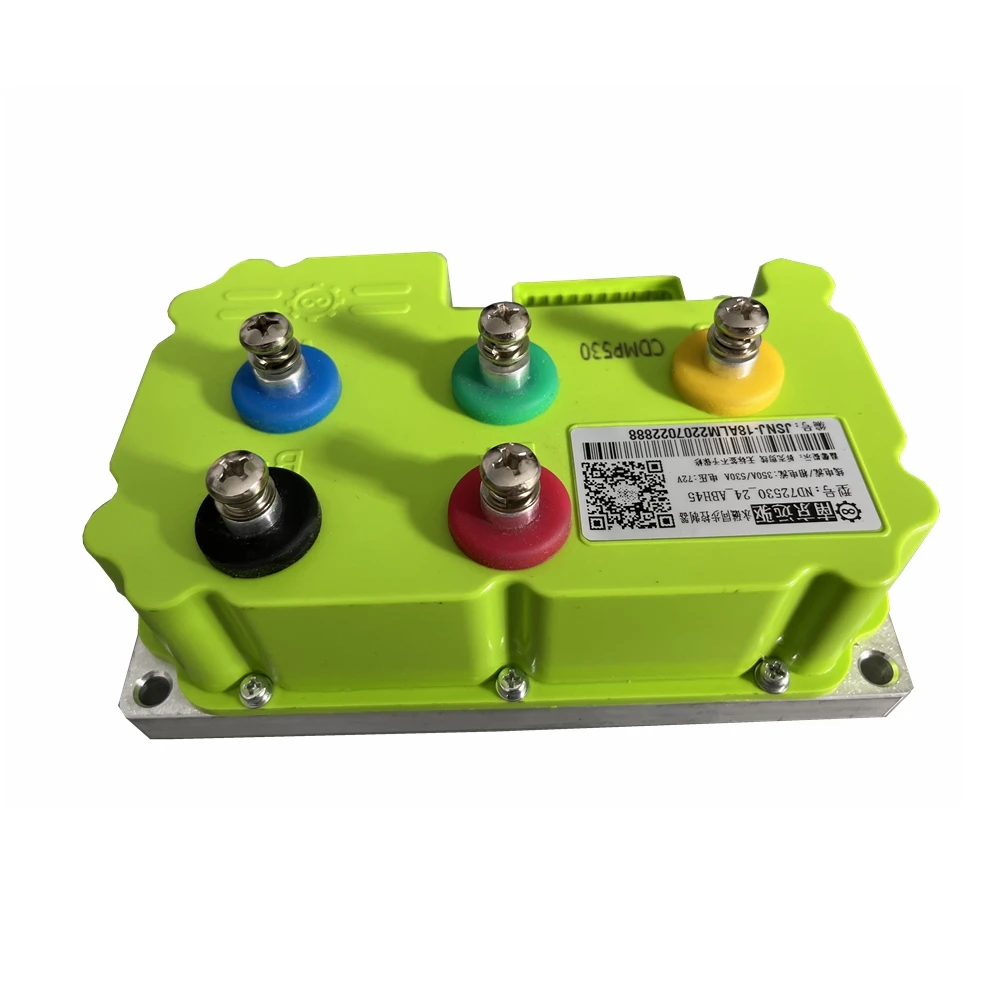

2ND72530 controller

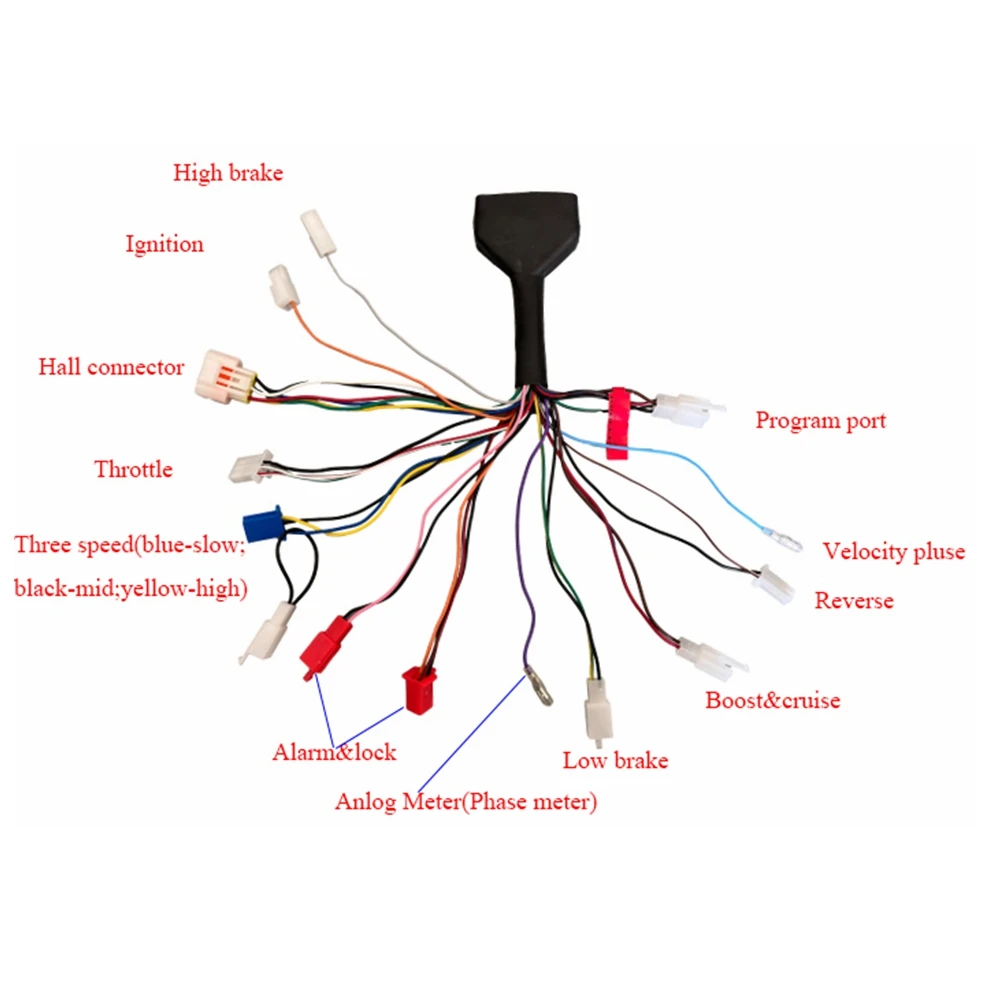

Controller Wiring Definition
1.Model: ND72530
2.Working Communication: Hall Sensor
3.Available Rated Battery Voltage: 72V
4.Peak Battery Voltage: 88V
5.Available Motor Power: 4000W - 7000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 330A for 72V
8.Peak Phase Current: 530A
9.Mosfets Detail: 24 FET
10.Weight: 2.5kgs
11.Instaliing Size: 189mm * 121mm * 65mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.Support Programmable: PC & Phone
15.Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

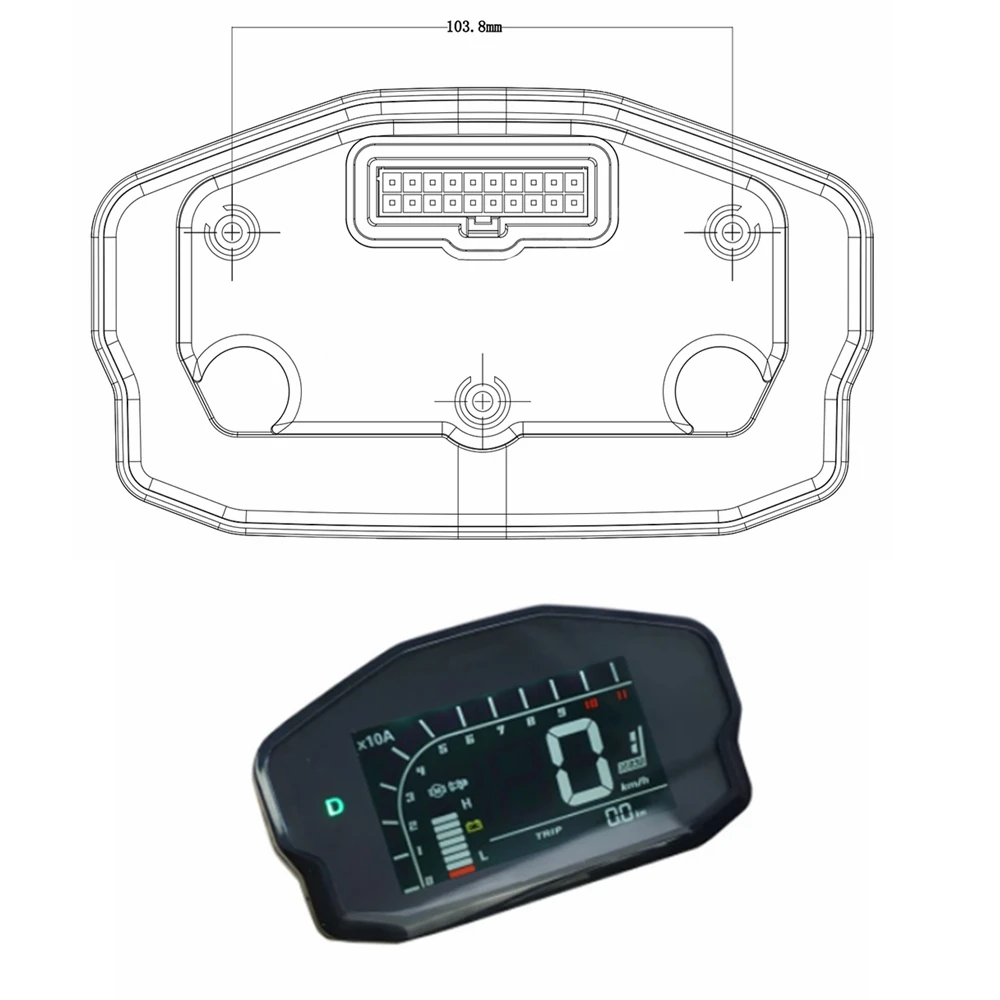

3.DKD LCD speedometer
4.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
Inventory Last Updated: Nov 29, 2024
