QS 12inch Most Powerful 12000W 260 70H V4 96V 120KMPH Electric Motor with APT96800 Kits for High Power Electric Scooter

$2,068.00


QS 12inch Most Powerful 12000W 260 70H V4 96V 120KMPH Electric Motor Kits for High Power Electric Scooter

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

It's QS electric In-Wheel Scooter Hub kits, suit for electric scooter 96V 120km/h, rear tire size 130/70-12.

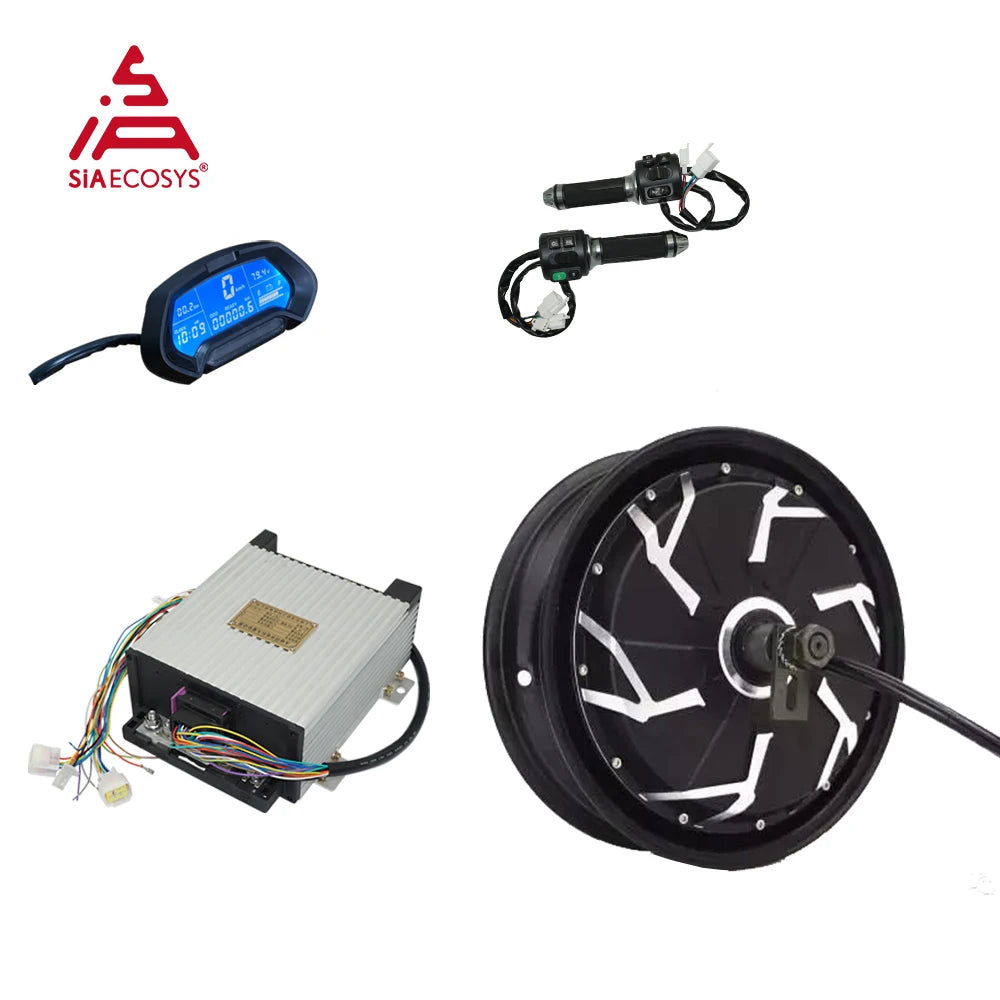

One set including below kits


1. 1pcs X QS 12*3.5inch 12000W V4 BLDC E-Scooter In-Wheel Hub Motor

2. 1pcs X APT96800 sine wave controller

3. 1pcs X CT-22 Display

4. 1pcs X Z6 throttle



Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%


Product description

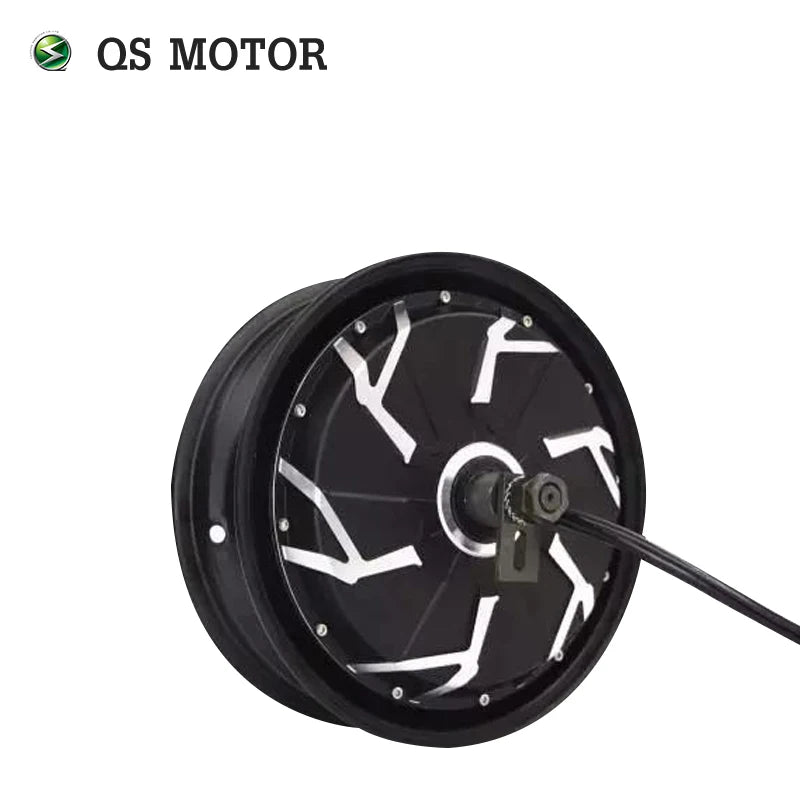

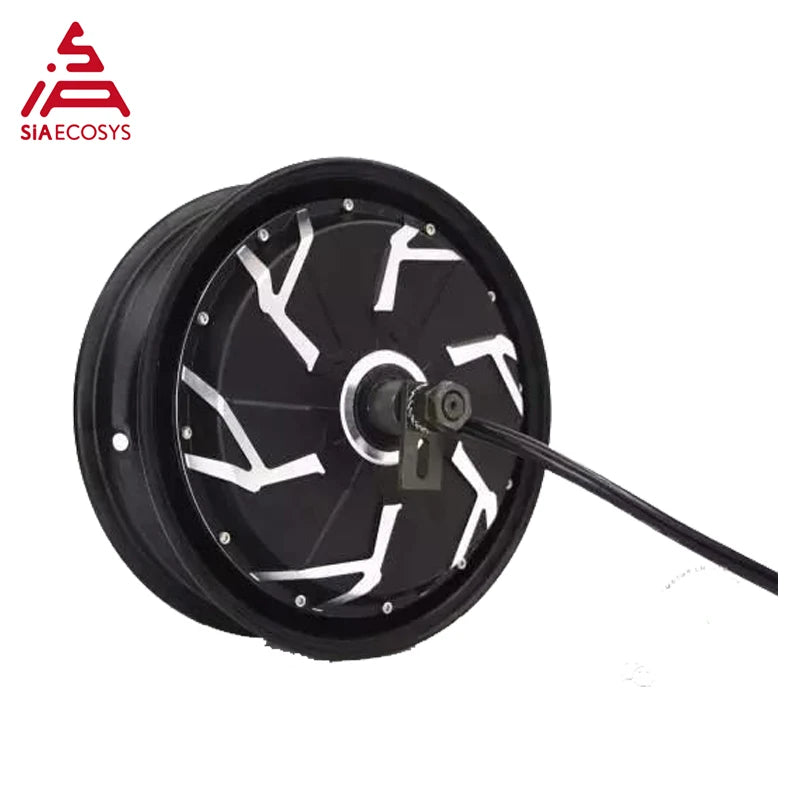

1. QS 12*3.5inch 12000W V4 BLDC E-Scooter In-Wheel Hub Motor

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

  • Brand: QS Motor, QSMOTOR

  • Motor Design: Double axle with 12inch moped rim (integrated)

  • Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/70-12 etc

  • Magnet Height: 70mm, 16 pole pairs

  • Stator: Aluminum Core

  • Rated Power: 12000W

  • Speed: 96V120KPH/72V100KPH

  • Work voltage range: 48V-96V, will be 96V as default.

  • Max Torque approx: Bigger than 224.0N.m

  • KV: 96V@1390RPM

  • Thermic Probe: KTY83-122 (as default, optional)

  • Max Efficiency: approx 88%

  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

  • Drop-outs: 220mm

  • Dual Halls with waterproof connectos(One for spare, in case of damage)

  • 25mm² Phase Wire

  • Waterproof Grade: IP54

  • Color: Black (As default)


Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

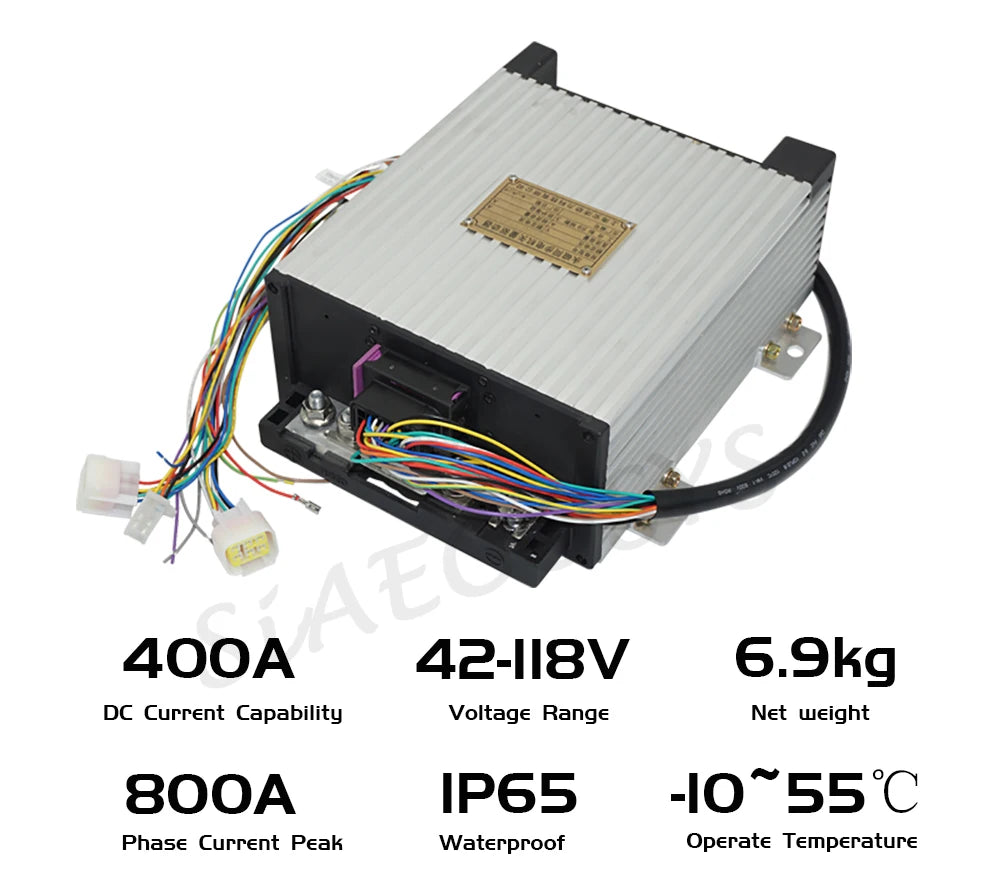

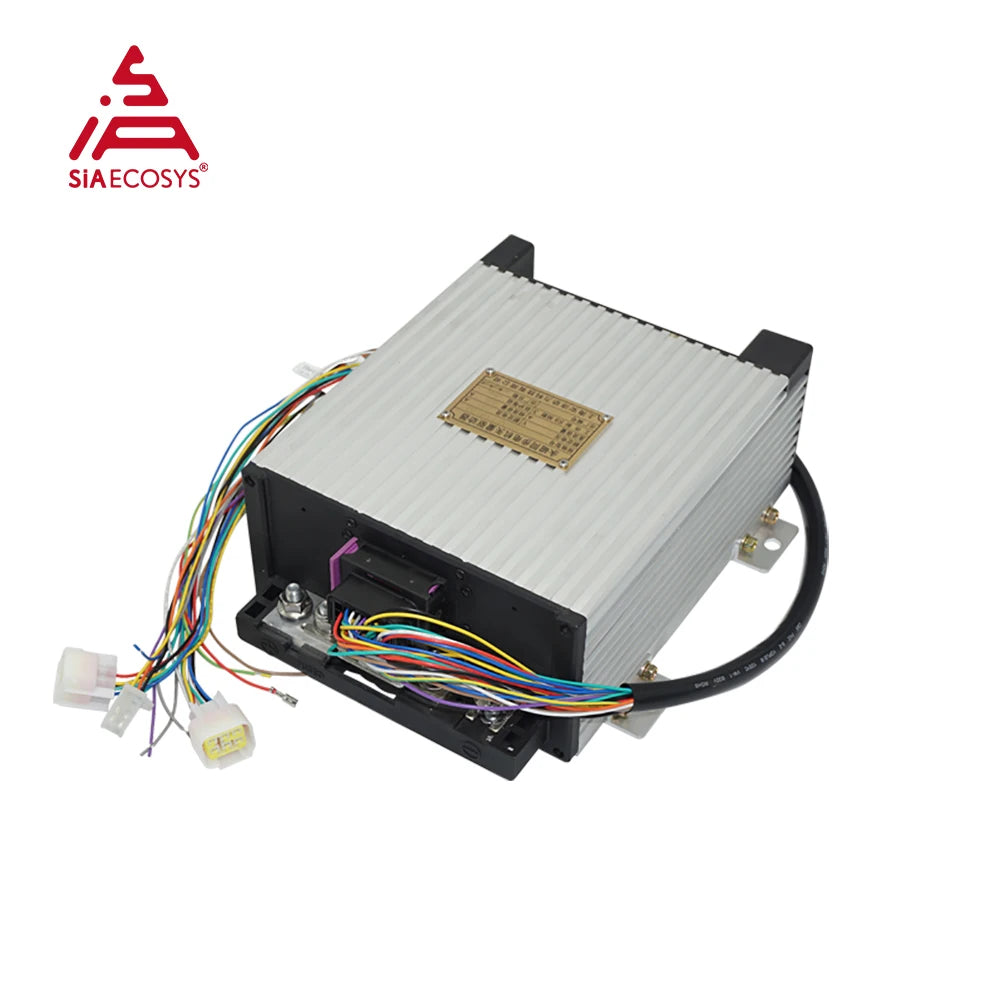

2.SIAPT96800 96V Sinusoidal Wave BLDC Motor Controller

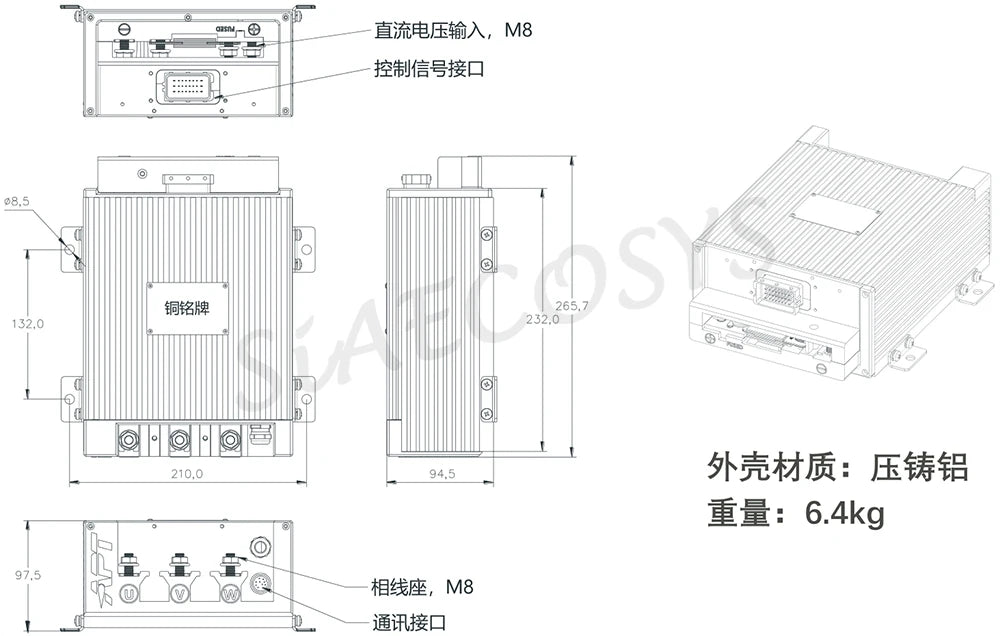

Drawing

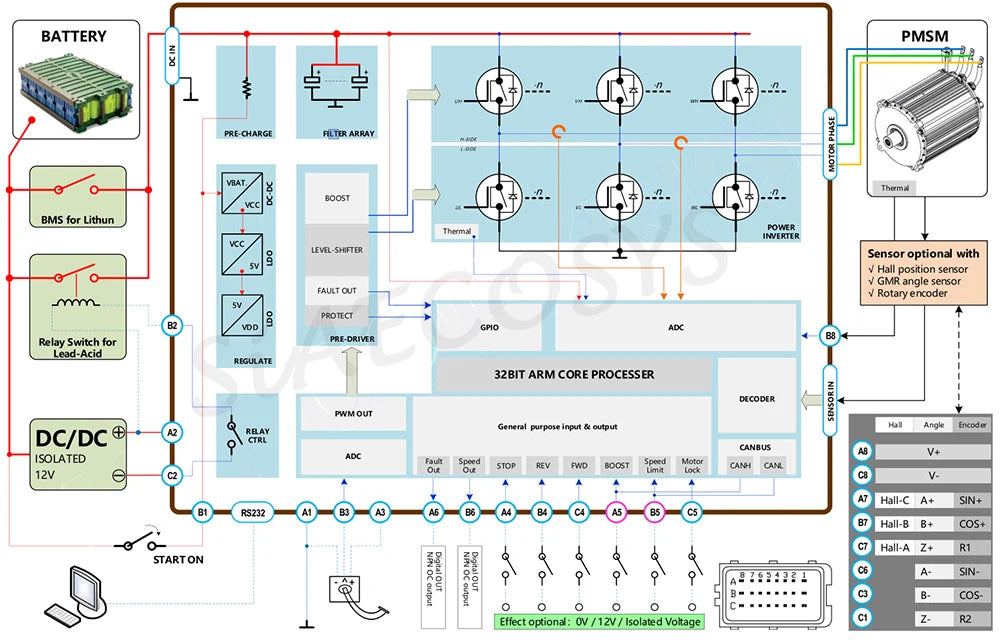

Wiring Diagram

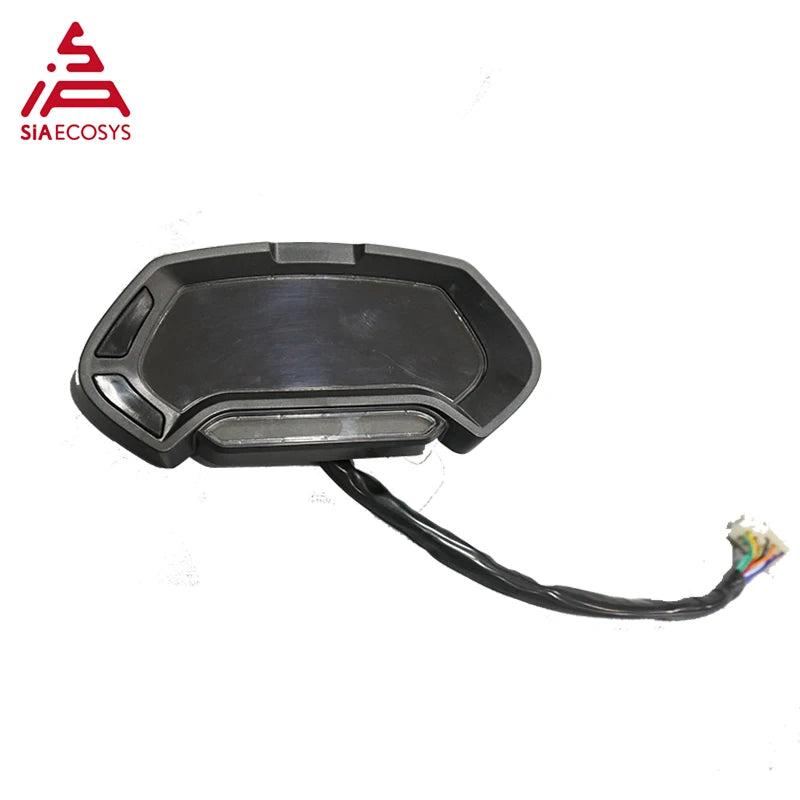

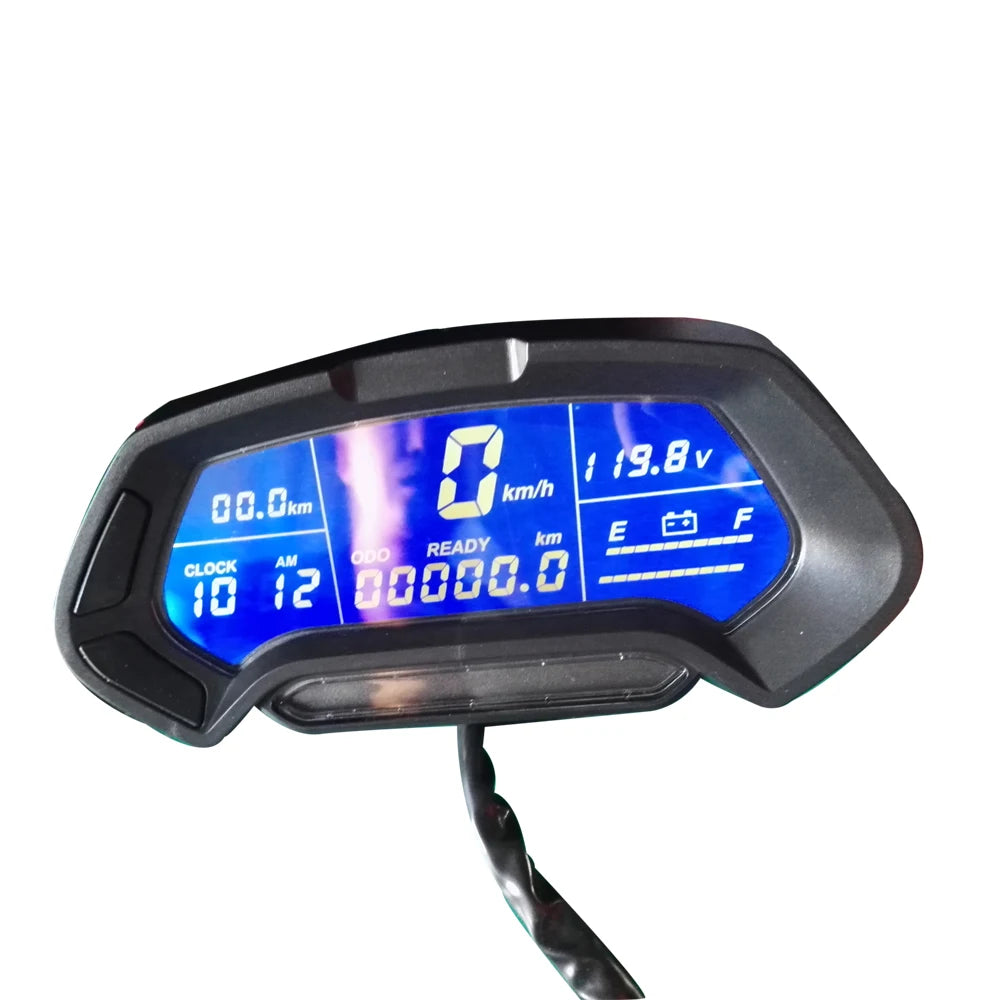

3.CT22 Display

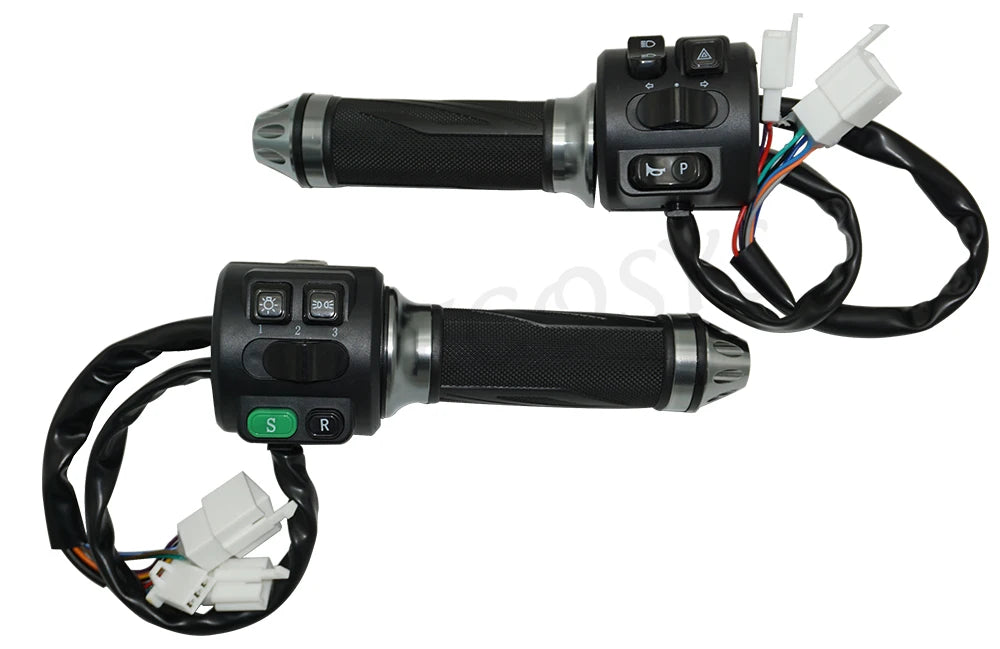

4. Z6 Switch Combination Full Twist Throttle

The controllersupport1,2,3 mode and R mode.

However,does notsupportSportandParkingfunctionsdue to the controller has no function port, so the two buttonson throttlecan not be used.



Application for 12inch E-Scooter in-wheel hub motor







Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the QS 12inch Most Powerful 12000W 260 70H V4 96V 120KMPH Electric Motor with APT96800 Kits for High Power Electric Scooter.
