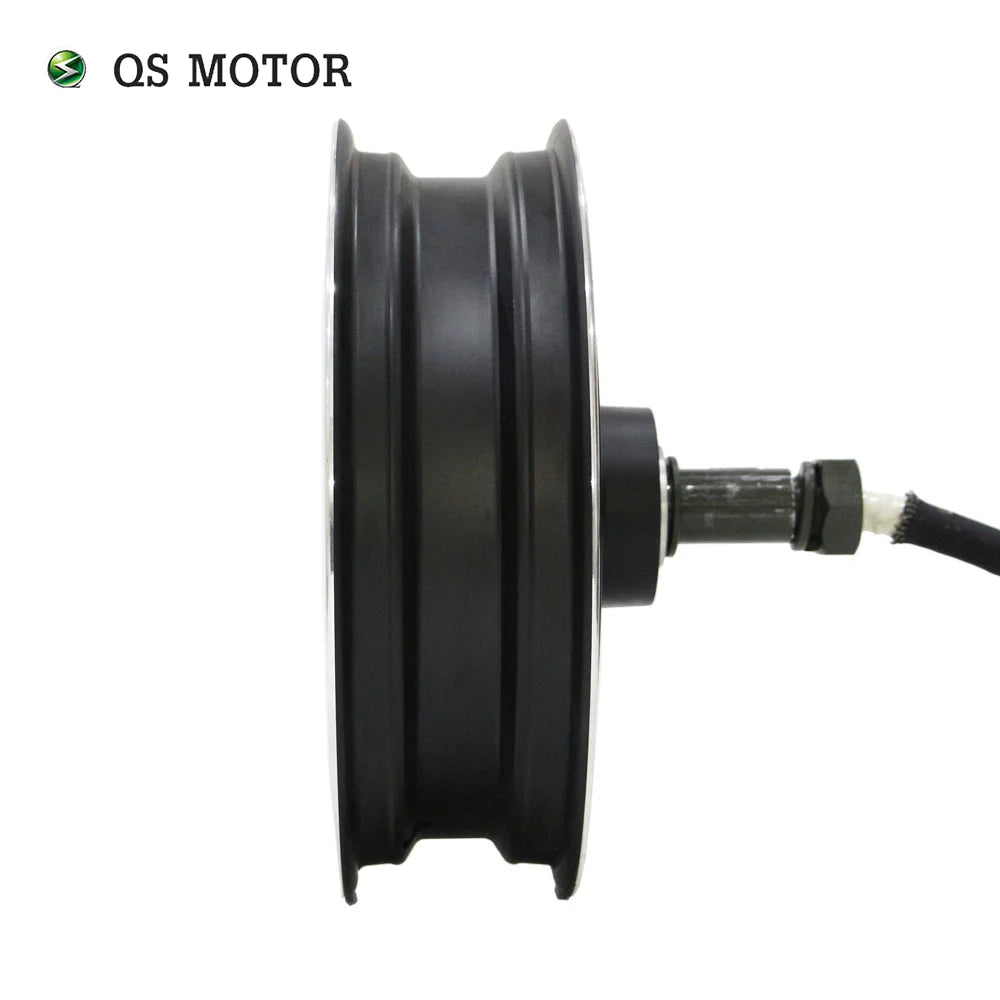

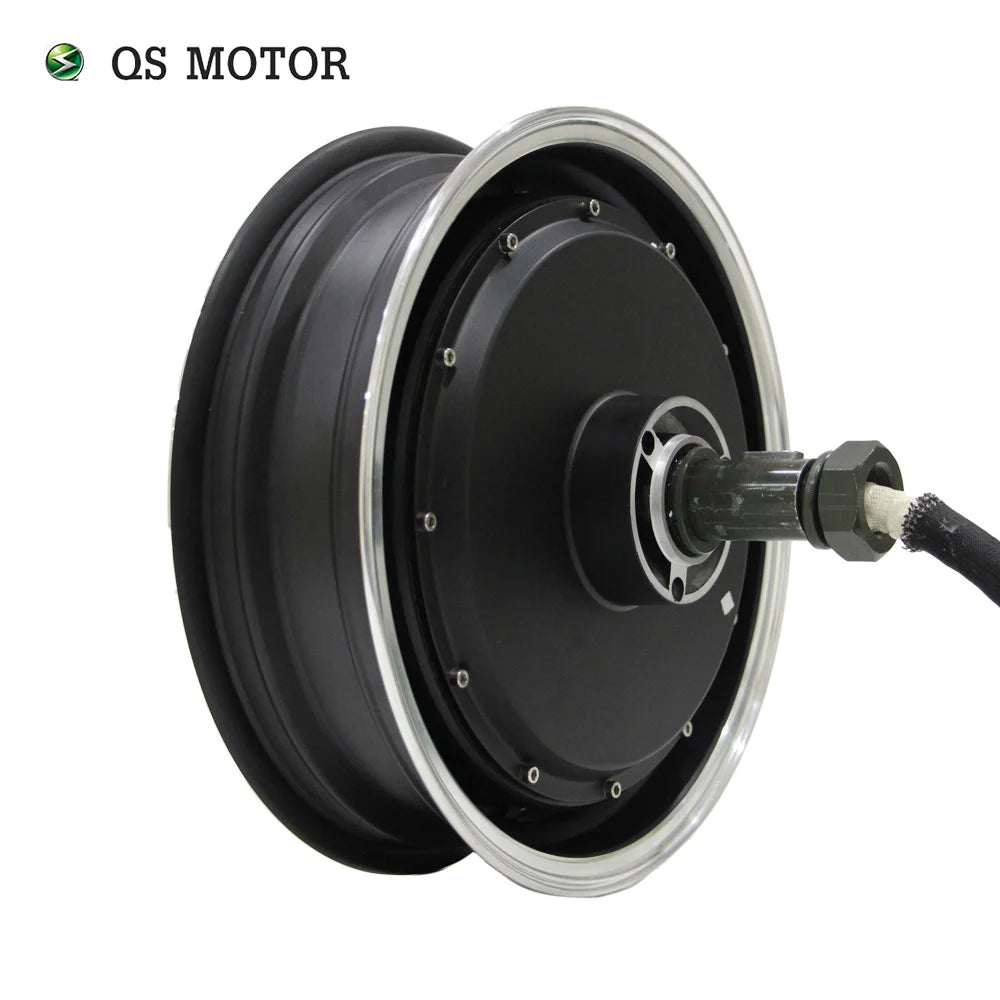

QS 12inch 1500W 260 V1 BLDC Electric Scooter Single Shaft In-Wheel Hub Motor for low speed

QS 12inch 1500W 260 V1 BLDC Electric Scooter Single Shaft In-Wheel Hub Motor for low speed

(special countries list contact seller)

For 12inch detachable electric single shaft wheel hub motor, it could be used for electric scooter, electric motorcycle, electric tricycle.

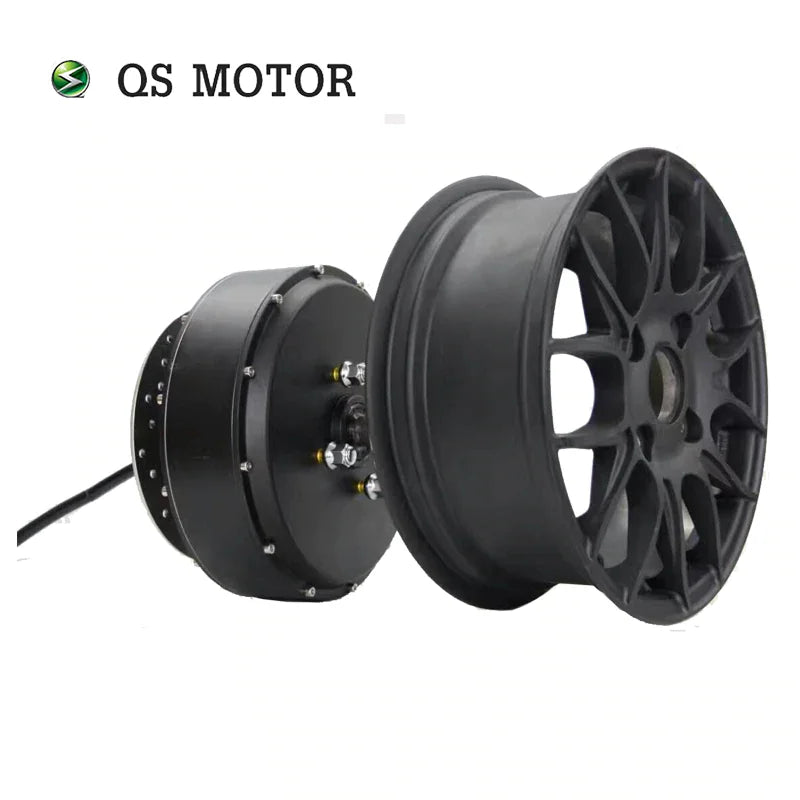

Option 2: 12*5.0inch width wheel rim, detachable design.

Option 3: 12*2.15inch width wheel rim, integrated design

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

PS.1). Above quotation base on 260 12inch electric single shaft hub motor, 48V~96V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.

Product description

1. Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor, QSMOTOR

• Motor Design: Single axle with 12inch moped rim (integrated)

• Rim Size:12x3.5inch(Narrow Tire as default), matched tire:130/90-12 etc

• Magnet Height: 30mm, 28 pole pairs

• Stator: Steel Core

• Rated Power: 1500W

• Speed: 30KPH-55KPH, it's customized, genearlly we will design as 72V45KPH.

• Work voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 150.0N.m

• KV: 7.92/9.38/11.46(Optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58m

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 6mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

2. Dimension Drawing:

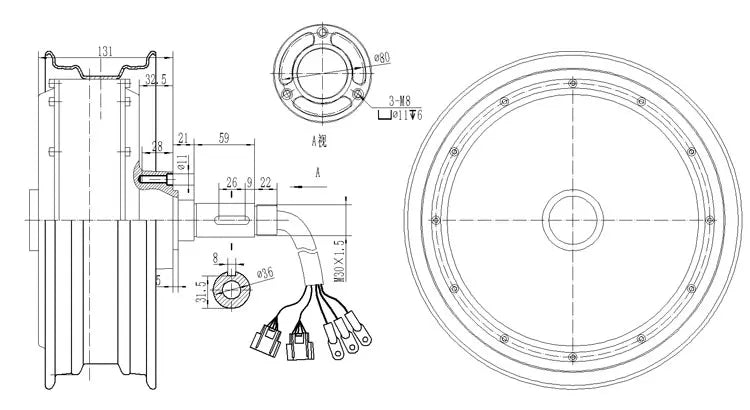

• 1. 12*3.5inch in-wheel hub motor:

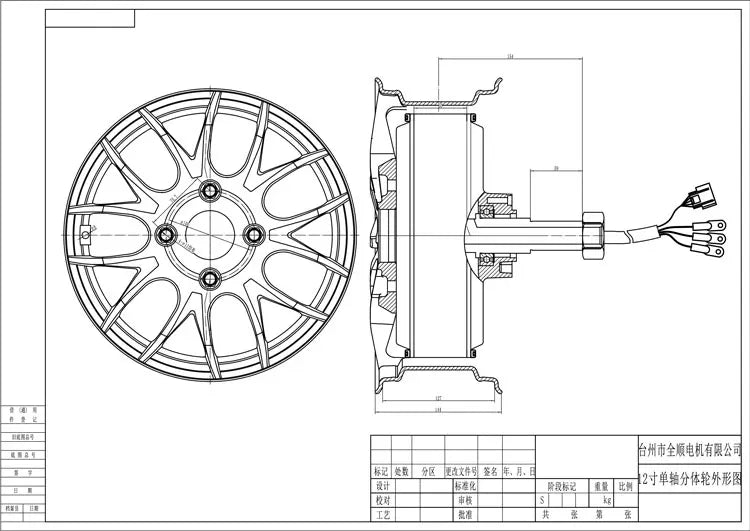

• 2. 12*5.0inch in-wheel hub motor

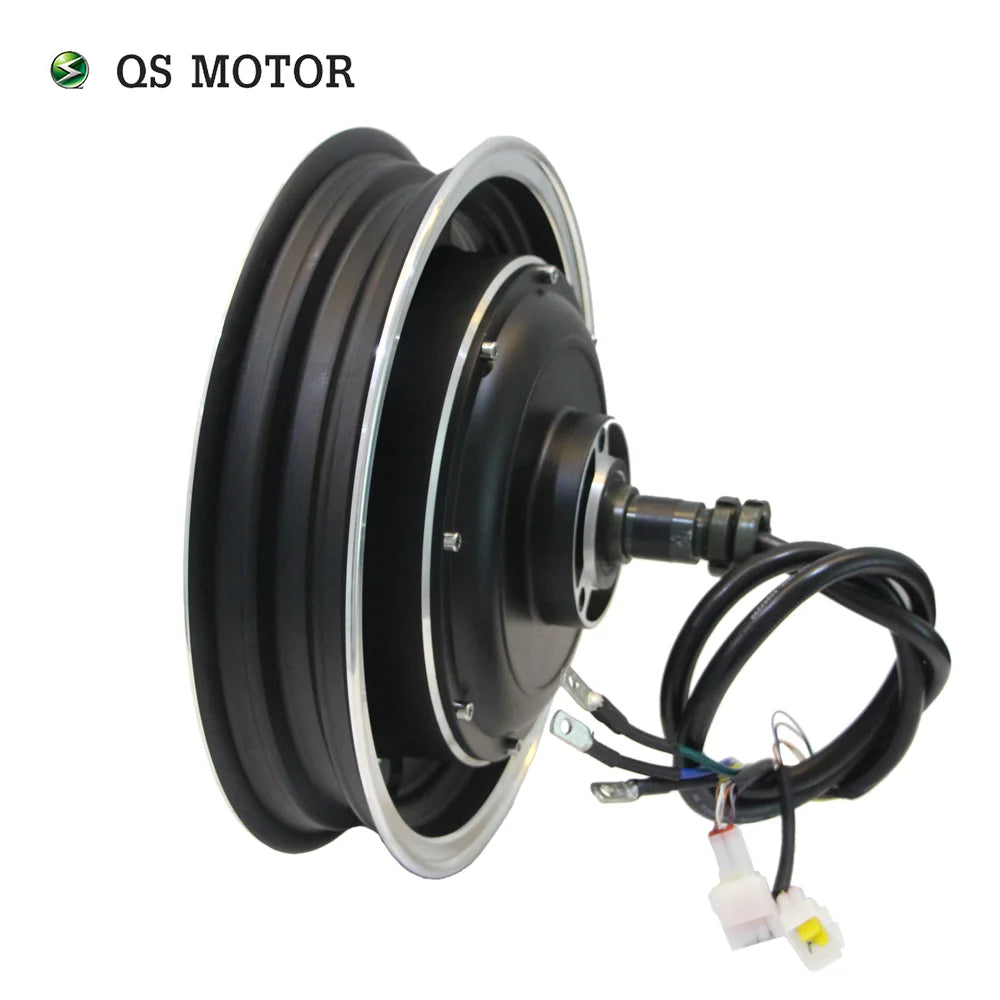

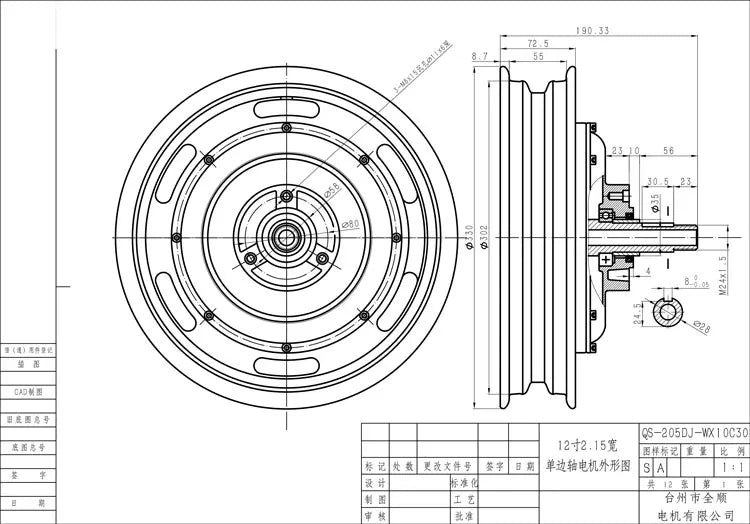

• 3. 12*2.15inch single shaft hub motor

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 12inch in-wheel hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

Application for 12inch in-wheel hub motor
