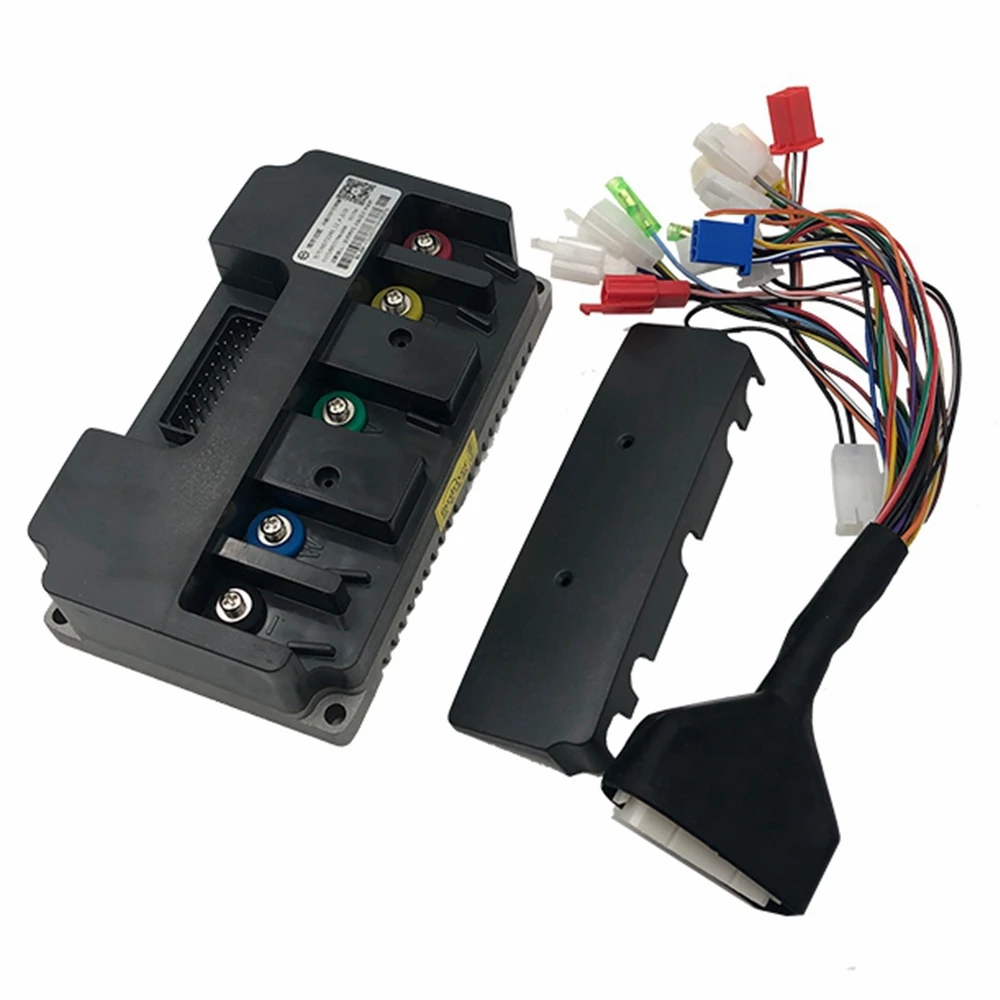

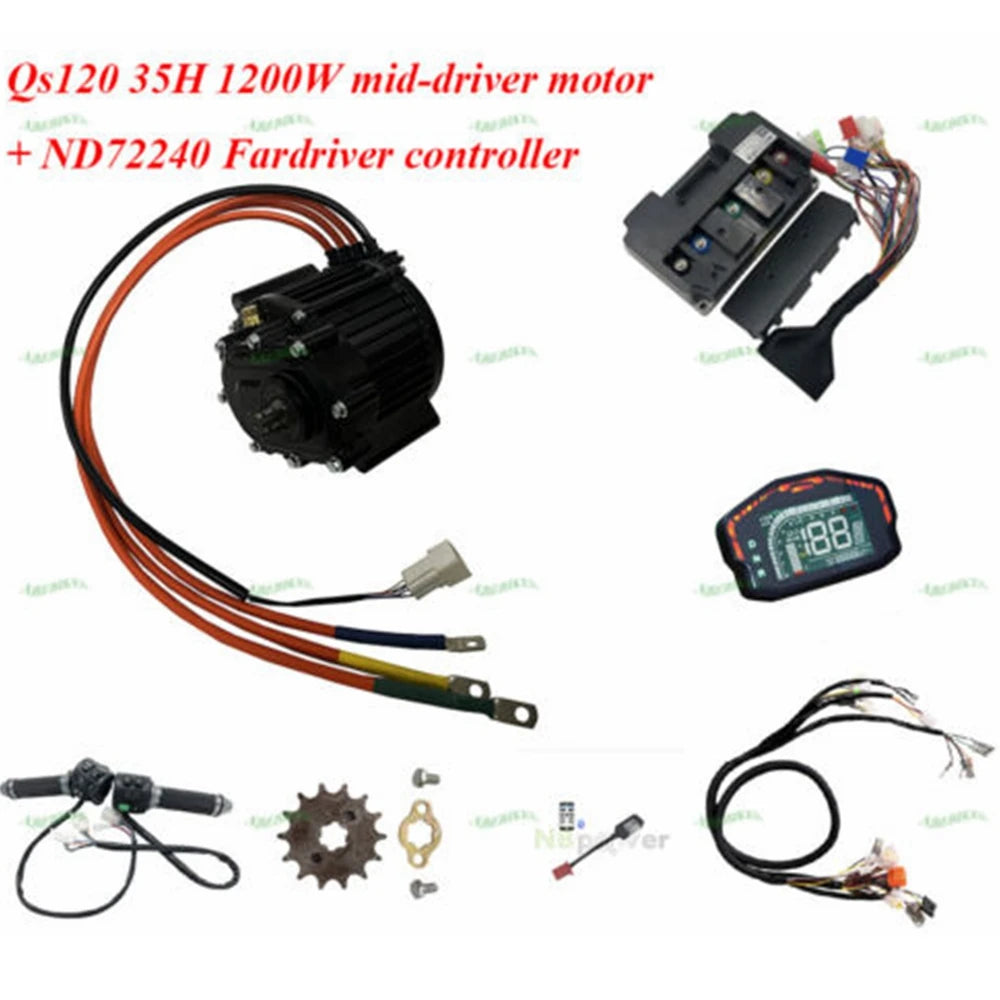

QS 120 35H 1200W Mid Drive Motor with ND72240 Fardriver Controller DKD

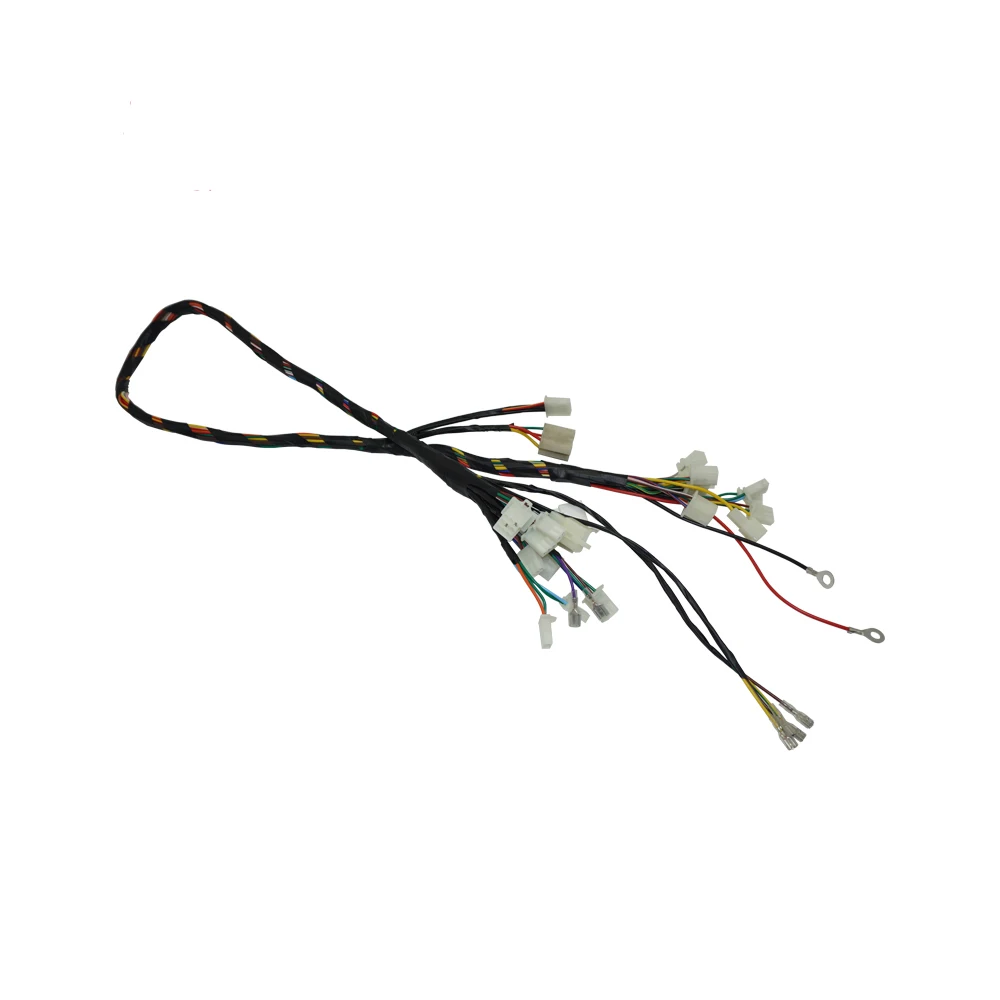

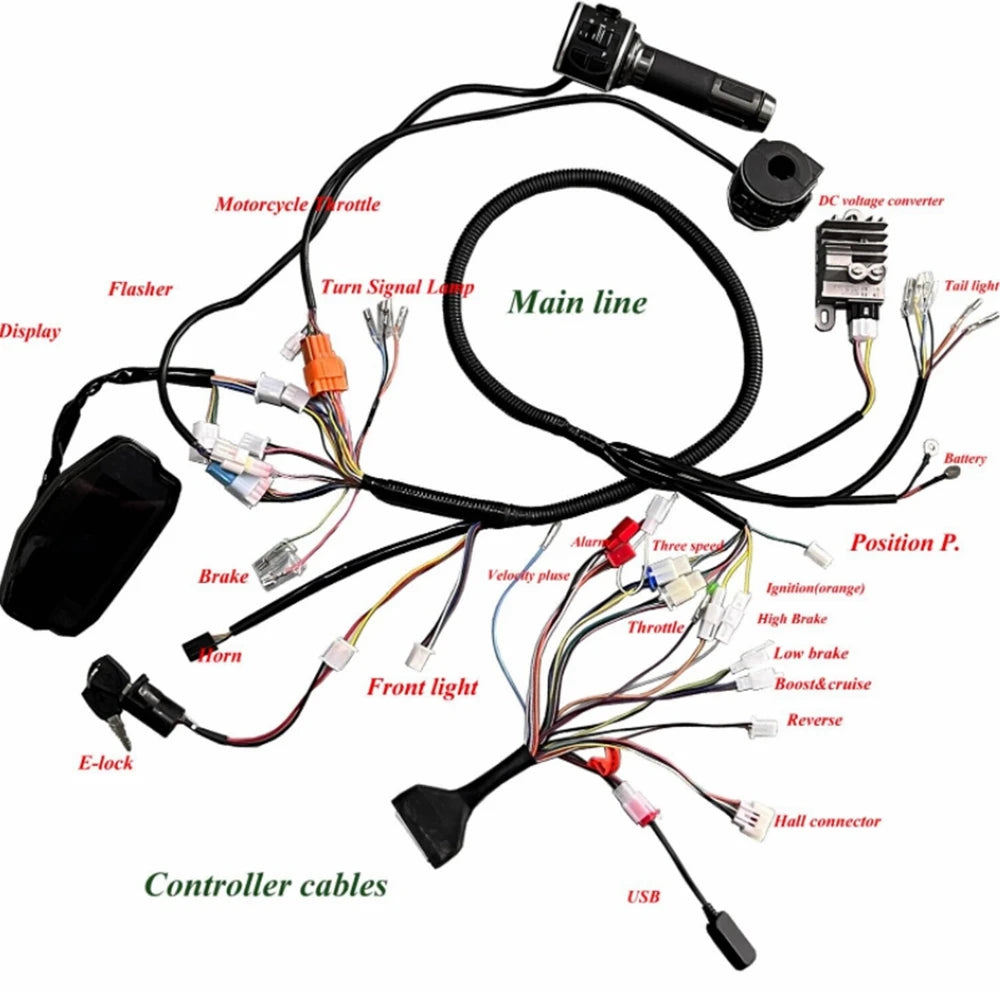

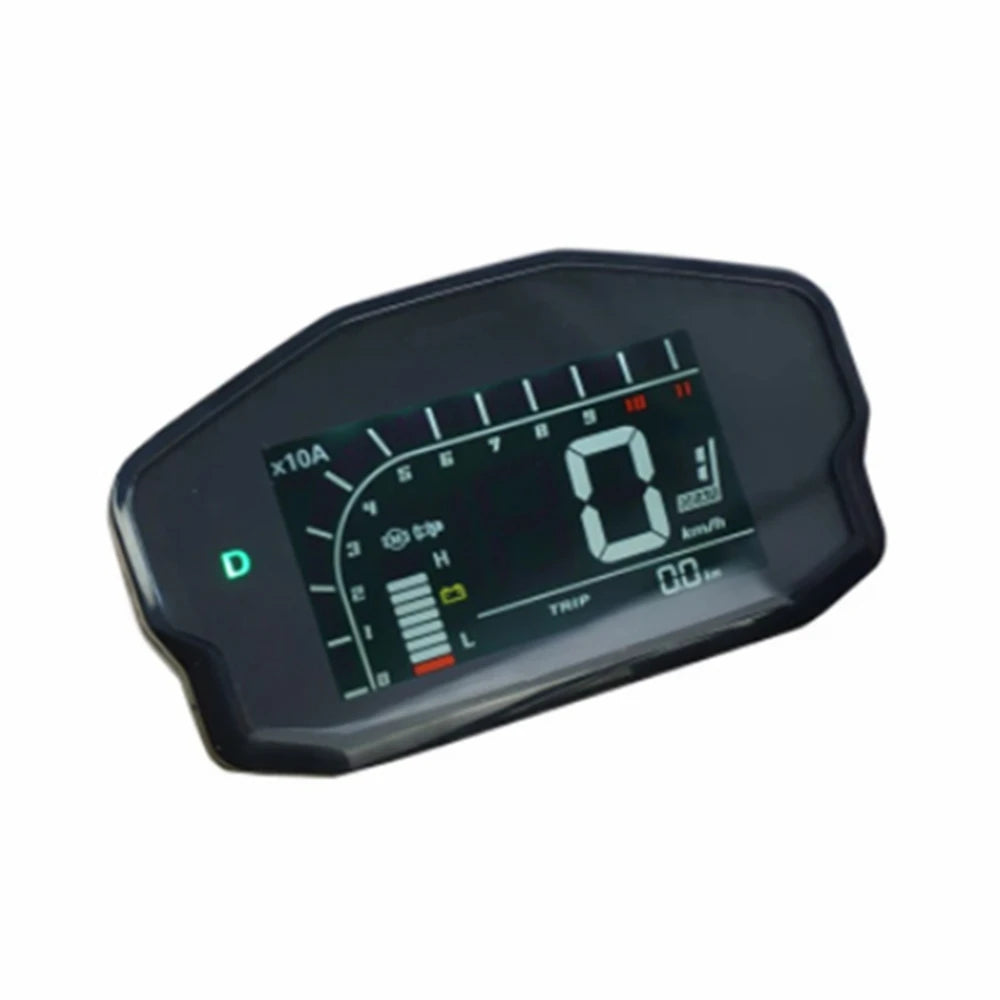

QS 120 35H 1200W Mid Drive Motor with ND72240 Fardriver Controller DKD Display Mainline Harness

$483.68 $527.88

QS 120 35H 1200W Mid Drive Motor with ND72240 Fardriver Controller DKD Display Mainline Harness

FAQ

Q: How about the Duty & Tax ?
A: "seller's shipping method" is DDP, the buyer don't have to pay tax and duty. (except for Australia)

The relevant tax and duty need to be paid by the buyer if choose FEDEX or UPS shipping. We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing. (If EU buyer want tax free air shipping, please contact us to confirm)

Q: How long is the delivery time ?
A: "seller's shipping method" is about 1.5month.

UPS or Fedex about7-10working days. But if no stock(the stock on this page is not exact), preparing time is about 1weeks.

-Product description-

1. Genearlly Spec:

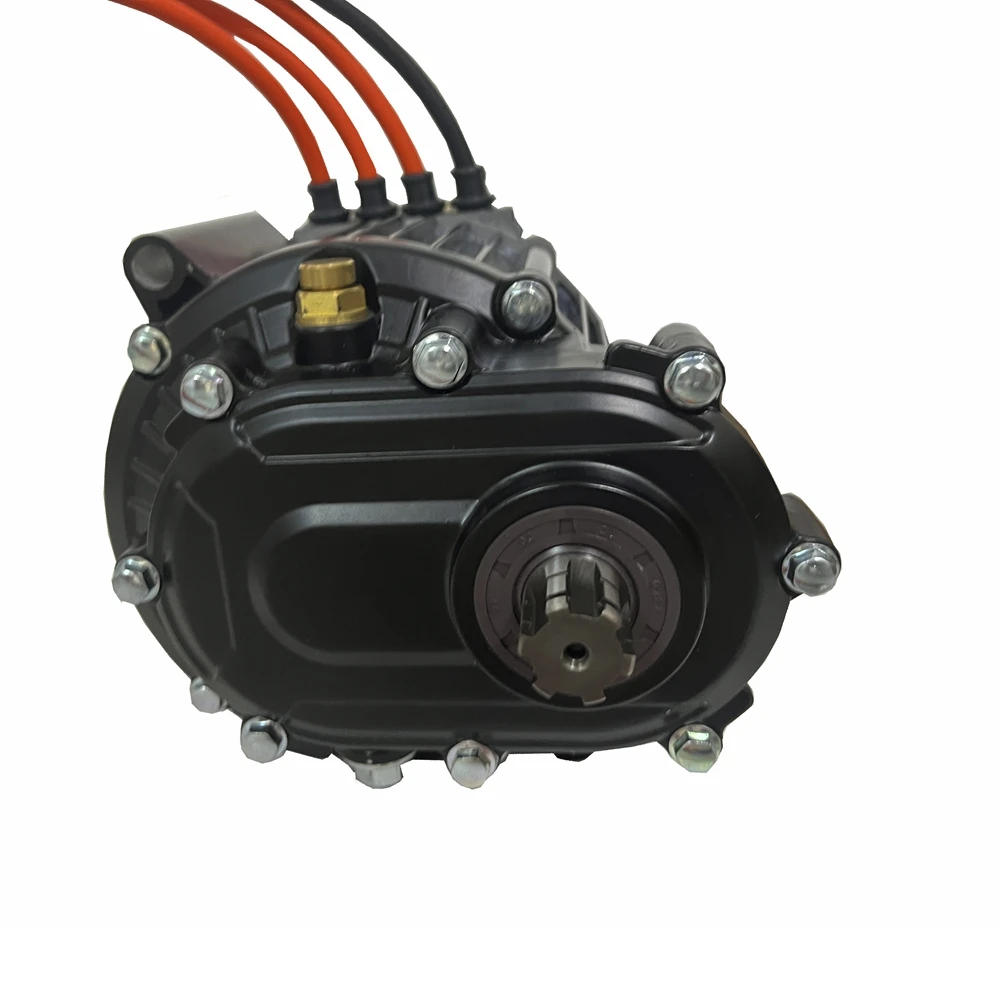

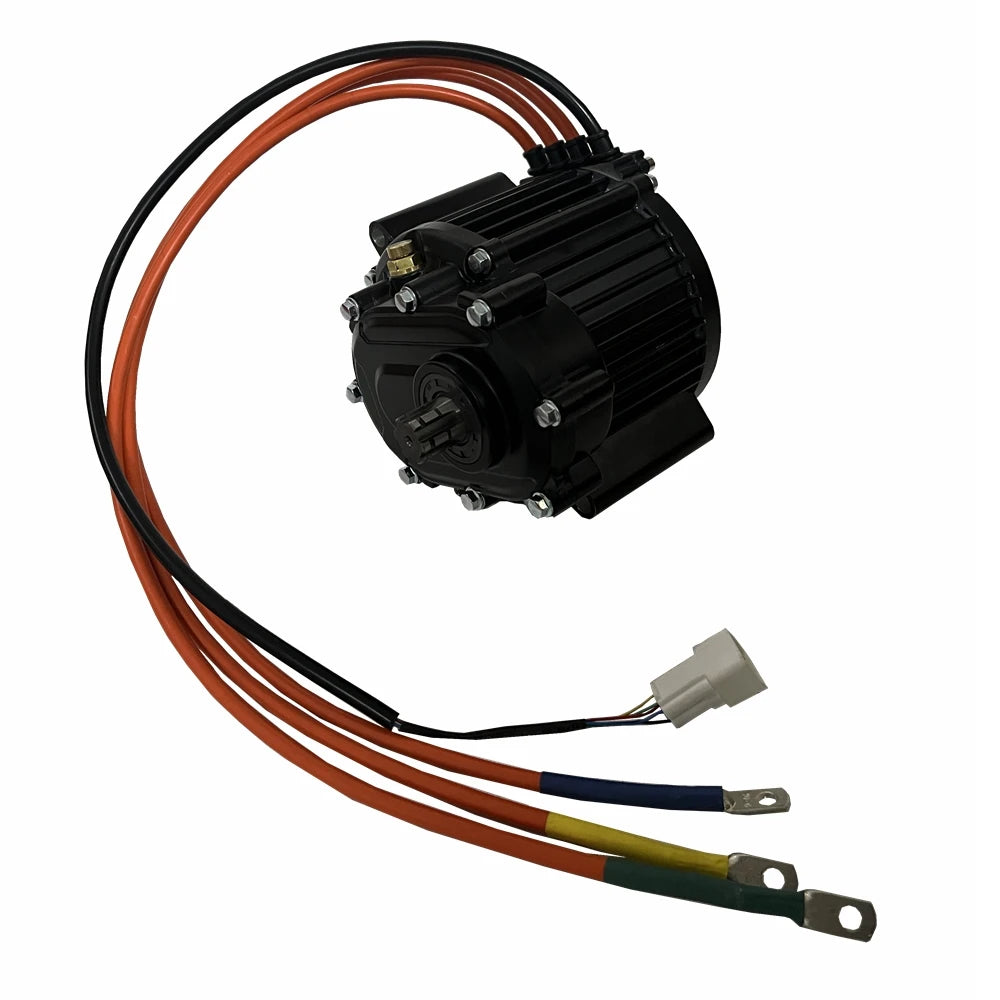

Motor Type: BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor
Brand: QS Motor, QSMOTOR
Motor Design: Single axle
Magnet Height: 35mm
Diameter of stator: 120mm
Rated Power: 2000W
Rated Voltage: 72V as default
Speed: 60KPH
No-load rpm: 2800rpm without flux weakening, 4400RPM with flux weakening.
Reduction ratio: 1:2.36 (as default)
Max Efficiency: 88%
Continuous Battery Current: 35A (72V)
Peak Battery Current: 60A (72V)
Suggest Peak Phase Current: 250A
Single Hall Plate with waterproof connectors
8mm² Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 7.8kgs/9.1kgs
Package Dimension: 34cm*34cm*33cm
