QS 10inch 2000W 205 50H V2 Brushless DC Electric Scooter Single Shaft Hub Motor

QS 10inch 2000W 205 50H V2 Brushless DC Electric Scooter Single Shaft Hub Motor

For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, small electric car.

There are three width of wheel,10X2.15inch(500w-3000w), 10X3.0inch(500w-3000w),10x5.5inch(customized type, 1000w-4000w)for choice.

We offer narrow tire,10X2.15inch as default.

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

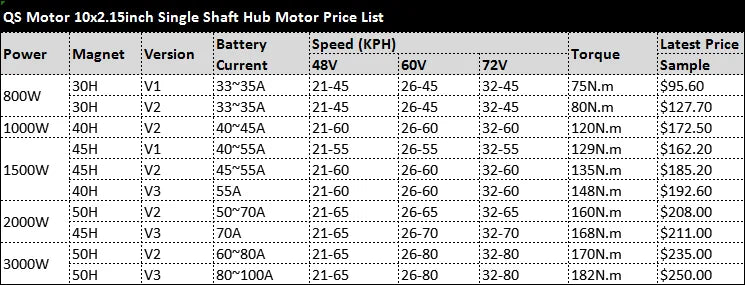

QS MOTOR 10inch 800W-3000W E-Scooter Single shaft In-Wheel Hub Motor List

PS.1). Above quotation base on 205 electric scooter wheel hub motor, 48V~72V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Product description

Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

• Brand: QS Motor,QSMOTOR

• Motor Design: Single axle with 10inch moped rim (integrated)

• Rim Size:10x2.15inch(Narrow Tire as default), matched tire:3.0-10,3.5-10 etc

• 10x3.0inch(Wide Tire), matched tire: 130/90-10 etc

• P.s.: For Wide tire design, the additional cost will be $3.5/pcs

• Magnet Height: 50mm, 23 pole pairs

• Stator: Aluminum Core

• Rated Power: 2000W

• Speed: 30KPH-65KPH, it's customized, genearlly we will design as 72V60KPH.

• Work voltage range: 48V-96V, will be 72V as default.

• Max Torque approx 160.0N.m

• KV: 10.5/12.58(optional)

• Thermic Probe: KTY83-122 (as default, optional)

• Max Efficiency approx 88%

• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

• Dual Halls with waterproof connectos(One for spare, in case of damage)

• 8mm² Phase Wire

• Waterproof Grade: IP54

• Color: Black (As default)

Drawing for 10inch in-wheel hub motor:

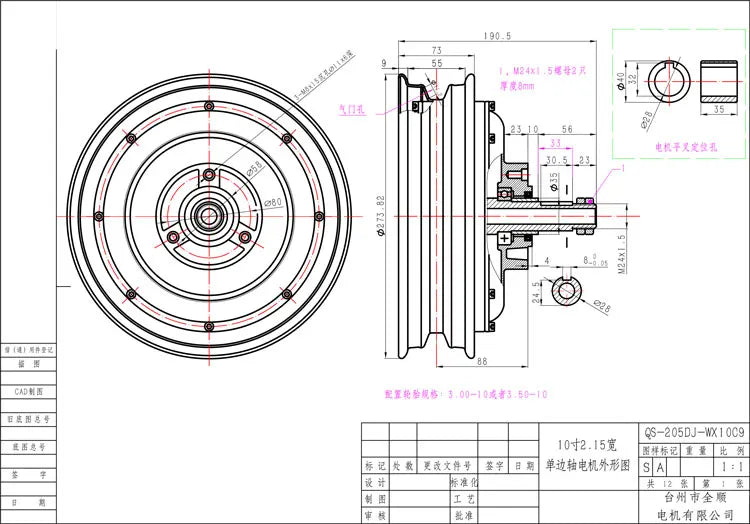

1. 10*2.15inch in-wheel hub motor:

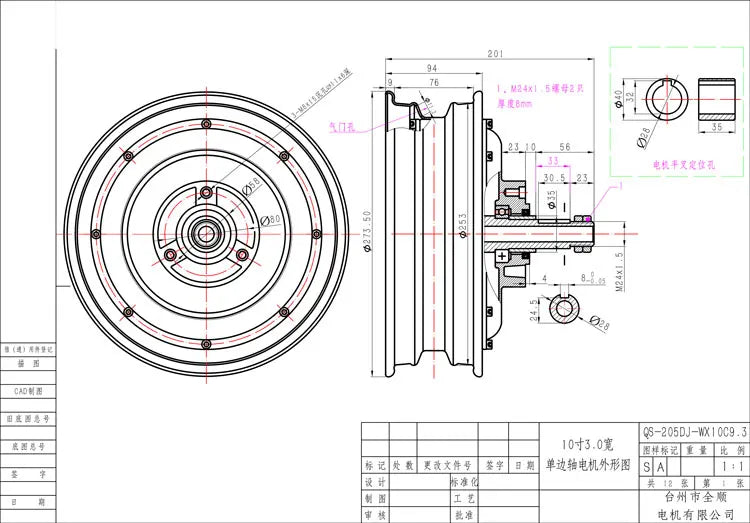

2. 10*3.0inch in-wheel hub motor:

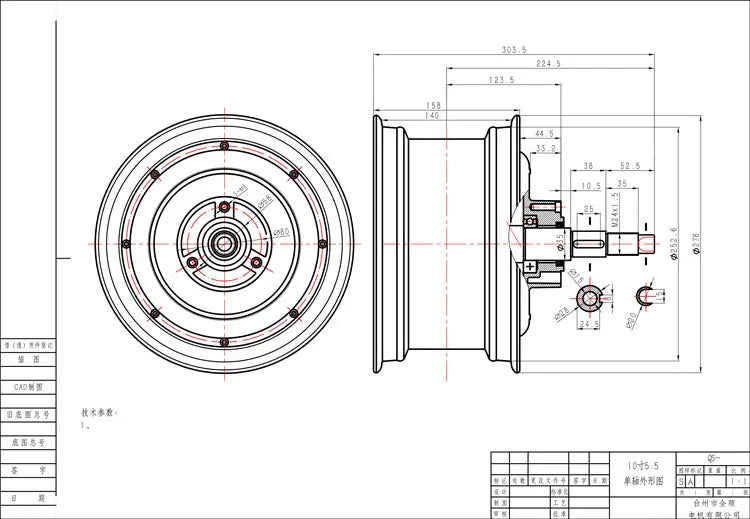

3. 10*5.5inch in-wheel hub motor:

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

Conversion kits for 10inch in-wheel hub motor

We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.

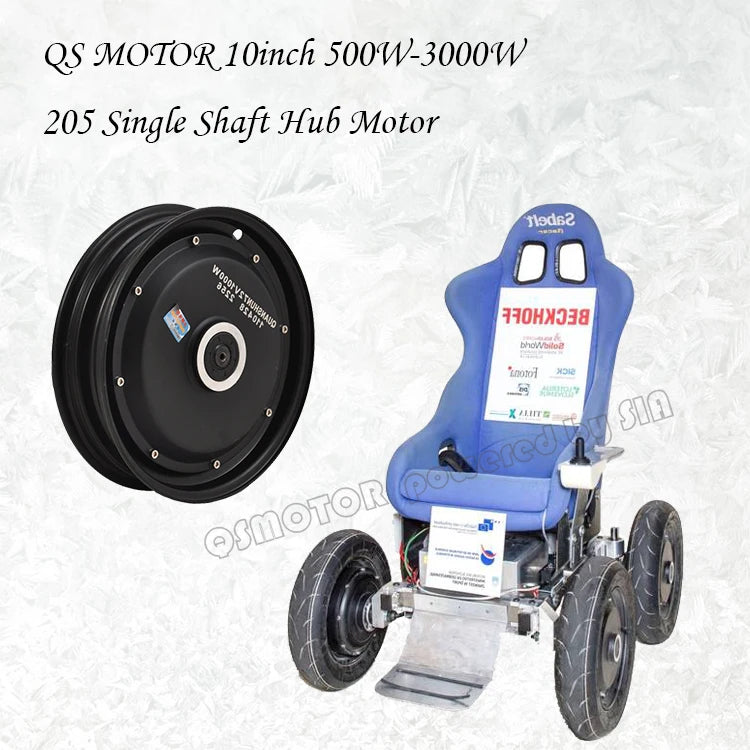

Application for 10inch in-wheel hub motor
