PWM Technology 15000w 108v EV Car Motor Kit and Controller

Sale price $1,858.68 Regular price $1,938.68

PWM Technology 15000w 108v EV Car Motor Kit and Controller

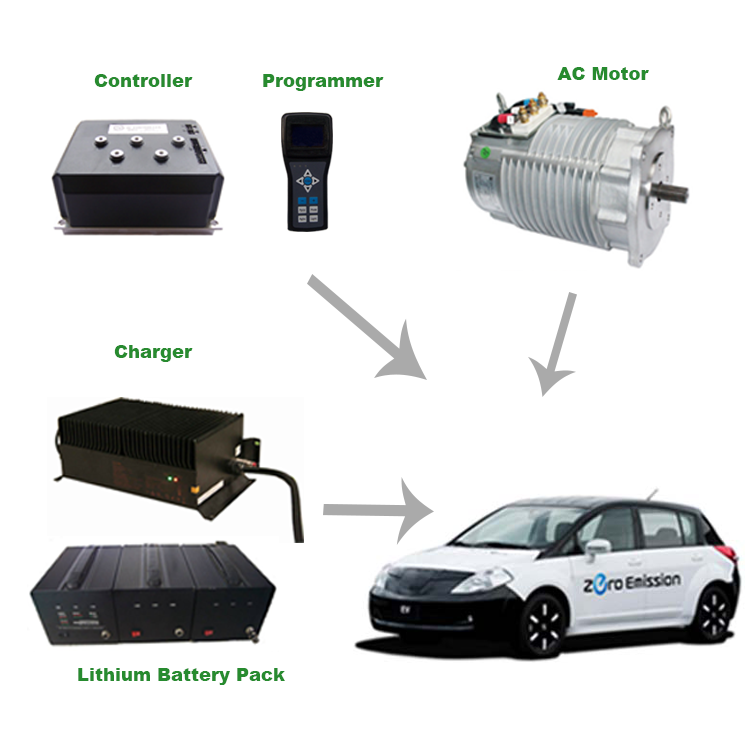

We are a provider of electric vehicle components, including motor, controller (with programmer and accelerator), charger and battery pack.



Our driving system is suitable for various types of electric vehicle, like low speed electric vehicle (golf cart, tricycle), delivery car and modified car, in which, 7.5/10/15kw is especially for modified car. Moreover, the controller and motor can be applied to electric boat.

SHINEGLE motor,controller,gearbox,battery,charger,etc.are widely used in electric conversion vehicles

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Motor
Rated Power:7.5/10/15kw
Duty:S1
Max. Speed:7500rpm
Rated Voltage:72/96/108v
Net Weight:35~50kg
Speed Sensor:64 Pulse

Rated Speed:3000~4500rpm


Controller
Rated Voltage:72/96/108v
Rated Output Current:100/120a
Max. Output Current:500a
Efficiency:98%
Protection Grade:IP65
Packing:wooden box
Net Weight:5~10kg
Ambient Temperature:-40 ~ 50℃
HS:8714990000

Gearbox
Speed Capacity:9000rpm
Ratio:6:1/8:1/10:1/12:1
Packing:wooden box
Torque Capacity:180N.m
Center Distance:50~106mm
HS:7326909000
Noise:≤65dB
Est. Net Weight:15~30kg

Main Features

1) High torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers the fastest system solutions

4) Work with clients to calculate and test

5) Long time system testing, product maturity

Certifications
Detailed Images

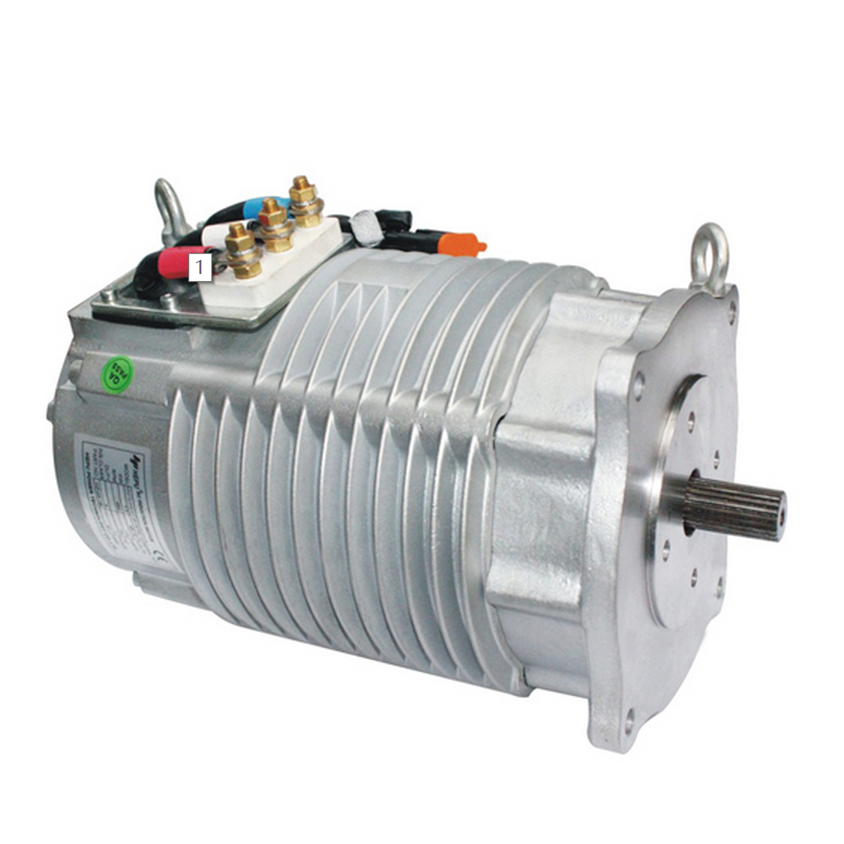

Name: Motor

Brand: SHINEGLE

Original: China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

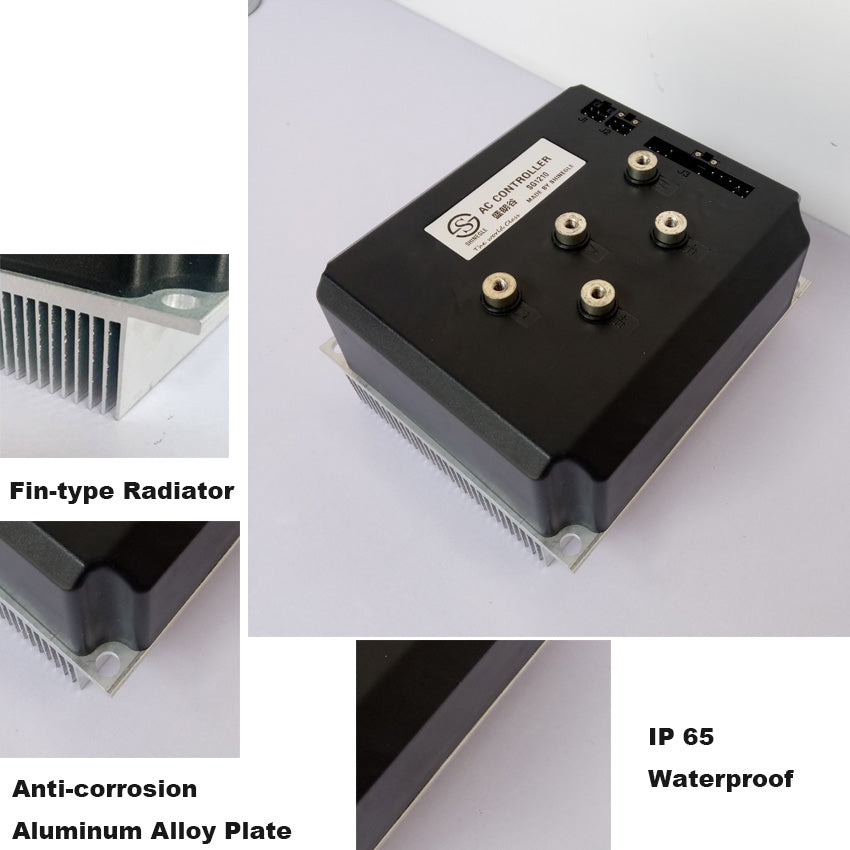

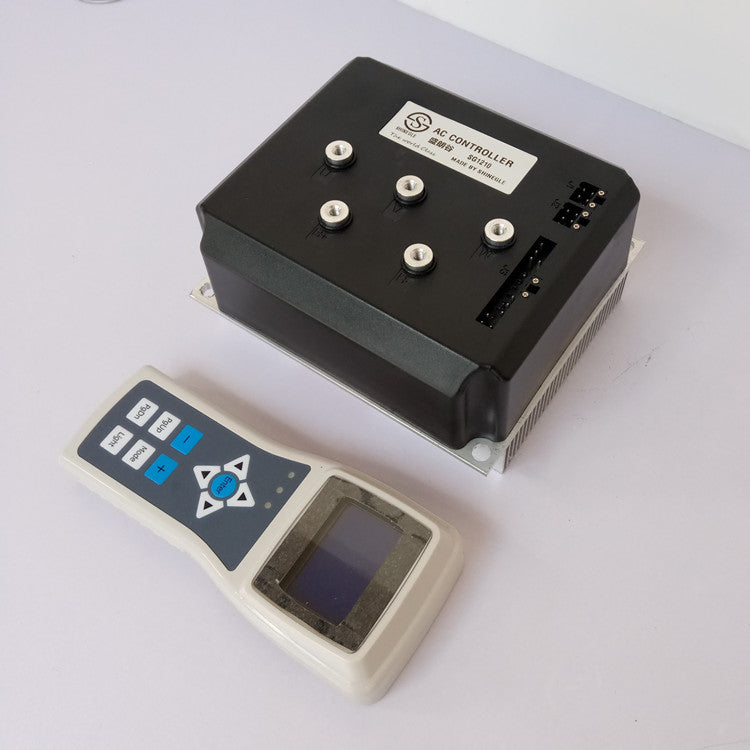

Name: Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.


Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.


Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100,000km protection for our customers.

Our Service

Pre-Sales Service

* Customer sends inquiry

* Tailor the right system

* Sample testing support

After-Sales Service

* Timely technical communication

* Result feedback and improvement

Packing & Delivery
Packing
Size
1280 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packing Details
Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
100kg



Packing Details
Normal packing is wooden box(Size: L*W*H). Sometimes we choose cartons when by air
