Powerful QS Motor 8000W 273 50H V3 48V 12000W Brushless DC Electric Motorcycle Spoke Hub
|
Motor Type
|
BLDC Hub Motor with Permanent Magnets
|
|
|
Motor design
|
Spoke Motor with Double axle out
|
|
|
Spoke Hole
|
36pcs*4.2mm
|
|
|
Matching Wheel
|
18inch-19inch spoke wheel
|
|
|
Magnet Height
|
50H
|
|
|
Pole Pairs
|
16 pairs(32PCS Curved Mangets)
|
|
|
Rated Power
|
16000W
|
|
|
Rated Voltage
|
72V
|
72-144V Can be optional
|
|
Speed
|
120km/h
|
30-115km/h can be customized
|
|
Max No-load RPM
|
1400RPM
|
|
|
Max Torque
|
200N.M
|
|
|
Max Efficiency
|
90%
|
|
|
Continious current
|
130A
|
|
|
Max current
|
190A ,Peak 260A
|
|
|
Brake type
|
Disc brake
|
|
|
Rear Fork width
|
200mm
|
|
|
Winding Core material
|
Aluminium
|
|
|
Cross Section of Phase wire
|
16 mm2
|
|
|
Hall sensor phasing angle
|
120 degree
|
|
|
Temperature Sensor
|
|
Optional
|
|
Max. Working Temperature
|
70 degree, Peak 120 degree
|
|
|
Waterproof Grade
|
IP54
|
|
|
N.W./ G..W.
|
22kgs / 23kgs
|
|
|
Package Size
|
44*43*34CM
|
|

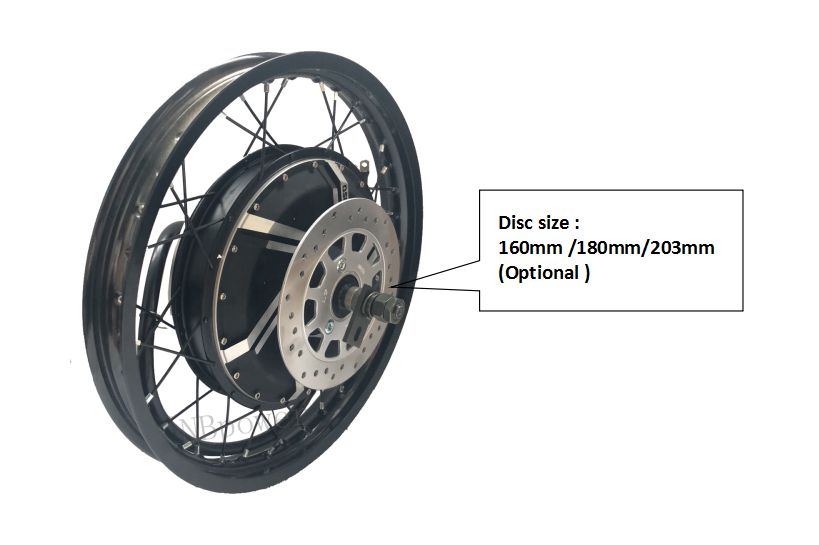

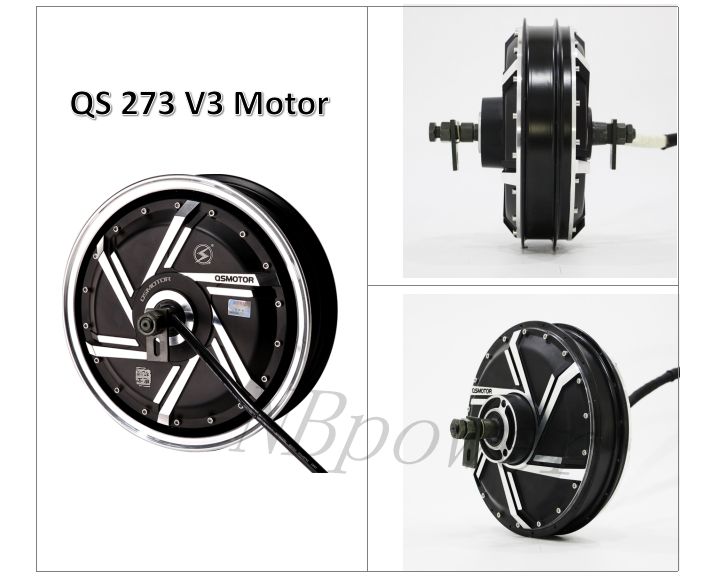

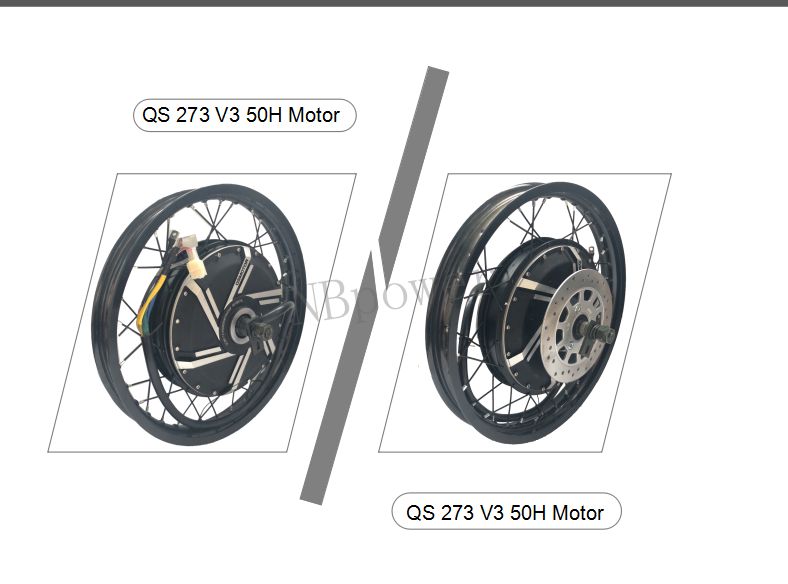

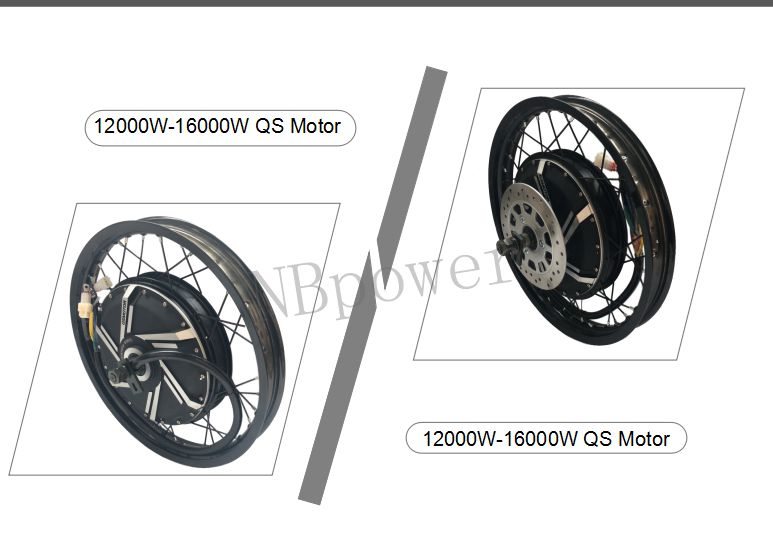

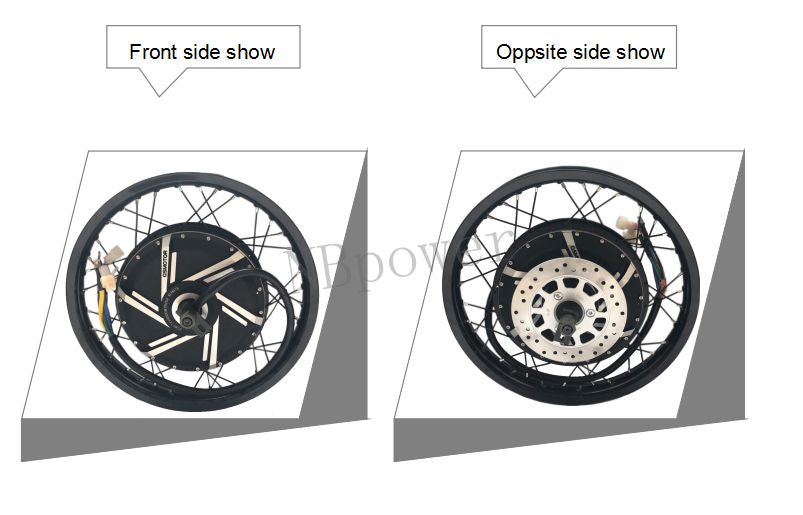

Detailed Images

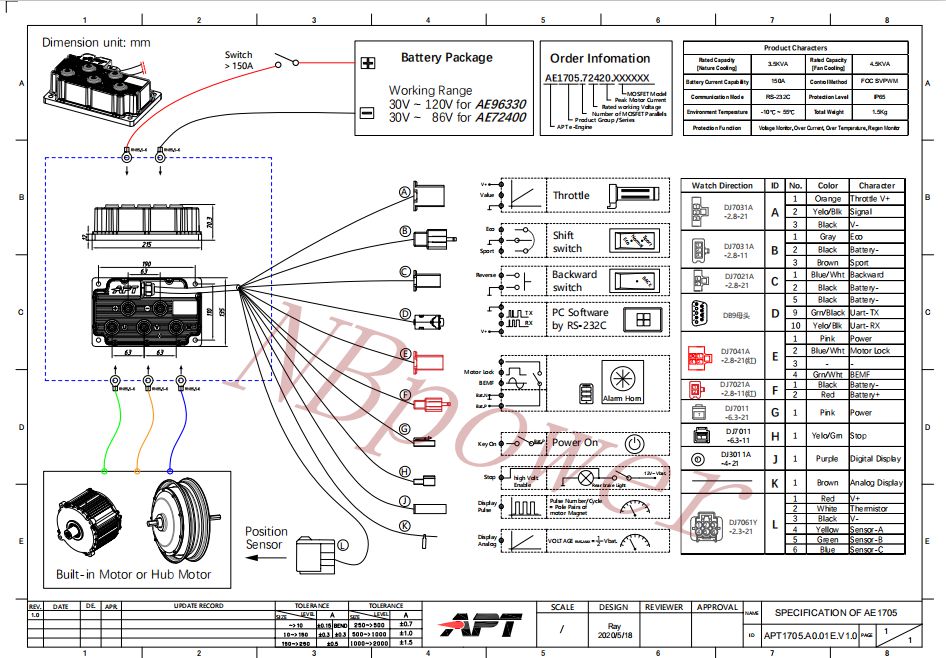

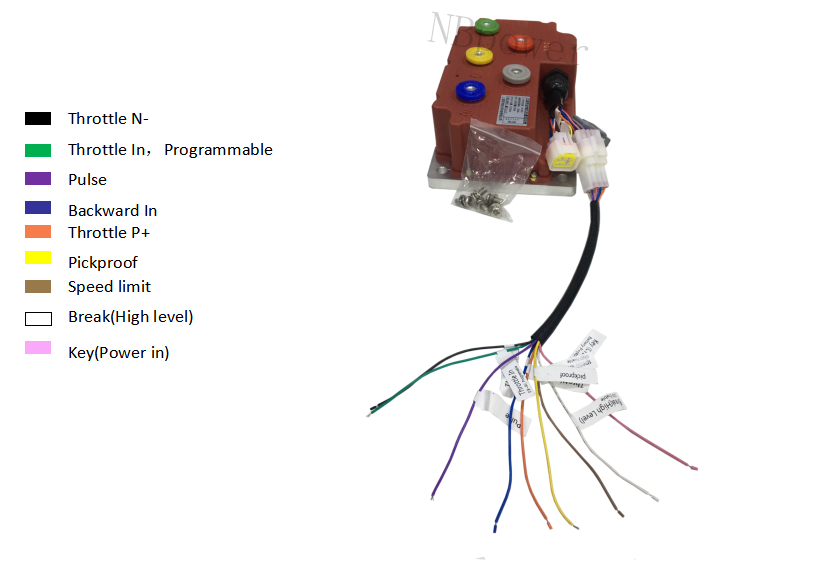

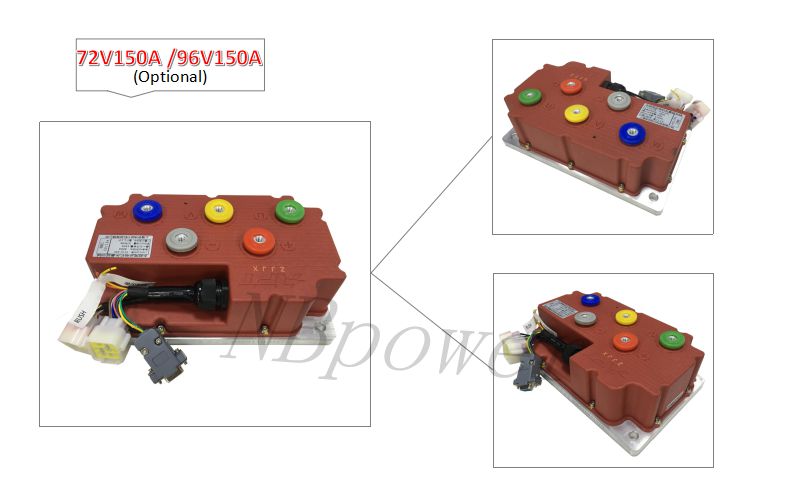

Controller Drawing

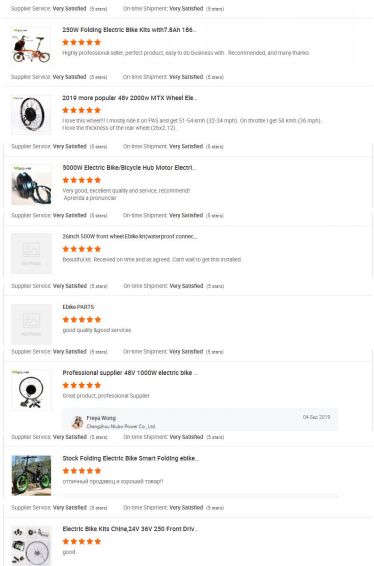

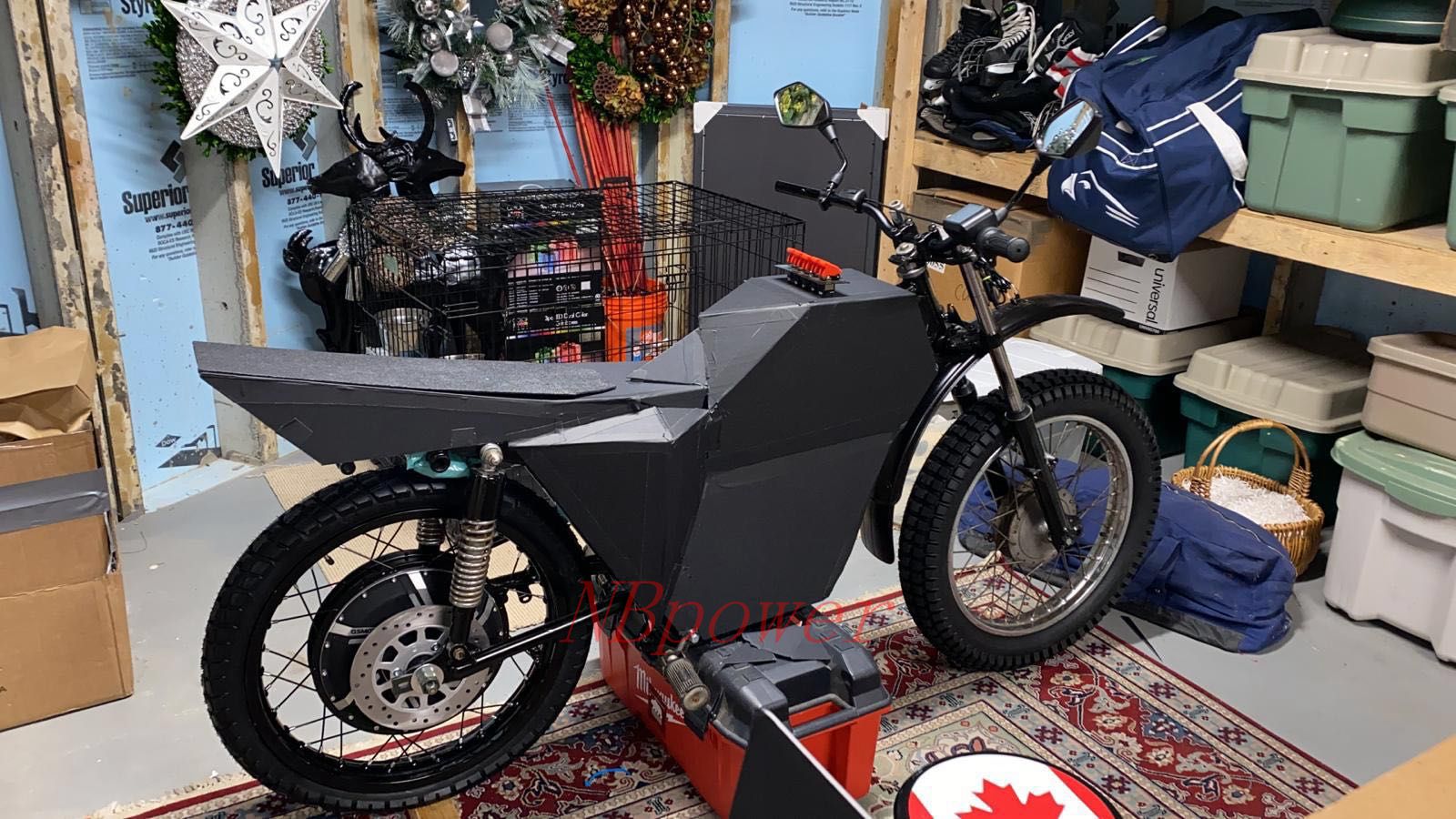

Feedback from other customers
Packing & Delivery
The Powerful QS Motor 8000W 273 50H V3 48V 12000W Brushless DC Electric Motorcycle Spoke Hub is the product you didn't think you need, but once you have it, something you won't want to live without.
