Powerful Motor Kit SIA155-64 29kW Peak PMSM Hairpin Motor with ND96850B Encoder Controller For High Power E-Motorcycle

Powerful Motor Kit SIA155-64 29kW Peak PMSM Hairpin Motor with ND96850B Encoder Controller For High Power E-Motorcycle

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

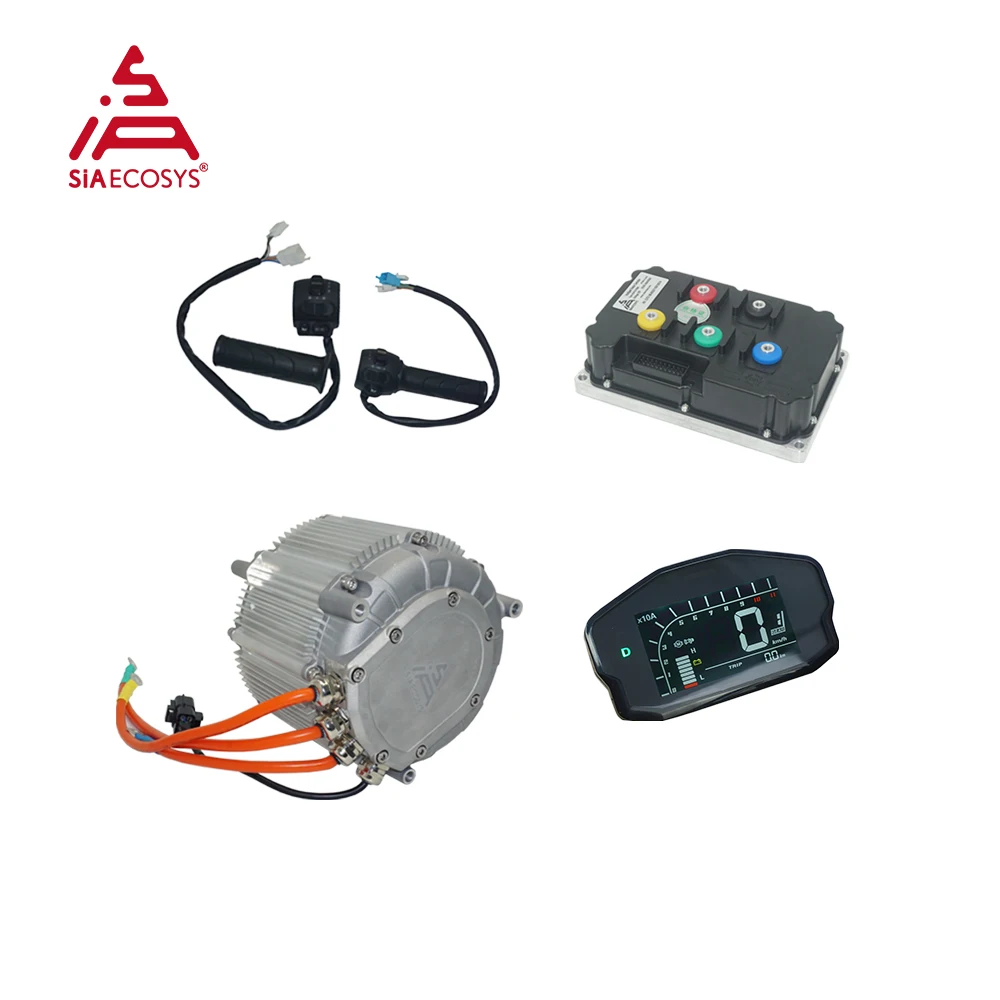

One set including below things:

Combo 1

1pc* SiA155-64 mid drive motor

1pc* ND96850B encoder version controller

1pc* Bluetooth

1pc* DKD LCD speedometer

1pc* YYV3 throttle

Combo 2

1pc* SiA155-64 mid drive motor

1pc* ND96850B encoder version controller

1pc* Bluetooth

1pc* DKD LCD speedometer

1pc* YYV3 throttle

1pc* Wiring Harness for Fardriver Encoder with ignition, 96V relay, flasher and 96V-12V DCDC converter

1. SiA155-64 Mid Drive Motor

Key Features

1. Similar Technology with Tesla

2. Automated Production, High Quality Assurance

3. Light weight and small dimension compare to hub motor

4. High performance benefit from flux weakening

5. High efficiency during climbing, and better acceleration

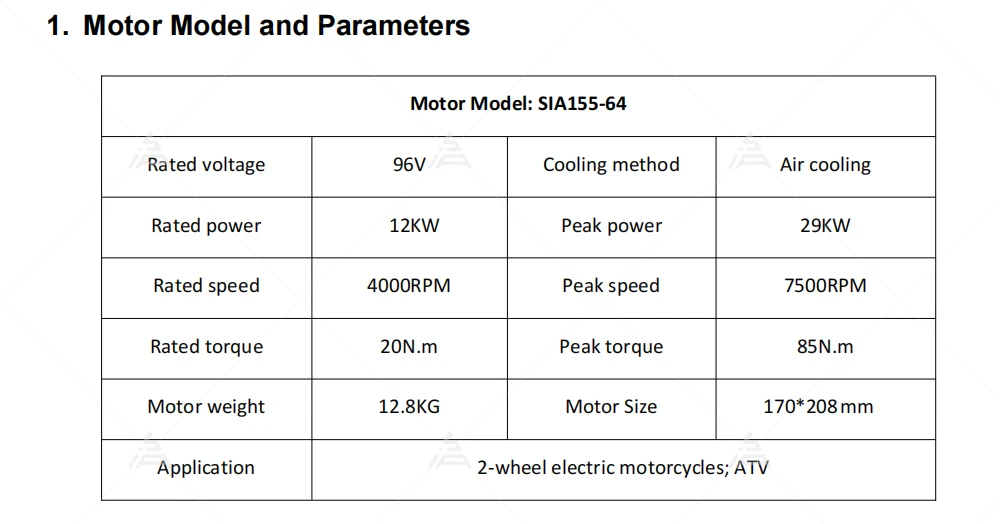

Motor Spec

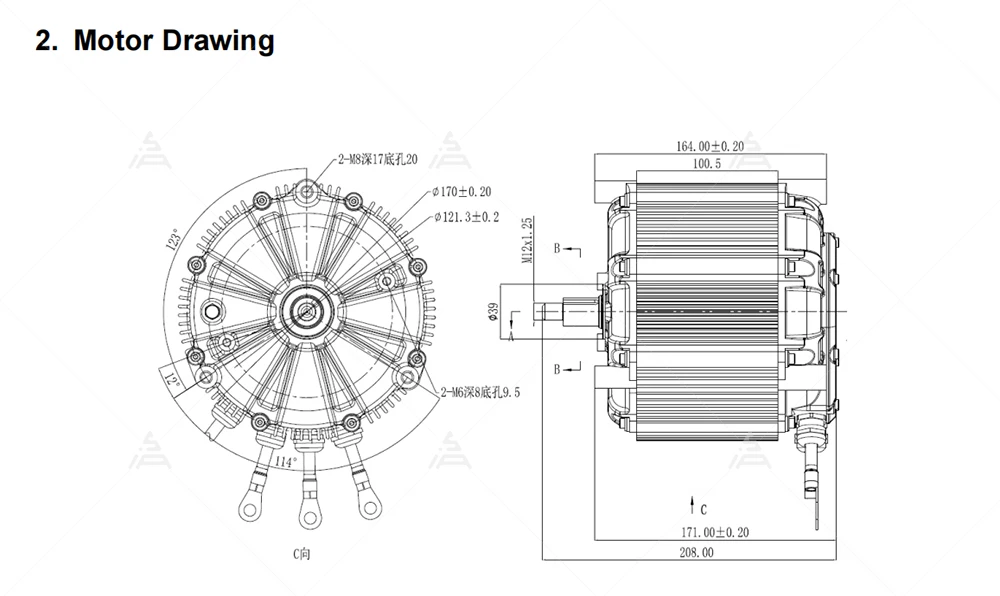

Motor Drawing

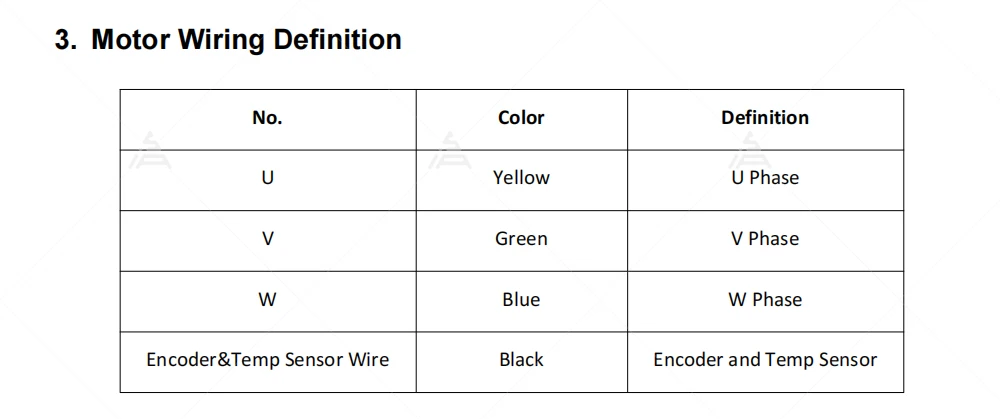

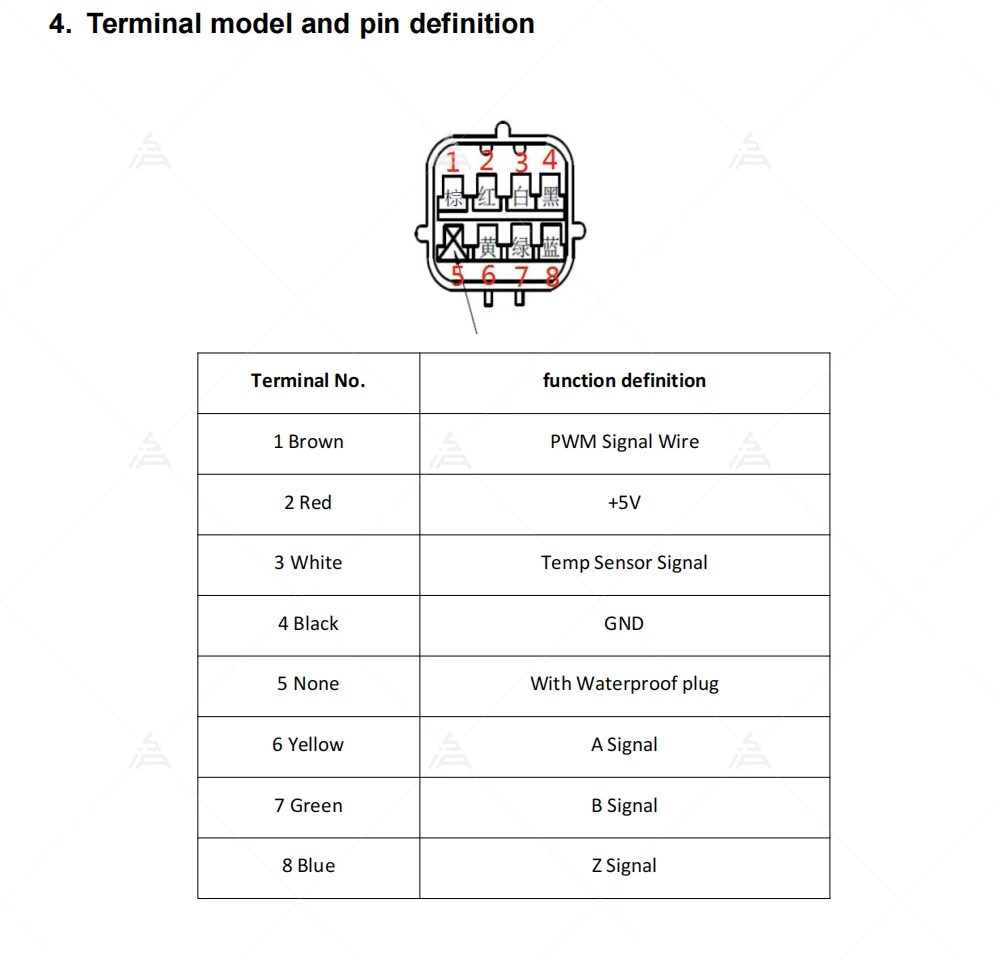

Motor Wiring

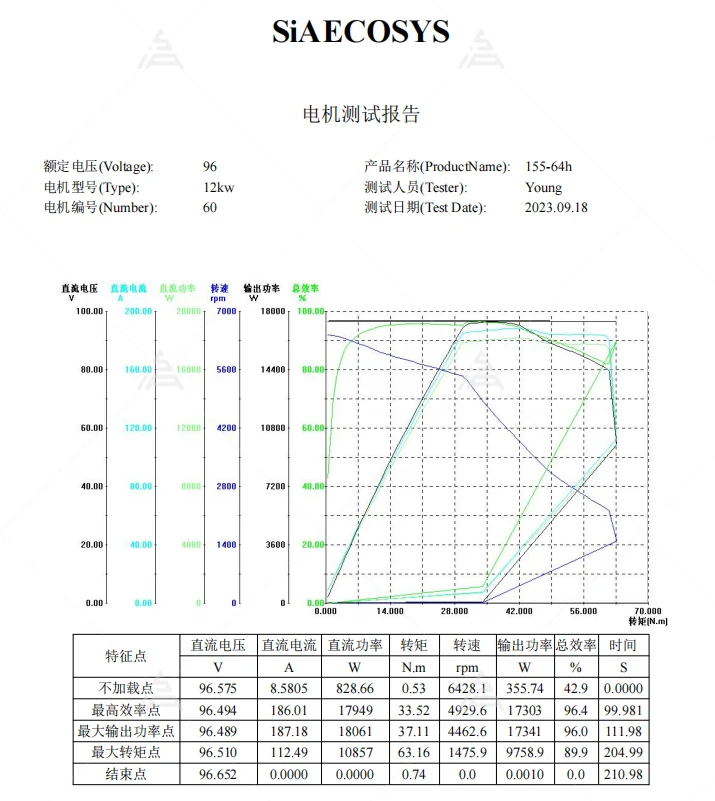

Test Report

Tested with 200A DC current and 800 phase current

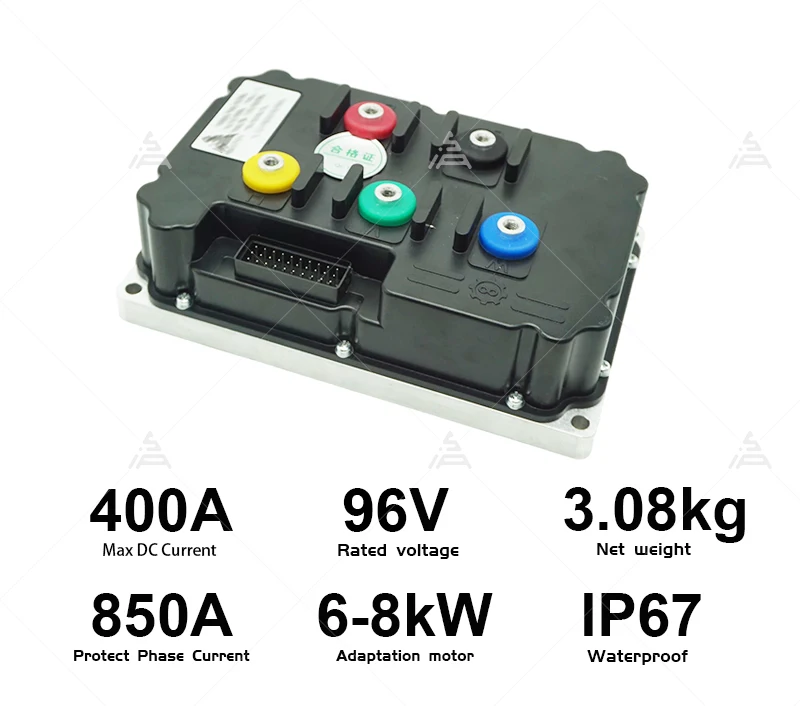

2. ND96850B Encoder Controller with Bluetooth

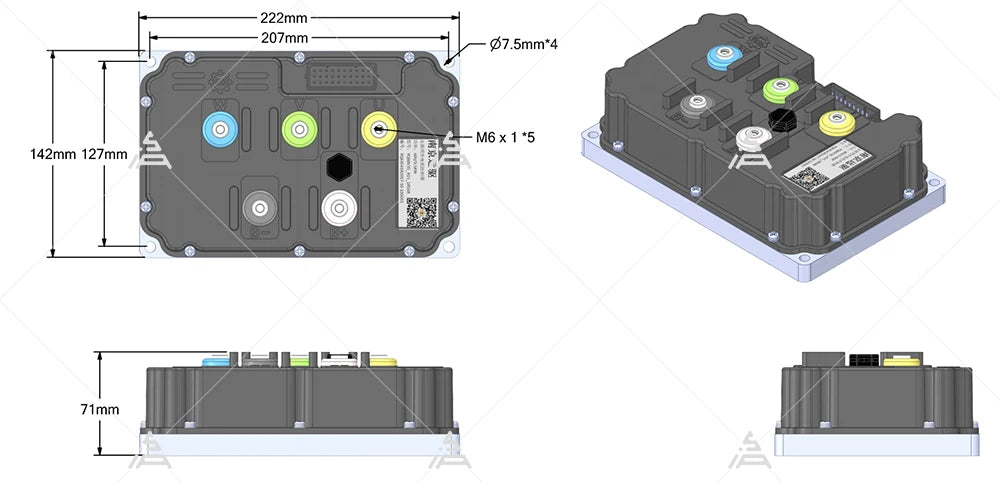

Dimension

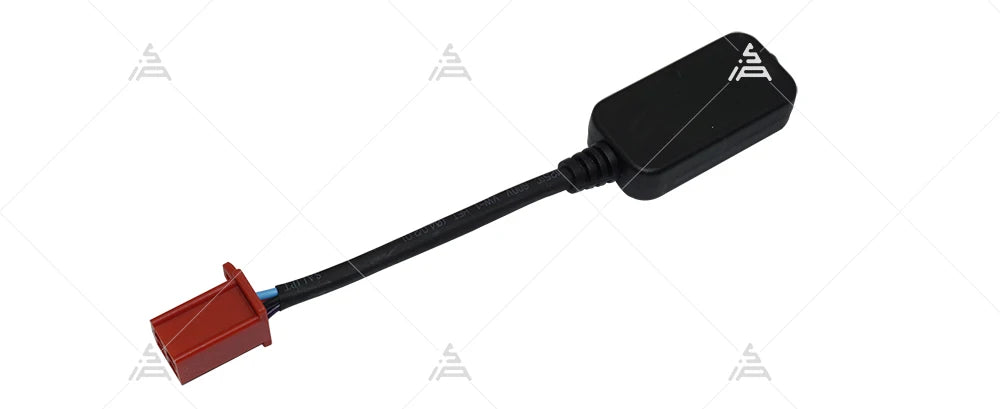

Bluetooth

APP Interface

3. DKD LCD Speedometer

DKD LCD speedometer, Adjustable

It display D N R, P, 1 2 3 S gear, and battery current X10.

For the speed, we recommend to set it as following as default

·Wheel tire size: 130/70-12

·Pole Pairs: 5

·Gear Ratio: 1: 4.77

·Voltage: 72V (20s Lithium battery)

4. YYV3 Throttle

Color: black

Rated operating voltage: DC+5V

Current: DC 10mA

Main material: ABS PVC

Right throttle pull force/ left handle pull pull force: ≥200N / ≥200N

Torsional strength: ≥ 9N.m

Output voltage: 0.8 ~ 4.2V

Service life: ≥100,000 times

Waterproof rating: IP55

Number of core cable:5

Type of switch: full twist

Net weight:0.5kg

Inner diameter of throttle: 22mm

PS. We offer female connectors for samples (less than 10pcs).

96V Wiring Harness

The ignition key cann't be pluged with the wiring harness directly due the difference of connectors, please contact the seller for the diagram and modification instruction.

Wiring Harness for Fardriver Encoder with ignition, 96V relay, flasher and 96V-12V DCDC converter

Application
