B

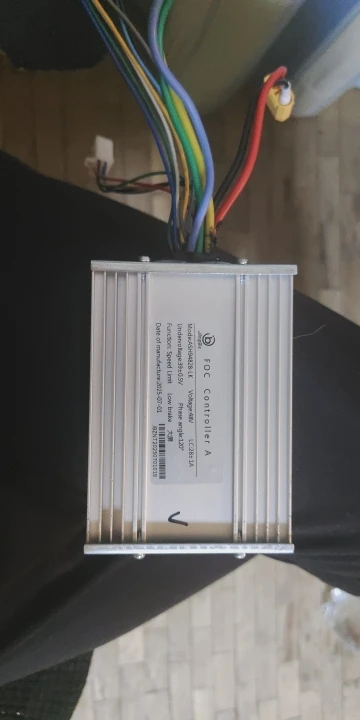

the controller arrived not the one in the photo, ordered the front controller from Obarter company but another one arrived, it does not work paired with the original controller.
Obarter D5 Electric Scooter 48V FOC Sine Wave Dual Controllers (A & B) & LCD Display Throttle Kit
Front and Rear
$358.68
Skip to product information
Obarter D5 Electric Scooter 48V FOC Sine Wave Dual Controllers (A & B) & LCD Display Throttle Kit
$358.68
Restore the raw dual-motor acceleration and refined throttle control of your high-performance electric scooter with the genuine Obarter D5 48V FOC Sine Wave Dual Brushless Controllers & Color LCD Display Throttle Kit. Engineered specifically as direct factory replacement electronics for the Obarter D5 5000W Dual-Motor Electric Scooter (Model SH928-D5), this system delivers smooth, surge-free power delivery and whisper-quiet motor operation.
Featuring advanced Field-Oriented Control (FOC) Sine Wave technology, each controller is rated at 48V 35A continuous output with a formidable 45A peak limit. Working in synchronized harmony, Controller A (Front Motor) and Controller B (Rear Motor) deliver a massive combined peak current of 90 Amperes for explosive hill-climbing torque, high-speed stability, and responsive low-level electronic braking.
Key Highlights & Technical Superiority
- Factory Original D5 Architecture: Precision-calibrated for the Obarter D5 chassis with exact plug-and-play harness connectors, yellow XT60 power plugs, and heavy-duty motor phase ring terminals.
- Silky-Smooth FOC Sine Wave Commutation: Eliminates the harsh step-throttle shudder and loud acoustic resonance typical of square-wave controllers, extending motor and battery lifespan.
- High-Power Dual Output: 35A continuous (45A peak) per controller channel, providing up to 90A combined dual-drive output to effortlessly conquer steep off-road trails and steep city inclines.
- Integrated Battery Guard: Built-in 39V ± 0.5V undervoltage protection prevents over-discharging your 48V lithium-ion battery pack.
- Ergonomic Round Color LCD Cockpit: Full-color circular digital gauge with integrated thumb accelerator trigger, showing real-time speed, battery level, trip meter, and speed mode settings.
- Rugged Extruded Heat Sink Cases: Both controllers are housed in deeply grooved aluminum alloy enclosures for rapid passive thermal dissipation during sustained high-speed rides.
Technical Specifications Matrix
| Parameter | Specification |
|---|---|
| Compatible Scooter | Obarter D5 Dual-Motor Electric Scooter (5000W platform) |
| Controller Model | SH928-D5 (Controller A: Front / Controller B: Rear) |
| Driving Architecture | FOC (Field-Oriented Control) Sine Wave Controller |
| Rated Voltage | DC 48V |
| Rated / Peak Current | LC: 35A Rated / Peak 45A per controller (Combined 90A Peak) |
| Low-Voltage Cutoff | Undervoltage: 39V ± 0.5V |
| Motor Phase Angle | 120° |
| Display Protocol | 01 Display Communication Protocol (Round Color Screen) |
| Brake Signal | Low-Level Electronic Brake Cutoff |
| Power Connections | Yellow XT60 DC Power In + 3 Ring Terminal Phase Leads per unit |
Available Component Options

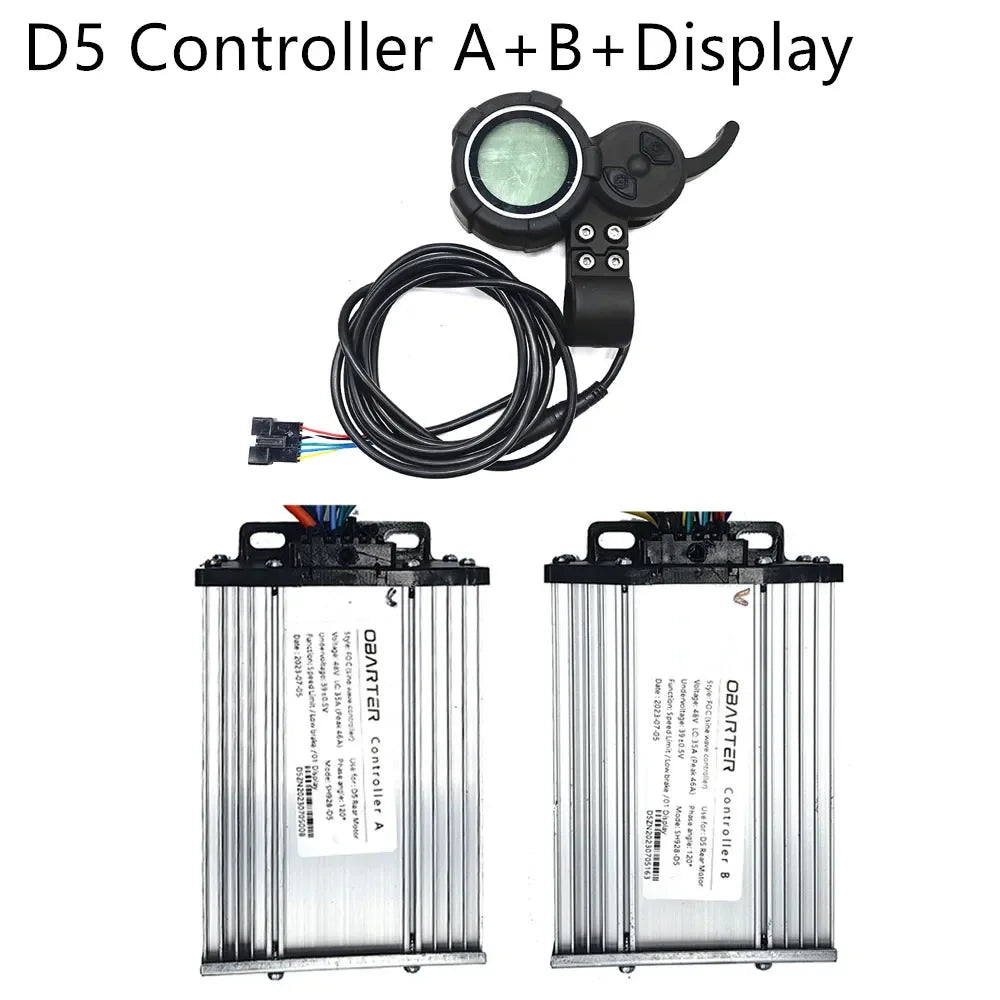

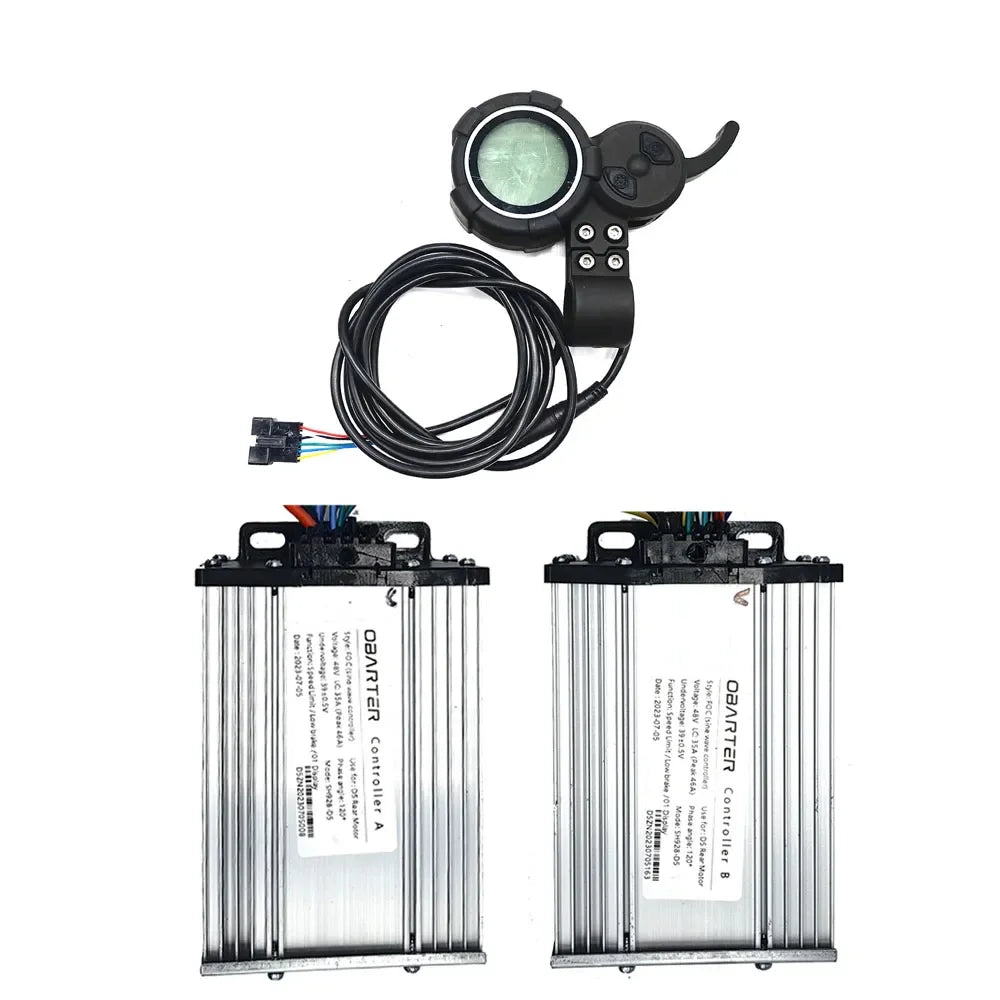

1. Full Powertrain Kit (Controllers A + B + Display)
Includes Controller A (Front), Controller B (Rear), and the matched round color LCD display throttle. Strongly recommended if upgrading or replacing non-matching controllers to avoid communication errors.

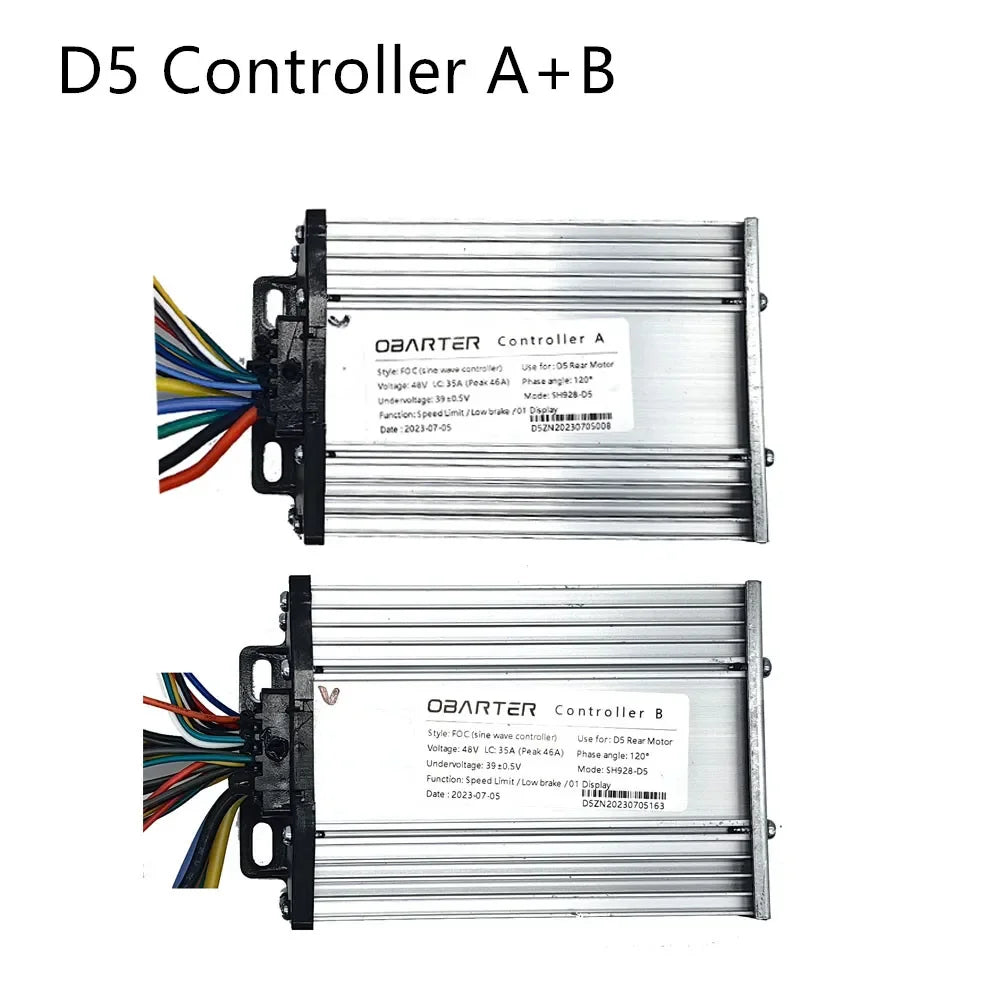

2. Dual Controllers Pair (Front A + Rear B)
Includes both factory 48V 35A (45A Peak) controllers (Model SH928-D5) for dual-wheel drive.

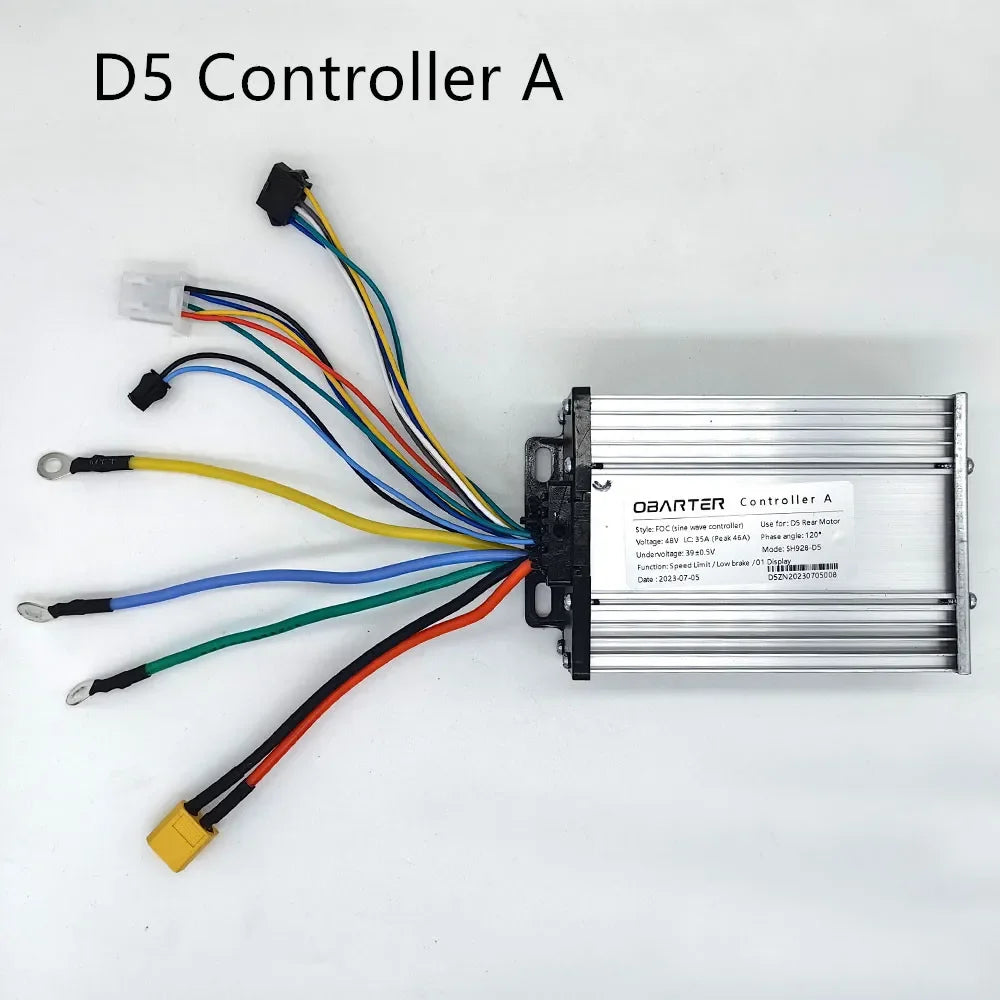

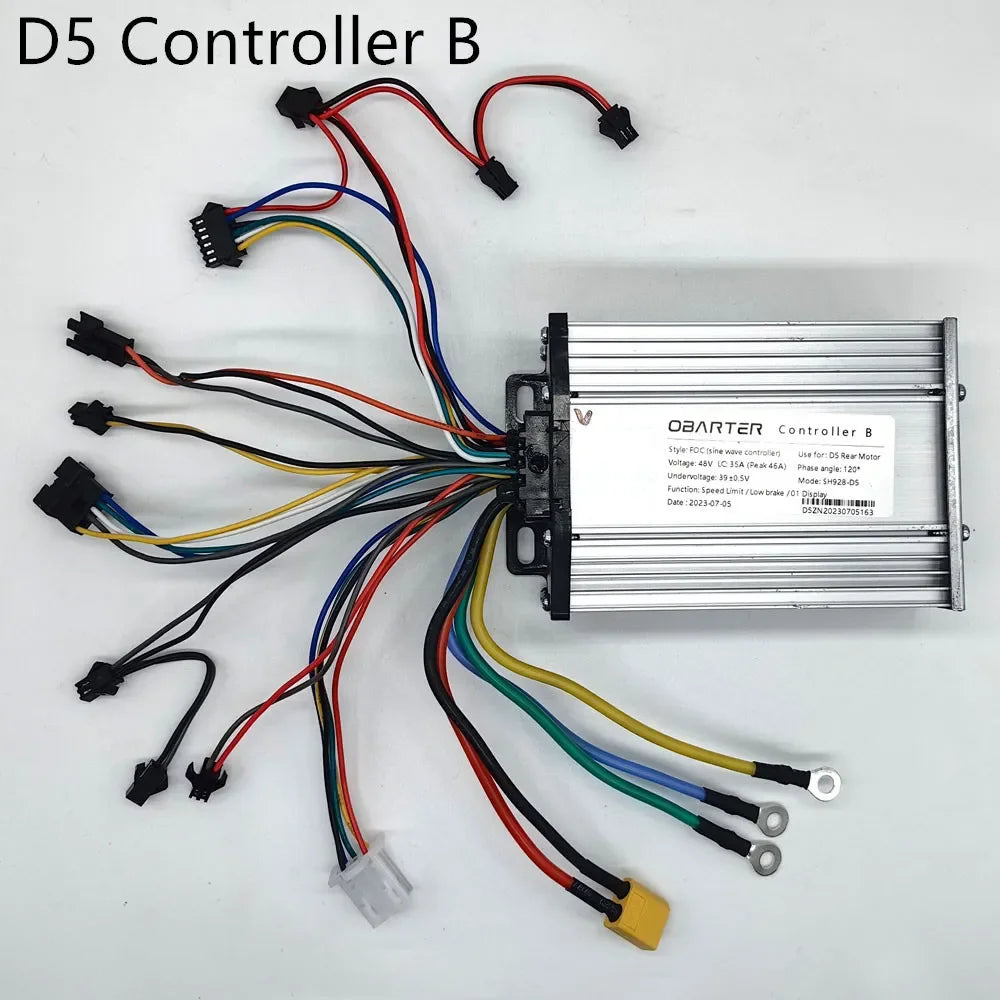

3. Individual Controller A (Front Motor) or Controller B (Rear Motor)
Replace a single damaged front or rear controller unit. Please verify your existing scooter has the matching SH928-D5 model before ordering.

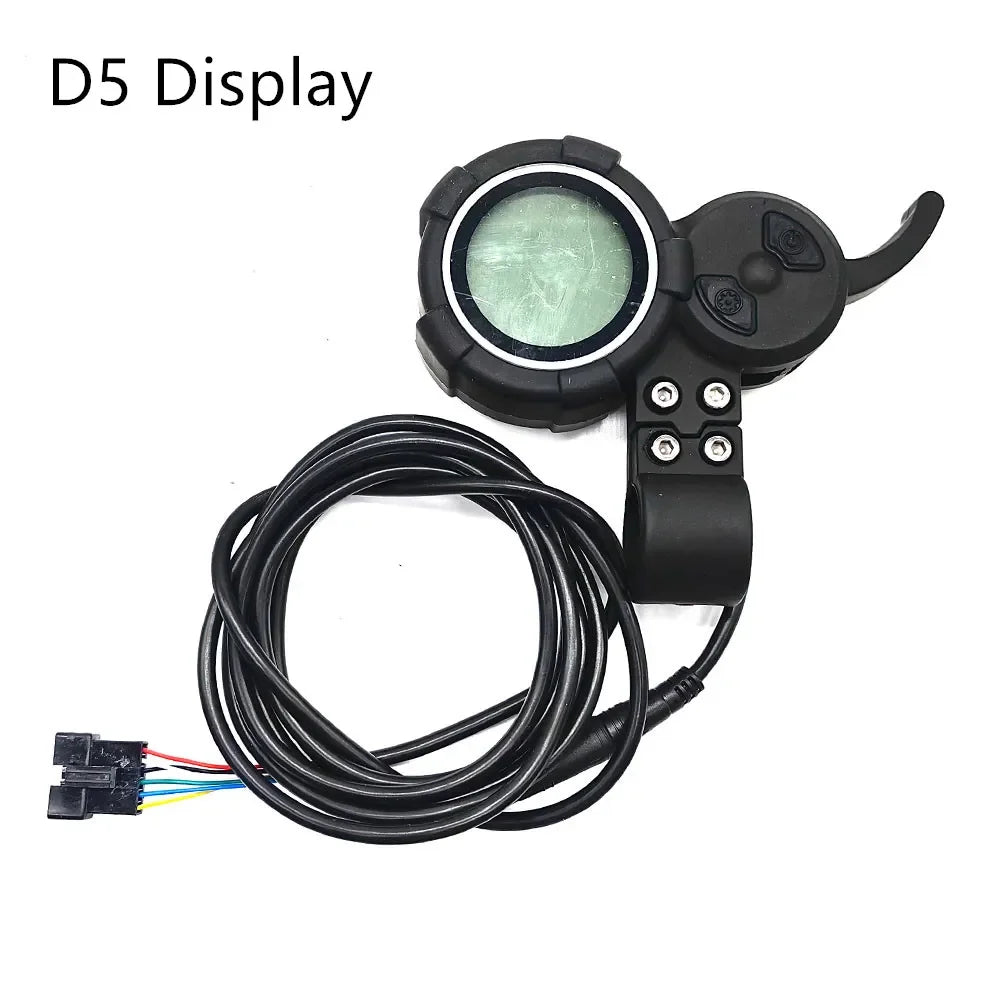

4. Color LCD Display Throttle Unit
Original round LCD digital display with trigger accelerator and handlebar clamp.
Important Compatibility & Installation Notice
Critical Protocol Matching: The Obarter D5 uses matched communication between the throttle display and both controllers. If your scooter currently uses a different brand or revision of controller, replacing only one controller may trigger communication fault codes (Error 10 / Error 30). In that scenario, you must replace the complete system (Display + Controller A + Controller B) at the same time.
Frequently Asked Questions (FAQ)
Q: What is the difference between Controller A and Controller B?
A: Controller A is mapped to operate the Front motor wheel, while Controller B is mapped for the Rear motor wheel. They share communication with the display throttle to ensure perfectly balanced speed and torque across both wheels.
Q: Will this kit work with other 48V electric scooters?
A: This set is designed specifically as the OEM replacement for the Obarter D5. While the complete kit (Display + A + B) can technically power other dual-motor 48V scooters, connector wiring pinouts may need adaptation for non-Obarter frames.
Q: Why should I choose FOC Sine Wave controllers over standard square wave?
A: FOC (Field-Oriented Control) sine wave technology delivers smooth, progressive acceleration without the jerky off-the-line snap or loud electrical hum of square wave controllers. It runs cooler and maximizes battery efficiency.
Q: What warranty and transit support does E Smart Way offer?
A: All controllers and displays are bench-tested before dispatch. E Smart Way provides free worldwide shipping with door-to-door tracking, loss protection, and a 3-month replacement warranty on electronic components.
International Shipping & Logistics Notice
Free Worldwide Shipping: Components are individually sealed and packaged with anti-static and shock-cushioning materials for safe global transit.
Customs & Import Duties: Depending on national regulations, international packages may occasionally be subject to local VAT or clearance fees charged by destination customs authorities. As standard in international cross-border trade, these fees remain the buyer's responsibility.
Accurate Delivery Details: Please ensure your contact phone number and full shipping address are entered accurately at checkout to prevent delivery delays.
