SIAECOSYS/QSMOTOR 212 1000W V1.12 Hub Motor kit with EM25sp Controller for Electric Scooter
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
For QS new high cost performance 10inch V1.12 version E-Scooter wheel hub motor, it could be used for electric scooter.
P.S. If you have any confused about the shipping cost, please feel free to contact with us.
Also could place order but don't pay first, then we could adjust the price.
One set including below kits
Combo1.
1. 1pcs XQSMOTOR 212 10x2.15inch 1000W V1.12 hub motor with disc brake version
2. 1pcs XEM25SP Controller
3. 1pcs XController
4. 1pcs XThrottle
Combo2.
1. 1pcs XQSMOTOR 212 10x2.15inch 1000W V1.12 hub motor with drum brake version
2. 1pcs XEM25SP Controller
3. 1pcs XController
4. 1pcs XThrottle
Key Features
1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in the rear to save more space for battery.
3). Support regenerative braking
4). High efficiency: 85~92%
Product Description

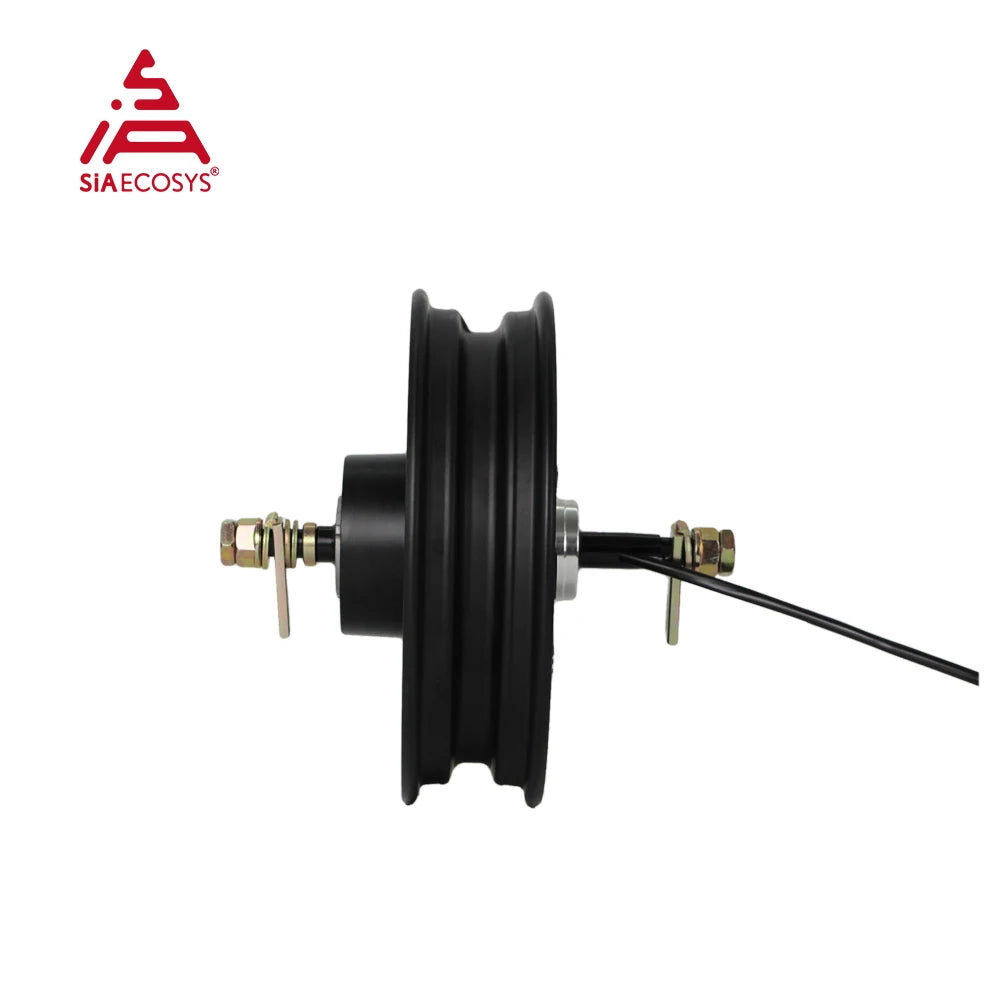

1.QSMOTOR 212 10x2.15inch 1000W V1.12 hub motor

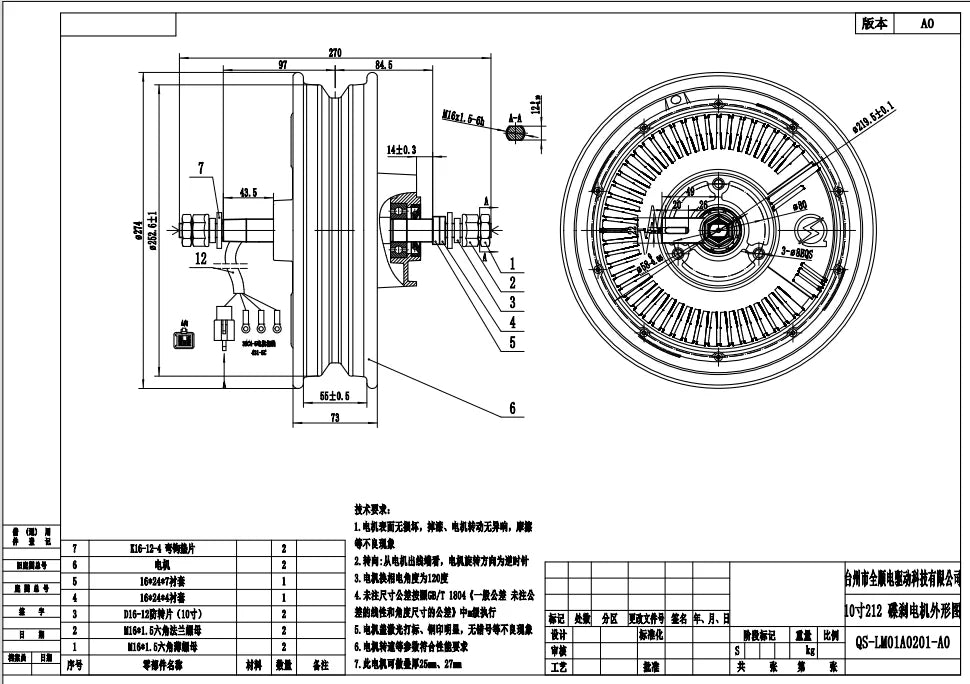

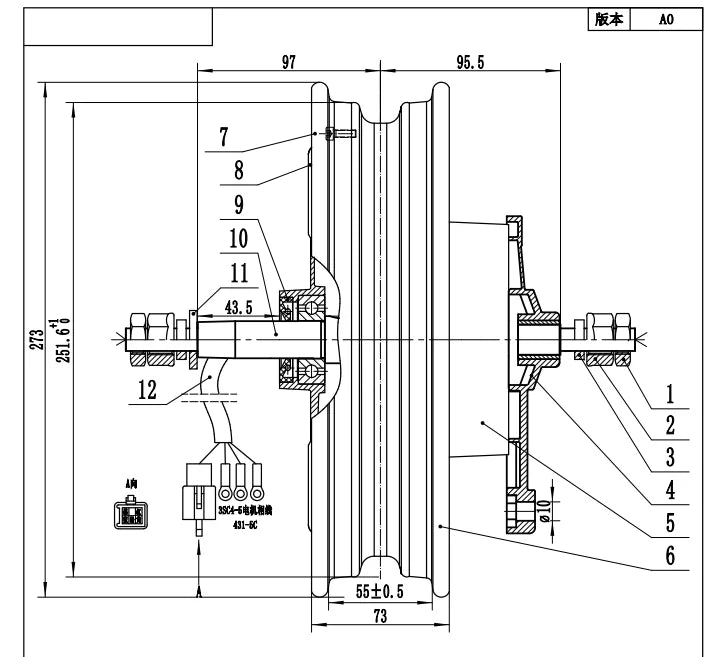

Drawing
1. 10*2.15inch in-wheel hub motor, disc brake
2. 10*2.15inch in-wheel hub motor, drum brake
Test Report(for reference)
212 10x2.15inch 1000W V1.12 hub motor with EM25sp

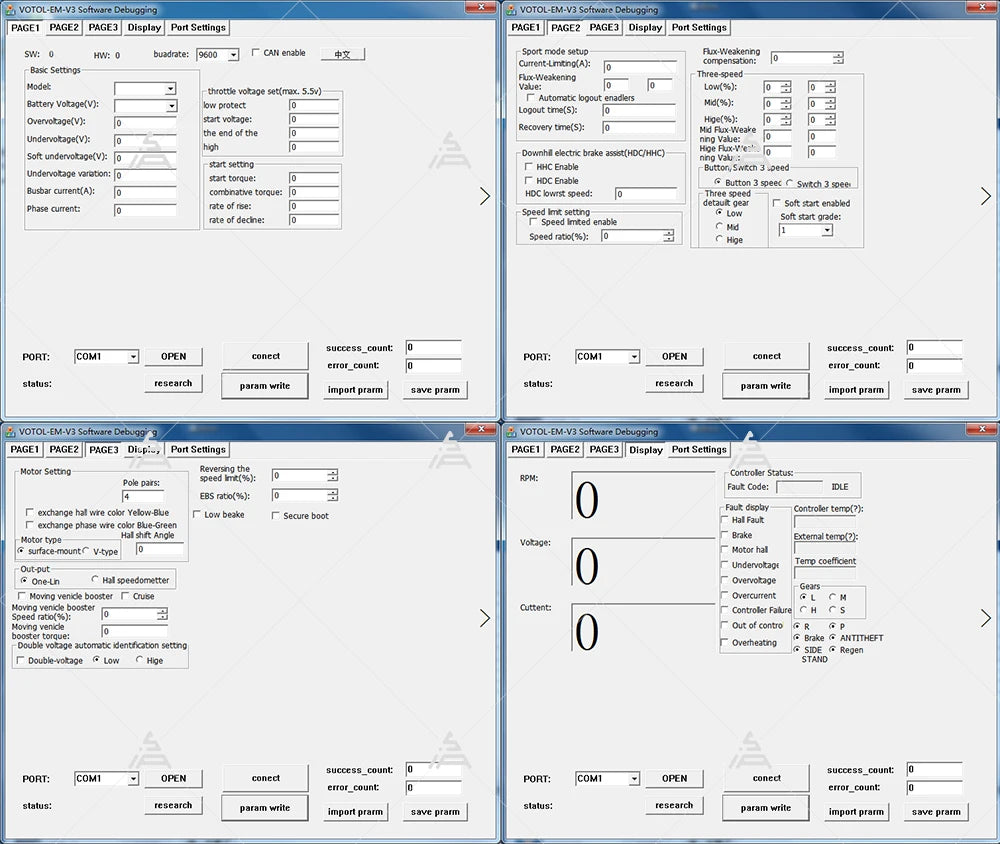

Controller Software Interface
Adapter Cable

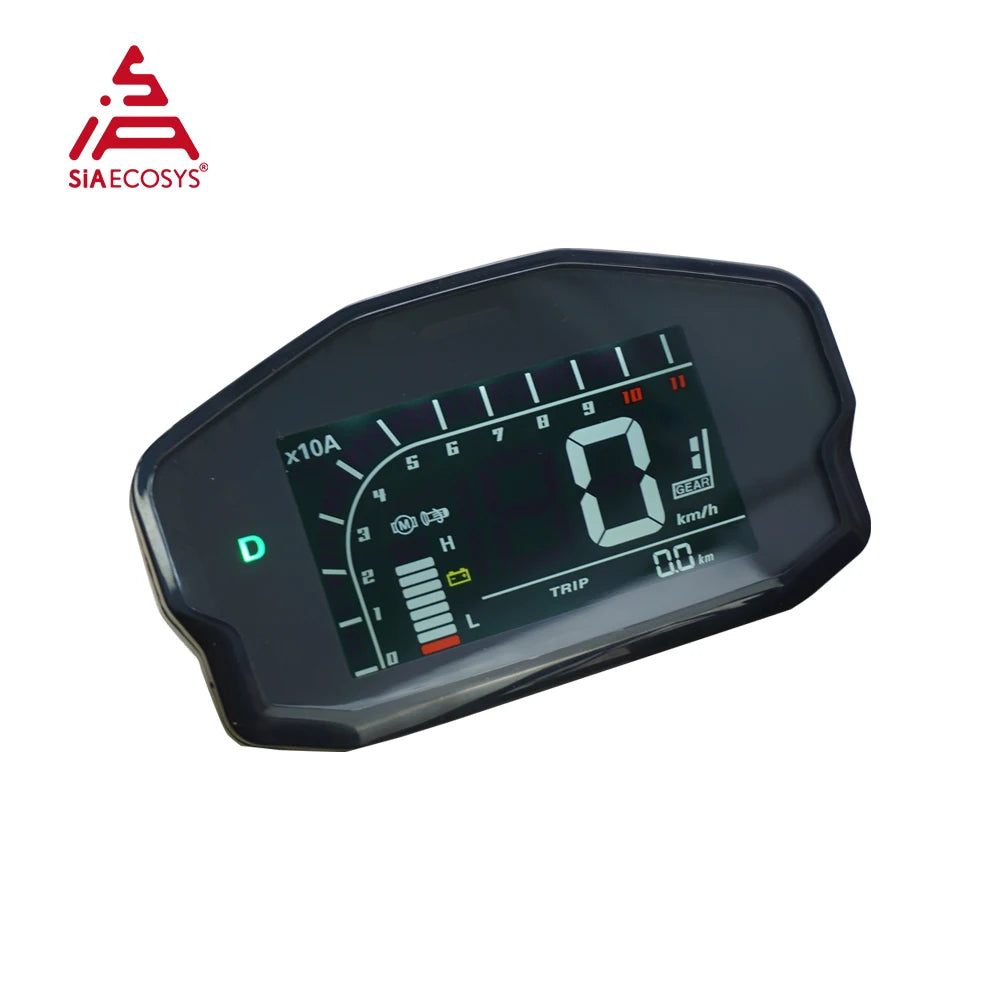

3.DKD adjustable LCDspeedometer
It display D N R, P, S gear, and battery current X5/10.
P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.
So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.
4.Z6 throttle with combination switch
With Reverse, Parking button( throttle on/off), 3 slide switch gear, s/boost button, Light and Horn.
It match with VOTOL controller well.
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
Please noted:
Optional appearance, drawing, performance curve/test report are available.
If you need more technical information, please feel free to contact us.
We will give you reply in 12hours.
Application for 10inch in-wheel hub motor
