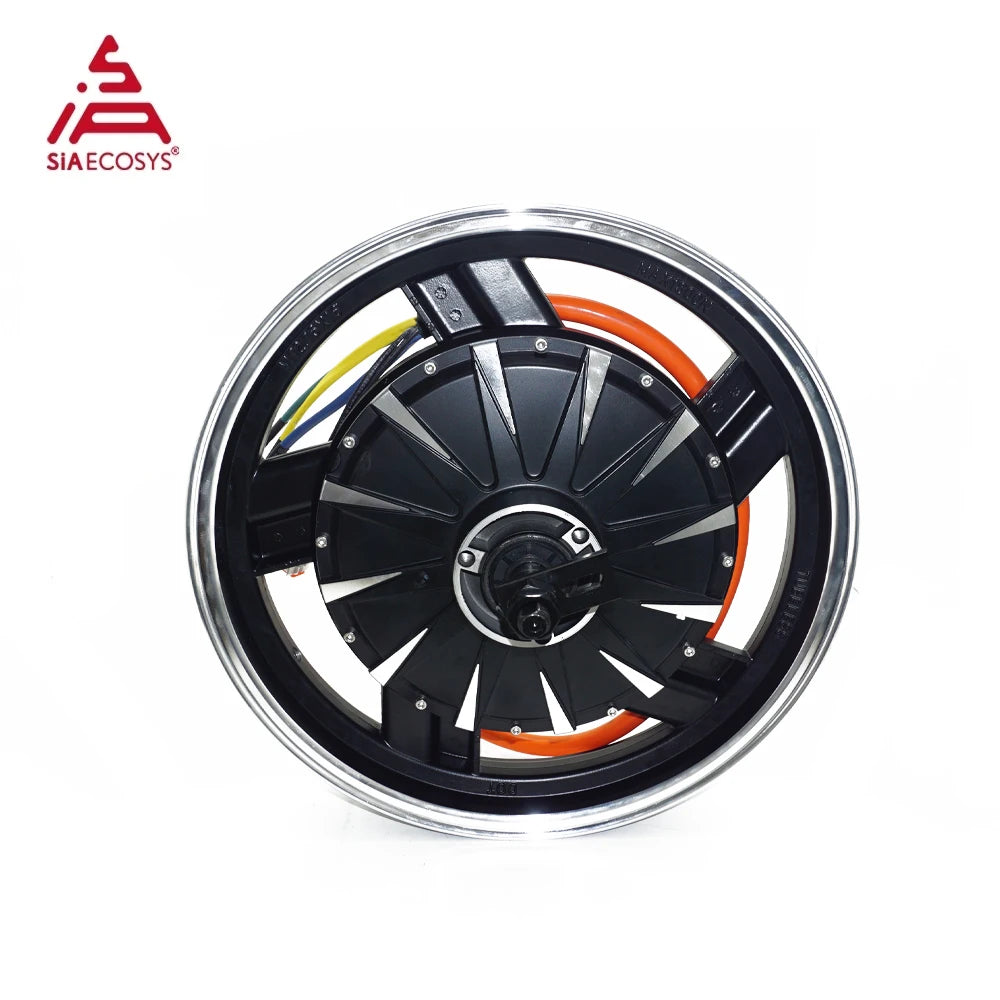

New products! 16X2.75inch 260 V1.4 4000w 50H Electric Motorcycle Brushless DC Wheel Hub Motor

For 16inch 260 E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

For E-scooter wheel hub motor, we also provide the10-17inch type, you can click the picture of hyperlink for the detailed information:

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

One set including below kits

1pcs XQSMOTOR 16X2.75inch 260 V1.4 4000w hub motor

Generally SPEC

·Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

·Brand: QS Motor, QSMOTOR

·Motor Design: Double axle with 16inch moped rim (integrated)

·Rim Size:16x2.75inch, matched tire: 120/70-16 etc

·Magnet Height: 50mm, 24pole pairs

·Stator: Aluminum Core

·Rated Power: 4000W

·Speed: 30KPH-80KPH, it's customized, generallywe will design as 72V840RPM.

·Work voltage range: 48V-96V, will be 72V as default.

·Max Torque approx 227.0N.m

·Thermic Probe: KTY83-122 (as default, optional)

·Max Efficiency approx 88%

·Brake type: Disc brake design(as default), PCD3*80mm-M8, CB 58mm

·Drop-outs: 200mm

·Dual Halls with waterproof connectors(One for spare, in case of damage)

·10mm² Phase Wire

·Waterproof Grade: IP54

·Color: Black (As default)

·

Dimension Drawing

be pending

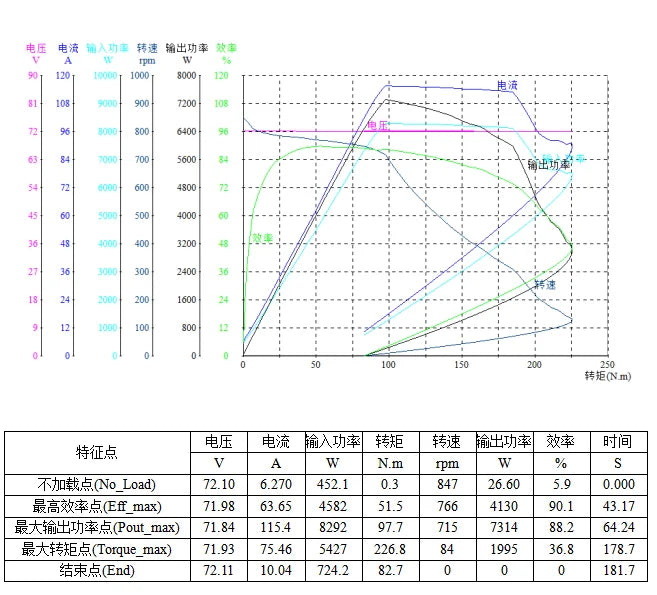

Test report:

Here is one test reportwith SIAYQ72180 controller.

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

A note to client

1. Please contact seller confirm the parameter, otherwise we will produce as default.

2. Please extended 15 days more at least for order prepare when motor no in stock. (Most of motor is customized based on application, without in stock).

3. When place order please leave email address, for seller provide manual.

4. Please read manual careful before using motor and controller, and if meet problem please contact seller in time, and don't disassemble cargo without seller permit, otherwise there will be no warranty.
