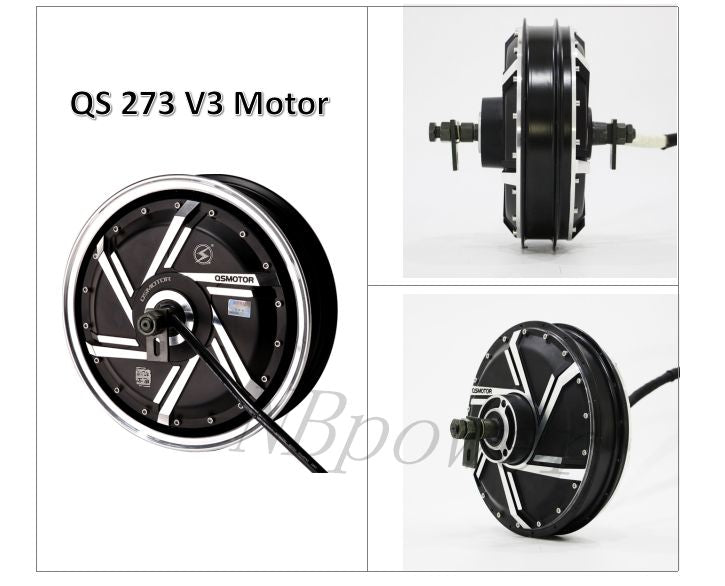

New Cover 72V/96V 12000W 14000W 16000W V3 electric hub 273 QS motor
Product Description
|
Motor Type
|
BLDC Hub Motor with Permanent Magnets
|
|
|
Motor design
|
Spoke Motor with Double axle out
|
|
|
Spoke Hole
|
36pcs*4.2mm
|
|
|

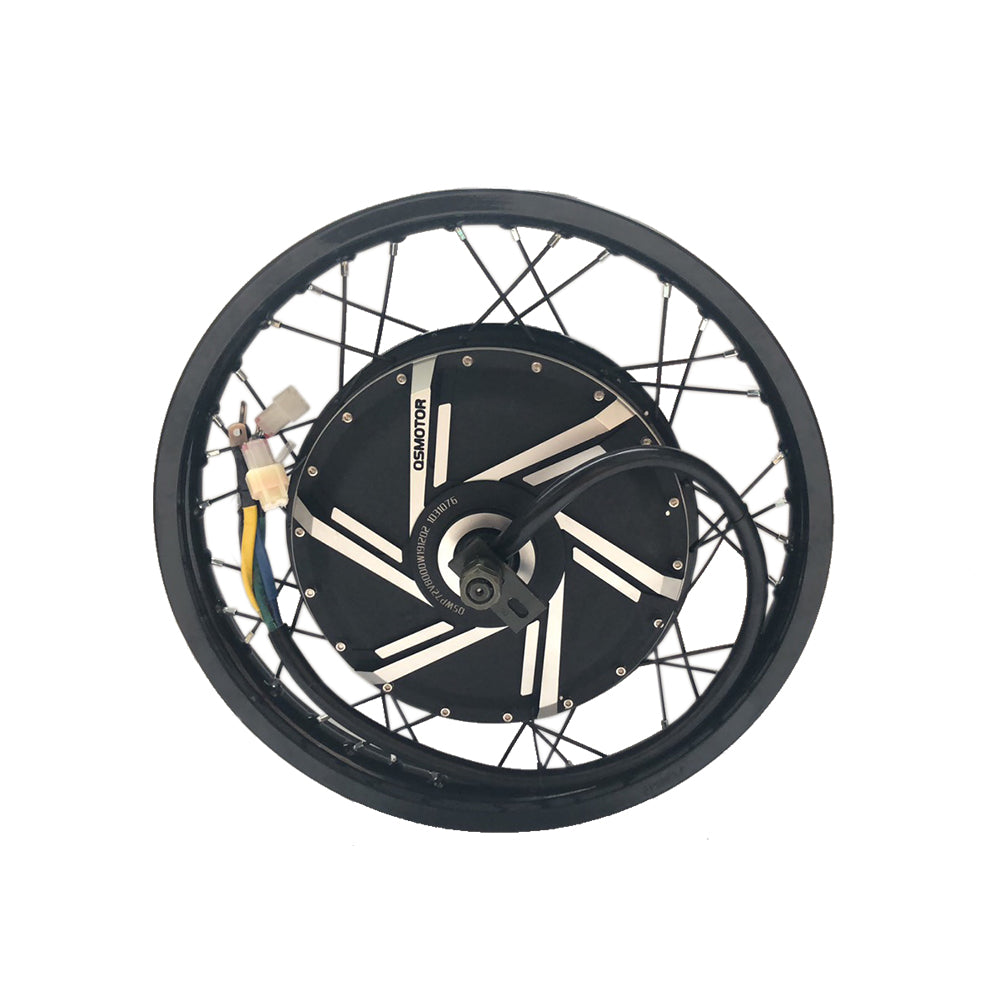

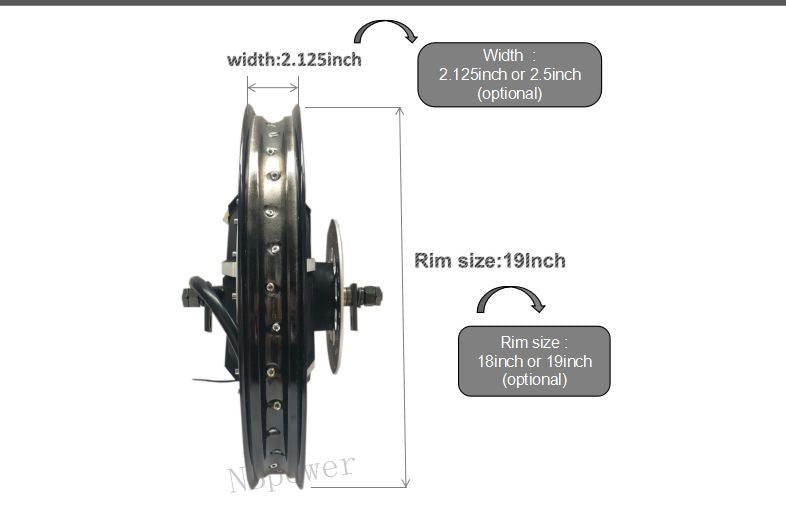

Matching Wheel
|
18inch-19inch spoke wheel
|
|
|
Magnet Height
|
50H
|
|
|
Pole Pairs
|
16 pairs(32PCS Curved Mangets)
|
|
|
Rated Power
|
16000W
|
|
|
Rated Voltage
|
72V
|
72-144V Can be optional
|
|
Speed
|
120km/h
|
30-115km/h can be customized
|
|
Max No-load RPM
|
1400RPM
|
|
|
Max Torque
|
200N.M
|
|
|
Max Efficiency
|
90%
|
|
|
Continious current
|
130A
|
|
|
Max current
|
190A ,Peak 260A
|
|
|

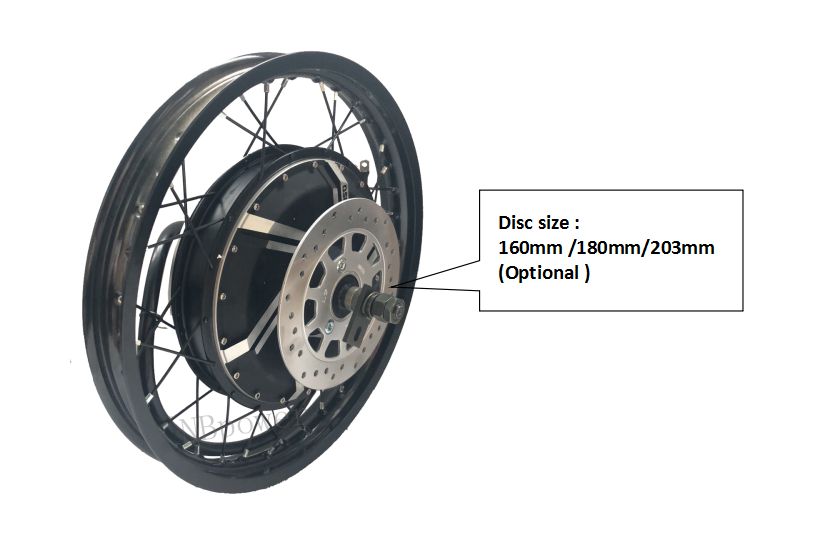

Brake type
|
Disc brake
|
|
|
Rear Fork width
|
200mm
|
|
|
Winding Core material
|
Aluminium
|
|
|
Cross Section of Phase wire
|
16 mm2
|
|
|
Hall sensor phasing angle
|
120 degree
|
|
|
Temperature Sensor
|
|
Optional
|
|
Max. Working Temperature
|
70 degree, Peak 120 degree
|
|
|
Waterproof Grade
|
IP54
|
|
|
N.W./ G..W.
|
22kgs / 23kgs
|
|
|
Package Size
|
44*43*34CM
|
|

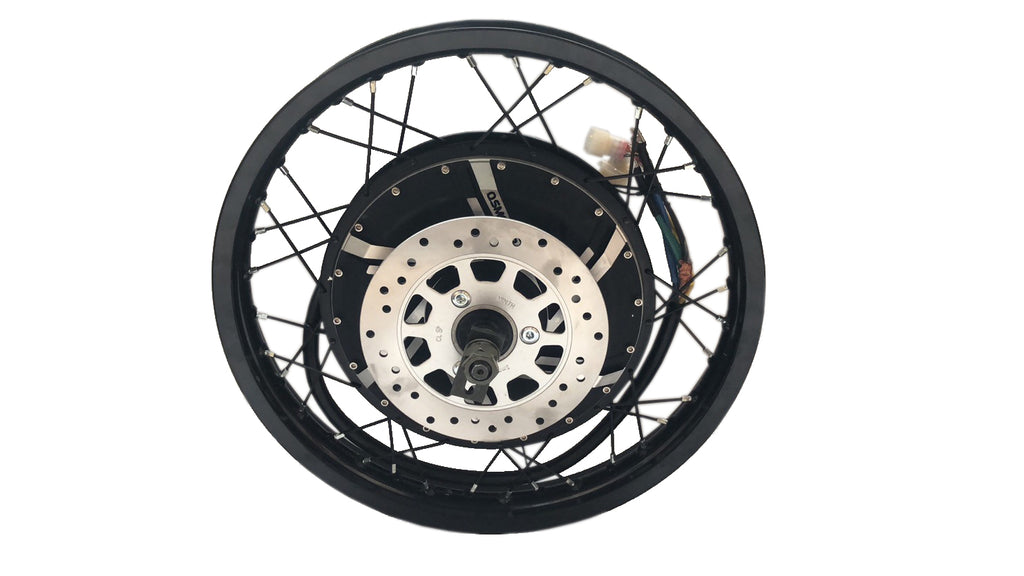

Detailed Images

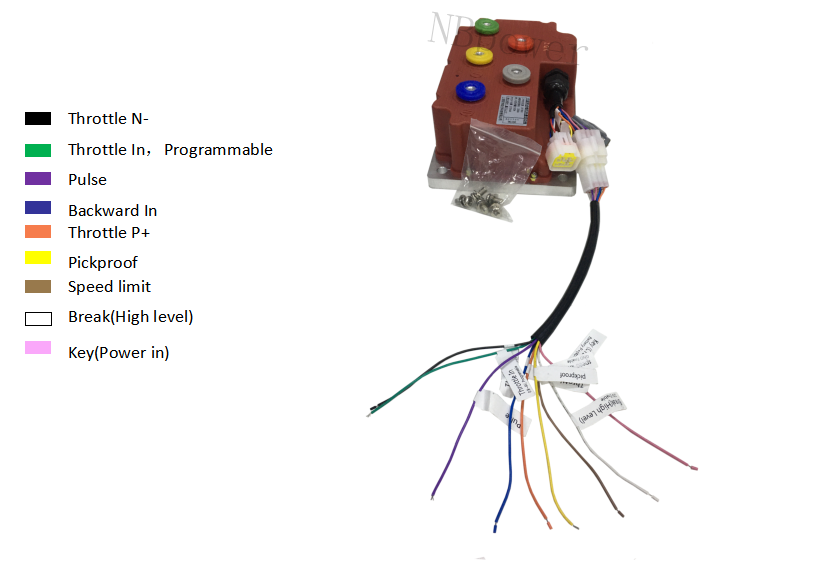

Controller Drawing
