NBpower/QS205 V3 72v 5000W Ebike kit 150mm Dropout Motorcycle Electric Bike Motor Wheel with Fardriver ND72530 Controller DKD Display
Package Content：

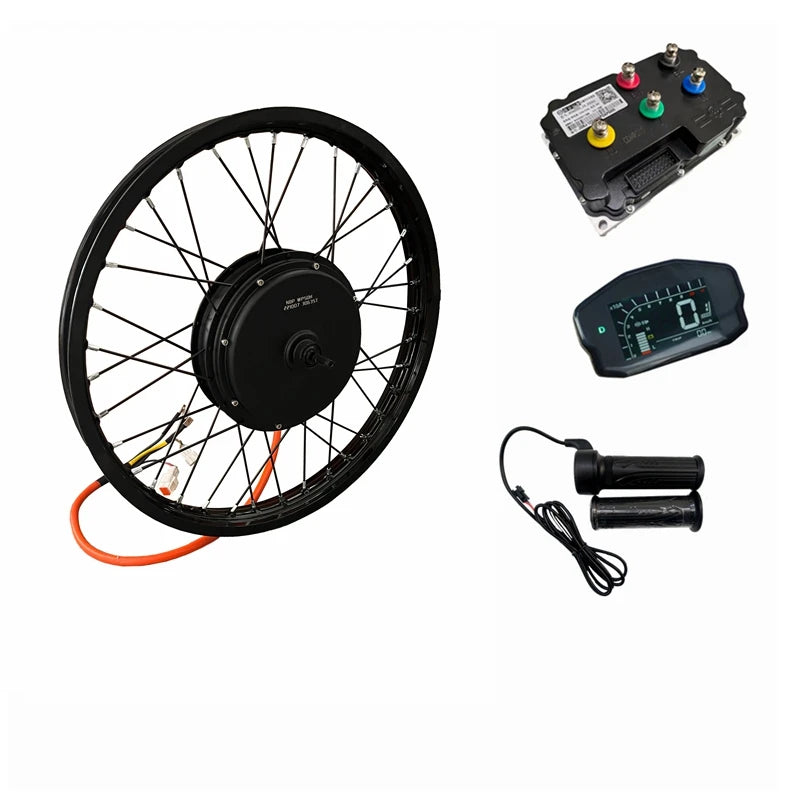

combo 1：

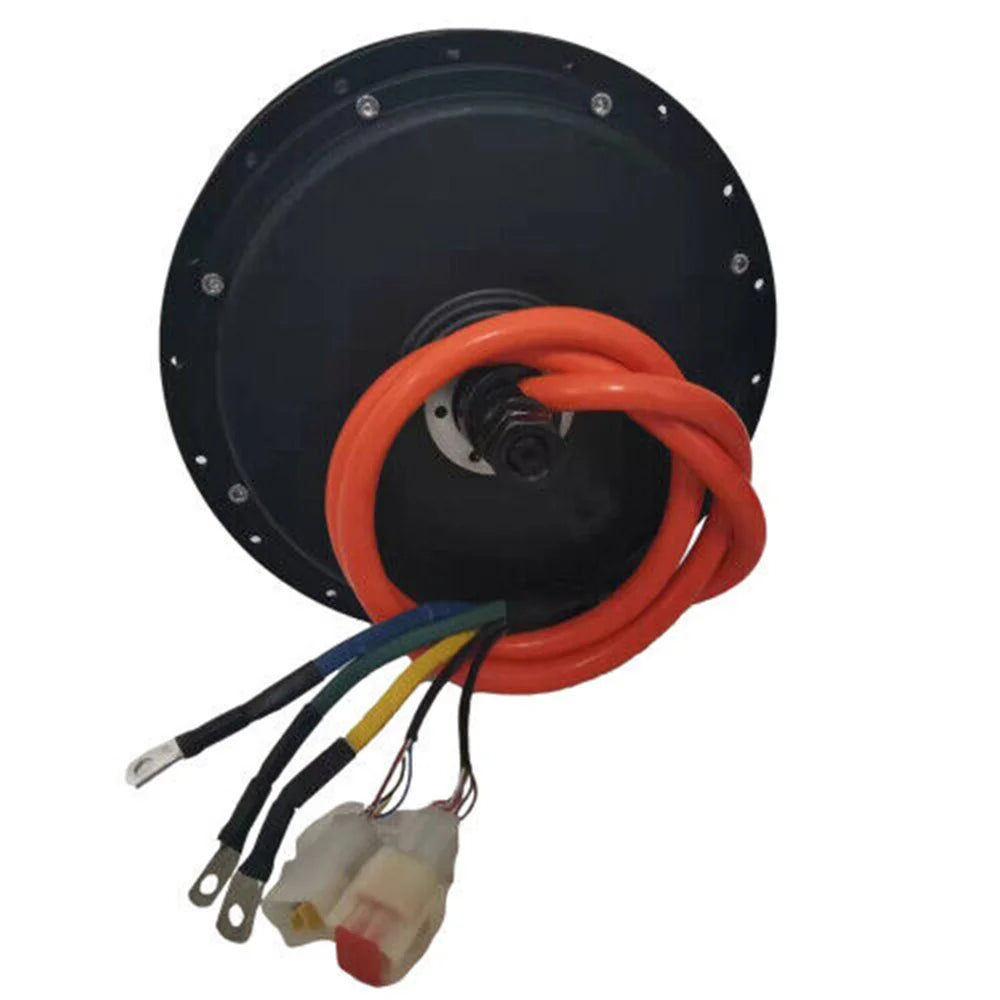

1x QS205 V3 5000W 150mm electric Bike Motor Wheel.
Rim width 1.85 by default, if need other size please contact us

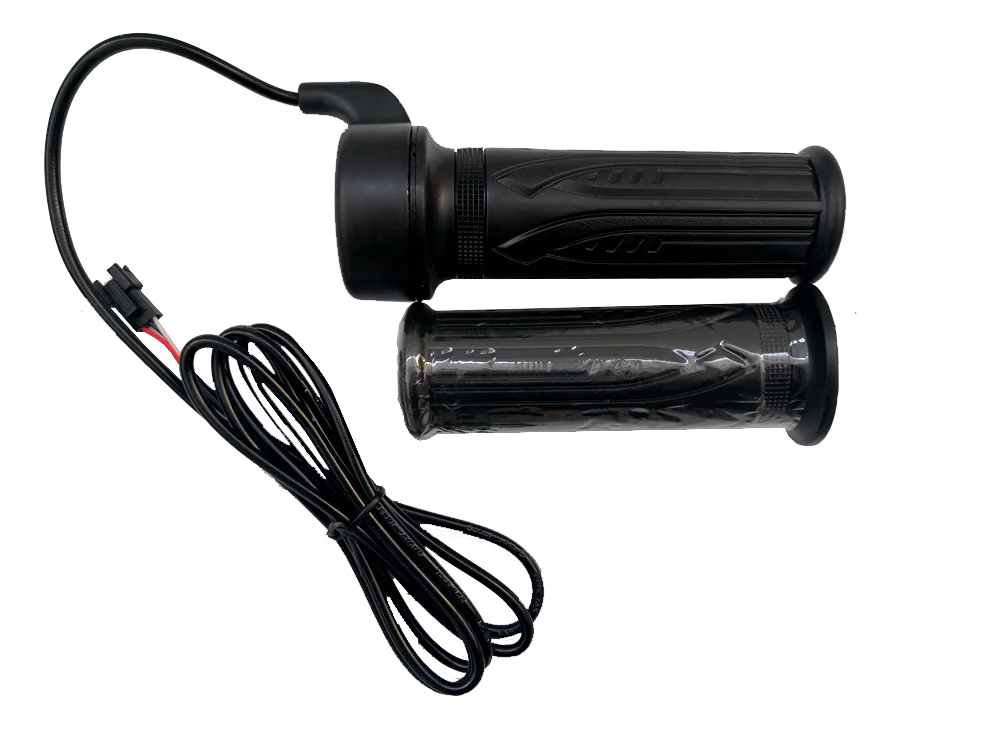

1x a pair of Full twist throttle
1x single speed flywheel
1x Fardriver ND72530 controller

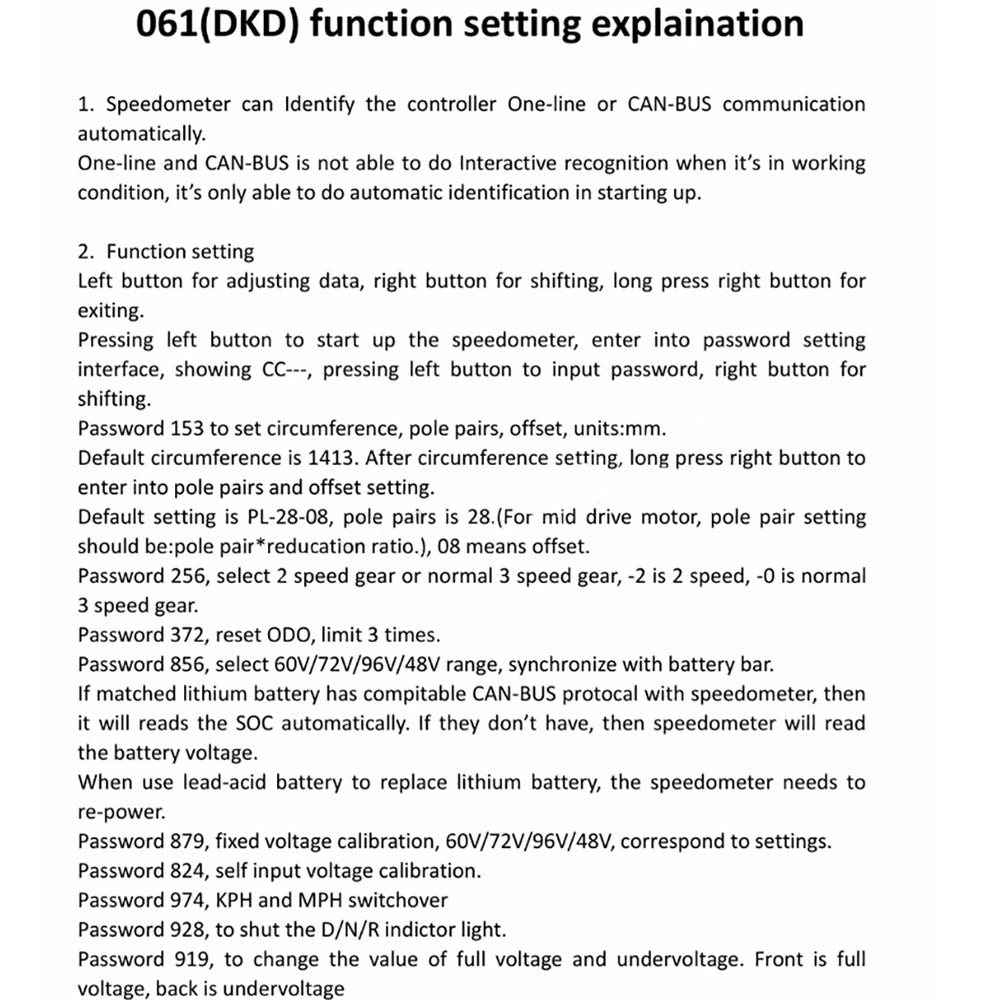

1x DKD display

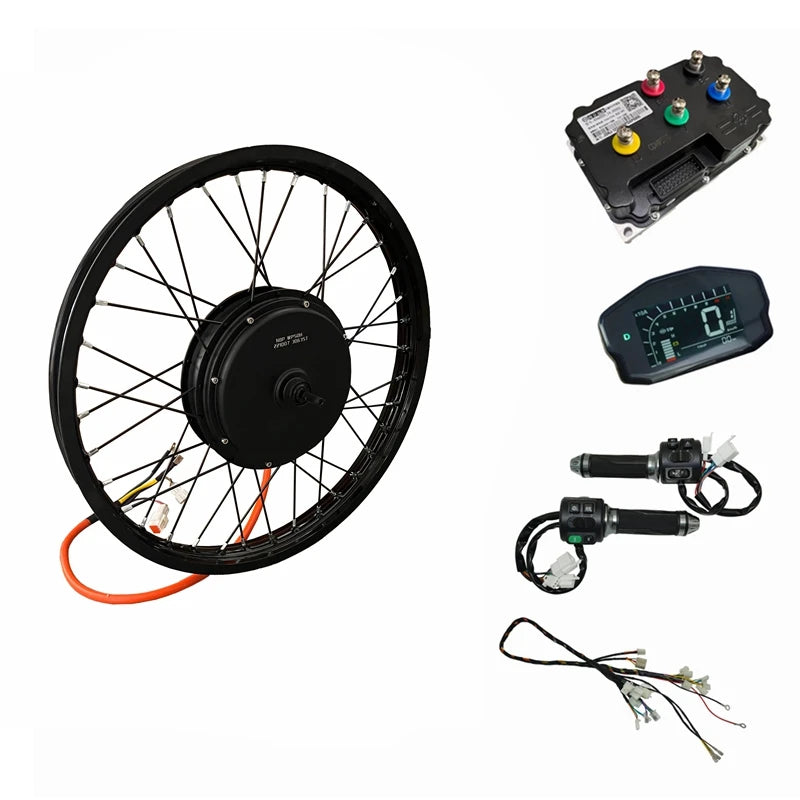

combo 2：
1x QS205 V3 5000W 150mm electric Bike Motor Wheel.
Rim width 1.85 by default, if need other size please contact us

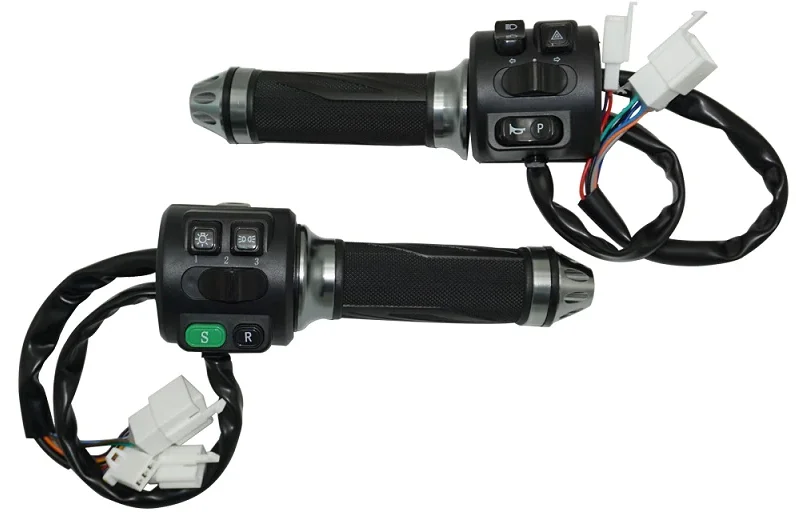

1x a pair of Full twist motorcycle throttle with light-horn-3speed switches

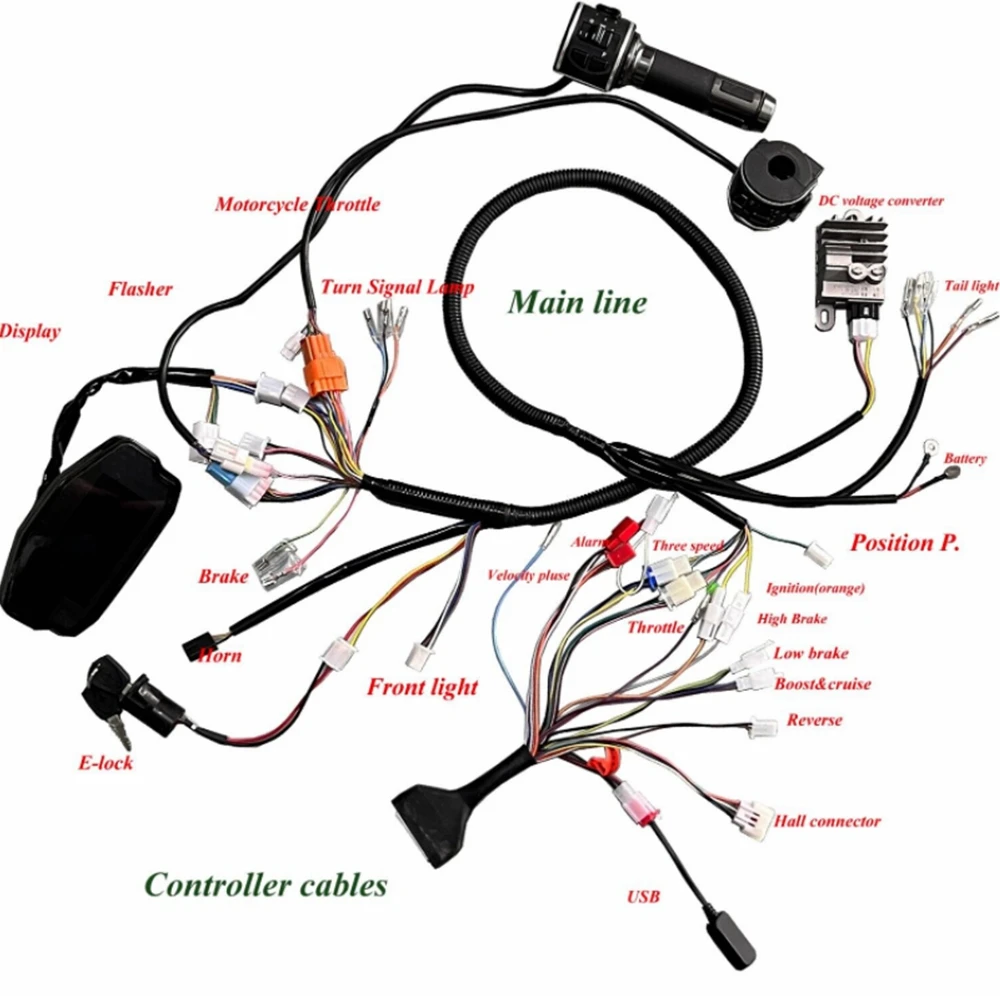

1x main line harness
1x ignition
1x 12v DC converter
1x single speed flywheel
1x Fardriver ND72530 controller
1x DKD display
Difference between 3.5T and 5T : 3.5T is high speed version（Speed reach 100km/h without load at 72V）, 5T is high torque version(Speed reach 70-75km/h without load at 72V). And if you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
Motor Type: BLDC In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 6000W in few seconds
Rated Voltage: 72V
Speed: 850rpm 3.5t
Drop-outs: 150mm
Max Torque: approx 181N.m
Max Efficiency: approx 91%
Suggest Peak Phase Current: N/A
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Hall Sensor: Dual hall set with waterproof connector
Phase Wire:2*5mm²Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
Pole Pairs: 16
Controller wire connection
