NBpower/QS205 V3 72v 3000W Ebike kit 150mm Dropout Motorcycle Electric Bike Motor Wheel with ND72360 Controller DKD Display

Sale price $625.68 Regular price $682.88

NBpower/QS205 V3 72v 3000W Ebike kit 150mm Dropout Motorcycle Electric Bike Motor Wheel with Fardriver ND72360 Controller DKD Display


Package Content:

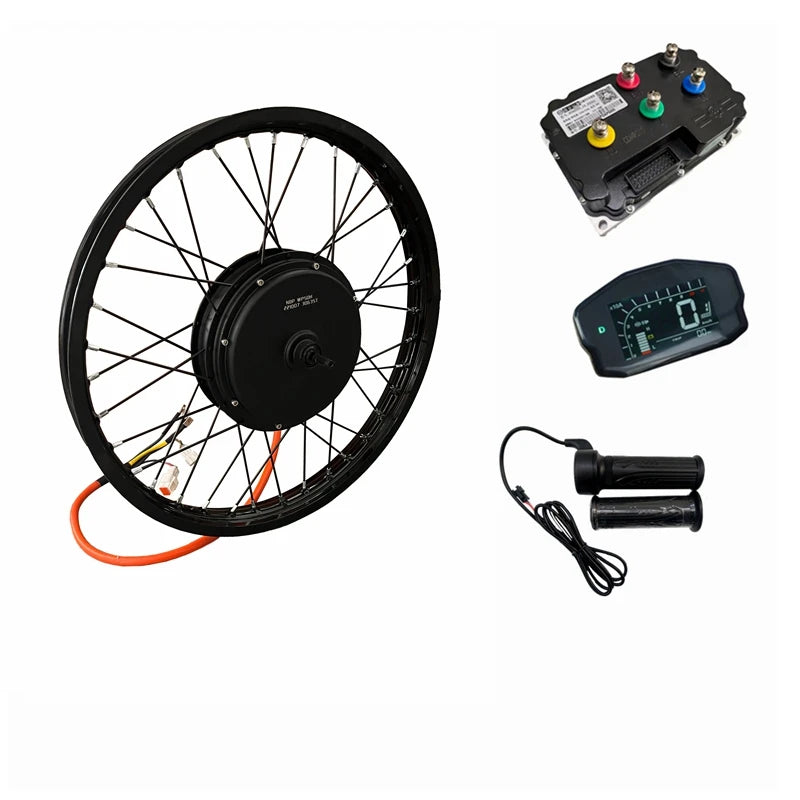

combo 1:

1x QS205 V3 3000W 150mm electric Bike Motor Wheel.

Rim width 1.85 by default, if need other size please contact us

1x a pair of Full twist throttle

1x single speed flywheel

1x Fardriver ND72360 controller

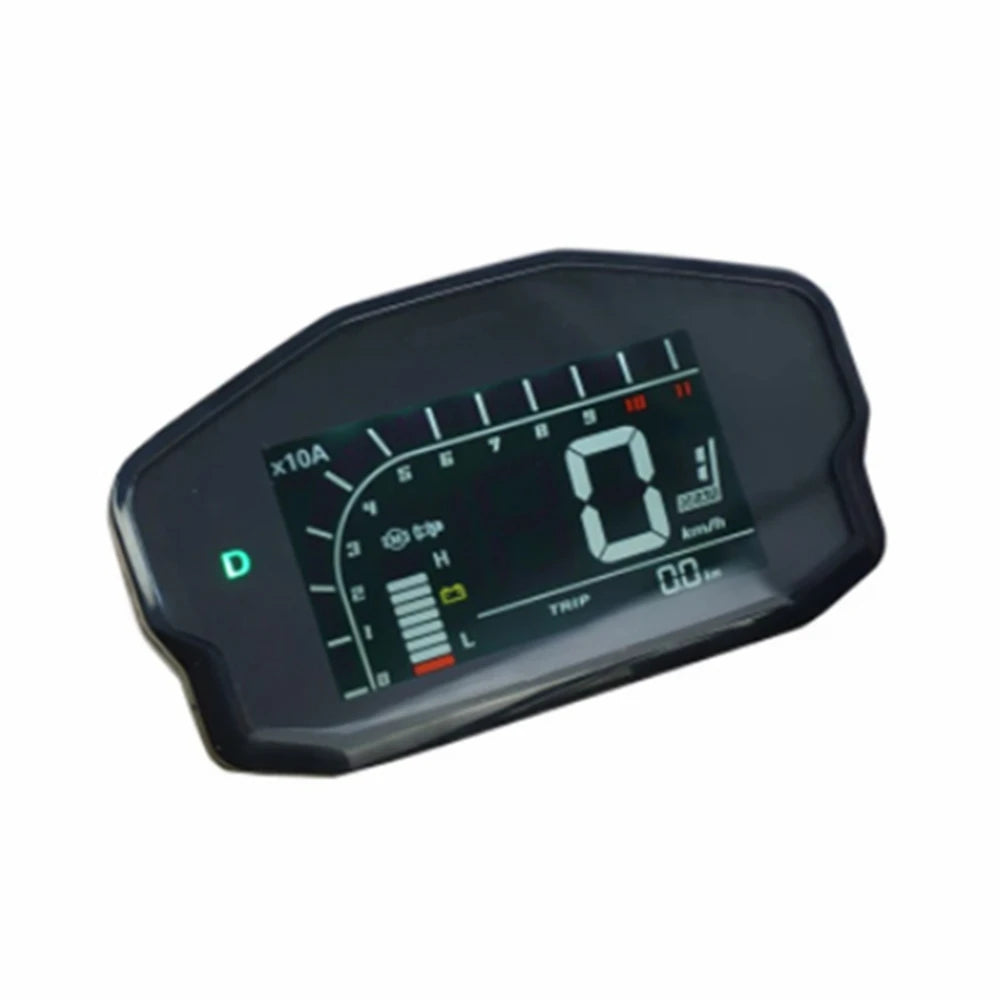

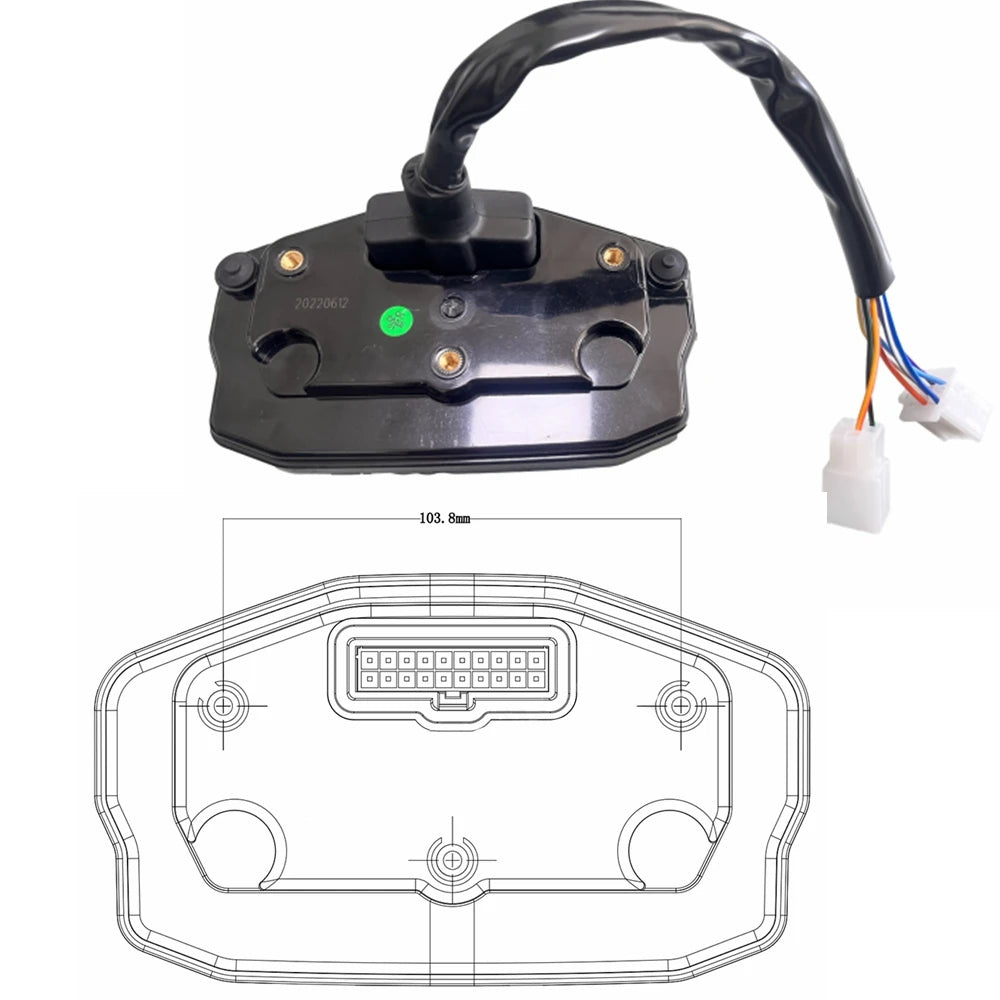

1x DKD display

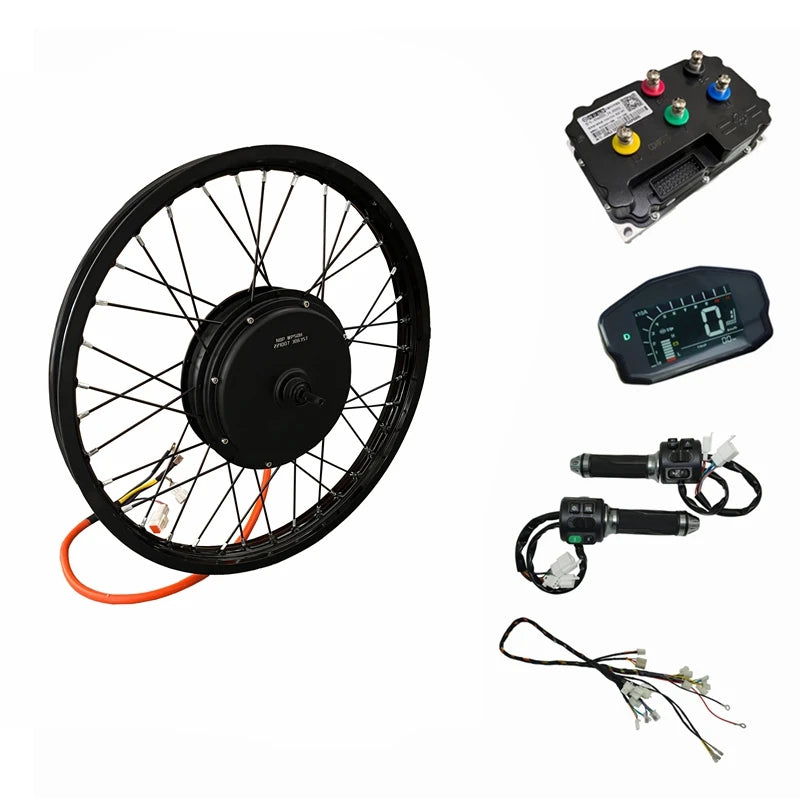

combo 2:

1x QS205 V3 3000W 150mm electric Bike Motor Wheel.

Rim width 1.85 by default, if need other size please contact us

1x a pair of Full twist motorcycle throttle with light-horn-3speed switches

1x main line harness

1x ignition

1x 12v DC converter

1x single speed flywheel

1x Fardriver ND72360 controller

1x DKD display



Difference between 3.5T and 5T : 3.5T is high speed version(Speed reach 100km/h without load at 72V), 5T is high torque version(Speed reach 70-75km/h without load at 72V). And if you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.


Motor Type: BLDC In-Wheel Hub Motor

Motor Design: Double Axle with Rim(integrated)

PCD: 6*44mm

Stator: Aluminum Core

Rated Power: 3000W

Peak Power: 6000W in few seconds

Rated Voltage: 72V

Speed: 960rpm 3.5t

Drop-outs: 150mm

Max Torque: approx 150N.m

Max Efficiency: approx 91%

Suggest Peak Phase Current: N/A

Thermic Probe: KTY83/122(as default)

Working Temperature: 70-120℃, peak 150℃

Brake Type: Disc Brake

Hall Sensor: Dual hall set with waterproof connector

Phase Wire:2*5mm²Cross

Hall Sensor Phasing Angle: 120 degree

Waterproof Grade: IP65

Color: Black


Pole Pairs: 16

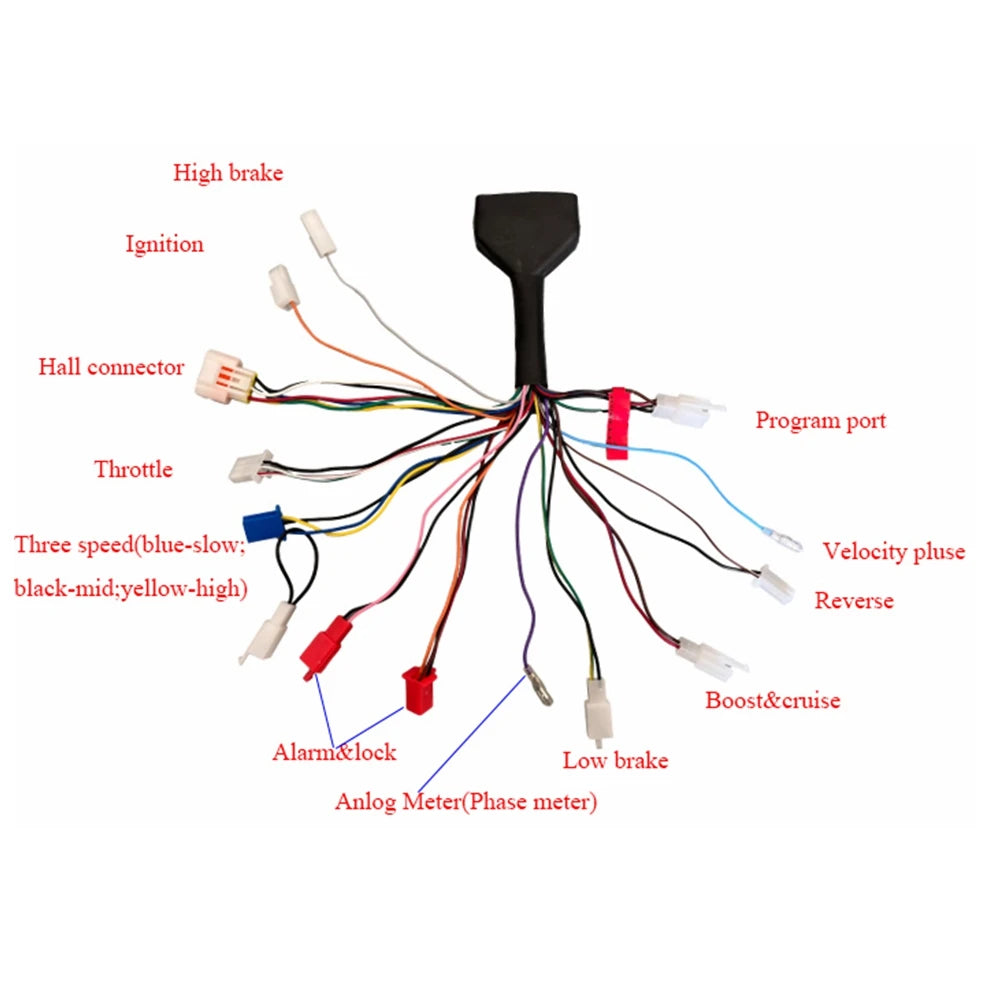

Controller wire connection


throttle in Combo1

throttle and main line harness in Combo2
