QS 72V 3000W 5000W 150mm Dropout Ebike Brushless Hub Motor Wheel Max Speed 90-100km/h Motorcycle Wheel Electric Bicycle Motor Wheel
Packaging list

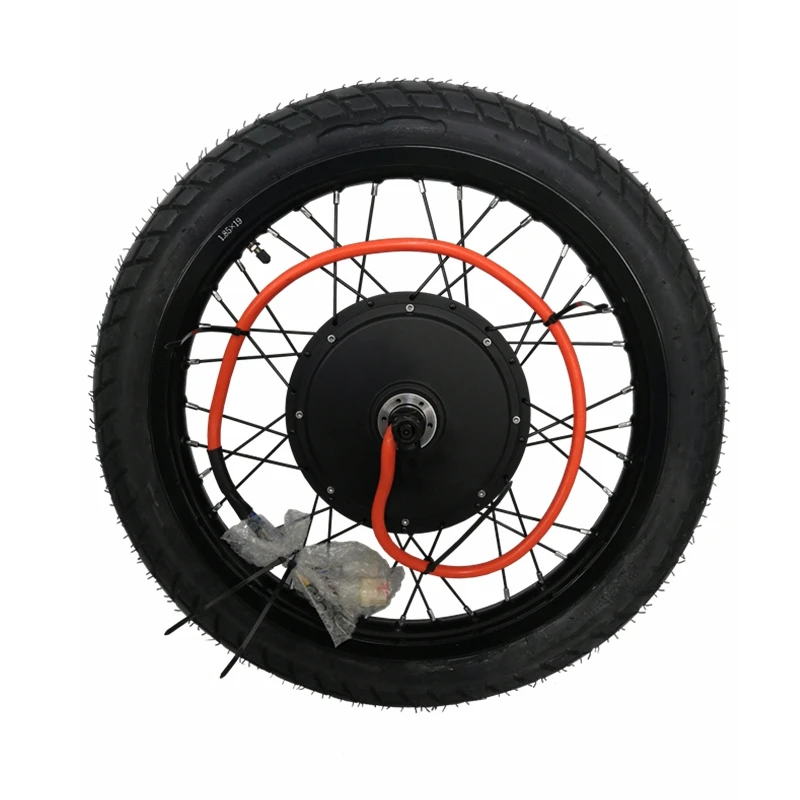

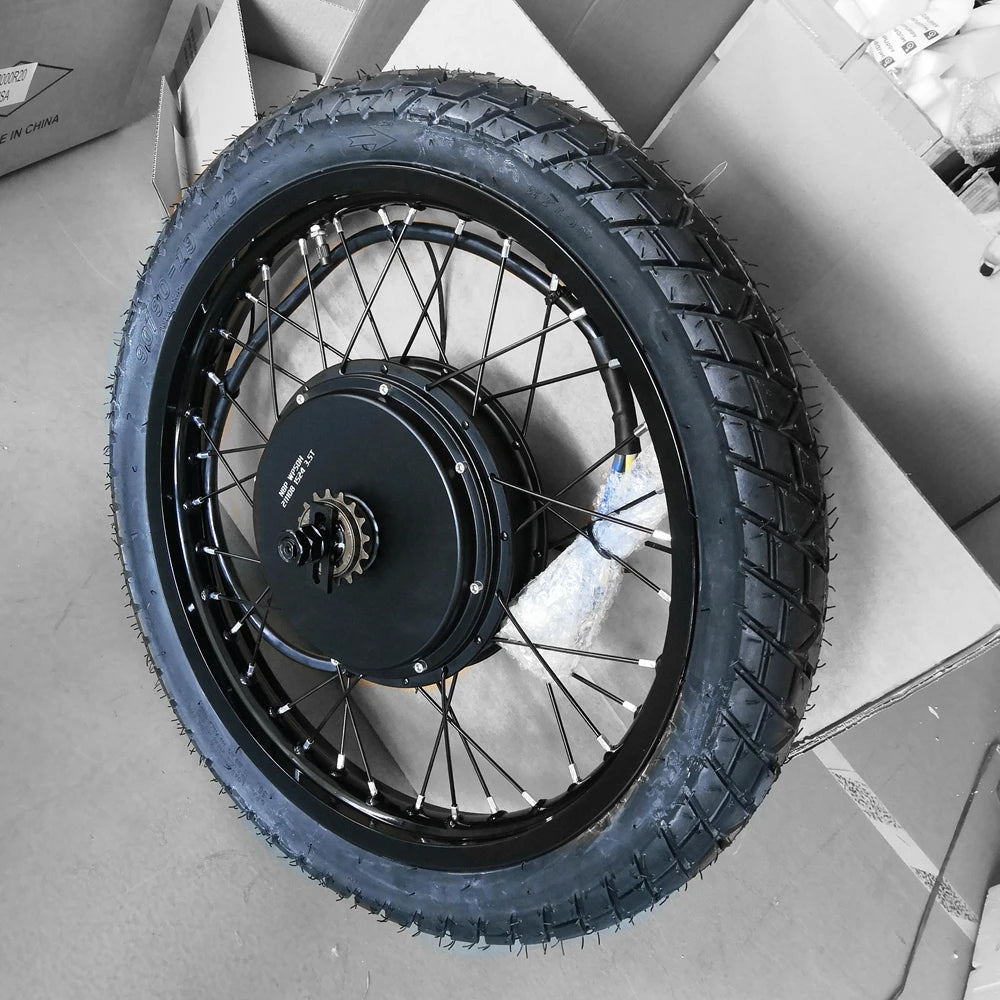

QS 72V 3000W OR 5000W 150mm dropout Electric bike rear hub motor wheel
Difference between 3.5T and 5T : 3.5T is high speed version, 5T is high torque version, 5T max speed is much lower than 3.5T. If you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
Specification
2.Motor design: Double axle out
3.Spoke hole: 3.4mm x 36pcs
4.Matching Rim:16inch-29inch
5.Magnet Height: 50MM
6.No. of Pole Pairs: 16paris
7.Rated Power:3000W
8.Peak Power: 6000W
9.Rated Voltage: 72V
10.Max No-load RPM: 950RPM
11.Max Torque: 150N.M
12.Max Efficiency: 88%
13.Max current:80A (Peak 100A in short time)
14.Brake type: Disc brake
15.Rear Fork width for installation: 150mm
16.Winding Core material: Aluminium
17.Cross Section of Phase wire: 10 mm2
18.Hall sensor phasing angle: 120 degree
19.Temperature Sensor: Optional
20.Max. Working Temperature: 70 degree, Peak 120 degree
21.Waterproof Grade: IP54
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 17inch-29inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed: 850rpm 3.5t
10. Drop-outs: 150mm
11. Max Torque: approx 181N.m
12. Max Efficiency: approx 91%
13. Continues Battery Current: 44A(72V)
14. Peak Battery Current: 100-150A(72V)
15. Suggest Peak Phase Current: N/A
16. Thermic Probe: KTY83/122(as default)
17. Working Temperature: 70-120℃, peak 150℃
18. Brake Type: Disc Brake
19. Hall Sensor: Dual hall set with waterproof connector
20. Phase Wire:2*5mm²Cross
21. Hall Sensor Phasing Angle: 120 degree
22. Waterproof Grade: IP65
23. Pole Pairs: 16
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
