QS205 150mm Dropout 48-72V 3000W 5000W 205H Electric Fat Bike Rear Motor Wheel 20X4.0 24X4.0 26X4.0 Rim Max Speed 80-100km/h
Packaging list
1. QS205 50H 72V 3000W or 5000W Electric bike rear hub motor wheel 150mm dropout
2. Single speed freewheel

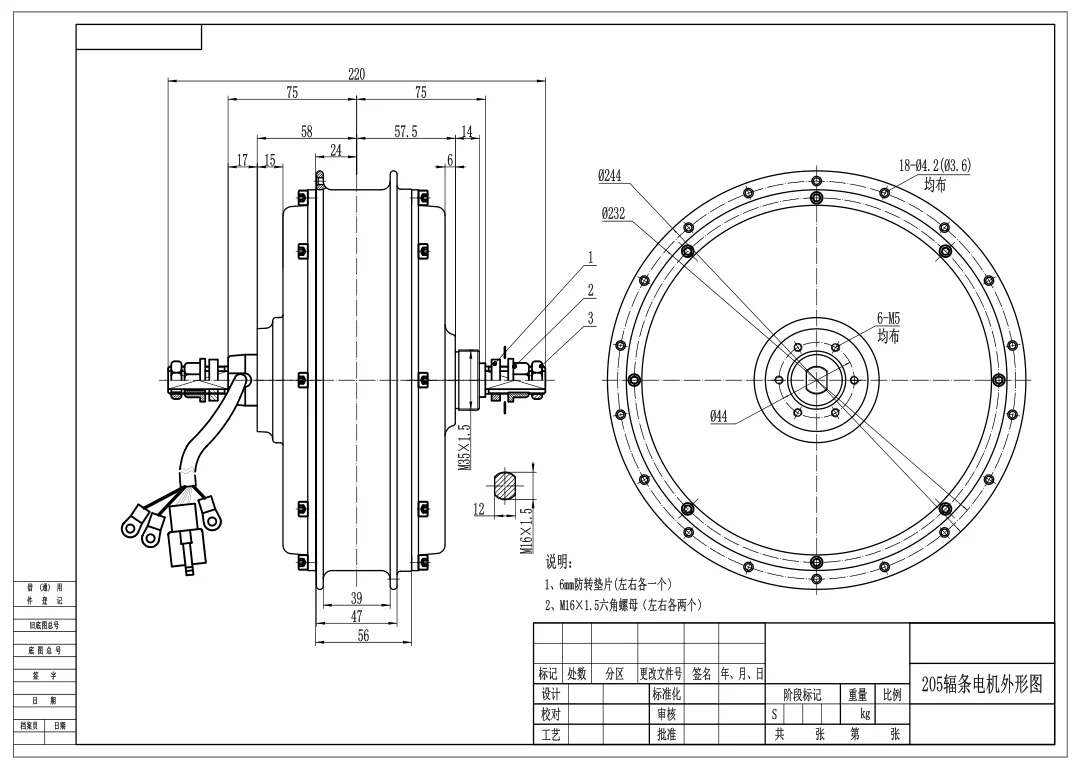

QS motor specification
2.Motor design: Double axle out
3.Spoke hole: 3.4mm x 36pcs
4.Matching Rim:16inch-29inch
5.Magnet Height: 50MM
6.No. of Pole Pairs: 16paris
7.Rated Power:3000W
8.Peak Power: 6000W
9.Rated Voltage: 72V
10.Max No-load RPM: 950RPM
11.Max Torque: 150N.M
12.Max Efficiency: 88%
13.Max current:80A (Peak 100A in short time)
14.Brake type: Disc brake
15.Rear Fork width for installation: 150mm
16.Winding Core material: Aluminium
17.Cross Section of Phase wire: 10 mm2
18.Hall sensor phasing angle: 120 degree
19.Temperature Sensor: Optional
20.Max. Working Temperature: 70 degree, Peak 120 degree
21.Waterproof Grade: IP54
5000W
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 17inch-29inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 6000W in few seconds
8. Rated Voltage: 72V
9. Speed: 960rpm
10. Drop-outs: 150mm
11. Max Torque: approx 181N.m
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP6522.
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
