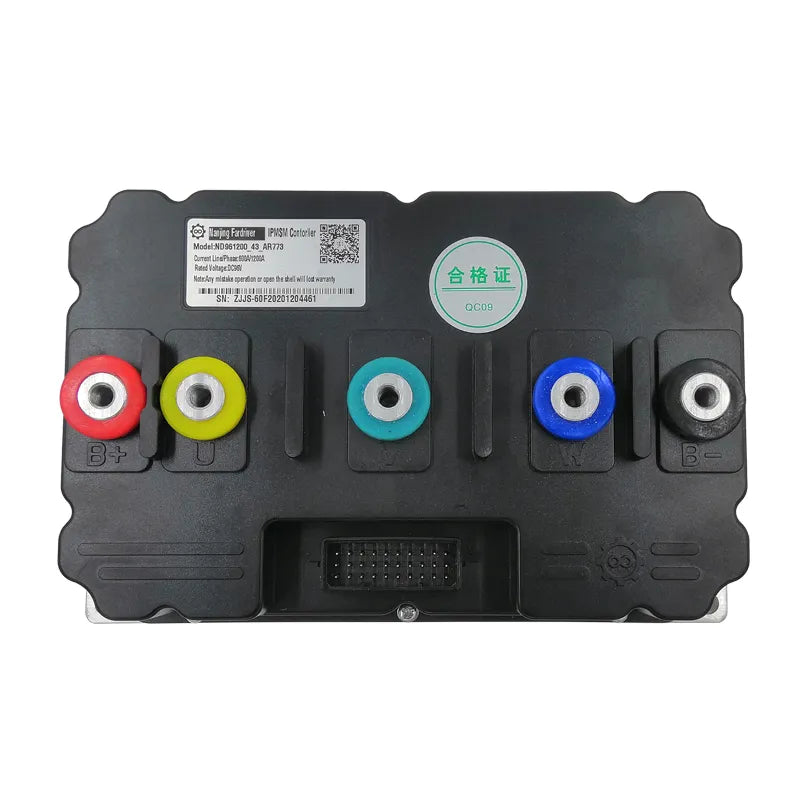

NBpower/Fardriver ND961800 High Power Sine Wave BLDC Motor E-bike Controller For 12000W 14000W 15000W Electric Car Motorcycle

$1,086.68 $1,185.88

15000W-20000W Electric Scooter BLDC Controller Fardriver ND961800




FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

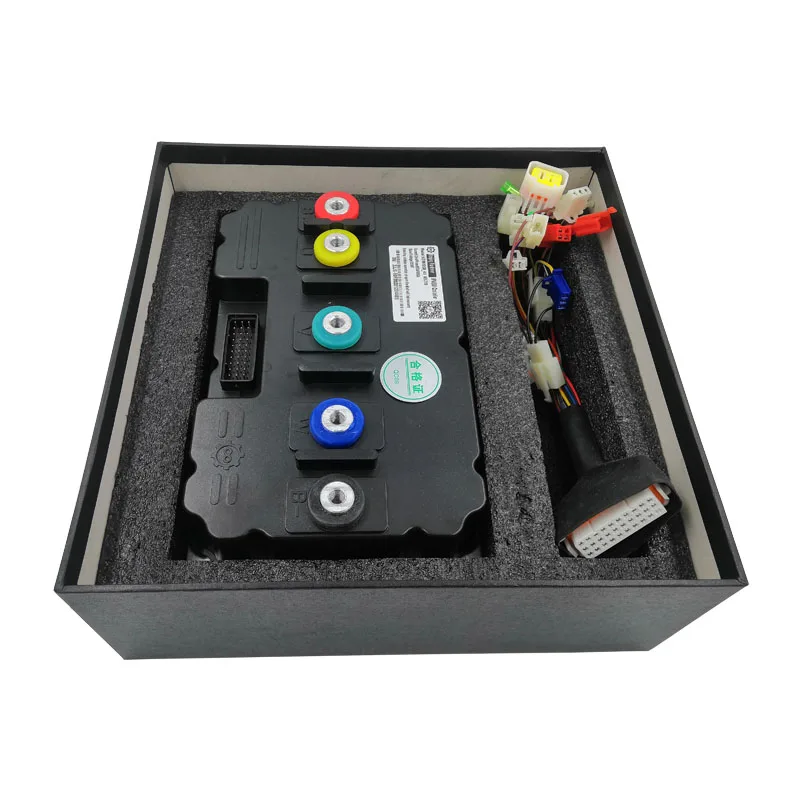

One set including below kits

1. 1pcs X ND961800 sine wave motor controller

2. 1pcs X Bluetooth Adapter





Key Features

1). All the raw materials are imported, using high-performance Moss tube

2).Withthe aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3).Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function


Product Description

ND961800 is sine wave motor controller. Which is more cost effective with waterproofing grade IP67, suit for 10-15kw motors, the peak voltage for it is115V.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.


General SPEC

Nanjing Fardriver Controller
1Model: ND961800
2Working Communication: Hall Sensor
3Available Rated Battery Voltage: 72V/84V/96V
4Peak Battery Voltage: 115V
5Available Motor Power: 12KW - 20KW
6Defaut Throttle Working Voltage: 0V - 5V
7Peak DC Current: 800A
8Peak Phase Current: 1500A
9Mosfets Detail: 60 FET
10Weight: 5kgs

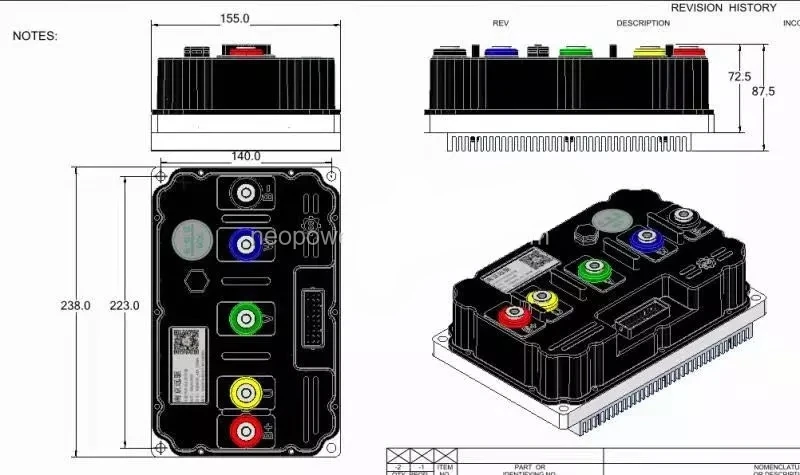

11Instaliing Size: 238mm * 155mm * 72mm
12Controller Design: Sine Wave BLDC
13Case Material: Aluminum
14 SupportProgrammable: PC & Phone
15Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV,Car









Main Specification:

1. Controller Type: Sine Wave FOC Controller
2. Model Number: ND961800
3. Max. Bus Current:1500A
4. Max. Phase Current:800A
5. Working Voltage:72V/84V/96V
6. Compatible Motor Power: 15000W-20000W
7. Size: 238mm*155mm*88mm
8. Weight:4KGS


Features:

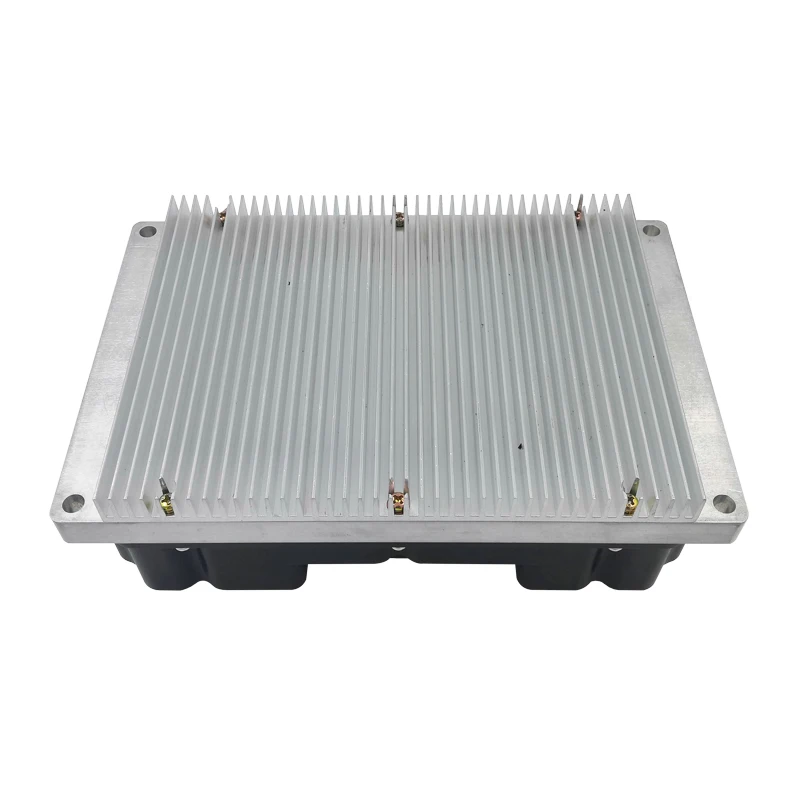

The ND series Hall one-line pass-through controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

Rich software parameter configuration： * Monitor and configure the controller through the visual computer interface, and update and upgrade online.
* The current at different speeds can be adjusted online. * The maximum speed of forward and backward, economic speed can be set. * The overall bus current and phase current can be set. * The accelerator pedal threshold can be set to adjust the response sensitivity of the pedal.

Perfect protection function： Monitor working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc. Ensure the safety of vehicle driving control
Items

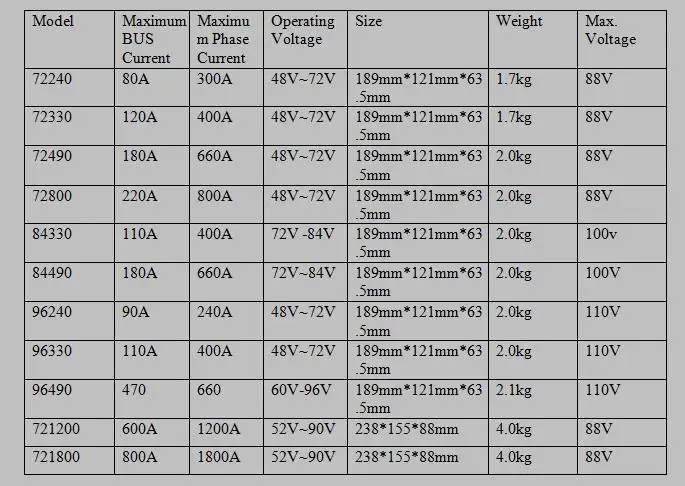

Different Model:





FAQ

Q: How about the Duty & Tax ?
A: All products are sent in DDU mode, the total price does not include tax and duty.The relevant tax and duty need to be paid by the buyer.
We are not responsible for product customs clearance, please ensure that you have the ability to clear the goods before purchasing.

Q: How long is the delivery time ?
A: Fardriver controllers are sent by UPS or Fedex，7-10working days. But if no stock(the stock on this page is not exact), preparing time is about 1-2weeks.
