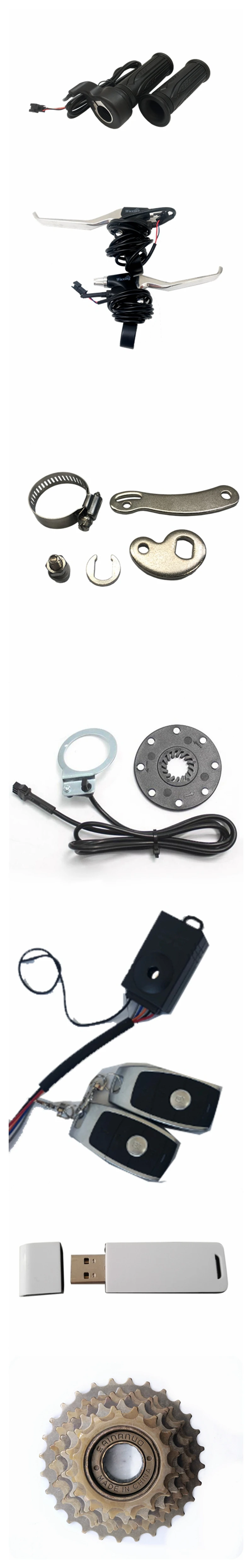

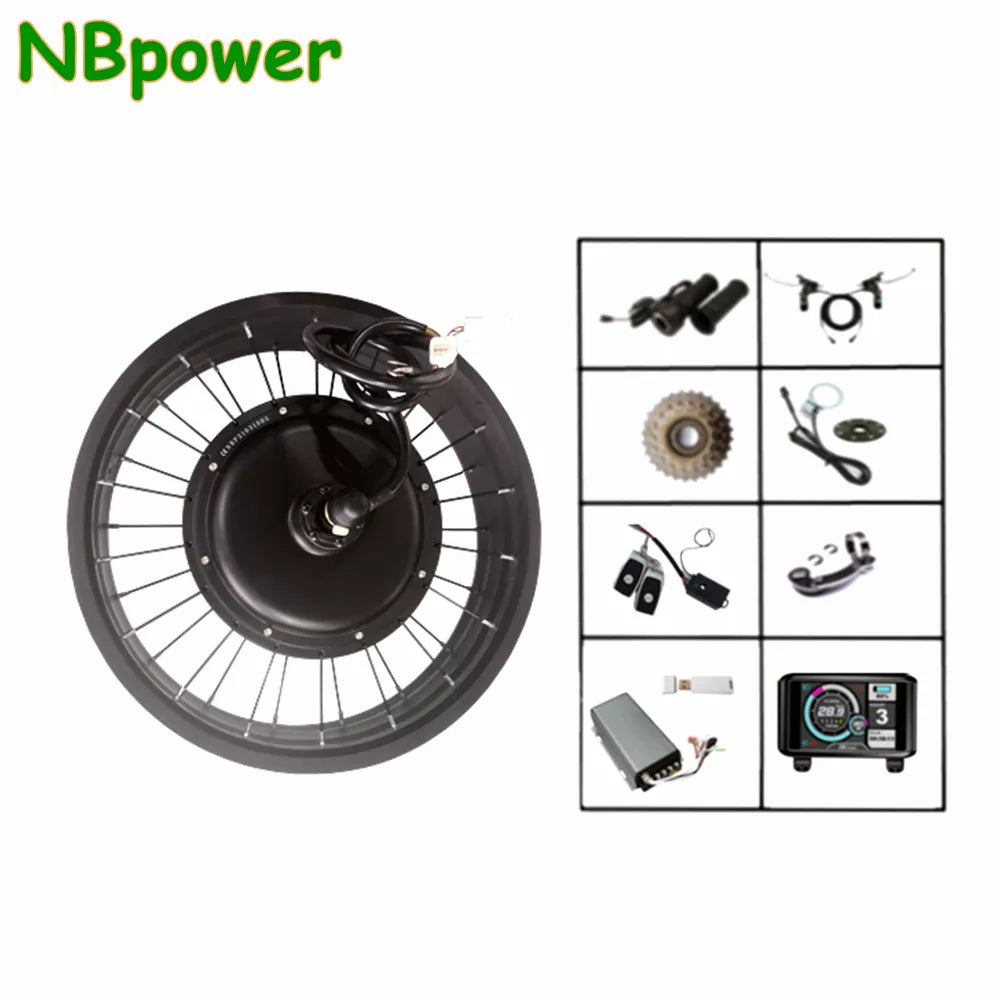

Packaging list
(US stock cannot change content item)
1. 48-72V 5000W 170/190mm dropout motor 3T by default
2. 20/24/26x4.0 rim (80mm width rim by default, if you want 100mm please contact us)
(US STOCK 190mm motor is with 100mm rim)
3. Sabvoton 72V 100A controller
4. UKC1 display
5. Bluetooth
6. Wuxing brake lever (can change to brake sensor)
7. Full twist throttle (can change to thumb throttle or half twist throttle)
8. 7 Speed freewheel (if need other freewheel please contact us to confirm)
9. M16 Torque arm
10. 8 Magnets PAS
11. Alarm&lock
12.User manual

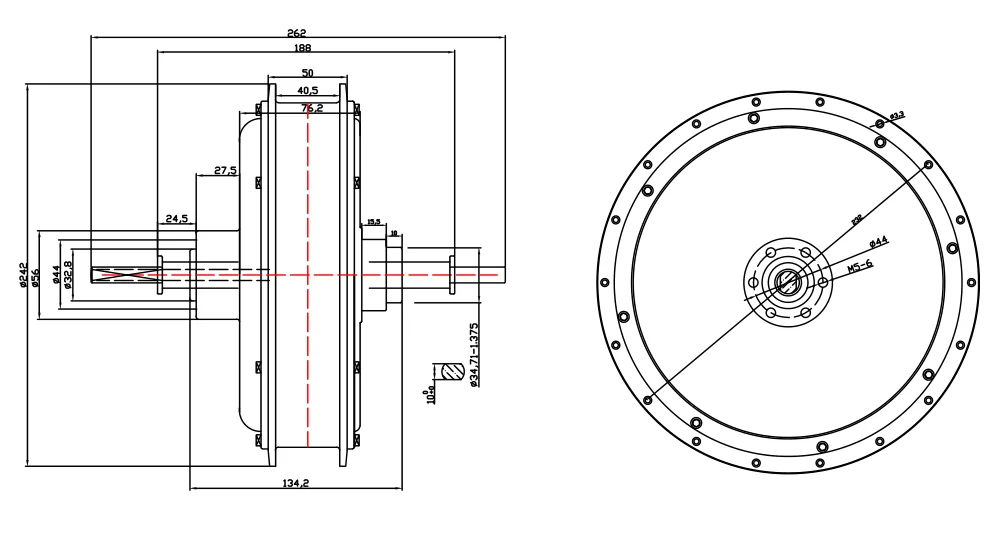

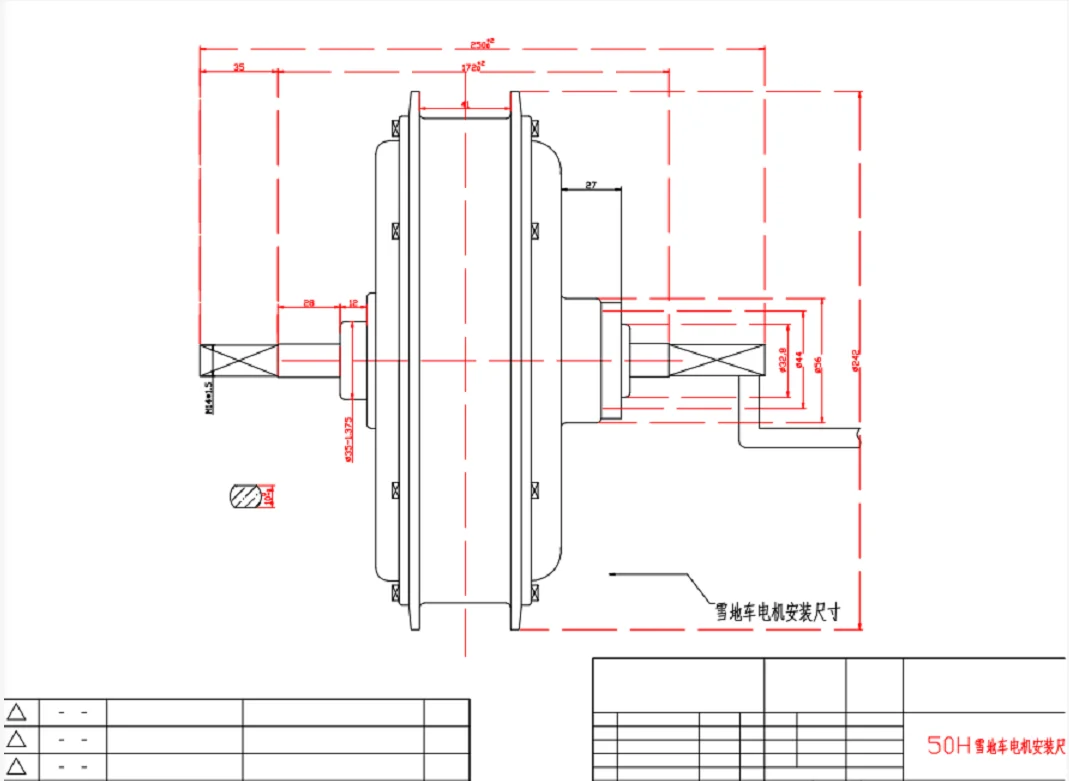

Motor specification
Motor Type: BLDC In-Wheel Hub Motor
Motor Design: Double Axle with Rim(integrated)
Matched Tire: 17inch-29inch
PCD: 6*44mm
Stator: Aluminum Core
Rated Power: 5000W
Peak Power: 10000W in few seconds
Rated Voltage: 72V
Speed: 860rpm
Drop-outs: 170mm/190MM
Max Torque: approx 150N.m
Pole Pairs: 23pairs
Max Efficiency: approx 91%
Thermic Probe: KTY83/122(as default)
Working Temperature: 70-120℃, peak 150℃
Brake Type: Disc Brake
Phase Wire:2*5mm⊃2;Cross
Hall Sensor Phasing Angle: 120 degree
Waterproof Grade: IP65
Color: Black
For the option of Seller's shipping method, It is sea or rail shipping, usually take 1.5months to arrive, please noted.
