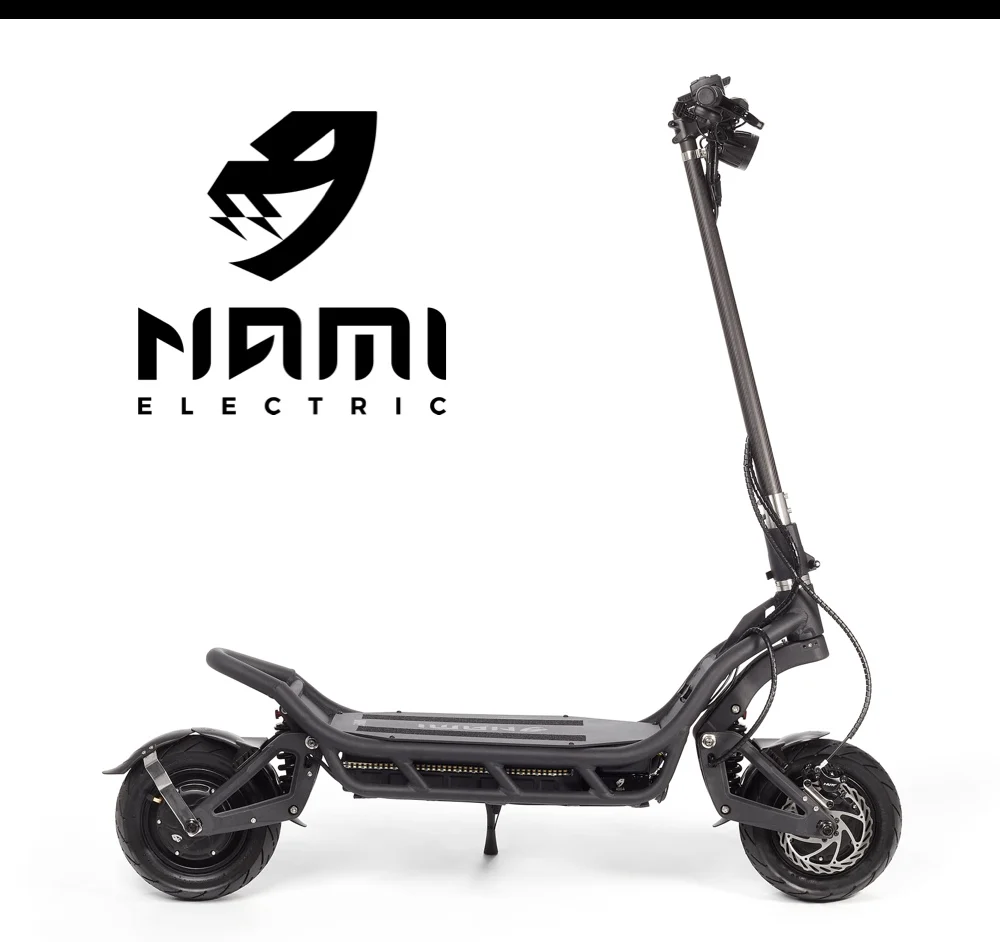

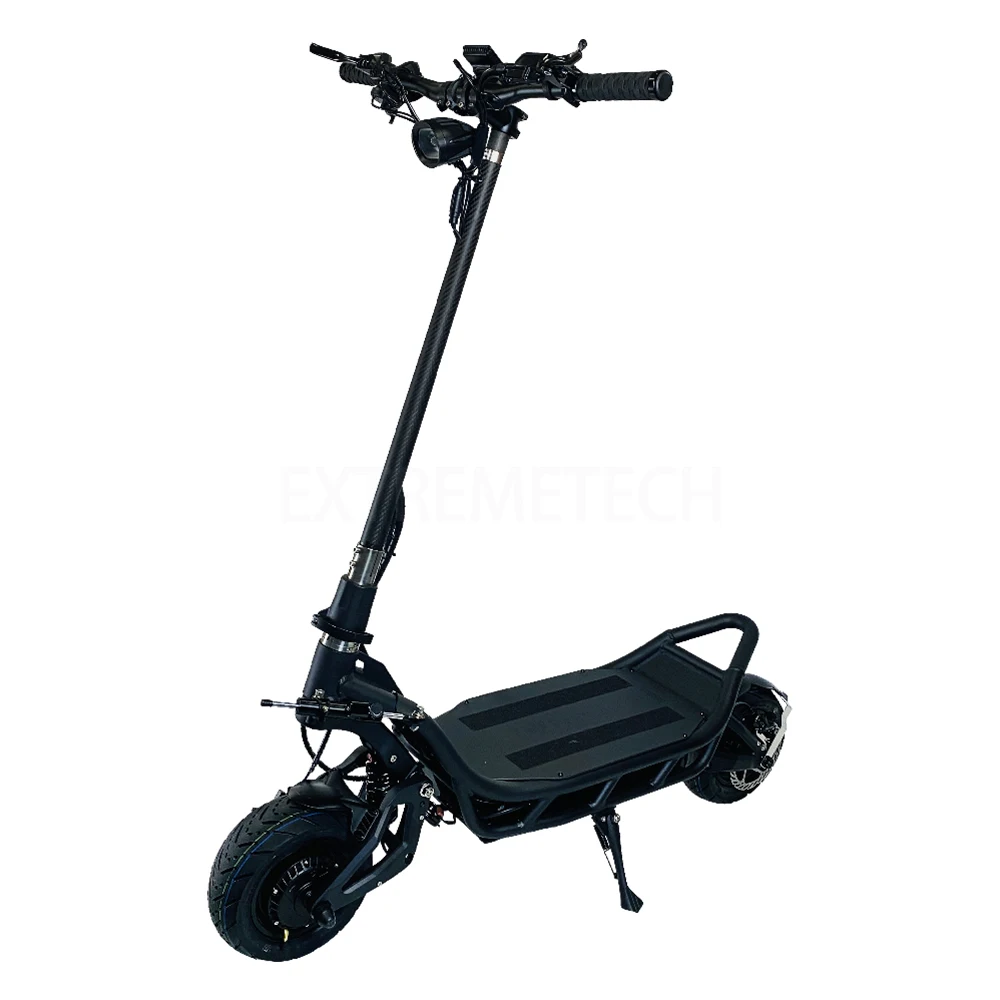

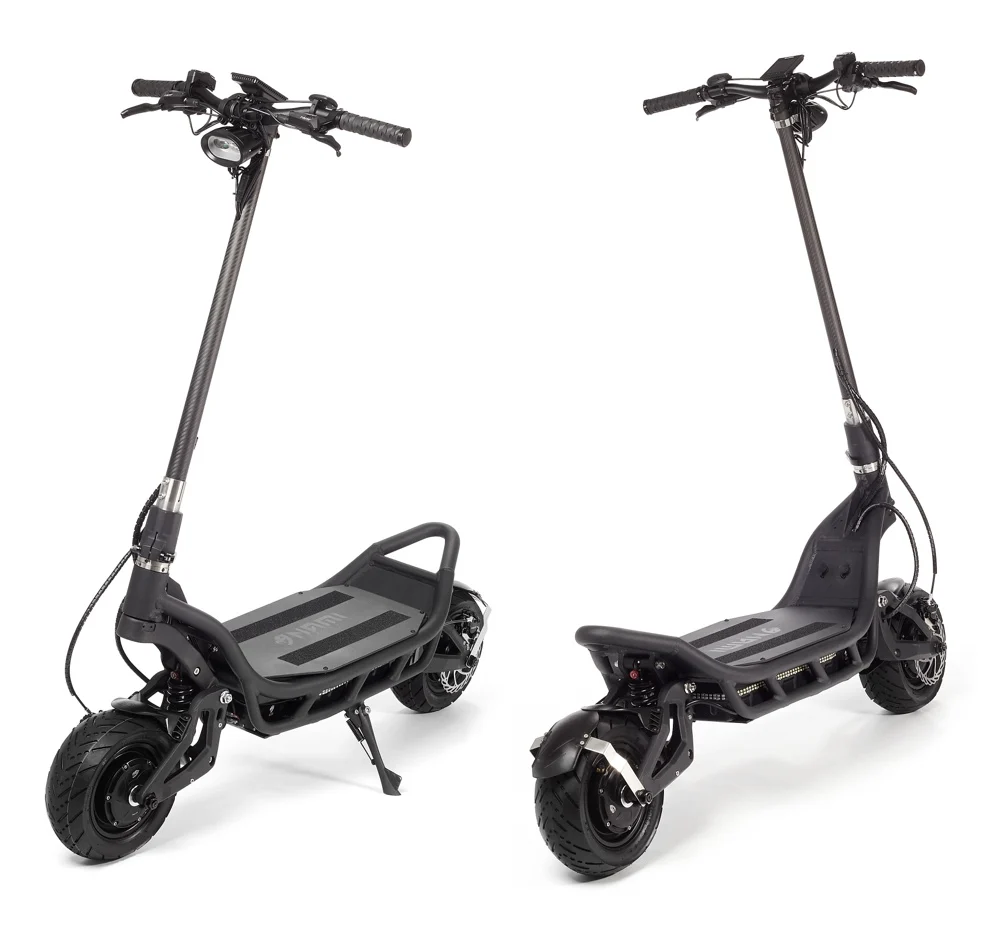

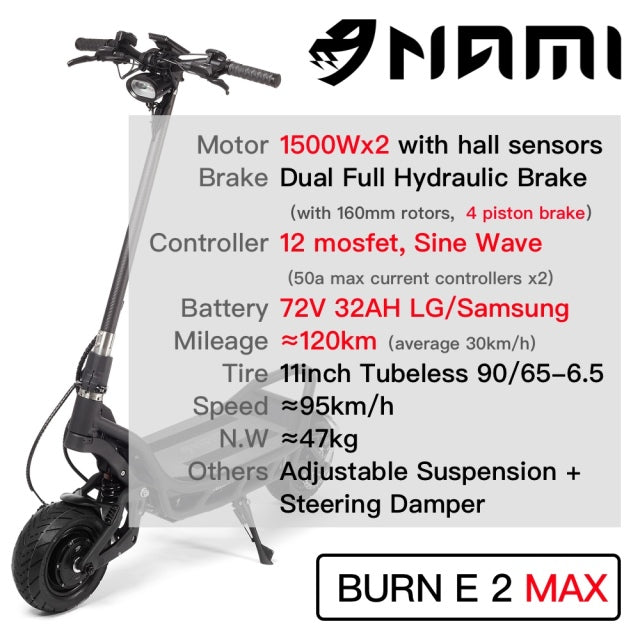

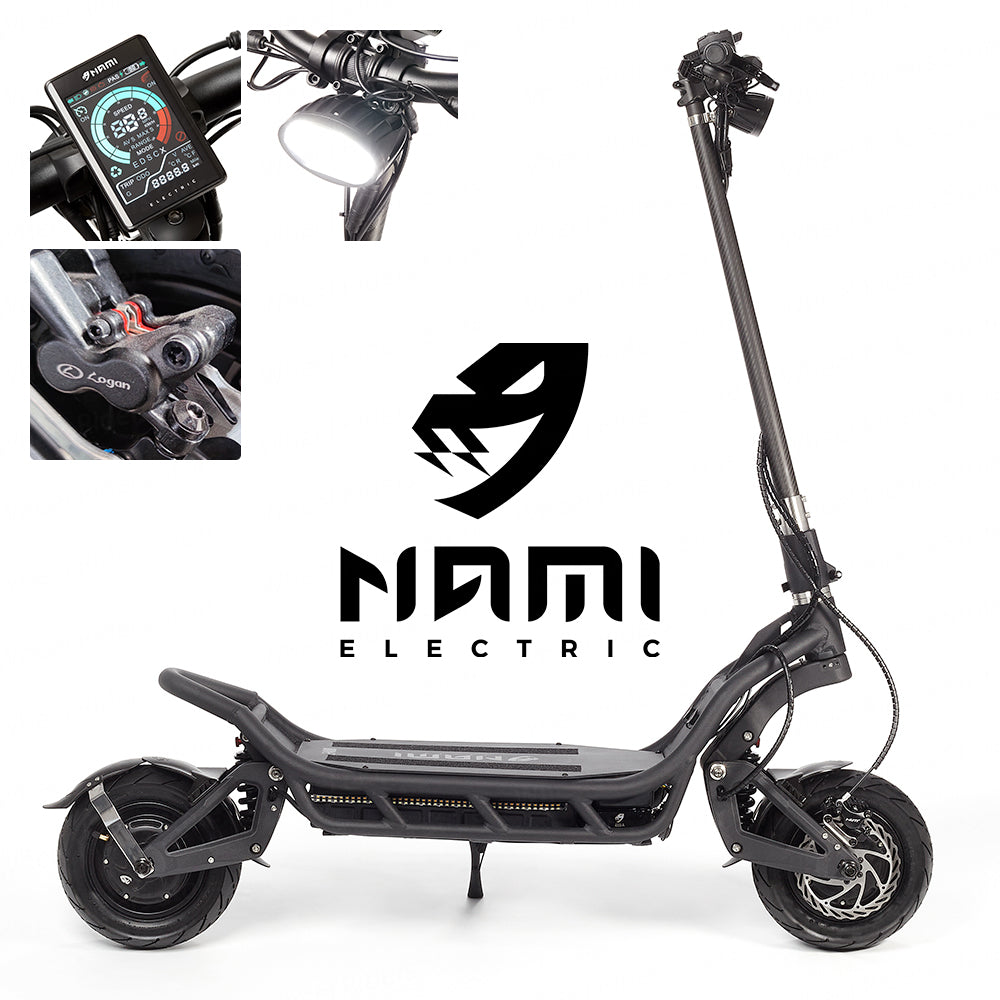

NAMI Electric Scooter BURN E 2 MAX E2 Original 72V 32AH 1500Wx2 Front and Rear Full Hydraulic Brakes
Brand: NAMI
Model: BURN E 2 / BURN E 2 MAX
Tire: 11inch Tubeless 90/65-6.5, street or off road tires
Frame: One piece aviation grade aluminum welding frame, solution and aging heat treatment

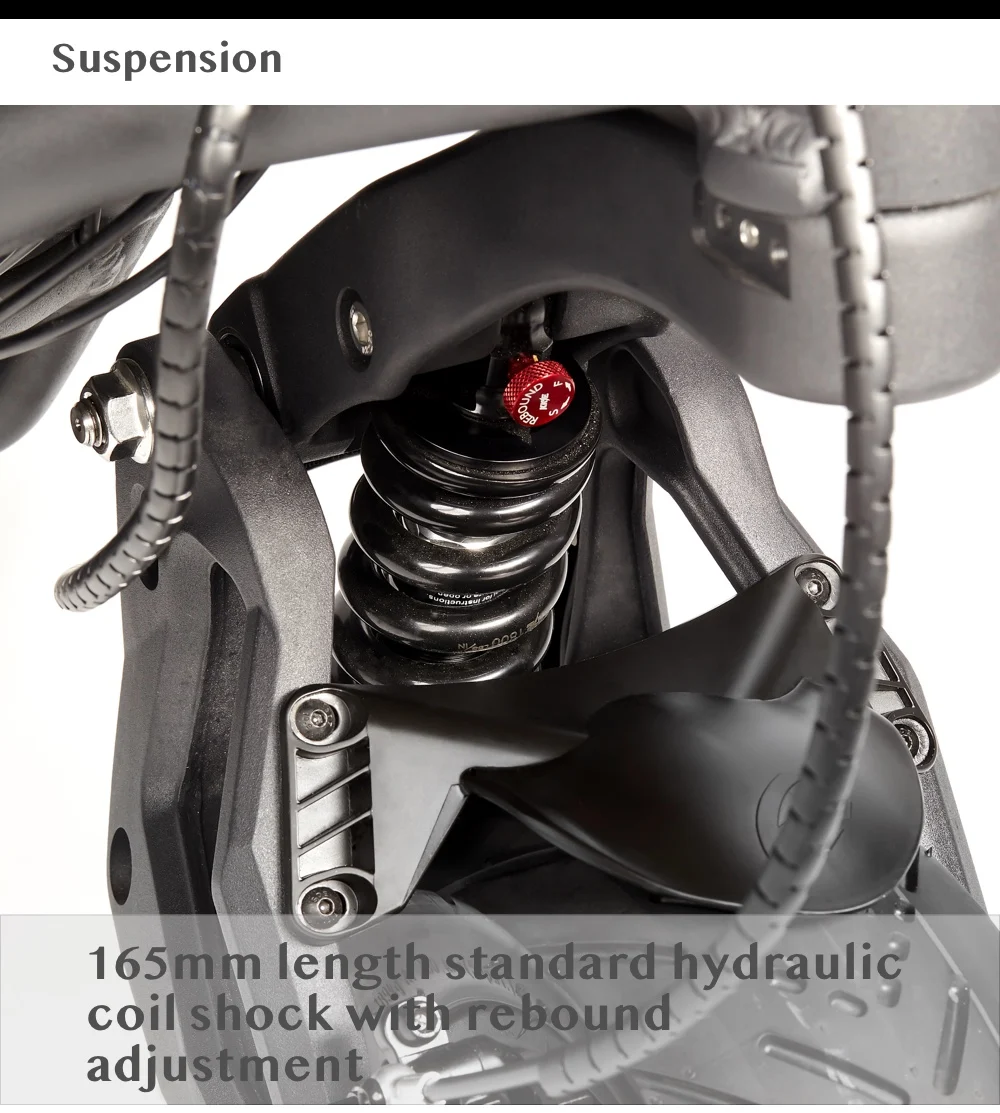

Suspension: 165mm length standard hydraulic coil shock with rebound adjustment

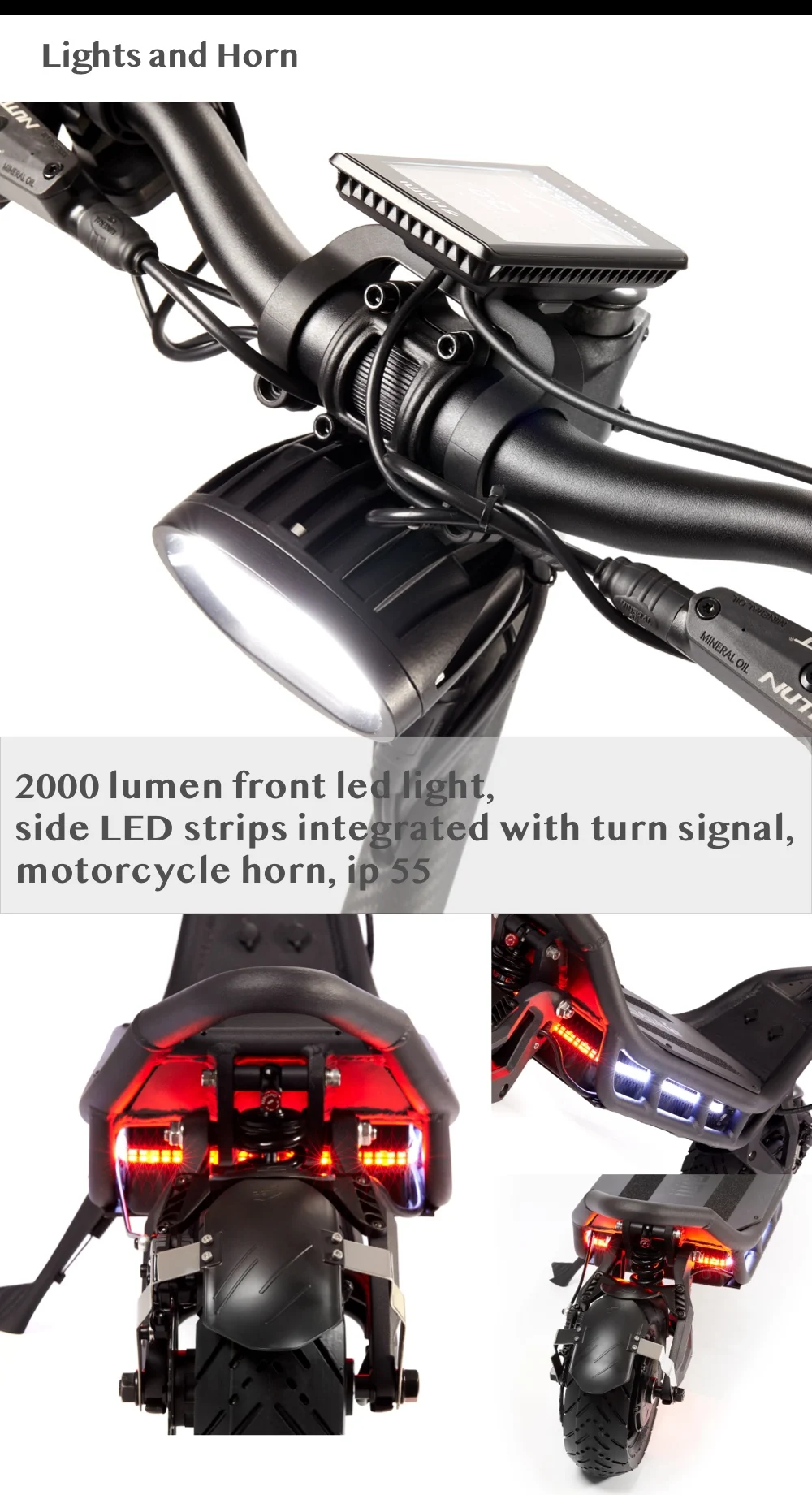

Lights&Horn: 2000 lumen front led, side LED strips integrated with turn signal, motorcycle horn, ip 55
Cable system and IP rating : Quick connections for all electric components, for the cables close to handle bar and under the deck.
Quick connector for the motor and controller
IP 55 for the whole scooter
Folding system: Patent designed thread lock taper folding system, 304 stainless steel folding parts
Handle bar and steering column: 31.8mm diameter, full carbon fiber steering column
Charger: 1 piece of 5a charger, dual charging ports in the scooter
Steering damper: standard cylinder steering damper
Main dimensions (length x width x height):
Overall size: 1346mm x 680mm x 1446 mm
Hanlde bar to deck, 1090mm in height
Deck cover: 564x312mm, 766mm in length include rear foot rest
Ground clearence: 150mm min
Top of the deck to the groud 292mm
---
Battery:
* 72V 28Ah (18650 2500mah standard capacity Chinese cell )
* 72V 32Ah (18650 3200mah standard capacity cell Panasonic/LG/Samsung)

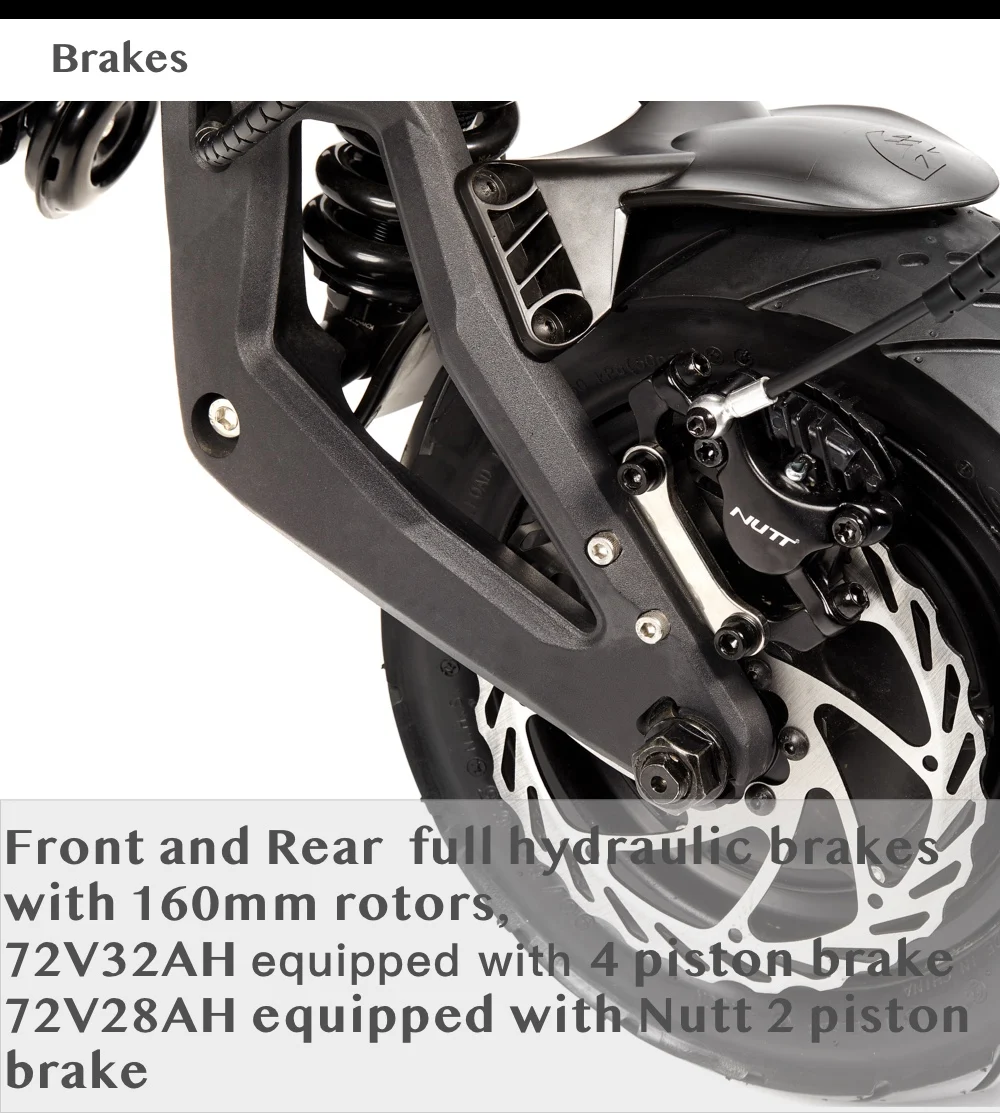

Brake: Front and Rear full hydraulic brakes with 160mm rotors
* 72V 28Ah (longan two piston or NUTT 2 piston )
* 72V 32Ah (four piston )
Motor:

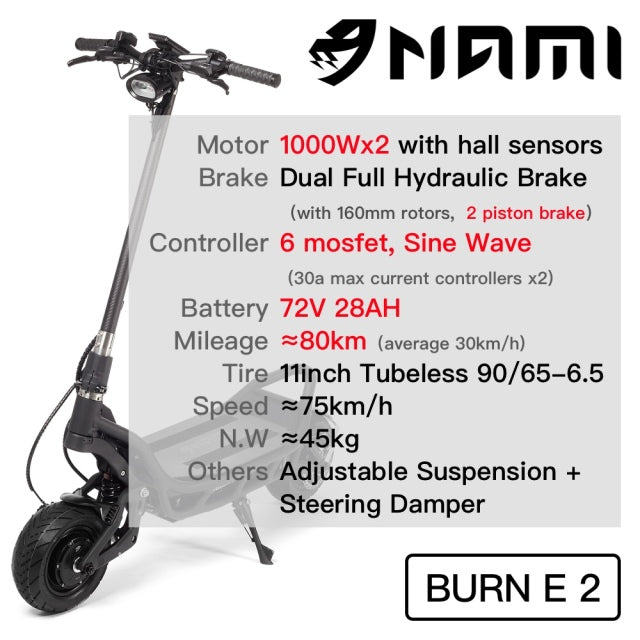

* 72V 28Ah (1000Wx2 with hall sensors, peak at 2520Wx2 waterproof quick connector )
* 72V 32Ah (1500Wx2 with hall sensors, peak at 4200Wx2 waterproof quick connector )
Max.speed:
* 72V 28Ah (≈75km/h )
* 72V 32Ah (≈95km/h )
Max.range: ( 75kgs load, 25km/h flat road continous riding basis )
* 72V 28Ah (≈80km )
* 72V 32Ah (≈120km )
N.W:
* 72V 28Ah (≈45kg )
* 72V 32Ah (≈47kg )
The NAMI Electric Scooter BURN E 2 MAX E2 Original 72V 32AH 1500Wx2 Front and Rear Full Hydraulic Brakes is a sensational customer favorite, and we hope you like it just as much.
