Motor Wheel Kit QS 205 V3 50H Electric High Power 10000W peak Spoke Hub Motor 3000W Bike Bicycle Conversion Kit

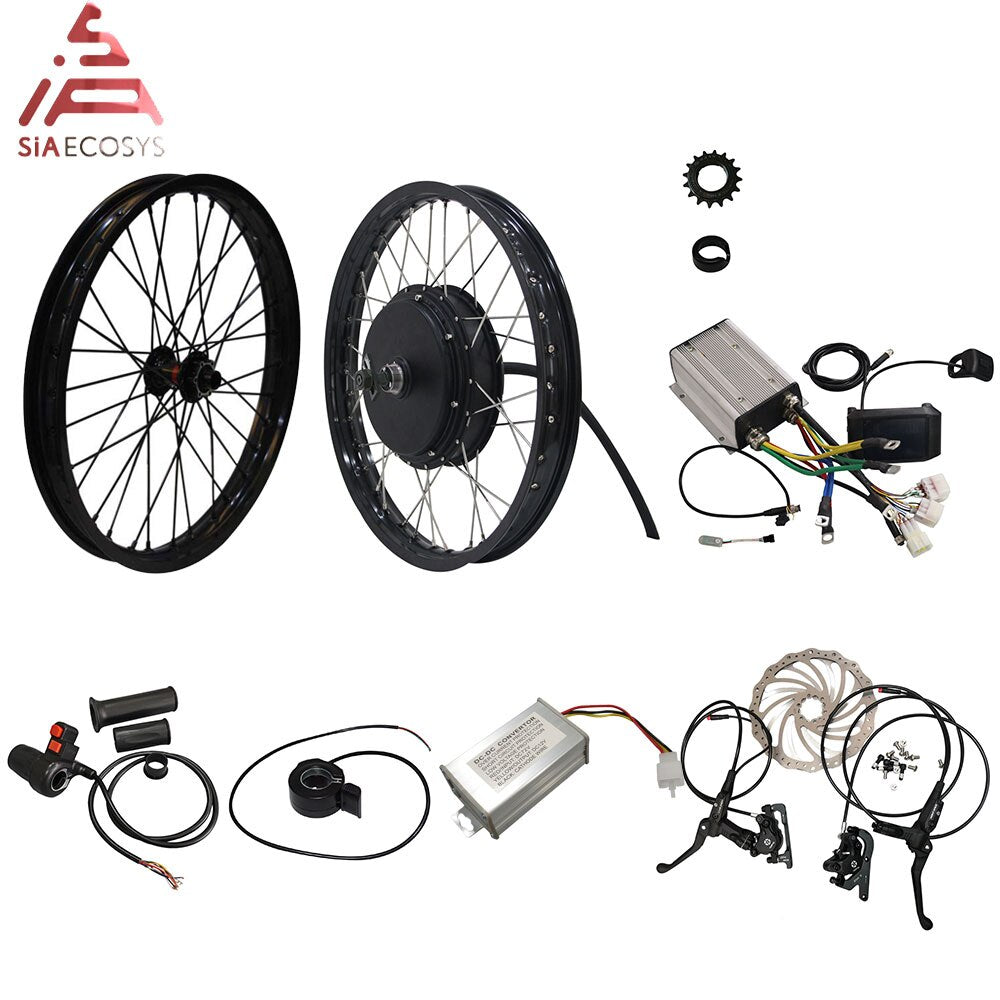

One set 10000W Electric Bike Conversion Kit including below kits

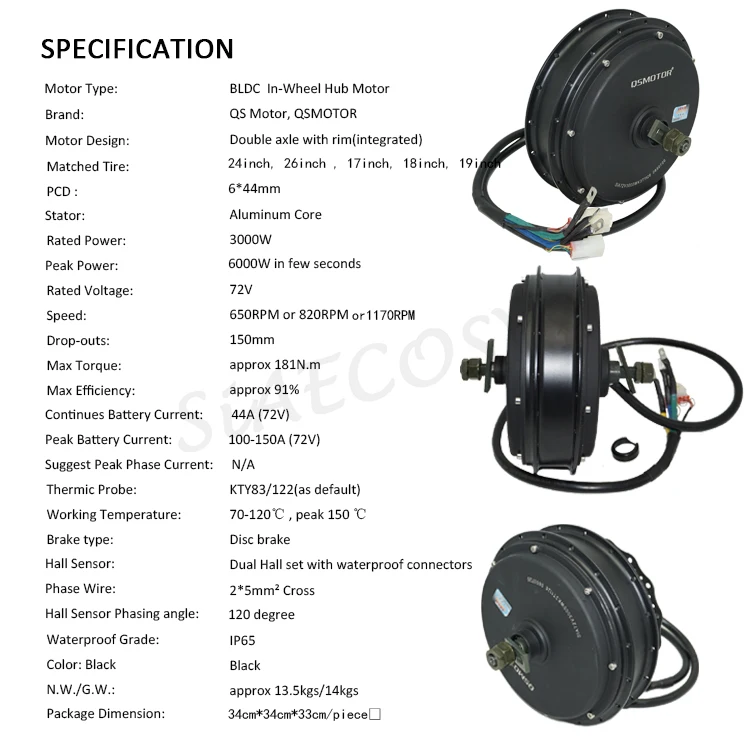

1. 1pc X QSMOTOR 3000W 205 50H V3 electric spoke hub Motor
2. 1pc X Motor Spacer
3. 1pc X Freewheel
4. 1set X 19X1.6inch moped front wheel and 19X1.6inch rear wheel
4. 1pc X KLS7230S controller (customized for TFT speedometer) with bluetooth adapter
5. 1pc X TFT750C speedometer
6. 1pc X Half Twist Throttle
7. 1pc X Thumb Throttle
8. 1pc X disc brake assembly
9. 1pc X DC DC converter 72v to 12V 10A
Product description
Drawing
For 205 spoke motor, we provide 1 piece Hex Flange Nuts M16*1.5*13, 1 piece Hex Nuts M16*1.5*7, 1 piece 4mm thick Washer as default.
Option 1: Hex Flange Nuts M16*1.5*13 + Hex Nut M16*1.5*7
Option 2: Hex Flange Nuts M16*1.5*13 + 4mm thick Washer
We suggest option 1, if the motor shaft length is not enough, choose option 2 and make sure the washer is installed and tight, otherwise there is a risk of shaft broken.
2. Motor Spacer
3. Freewheel
3. 19X1.6inch moped front wheel and 19X1.6inch rear wheel

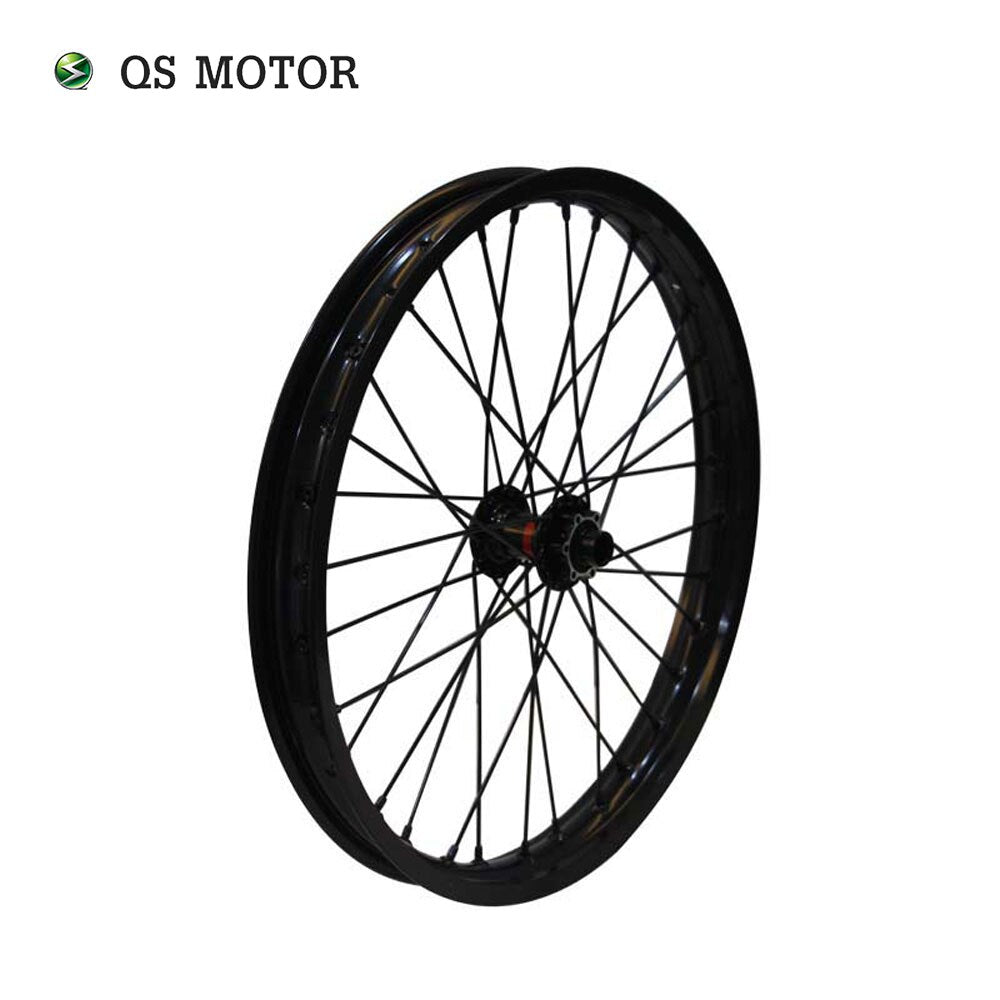

1.60X19inch 2 Cross Pattern Moped Front Wheel Set

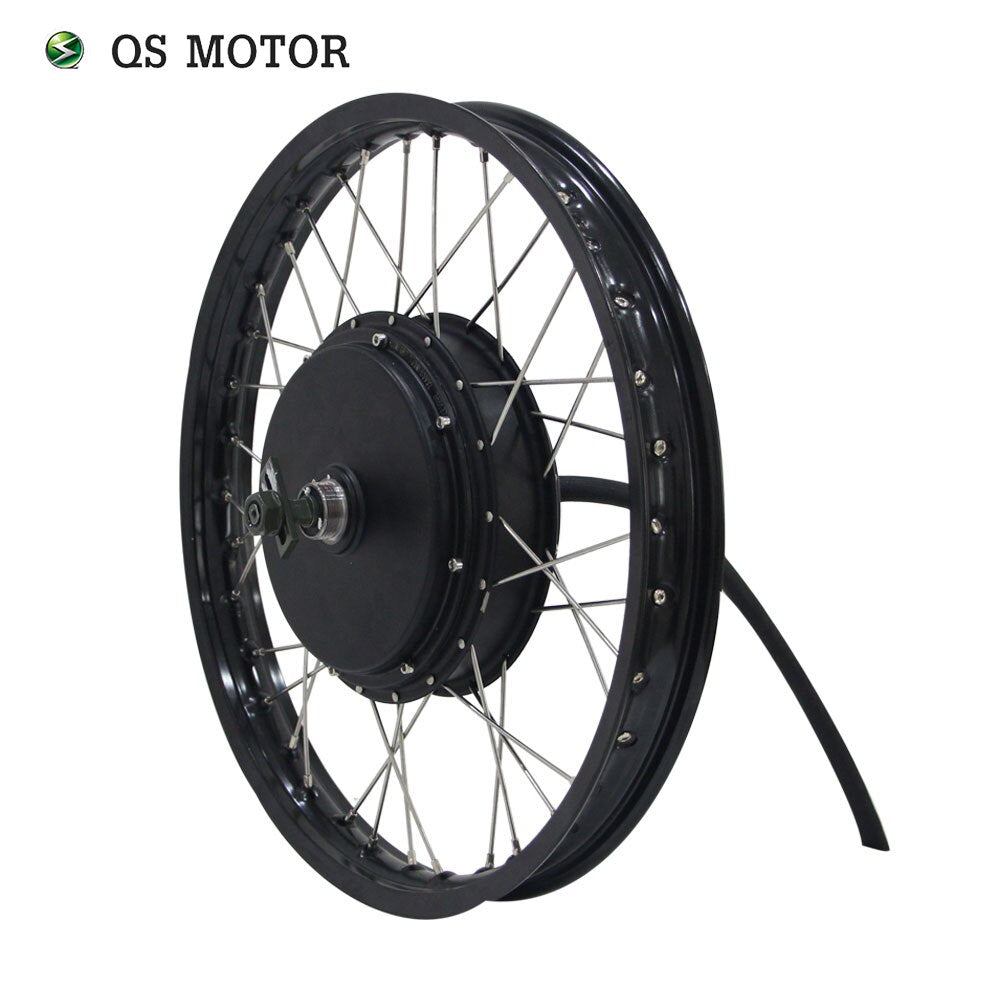

1.60X19inch 1 Cross Pattern Moped Rear Wheel Set

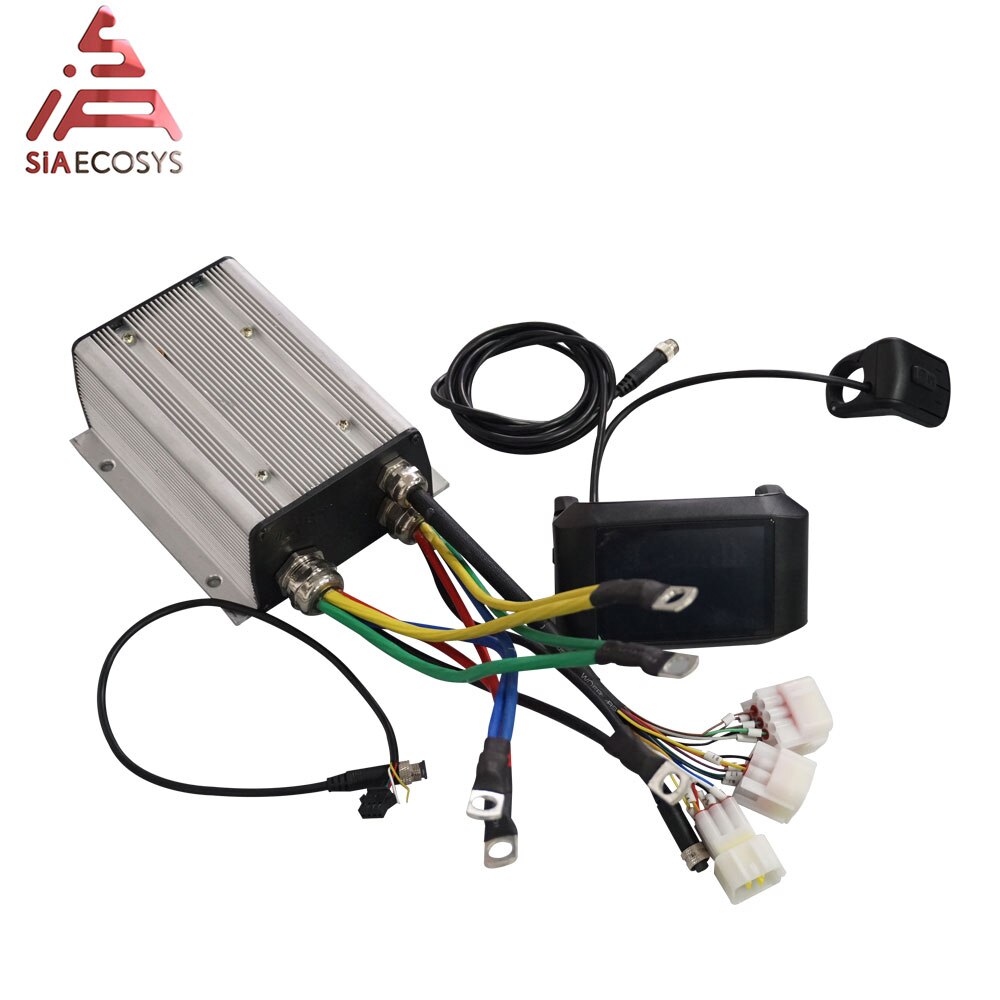

4. KLS7230S controller (customized for TFT speedometer) with bluetooth adapter
5. TFT750C speedometer
·Suitable for low temperature，Max -20℃.
·High-contrast 3.2inch IPS colorful matrix screen.
·Ergonomic external button design, easy to operate.
·Speed display: AVG SPEED, MAX SPEED, SPEED (Real-time).
·Kilometer / Mile: Can be set according to customers’ habits.
·Smart battery indicator: Provide a reliable battery indicator.
·3-speed
·Mileage indicator: Odometer/ Trip distance/ Clock/ Riding time/ Range.
·Power indicator: real time power indicator, digital or analog.
·Software upgraded: Software can be upgraded through UART.
6. Half Twist Throttle with 3 speed toggle switch

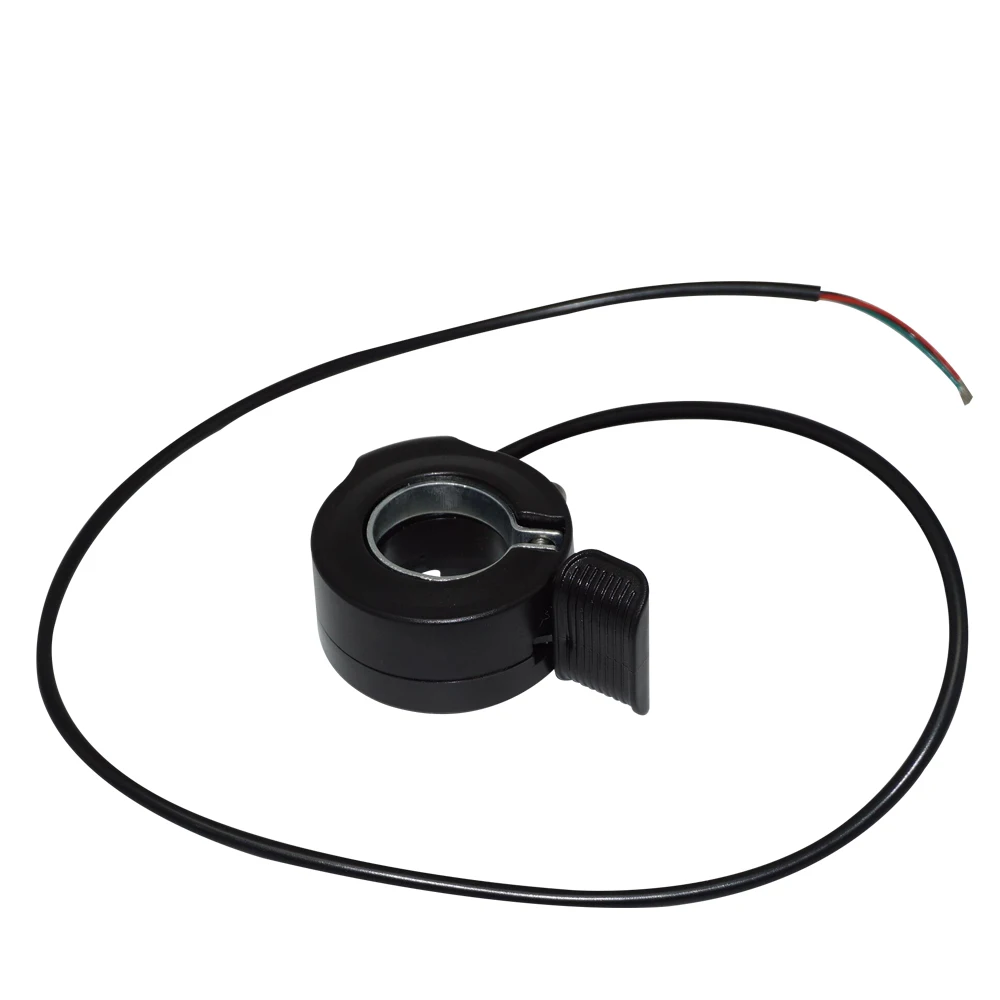

7. Thumb Throttle for 0-5V variable regen brake

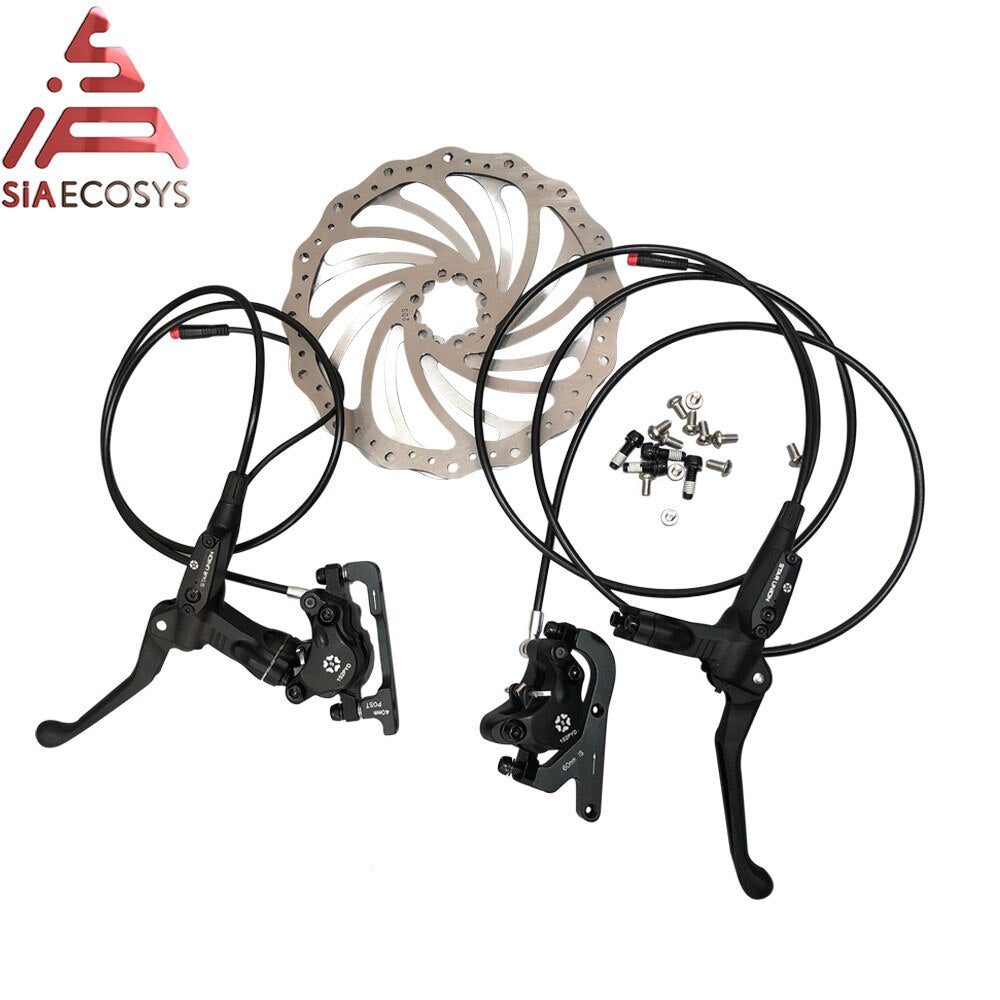

8. Disc brake assembly
1. Model: 152PYD+BS152
2. Including 2pcs 203mm plate, PCD6*44mm, 2mm thickness
3. The length of oil of both front and rear can be customized according to your e-bike(900mm for front, 1600mm for rear as default)
4. Callipers: double-piston 2*21mm
5. Installing Distance of front tire: 74mm(as default) or 51mm
6. Installing distance of rear tire: 51mm
7. Wiring: two core wiring
8. Materials: Caliper/Lever Forged aluminum, Bracket: Cast aluminum
9. Current: 1A (max)

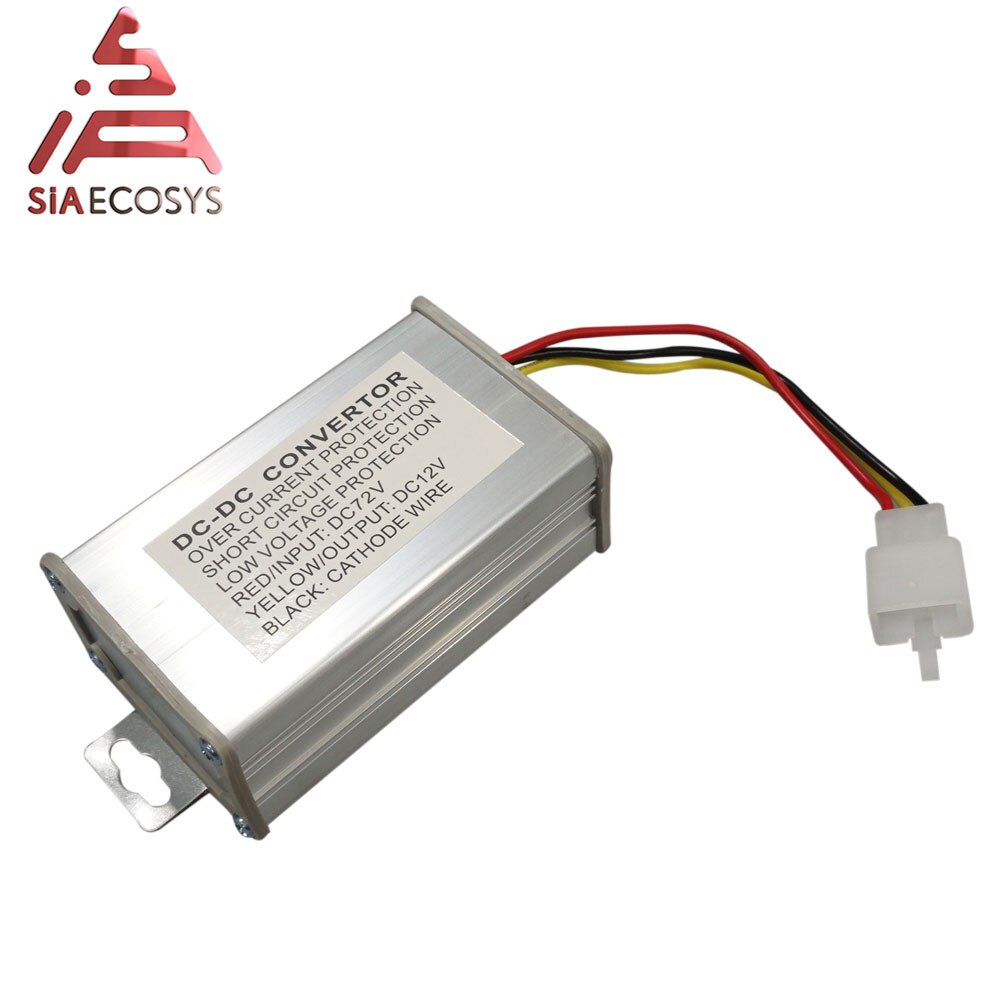

10. DC DC converter
