Main TFT 135mm drop out display system 48v-72v 80A 5000w electric bike conversion kit

Sale price $925.68 Regular price $900.88

Main TFT 135mm drop out display system 48v-72v 80A 5000w electric bike conversion kit

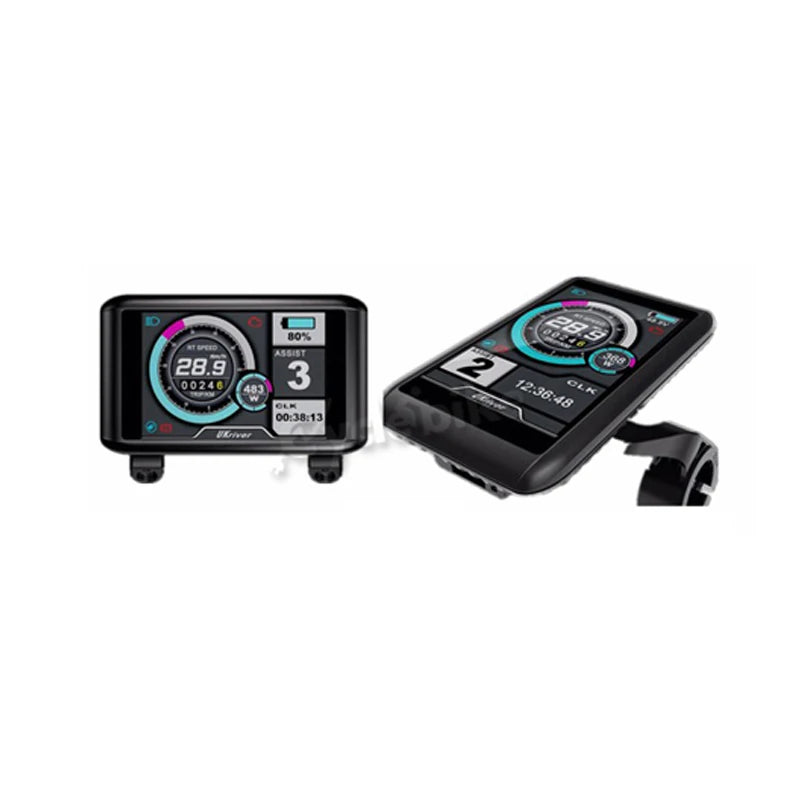

Note: It is the Colorful UKC1 TFT display with USB Connector.

3.2" high contrast color screen shows battery power level, time, speed, mileage, gear, input power. Components error checking and report.

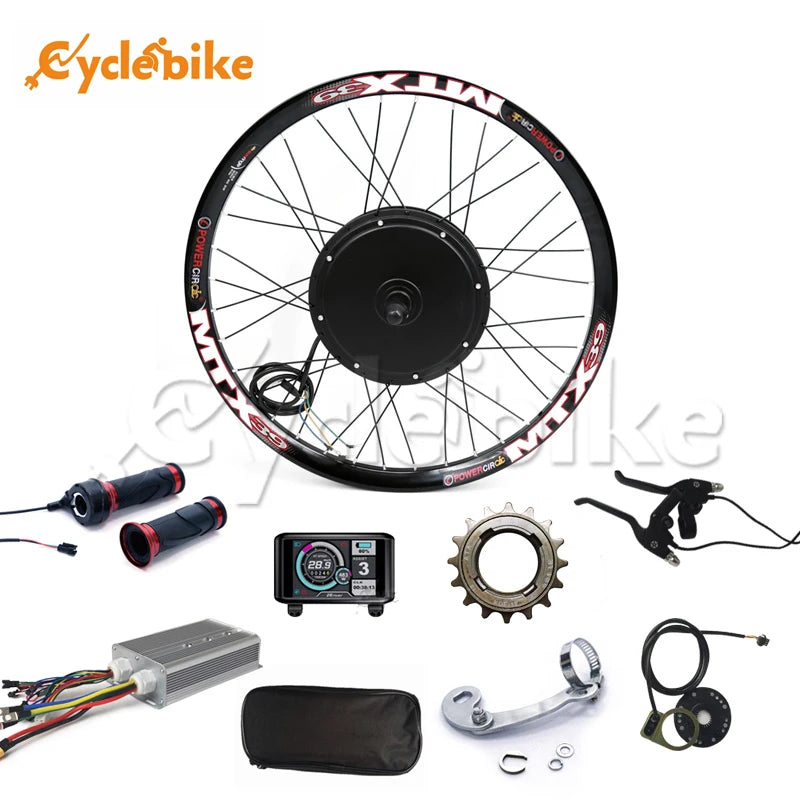

New UKC1 TFT colour display 72v 5000w electric bike conversion kit:

1.48V-72V 5000W Electric Bike DIY Conversion Kits Package :

1. 5000W Powerful Brushless Gearless Motorized 20" 24" 26" 700C 28" 29" Wheel(135mm drop out) Or Motorcycle Wheel 17" 18" 19" 21".
2. 48V-72V 80Amp smart controller, Max working Voltage 86V.  200A phase Current.
3. Controller bag
4. 1 pair of High Quality Aluminum Alloy Brake Levers
5. Full Twist Throttle
6. PAS 8 Magnets High Quality Pedal Assistant Sensor
7. Book manual and ties
8. UKC1 display with USB port
9. single speed only.
10. Torque Arm Safe for Customer.
11. GOOD PACKAGE FOR EXPRESS





2.Detailed images and specification:

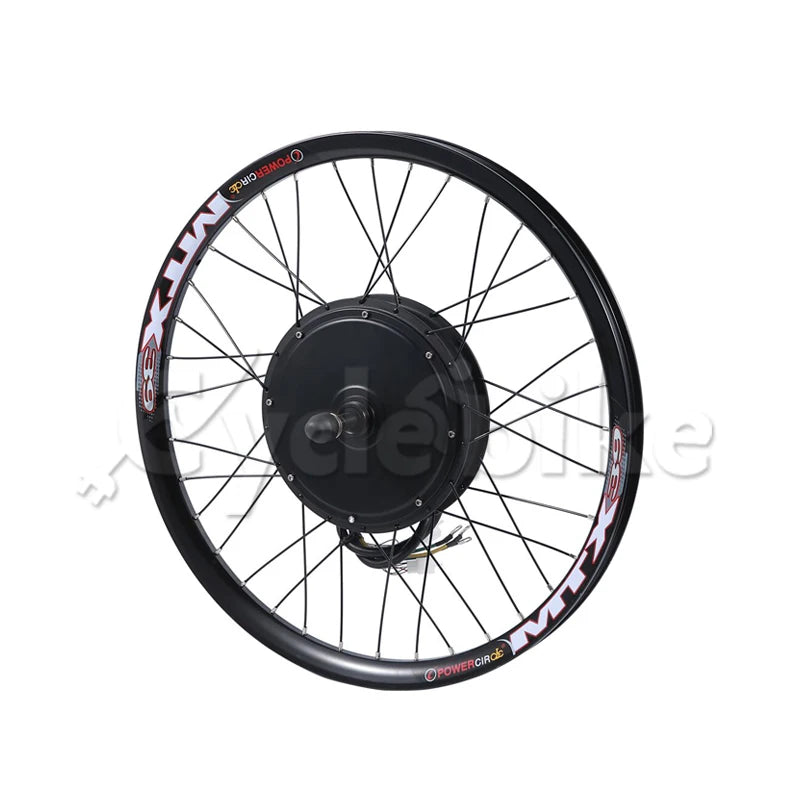

1.48v-72v 5000w ebike motor wheel.

1)Motor voltage:48v -72v 5000w

2)Motor Power:5000w

3)Alex:10mmx M17mm

4)RPM:700@72V

5)Magnet Height:50mm

6)Wings:21x3T

7)Max speed:70-80km/h @ 72V battery with 29inch wheel.

8)Max torque:150N.m

6)Open size:150mm


2) Different wheels for choose.

5000W Electric Bike Motor Wheel

MTX RIM Details:

1) MTX 24inch, MTX 26inch, MTX27.5inch, MTX 29inch wheels for choose.

2) It is for disc brake system ONLY.

3) It is double wall aluminum alloy material, good quality.

4) It is good for various tires (1.95, 2.125, 2.1, 2.2, 2.3, 2.5, 3.0).

Motorcycle Rim Details

1) 17inch 18inch 19inch 21inch aluminum alloy rim for choose.

2) It is aluminum alloy material, good quality.

3) It is good for various tires 2.5 2.75 or 3.0

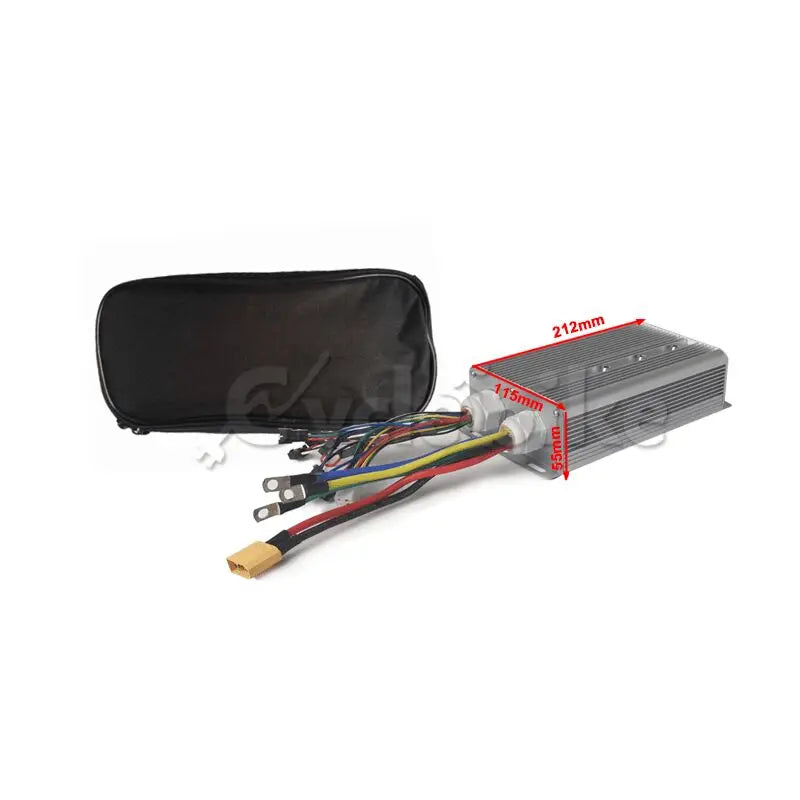

2.Smart Controller with Controller Bag

1) Spec. : 48v-72 80Amp. Max working Voltage 86V.  200A phase Current.
2) Size: L212mm*W115mm*H55mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal Assist Sesor.
With multiple protection features such as stalled, over-current, over-temperature,
over-voltage, under-voltage, speed, lack of phase and so on.
4) Optional Function: Front Light With Horn, Regen.Braking which is 25usd extra.

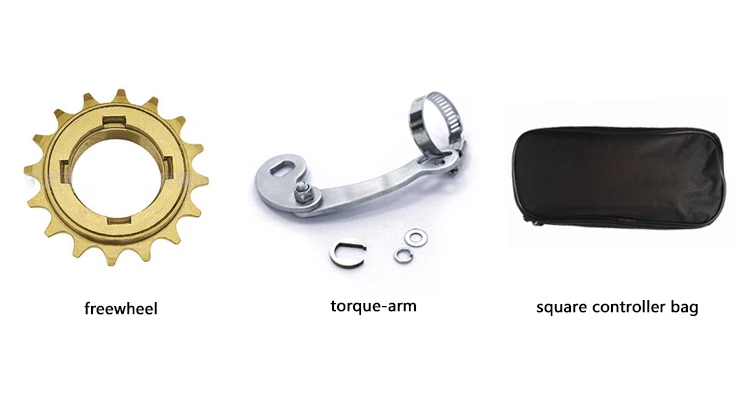

single speed freewheel & Torque Arm. (This is the most Important for safety. Torque arms are used to prevent axle rotation in hub motors. When a hub motor is powered up running, for all the torque that the motor generates spinning a wheel forwards, there is an equal and opposite torque on the axle causing it to rotate backwards.)

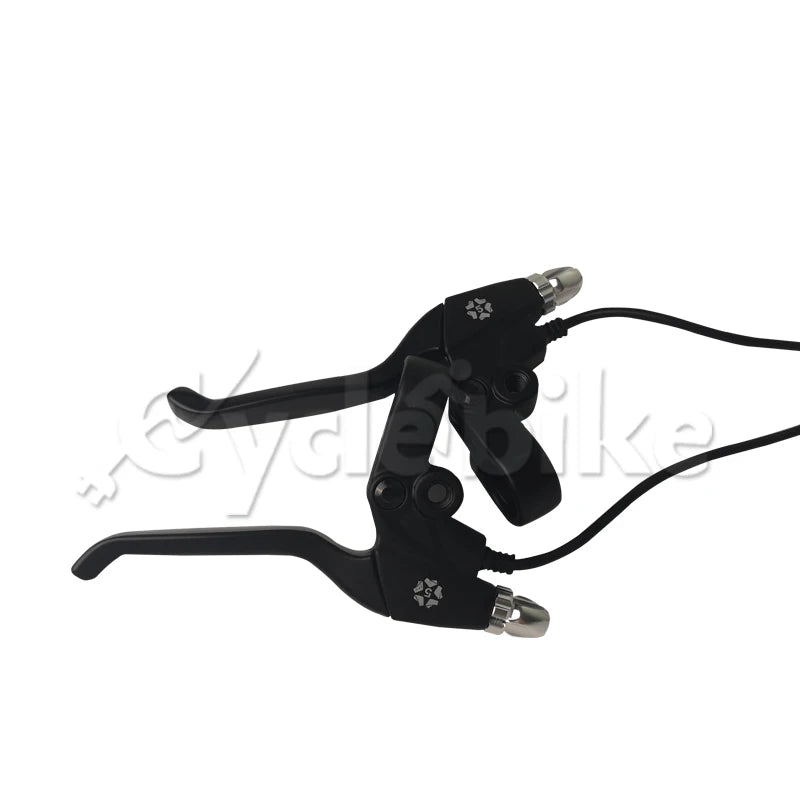

3.Brake Lever, Twist Throttle, PAS

1) Aluminum Alloy Material, electric brake & Mechanical braking.
2) Twist Throttle with Grips.
3) 8 magnets 1:1 PAS

5.Packing for 72v 5000w ebike conversion kit:








Features of the Product:

1. High Quality  80A ±1 Controller (Five speed with PAS Function ) , 200Amp phase current
2. 50 H V3 5000w BLDC motor
3. Motorcycle & Bicycle rims are choice.
4. Big Torque: it is the high torque version.
5. Certificates: CE, CCC, ISO 9001-2000

USE for Enduro ebike or Vector bike .
