Low Speed Battery Powered Small Electric Passenger Car
Product Description
Product Application

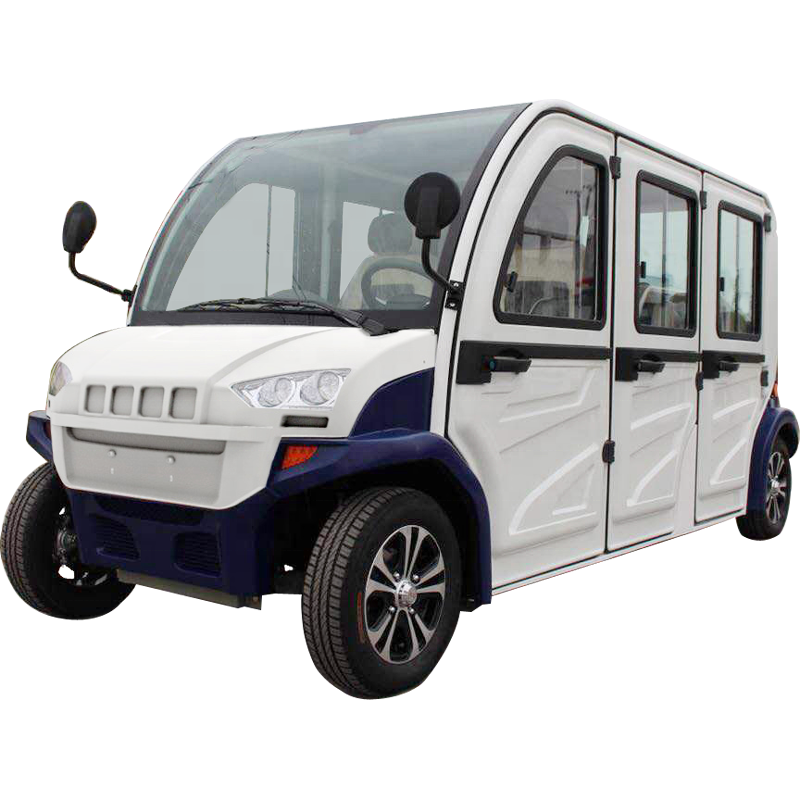

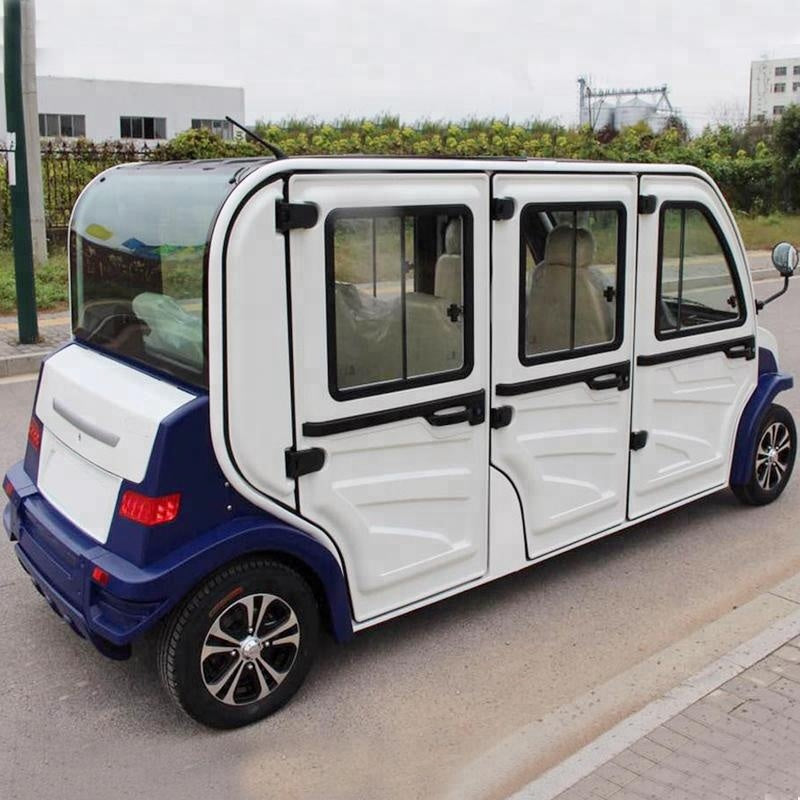

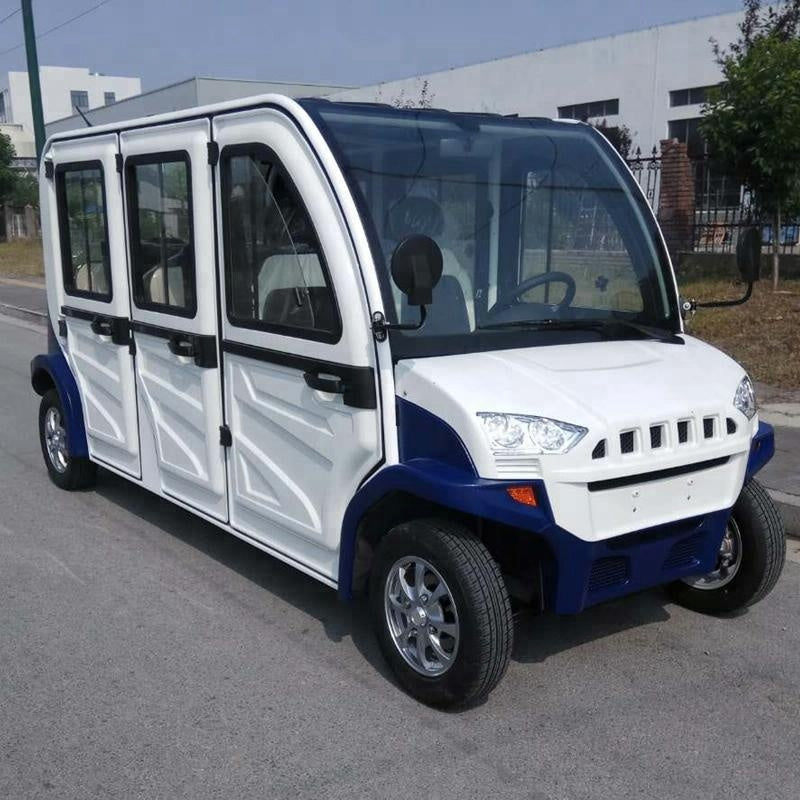

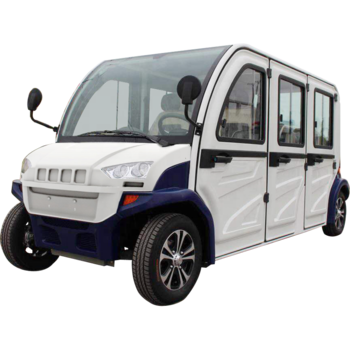

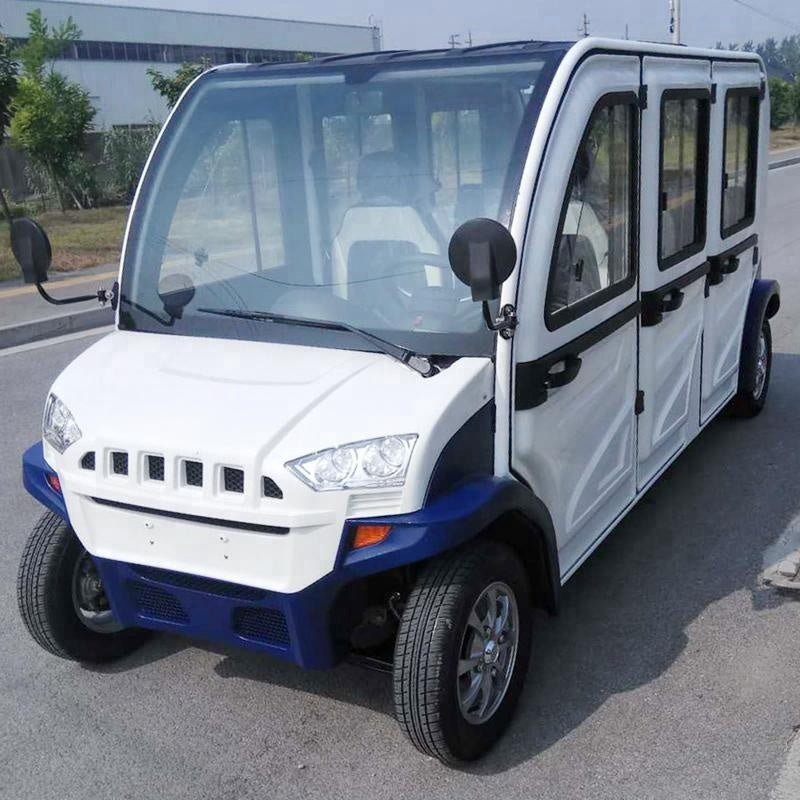

Model LS9060KF is a 6 persons Low Speed Battery Powered Small Electric Passenger Car. It can be nice city car or family car or recreational vehicle. It can be used in many areas.
|
SPECIFICATIONS OF 6 Persons Low Speed Battery Powered Small Electric Passenger Car LS9060KF
|
|||
|
Key Components
|
Controller
|
Curtis Brand
|
|
|
Motor
|
4KW AC motor
|
||
|
Battery
|
5pcs, 12V100AH Lead Acid Battery
|
||
|
Performance
and
Dimensions
|
Passenger Capacity
|
6
|
|
|
Range (Loaded) *
|
80kms
|
||
|
Max.speed
|
40km/h
|
||
|
Min. Turning Radius
|
5.8m
|
||
|
Max. Gradeability
|
20%
|
||
|
Max. Loading Weight
|
480kgs
|
||
|
Net Weight
|
800kgs
|
||
|
Overall Dimensions
|
3700X1380X1620mm
|
||
|
Body and Frame
|
|||
|
Frame (Chassis)
|
Welded steel framework, with anti-rust treatment of sand blasting and painting
|
||
|
Body
|
PP, PC and ABS
|
||
|
Windshield
|
Laminated glass, with wiper
|
||
|
Body Frame
|
Steel, integral frame structurer
|
||
|

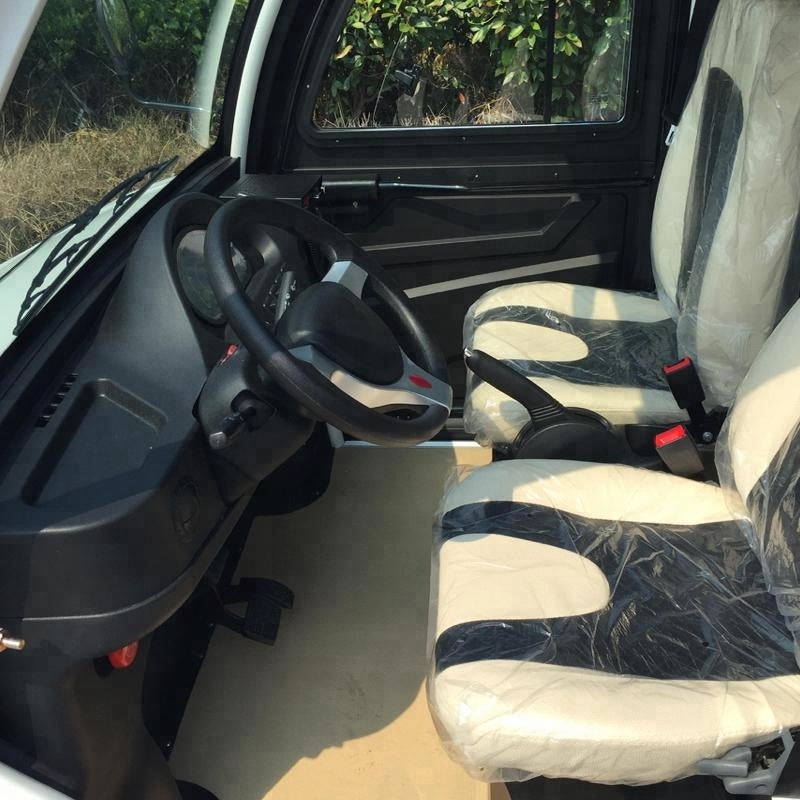

Seat
|
High back seat
|
||
|
Floor
|
Anti-slip rubber floor mat
|
||
|

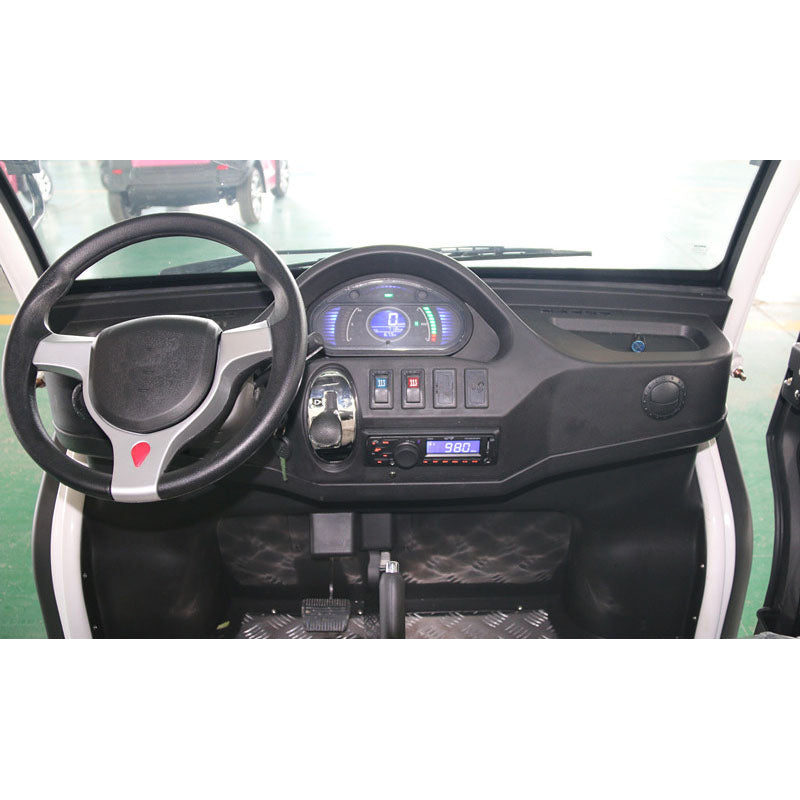

Dashboard
|
FRP, with F/R Switch, Emergency Stop Switch, Digital Meter
|
||
|
Side trim
|
Aluminum alloy
|
||
|
Sider mirror
|
2pcs, foldable
|
||
|
Electric System
|
|||
|
Lighting system and horn
|
2 headlights, 2 front turn signals, 2 brake light, 2 rear turn signal, 1 reverse light, 1 rear fog light, with voltage reducer (converting from 48V to 12V), electric horn.
|
||
|
Digital Meter
|
With battery power meter, amperemeter, voltmeter, speedometer, odometer, time, F/R indicator, turn signal indicator
|
||
|
Audio system
|
CD player and radio, with 4 speakers
|
||
|
Combination switch
|
Light switch, wiper switch, horn switch
|
||
|
Backup Buzzer
|
12V
|
||
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 60V, 25A
|
||
|
Steering, Brake, Transmission and Suspension
|
|||
|
Steering System
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
||
|
Brake system
|
4 wheel hydraulic disc brake, hand park brake
|
||
|
Accelerator
|
Stepless speed change
|
||
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
||
|
Rear axle
|
Integrated, Gear ratio12.49:1
|
||
|
Suspension system
|
Front independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber
|
||
|
Wheel & Tyre
|
4J*12 Aluminum rim & 145/70R12C 8PR Tire
|
||
The Low Speed Battery Powered Small Electric Passenger Car is the product you didn't think you need, but once you have it, something you won't want to live without.
