LG 21700 EBike Battery Pack 36V 48V 52V 19.2Ah 14.4Ah 24Ah G56 G70 Hailong Case for Electric Bicycle 250W 350W 500W 750W 1000W
Some of the configurations available for the LG 21700 lithium battery pack include a 36V 14.4Ah (520Wh) battery with a 20A BMS suitable for 250W to 500W electric bike motors, a 48V 19.2Ah (921Wh) battery with a 40A BMS that can power 350W to 1500W electric bike motors, and a 52V 14.4Ah (748Wh) battery with a 30A BMS fit for 350W to 1000W electric bike motors.

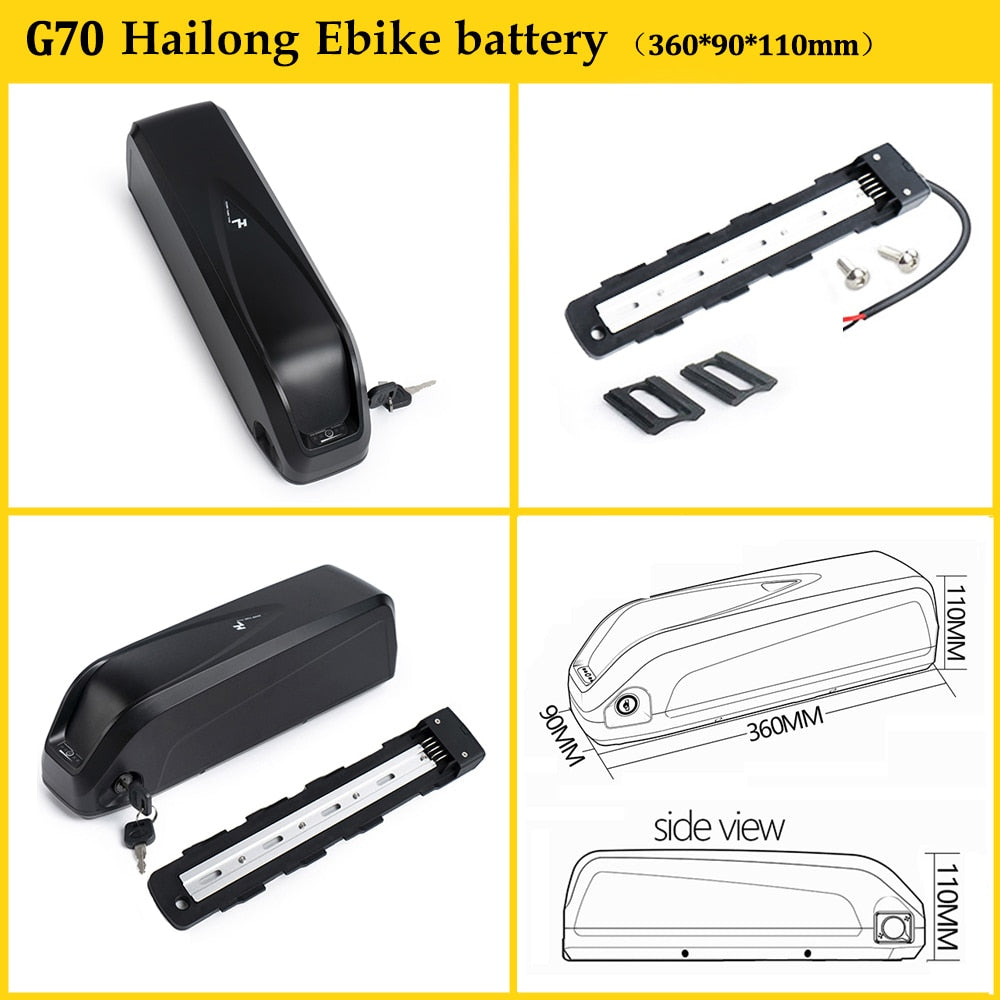

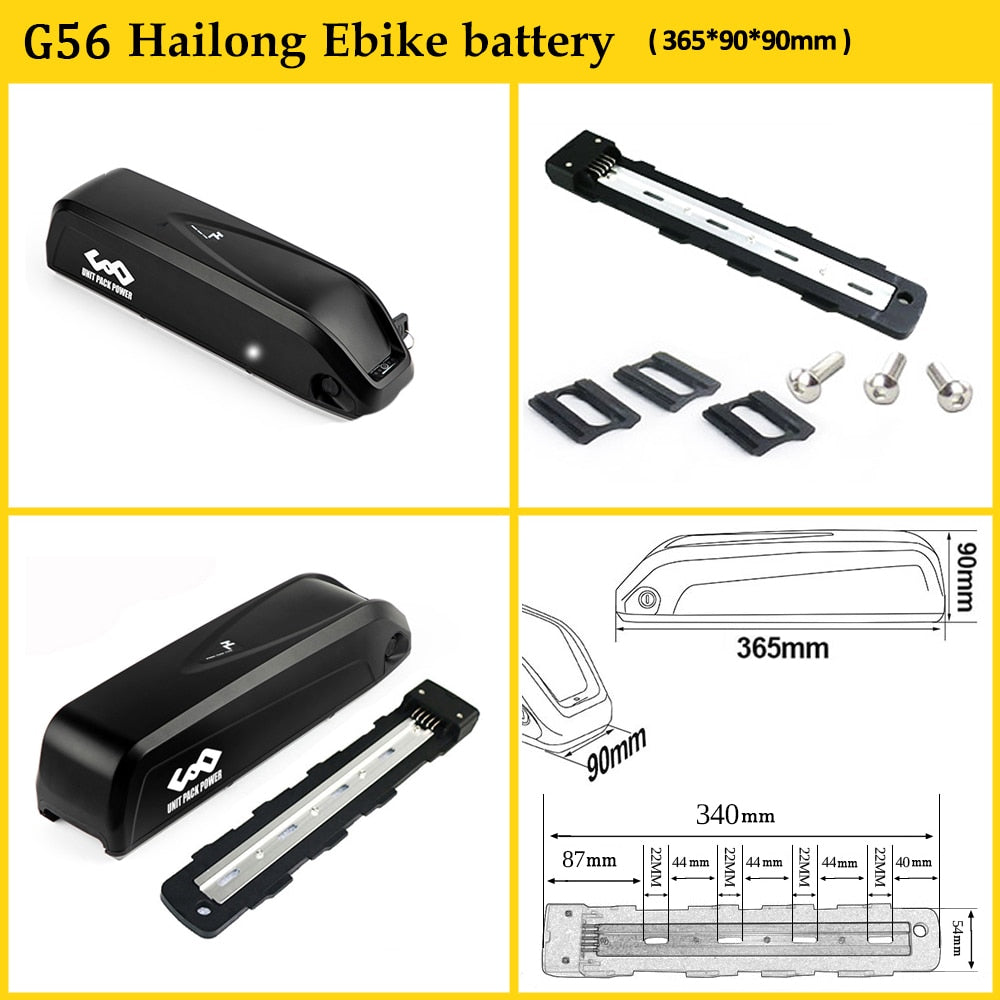

The LG 21700 lithium battery pack comes with a matching charger and has strict voltage cut-off limits to ensure safe charging and discharging. Despite its high capacity, the pack remains lightweight and compact, with dimensions of 365mm x 90mm x 90mm to 110mm depending on the configuration.
Upgrade your electric bike or electric scooter's power source with the LG 21700 lithium battery pack, which offers a combination of high power, long life, safety, and reasonable pricing. Whether you're looking for a battery pack for your daily commute or weekend adventures, the LG 21700 lithium battery pack is a reliable and efficient choice. Order yours today and experience the difference!
5 UnitPackPower batteries have insured to International Insurance, rest assured to buy.
Specifications
|
Parameter |
36V14.4Ah 20A -G56 |
36V19.2Ah 20A -G56 |
48V14.4Ah 30A -G56 |
36V24Ah 20A -G70 |
48V19.2Ah 40A -G70 |
52V14.4Ah 30A -G70 |
|
Nominal Voltage |
36V |
36V |
48V |
36V |
48V |
52V |
|
Nominal Capacity |
14.4Ah |
19.2Ah |
14.4AH |
24Ah |
19.2AH |
14.4AH |
|
Nominal Watt Hour |
518WH |
691WH |
691WH |
864WH |
921WH |
748WH |
|
Composed Type |
10S3P |
10S4P |
13S3P |
10S5P |
13S4P |
14S3P |
|
Built-in BMS |
20A |
20A |
30A |
20A |
40A |
40A |
|
Fit Motor Power |
36V 250W 350W 500W maximum |
36V 250W 350W 500W maximum |
48V 350W 500W 750W 1000W max |
36V 250W 350W 500W maximum |
48V 350W 500W 750W 1000W 1500W max |
48V/52V 350W 500W 750W 1000W 1500Wmax |
|
Charge Cut-off Voltage |
42V |
42V |
54.6V |
42V |
54.6V |
58.8V |
|
Discharge Cut-off Voltage |
28V |
28V |
36.4V |
28V |
36.4V |
39.2V |
|
Battery Weight |
3KG |
3.8KG |
3.7KG |
4.5KG |
4.7KG |
4.7KG |
|
Battery Charger |
42V2A |
42V2A |
54.6V2A |
58.8V3A |
54.6V3A |
58.8V2A |
|
Battery Pack Cell |

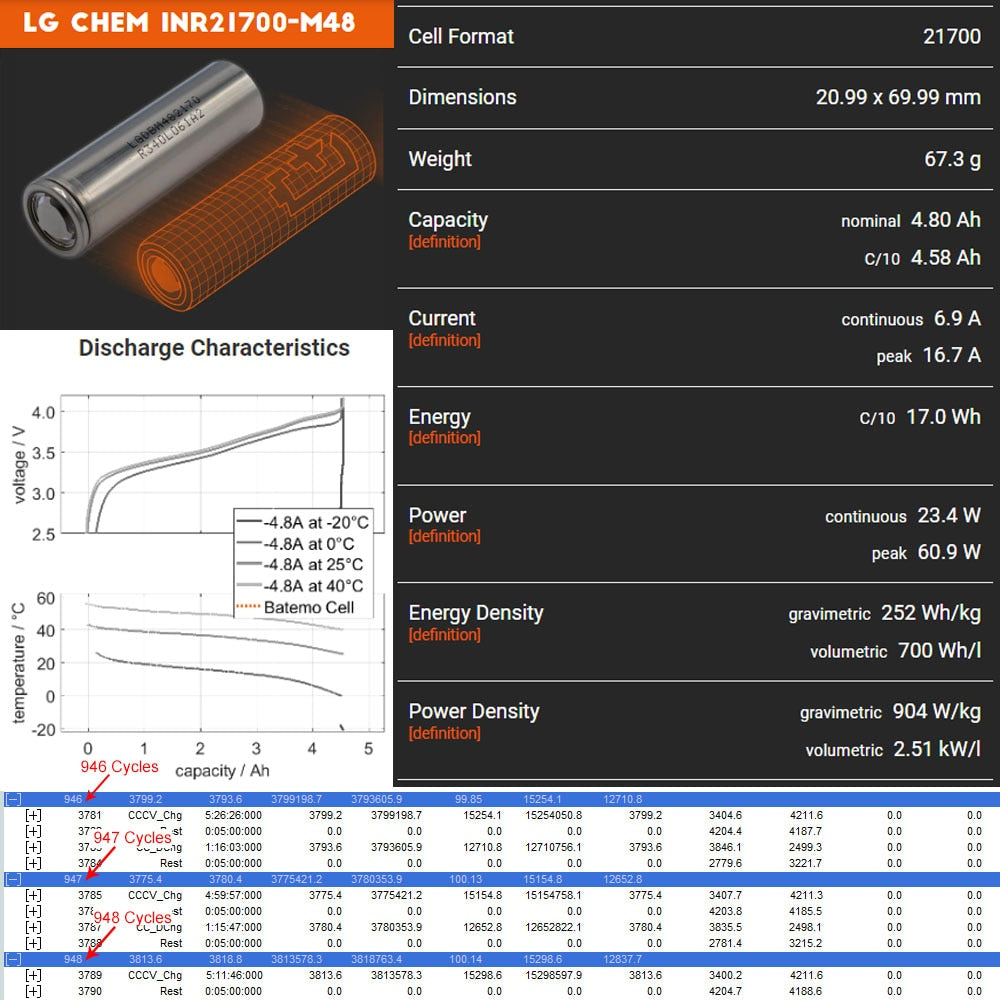

LG 4800mAh 21700 cells Over 1000 Cycles life |
|||||
|
Dimension |
365*90*90mm |
365*90*90mm |
365*90*90mm |
365*90*110mm |
365*90*110mm |
365*90*110mm |
Leave notes to let us know which Discharge connector you would like, or you will get a default one (36V will come with big bullet ; 48V/52V will come with small anderson)
Which Battery Should I choose?
This really depends on the application and can be a hard question. First you need to get a battery voltage match to your motor request , then the capacity , high capacity can make your bike longer trip but more expensive , also need to choose a right amps BMS to fit your motor . do your research if this is your first ebike kit to make sure you are getting the right battery for your needs.
What cells are your battery packs made up of?
All our packs are made up of authentic Grade A 18650 battery cells made in China , Korea or Japan. We use Sanyo Panasonic Samsung , LG or Chinese A grade brand cells and only use the very best models of these brands. and all of our battery would never
What is a BMS Battery management system.
The circuit board that makes your ebike battery “smart”. All of our packs have state of the art BMS to keep your pack safe.
How many volts should I choose?
Depending on your controller. All 48v controllers can handle either 48v or 52v packs. If you have a 36 volt controller however you will need to upgrade it before you can run a 48 or 52v pack.
How many amps do I need?
Also depending on your ebike motor voltage(V) and power(W), here is for your reference , If your motor is not included by belows , just contact us to check :
36V 20amps if for 36V 500W motor maximun ;
36V 25amps if for 36V 700W motor maximun ;
48V 30amps if for 48V 1000W motor maximun ;
48V 40amps if for 48V 1400W motor maximun ;
48V 50amps if for 48V 1800W motor maximun ;
52V 30amps if for 48V/52V 1100W motor maximun ;
52V 40amps if for 48/52V 1500W motor maximun ;
52V 50amps if for 48V/52V 1800W motor maximun ;
Warning :
Don't hit, pierce, strike, trample or throw the battery.
Don't put the battery in the water, keep the battery cool and dry condition .
Don't put the battery near a heat source such as fire or heater.
Use the specified charger that come with the battery
Don't reverse the position and negative pole.
Don't connect the positive and negative terminals with metal objects which would cause short circuit
Don't transport or store the battery with metal objects together , such as hairpins, necklaces, etc.
But beware that following situations are beyond our guarantees.
>The battery goes over water
> The battery is broken man-made
> Incorrect unsing the battery not according the instrucitons
> Open a case without contacting us
Notice :
Ship from USA : 2-5days to USA
Ship from Germany : Within 7days to most of EU countries ,
Ship from China :
To Europe defuat shipping is train, free tax 50-60days , or you can choose to ship by air 18-23days;
To USA/Canada , free tax , will ship by air 18-23days ;
To Austrailia , ship by air 18-23days ;
To other countries it depends , just confirm with us.
If the uncontrolled delay by Delivery , please understand and be patient
