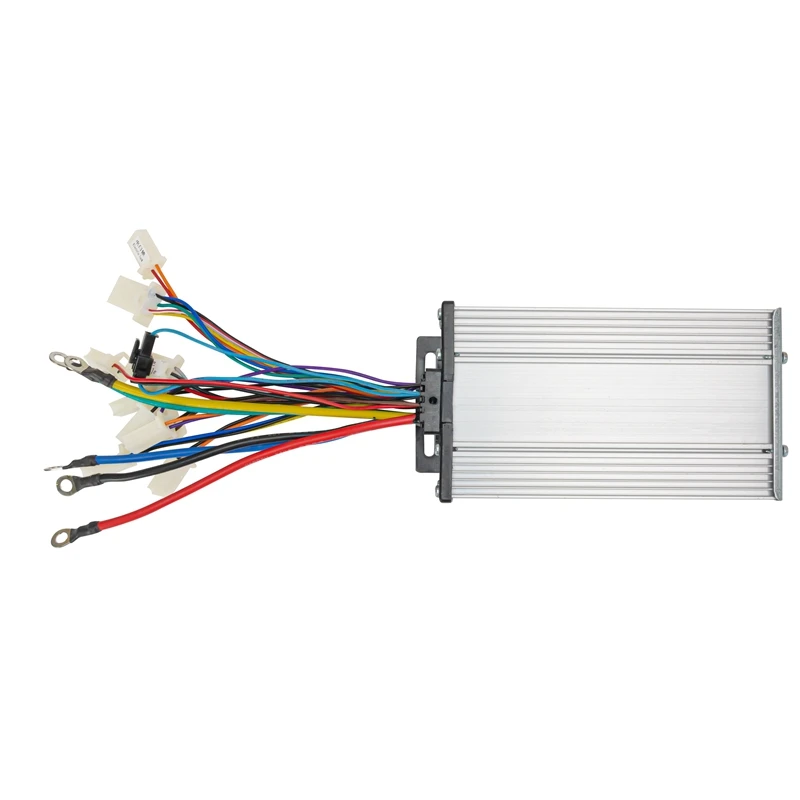

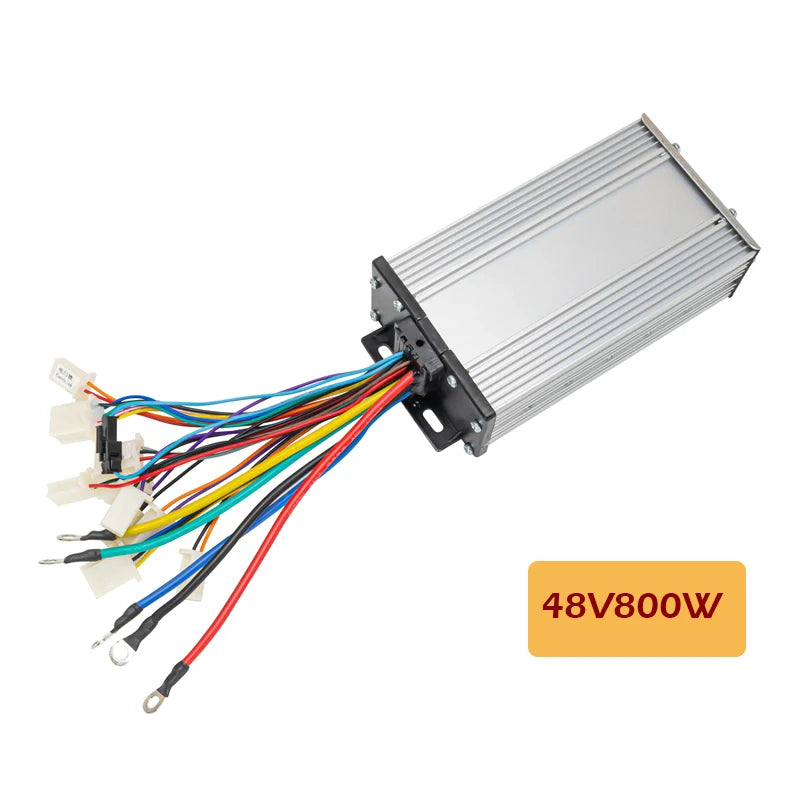

1.Voltage:48VDC
2.Protection Voltage:41V
3.Power: 800W 1000W 1200W 1500W 1600W
4.Current:30A
5.Throttle Voltage:1.1-3.7V
6.Type/MOSFET: 12MOS Brushless Motor Controller
7.Function: Hall Sensor,electric brake,Power Lock,Button,Charge,Limited Speed
e bike , Electric Bicycle, 2wheel balcance car ,e- motorcycle ,DIY brushless Motor Speed Controller
Wiring instructions
1.Batter:Black+Red (big)
2.Motor: Yellow green blue (big)
3.Hall: red black yellowgreen blue (2.8B-6)
4.Throttle: red black green (2.8B-3)
5.Linited Speed: black gray Orange (2.8B-3)
6.Power Lock : red v+ orange vcc (2.8B-2)
7.Brake: black GND +purple SL (2.8B-2)
8.BUTTON: Green orange(VCC) (2.8B-2)
9. Light : Green Orange(CVV) (2.8B-2)
10.Charge: red (V+) BLACK(GND) (2.8B-2)
Note: reference controller wire plug sticker and Wiring instructions.
Wiring errors that cause product damage do not provide after-sales service.

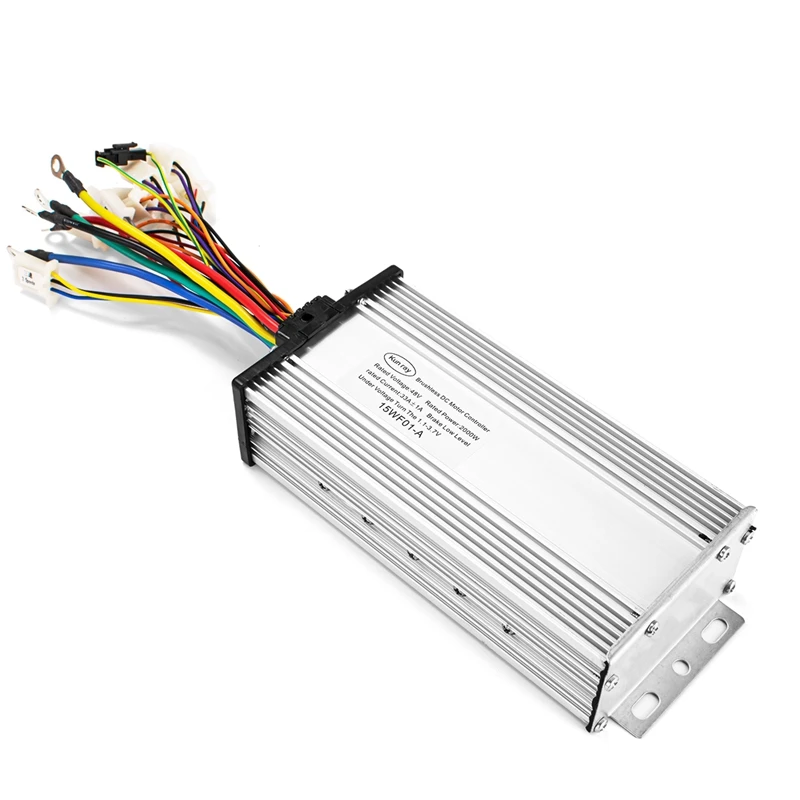

Product Details
Voltage:60V DC / 48V/60V two in one Universal
Power:2000W
Current:33-35A
MOS:15MOSFET
Type:Brushless Controller
Function: Reverse, E-brake, Throttle accelerate,Three Speed, Charger, Indicator Light,ETC
Note: the yellow wire connect eachother is 60Voltage, open is 48V.
Usage:E-SCOOTER,EBIKE,E-CAR,E-TRICYCLE,BRUSHLESS MOTOR CONTROLLER
THIS MODEL ALSO HAVE 48V1500W 1600W BRUSHLESS 12 MOSFET CONTROLLER. YOU CAN FIND IN OUR SHOP.

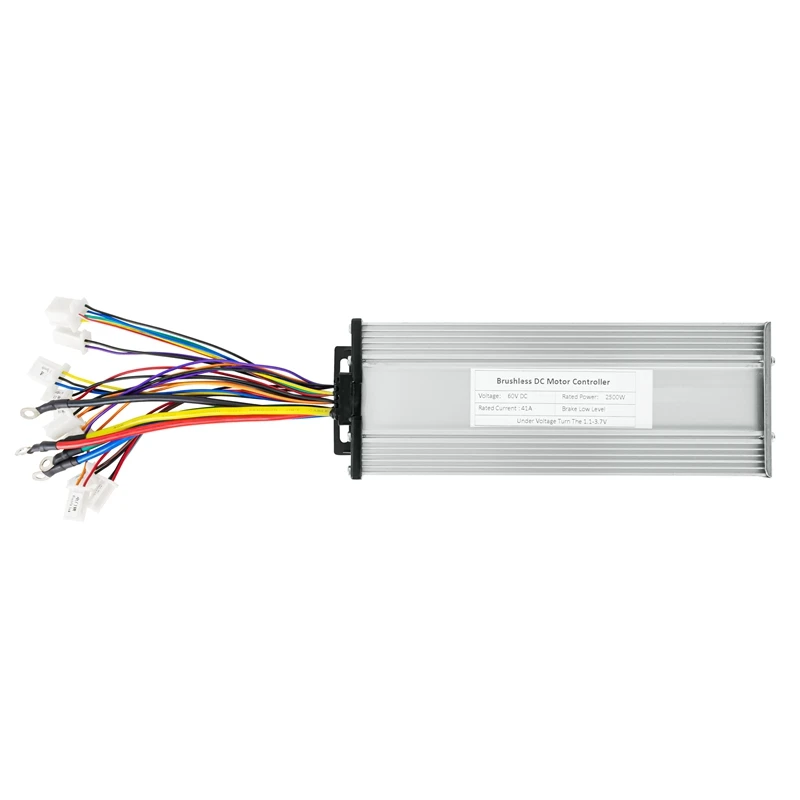

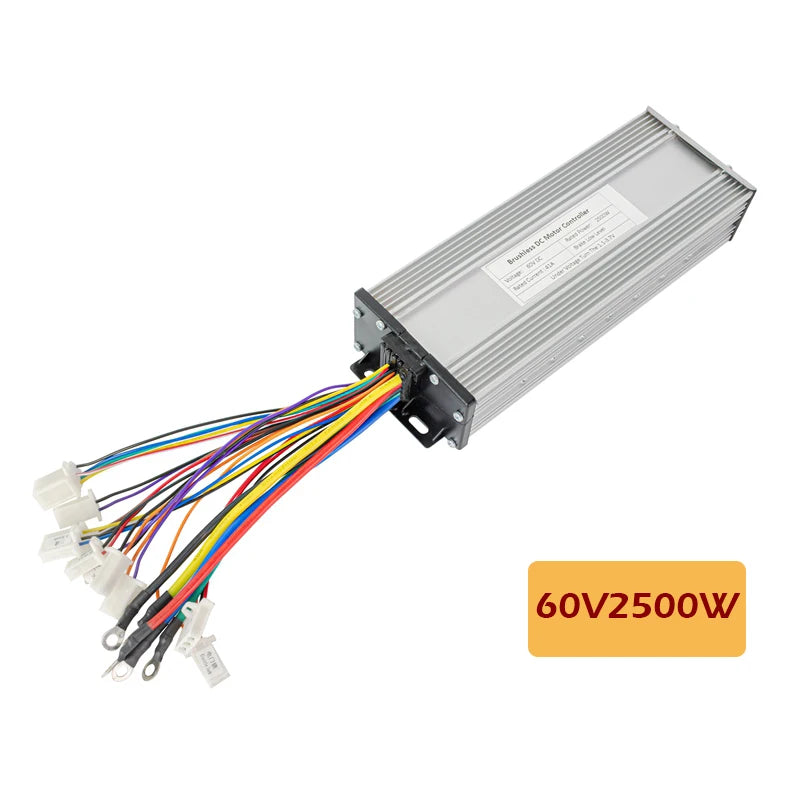

Product Details
Voltage:60V DC
Power:2500W
Current:41A
MOS:18MOSFET
Type:Brushless Controller
Function: Reverse, E-brake, Throttle accelerate,Three Speed, Charger, Indicator Light,ETC
Usage: E-SCOOTER,EBIKE,E-CAR,E-TRICYCLE,BRUSHLESS MOTOR CONTROLLER
THIS MODEL ALSO HAVE 48V1500W 1600W BRUSHLESS 12 MOSFET CONTROLLER. YOU CAN FIND IN OUR SHOP
