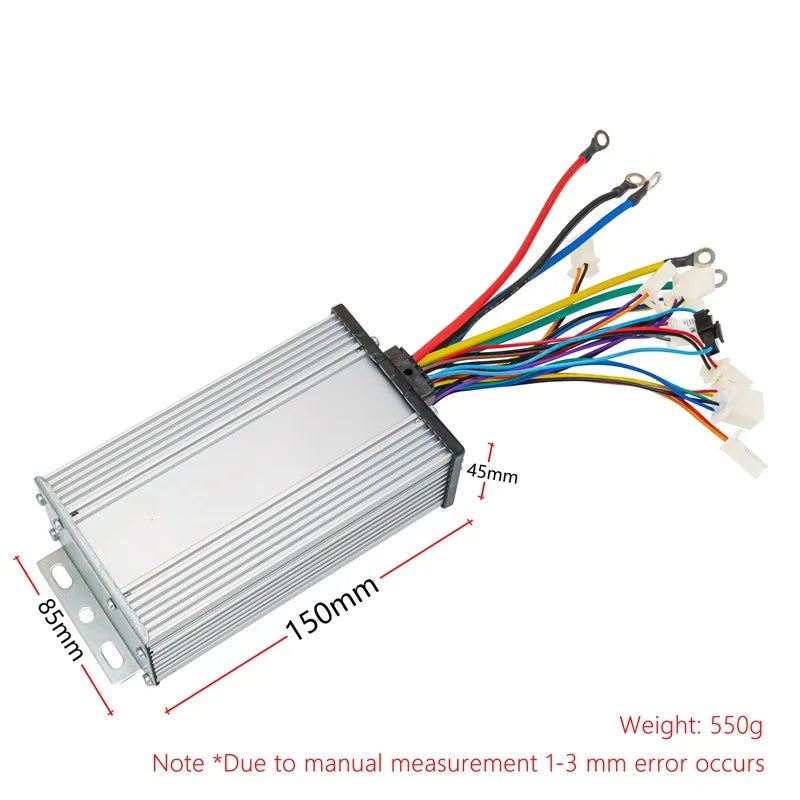

KUNRAY High Quality Brushless Motor Speed Controller 12Mosfet 800W - 1600W 48V DC E-Bike Electric Bicycle Scooter Accessories
Product Details
1.Voltage:48VDC
2.Protection Voltage:41V
3.Power: 800W 1000W 1200W 1500W 1600W
4.Current:30A
5.Throttle Voltage:1.1-3.7V
6.Type/MOSFET: 12MOS Brushless Motor Controller
7.Function: Hall Sensor,electric brake,Power Lock,Button,Charge,Limited Speed
e bike , Electric Bicycle, 2wheel balcance car ,e- motorcycle ,DIY brushless Motor Speed Controller

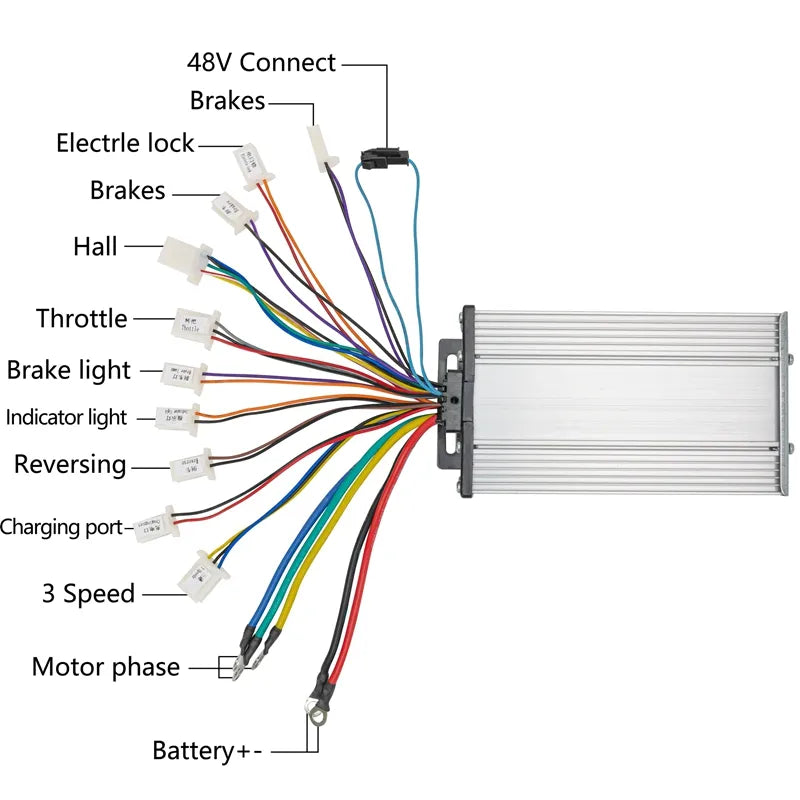

Wiring instructions
1.Batter:Black+Red (big)
2.Motor: Yellow green blue (big)
3.Hall: red black yellowgreen blue (2.8B-6)
4.Throttle: red black green (2.8B-3)
5.Linited Speed: black gray Orange (2.8B-3)
6.Power Lock : red v+ orange vcc (2.8B-2)
7.Brake: black GND +purple SL (2.8B-2)
8.BUTTON: Green orange(VCC) (2.8B-2)
9. Light : Green Orange(CVV) (2.8B-2)
10.Charge: red (V+) BLACK(GND) (2.8B-2)
Note: reference controller wire plug sticker and Wiring instructions.
Wiring errors that cause product damage do not provide after-sales service.
