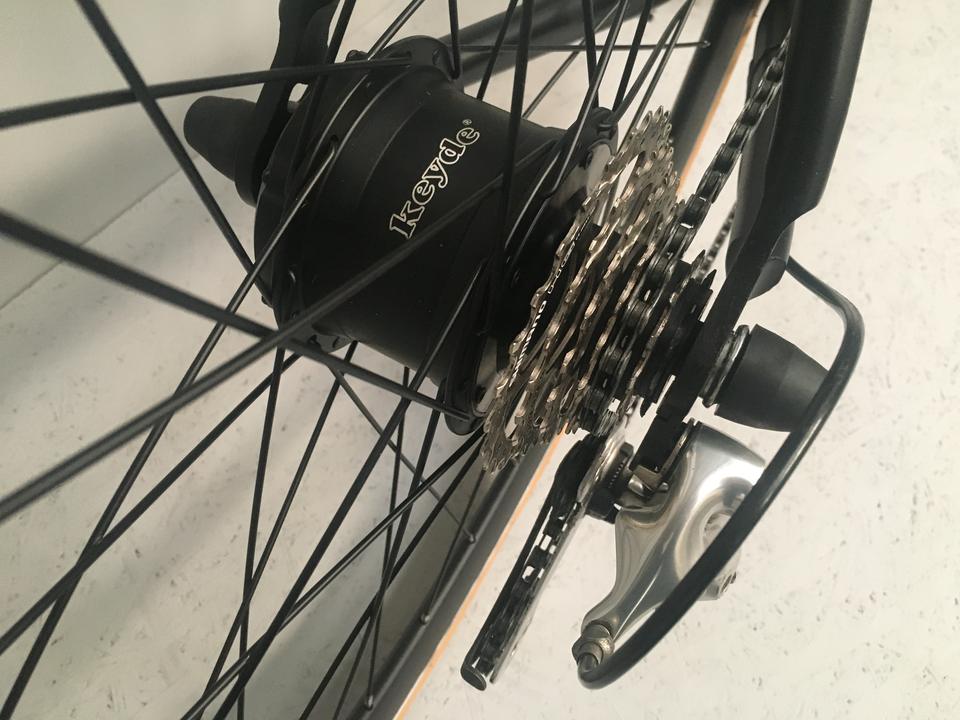

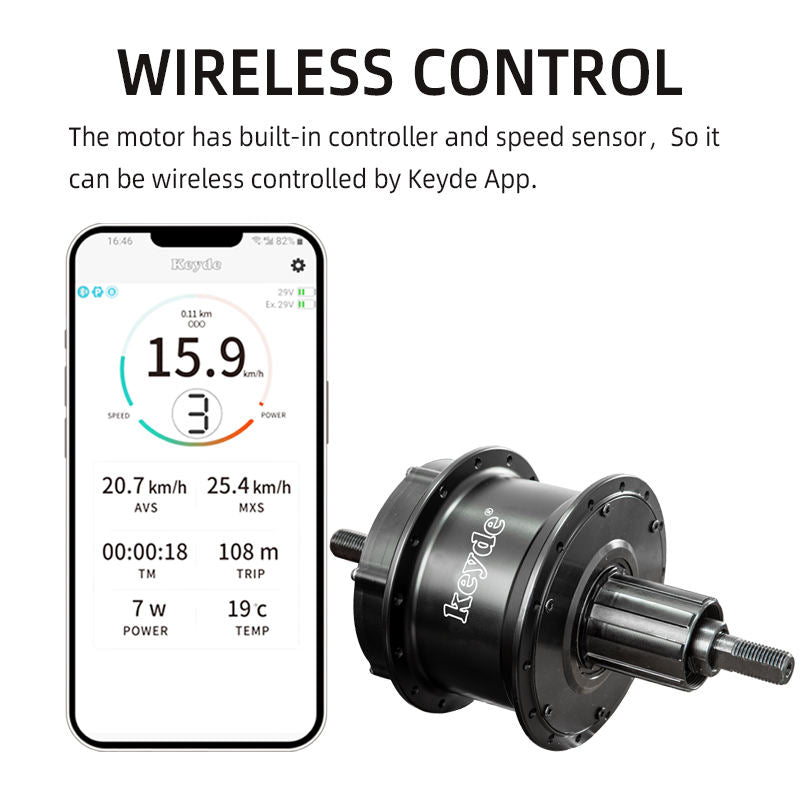

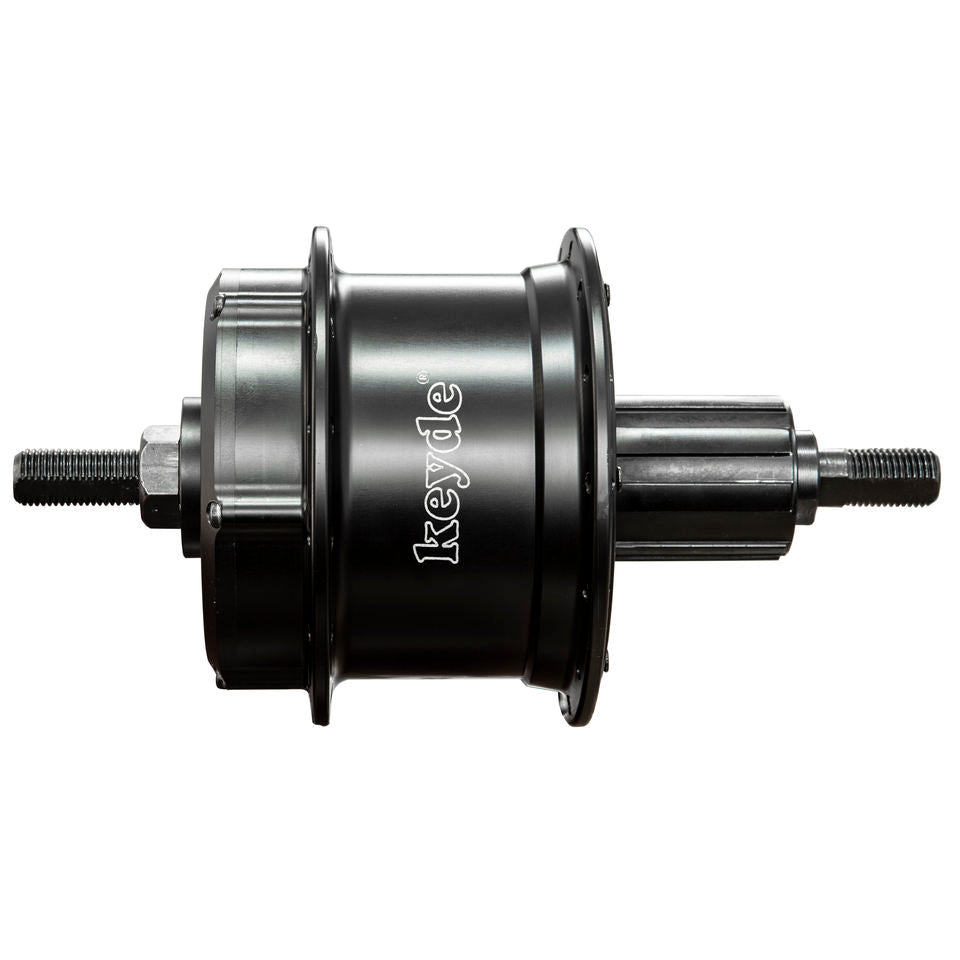

keyde P100 rear motor wireless control for electric bike,integrating a built-in controller and speed sensor for E-bike conversion kits

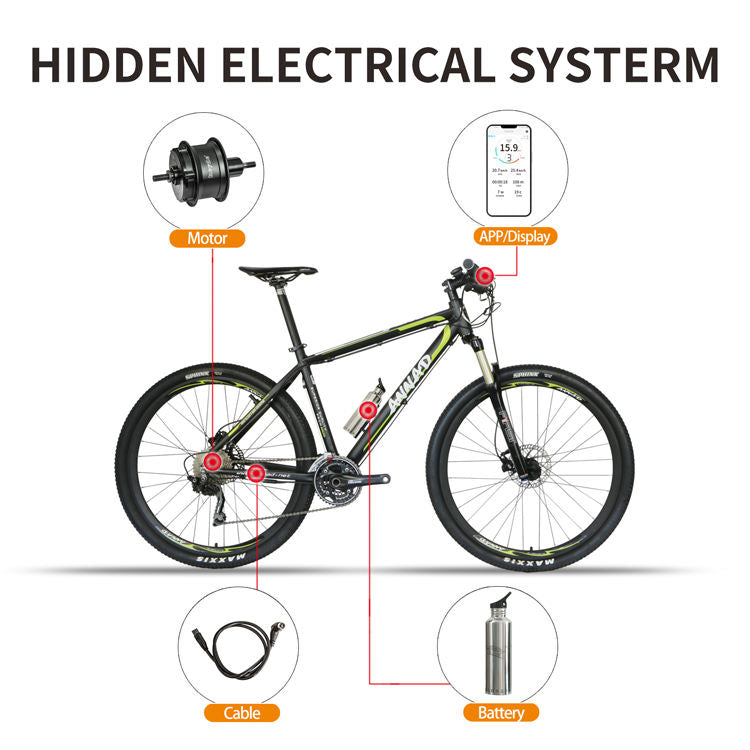

Introducing the Keyde P100 Rear Motor - a wireless control rear motor designed for electric bicycle conversion kits. This new P100 motor is built with a compact and lightweight design, integrating a built-in controller and speed sensor, making it easy to install and use.
The P100 Rear Motor features a dynamic torque sensing system that provides a better riding experience while ensuring riding safety. The slope induction system optimizes torque sensing, automatically increasing torque without pedaling hard when going uphill. With a peak efficiency of over 90%, the motor effectively reduces heat loss and increases cruising range.

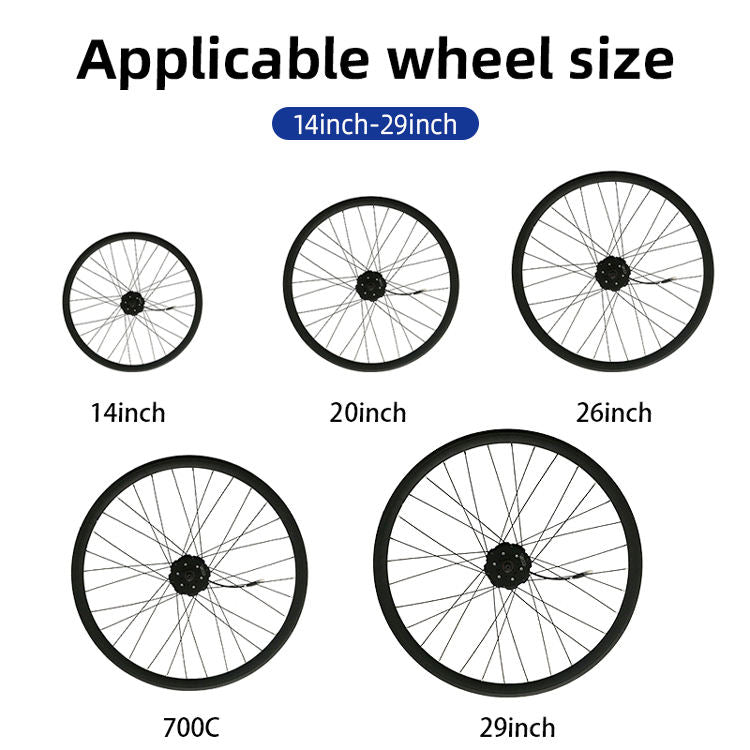

This rear motor by Keyde is compatible with both disc brakes and V brakes and supports free-wheel types of cassette & whirl. It has a reduction ratio of 1:13.5 and a grade-ability of over 20%. The motor is suitable for various wheel sizes ranging from 14-29 inches and is IP65 waterproof and dust-proof.
With a maximum power of 750W and a torque exceeding 35N·m, the Keyde P100 Rear Motor offers a high-performance riding experience. It operates at a rated voltage of 36V and a rated input current of 7.8A, with a revolution of 160-260RPM.
In summary, the Keyde P100 Rear Motor is the perfect solution for those looking to convert their bicycle into an E-bike. With its wireless control, built-in controller, and dynamic torque sensing system, it offers a top-of-the-line riding experience. Whether you're looking for a wireless control rear motor for your electric bicycle conversion kit or E-bike conversion kit, the Keyde P100 Rear Motor is an excellent investment that you won't regret.
|
Specification |
P100SWXCR24 | P100SWXCR33 | P100SWXCR36 |
| Diameter (mm) | 100 | ||
| Width (mm) | 135±2 | ||
| Rated output power (W) | 250 | ||
| Maximum output power (W) | 350 | ||
| Maximum output torque(Nm) | 35 | ||
| Rated voltage (V) | 24 | 33 | 36 |
| Rated input current (A) | 13 | 9.5 | 8.7 |
| Maximum current(A) | 10-15 | 8-13 | 8-12 |
| Static current(mA) | <2 | <2 | <2 |
| Efficiency (%) | ≥85 | ≥85 | ≥85 |
| Rated revolution (r/min) | 160-260 | 160-260 | 160-260 |
| Weight (Kg) | 2.1 | 2.1 | 2.1 |
Inventory Last Updated: Oct 07, 2024
