Kelly Controller 72V KLS7212S,24V-72V,120A,SINUSOIDAL BRUSHLESS MOTOR CONTROLLER for in-wheel hub motor

Kelly Controller 72V KLS7212S,24V-72V,120A,SINUSOIDAL BRUSHLESS MOTOR CONTROLLER for in-wheel hub motor

NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.

(special countries list contact seller)

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 3000W.

Key Features

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Programmable by bluetooth

5). Warranty for mass order: If any quality issue for controller cannot drive the motor when received, we will send new one with your next order for replacement.

Product Description

1). Genearlly Specification

• 1. Sine wave controller, programmable, with regen function

• 2. Motor Current Limit, 20 seconds: 120A

• 3. Motor Current Limit, continuous: 50A

• 4. Thermic Probe: KTY83-122

• 5. Including one controller + USB convertor cable + matched plug

• 6. Controller size: 108mm*78mm*41mm

• 7. Net weight: 0.77kg

• 8. Waterproof IP54

• 9. Default not including bluetooth, waterproof(those function are optional); CAN BUS not support

• 10. Work voltage: 18~90V; Rated voltage: 24V~72V

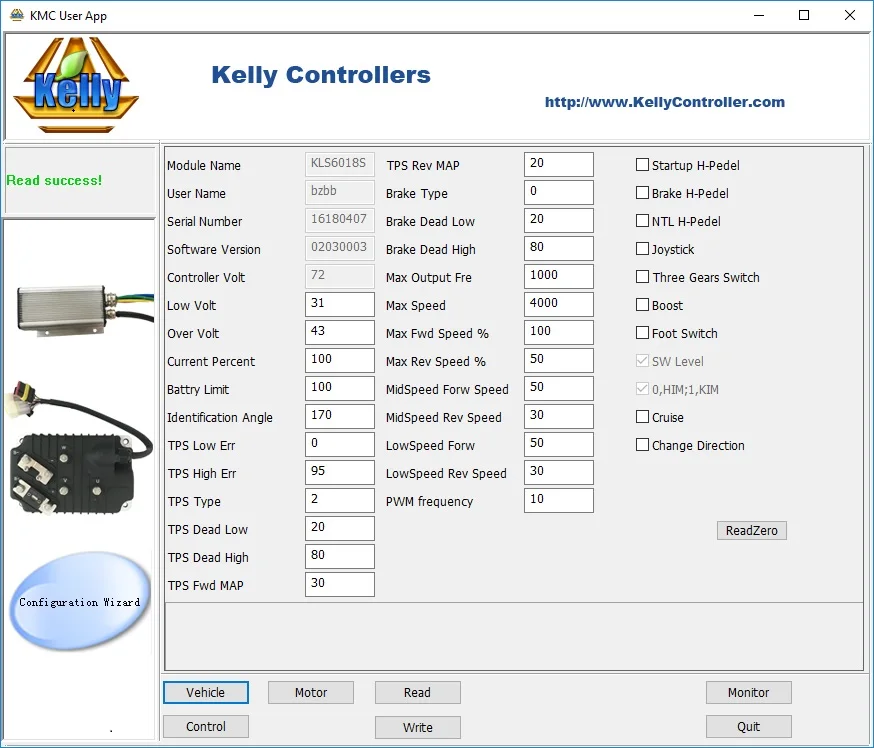

2). QS Kelly Controller Interface

Here are the clear and easy adjustment interface.

3). QSKLS7212S Controller drawing

Here is drawing of our normal QSKLS7212S controller.

4). Pin Definition

5). Questions before order

1. If you want to buy the controller separately, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2. If you need any other special functions for this controller, please feel free to contact to us. Thank you!
