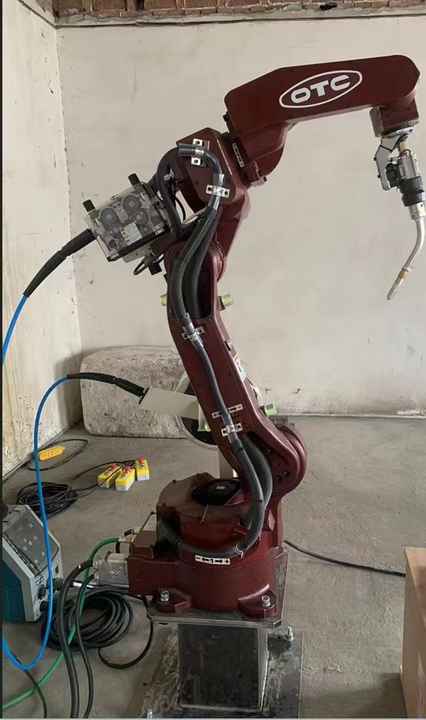

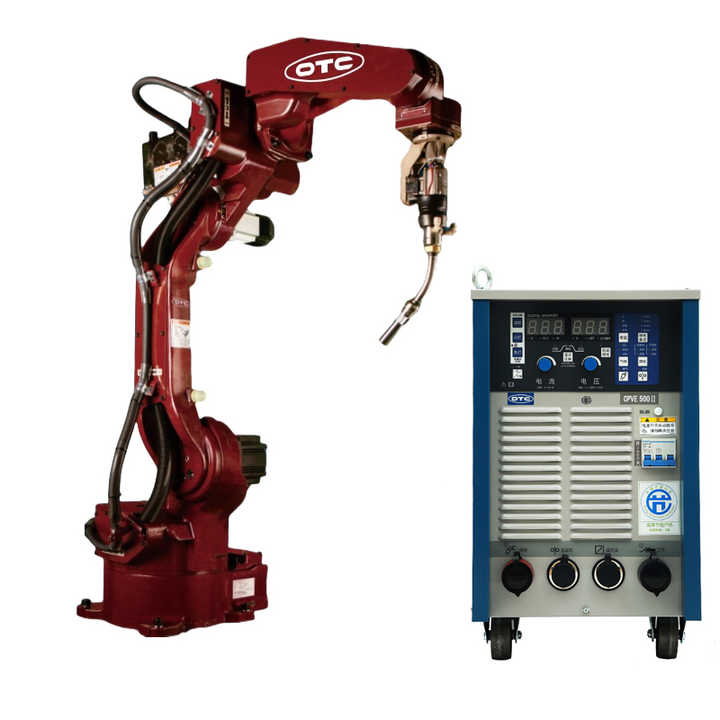

Japan Brand Simple Operation Multi-Functional Automatic O/T/C FD-B1445 1.4m Arm Welding Robot
iption
Specification
|
Construction
|
Vertical polyarticular type
|
||
|
Number of axes
|
6
|
||
|
Set reduplication precision
|
+/-0.08mm(Note 1)
|
||
|
Drive system
|
Ac servo motor
|
||
|
Driving energy
|
2900W
|
||
|
Set feed-back
|
Absolute value encoder
|
||
|
Range of action
|
arm
|
J1(rotation)
|
+/-170°(+/-50°)(Note 2)
|
|
J2(front and rear)
|
-155°~ +90°(Note 3)
|
||
|
J3(top and bottom)
|
-170°~ +245°(Note 4)
|
||
|
wrist
|
J4(rotation)
|
+/- 155°(+/- 170°)(Note 5)
|
|
|
J5(Swing)
|
-45°~ +225°(Note 6)
|
||
|
J6(Twist)
|
+/- 205° (+/- 360°)(Note 5、6)
|
||
|
Maximum speed
|
arm
|
J1(rotation)
|
2.97 rad/s {170°/s}(2.27 rad/s {130°/s})(Note 2)
|
|
J2(front and rear)
|
2.97 rad/s {170°/s}
|
||
|
J3(top and bottom)
|
2.97 rad/s {170°/s}
|
||
|
wrist
|
J4(rotation)
|
4.89 rad/s {280°/s}
|
|
|
J5(Swing)
|
4.19 rad/s {240°/s}
|
||
|
J6(Twist)
|
9.08 rad/s {520°/s}
|
||
|
Wrist allows load
|
Moment of force
|
J4(rotation)
|
10.1 N·㎡
|
|
J5(Swing)
|
10.1 N·㎡
|
||
|
J6(Twist)
|
2.9 N·㎡
|
||
|
Moment of inertia
|
J4(rotation)
|
0.38 kg·㎡
|
|
|
J5(Swing)
|
0.38 kg·㎡
|
||
|
J6(Twist)
|
0.03 kg·㎡
|
||
|
The machine and the man act as the model
|
3.57 ㎡ x 340°
|
||
|
Make use of environmental conditions
|
Temperature: 0 ~ 45℃, humidity: 20 ~ 80%RH (no condensation)
|
||
|
Body weight
|
145 kg
|
||
|
Load capacity of upper arm
|
10 kg (Note 7)
|
||
|
Mounted square type
|
Ground, wall hanging, upside down
|
||
|
This body color
|
russet
|
||
