HUALONG Machinery 7 Axis KUKA Robotic Body Granite Engrave 3d Marble Sculpture Carving Statue Making Robot Arm Cnc Stone Machine
7 Axis Robot Arm CNC Router

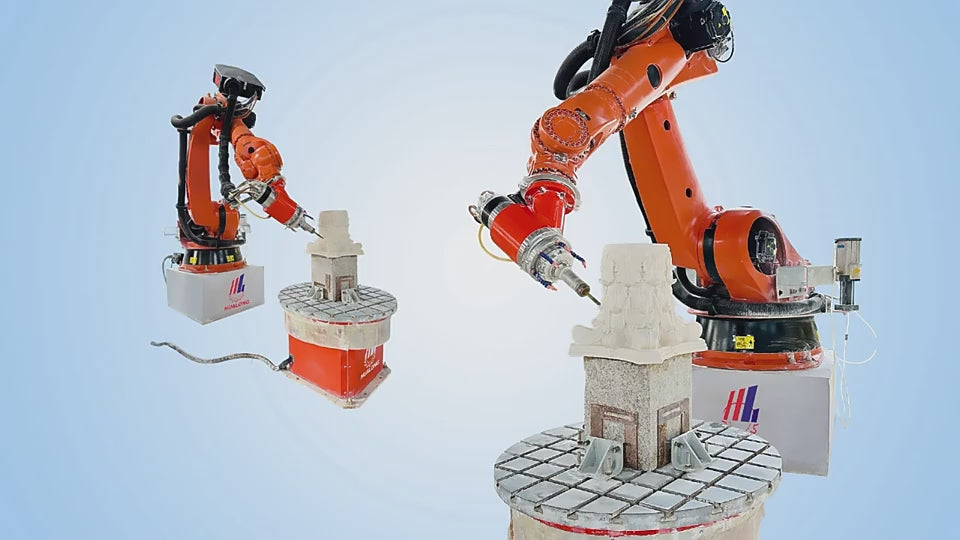

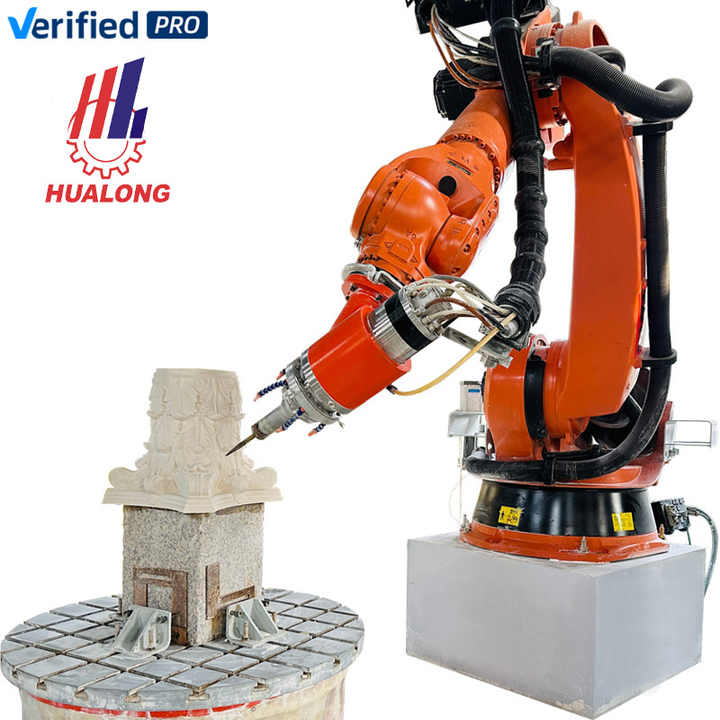

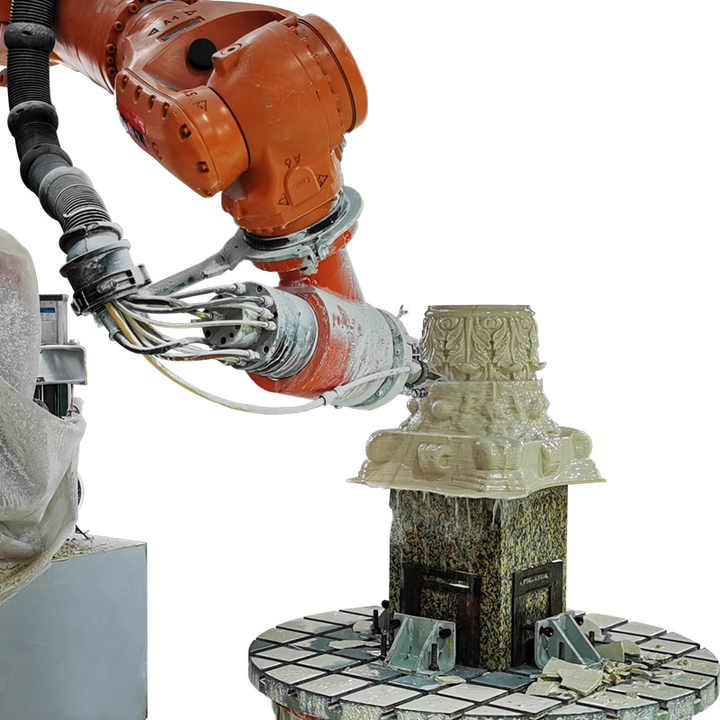

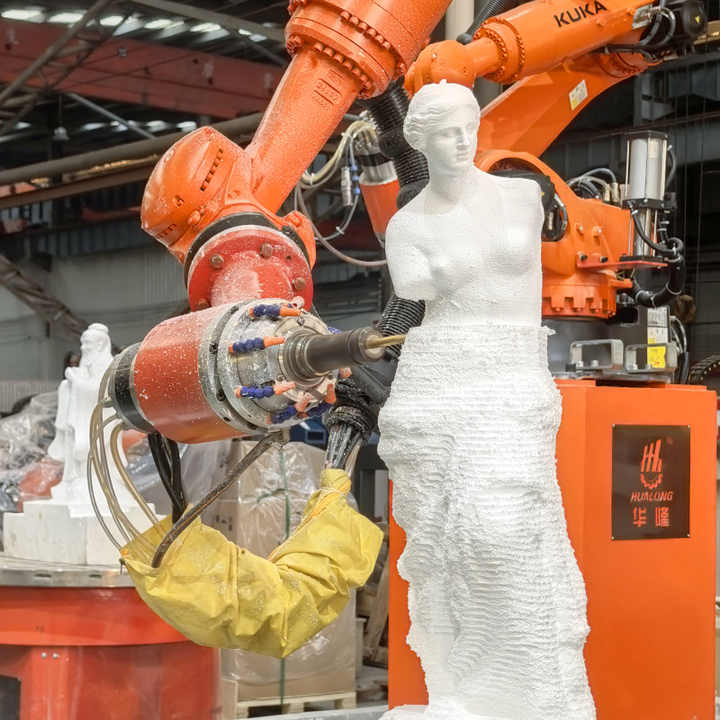

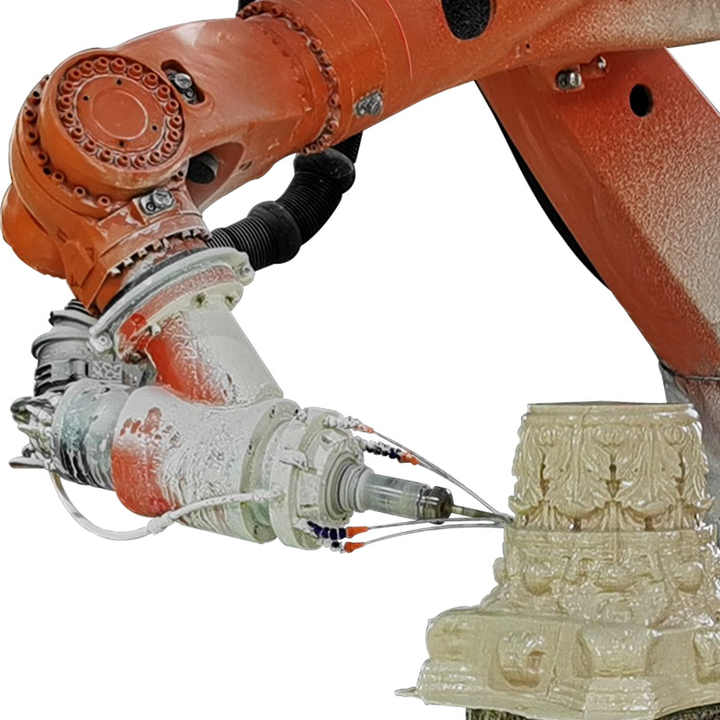

HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developed product on the base of KUKA robot, specially designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.
It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.
Powerful 7 axis CNC Robot made in Kuka for Carving stone Art
Features:
1) Work quickly and efficiently with extremely high continuous track accuracy
2) Working circumference of 3100 mm
3) The software can realize the automation of complex 3D modelling sculpture processing
4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
5) Robots increase productivity, repeatability, and quality while helping to simplify a tedious and complex application.
|
TECHNICAL DATA
|
|
|
Actual Load
|
210 kg
|
|
Max. Armspread
|
2700 mm
|
|
Max. Processable Size
|
1000x2500mm
|
|
Diameter of Rotation Worktable
|
1000 mm
|
|
Spindle power
|
15 kw
|
|
Max. Rotating Speed of Spindle
|
18500 rpm/min
|
|
Repeat positioning accuracy
|
＜ +/- 0.06 mm
|
|
Tools supported
|
saw for roughing/ milling cutter/ end mill/ polishing wheel
|
|
Tools magazine
|
supported
|
|
Protect type
|
waterproof & dustproof
|
|
Offline Software
|
Sprut CAM latest version
|
|
Motion Range & Speed of Axis 1
|
+/-185° 86°/s
|
|
Motion range & Speed of Axis 2
|
0°/-146° 84°/s
|
|
Motion range & Speed of Axis 3
|
+155°/ -119° 84°/s
|
|
Motion range & Speed of Axis 4
|
+/-350° 100°/s
|
|
Motion range & Speed of Axis 5
|
+/-125° 110°/s
|
|
Motion range & Speed of Axis 6
|
+/-350° 184°/s
|
|
Motion range & Speed of Axis 7
|
endless rotation 84°/s
|
SprutCAM — always latest version offline software
All-in-one software for industrial robot programming (CAD+CAM+OLP)
Application:
* Stone Buddhas statues, Church sculptures
* Stone balustrades, Roman columns, colum cap & base
* stone crafts, artwork
* Funeral tablets/tombstones, Milestones
3D Scanner (optional) - Duplicate engraving strokes · Reproduce fine details
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
