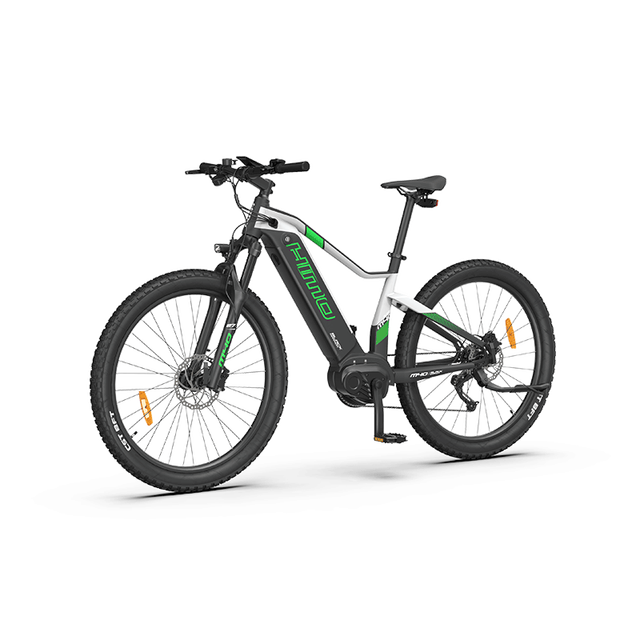

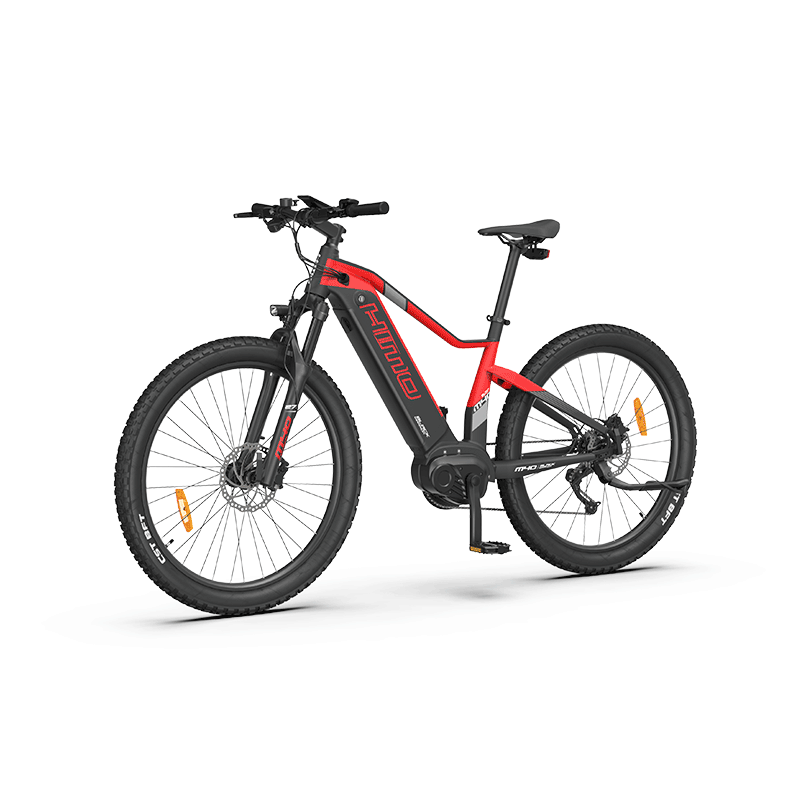

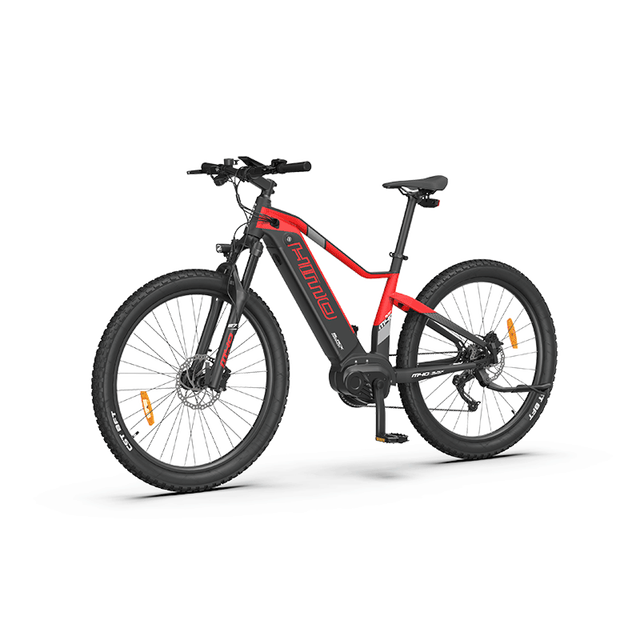

HIMO M40 27.5inch electric mountain bike 48v250w mid torque motor Lithium battery powers off-road mountain bike TFT lcd emtb

taobao

PARAMETER

Front and rear wheelbase: 1155mm

Vehicle weight: 26.8kg

Shifting system: Shimano 9 spd

Braking system: hydraulic disc brake

Maximum speed: 25km/h

LCD display: 3.5inch LCD TFT light-sensitive screen

Assisted cruising range: The theoretical maximum cruising range is about 100km

Power consumption per 100 kilometers: 0.48kw.h /100km

Load: ≤100kg

Motor type: mid-mounted torque motor

Electric power form: permanent magnet

Nominal power: 250w

Rated rotation: 92r/min

Rated voltage: 48V

controller

Under-voltage protection: 41V±2

Overcurrent protection: 18V±2

Lithium battery parameters

Battery type: Lithium-ion battery

Capacity: 12.5ah

Nominal voltage: 48V
