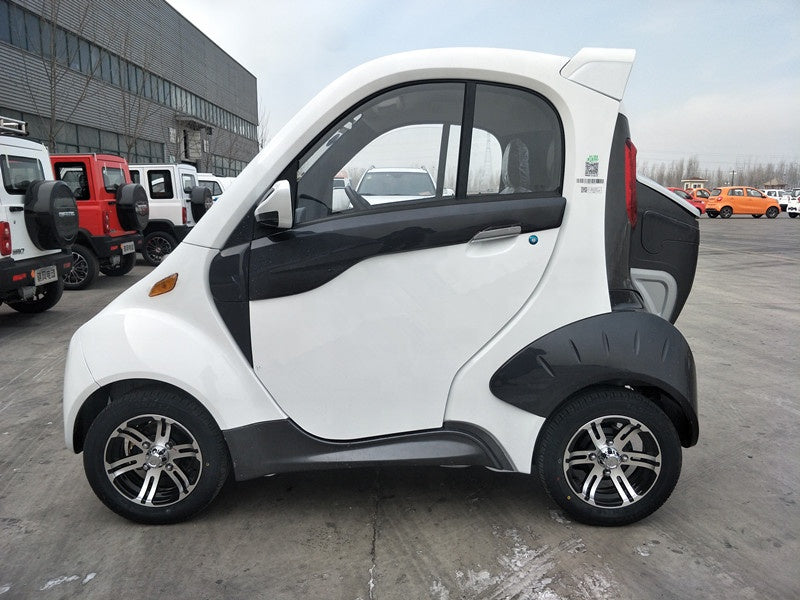

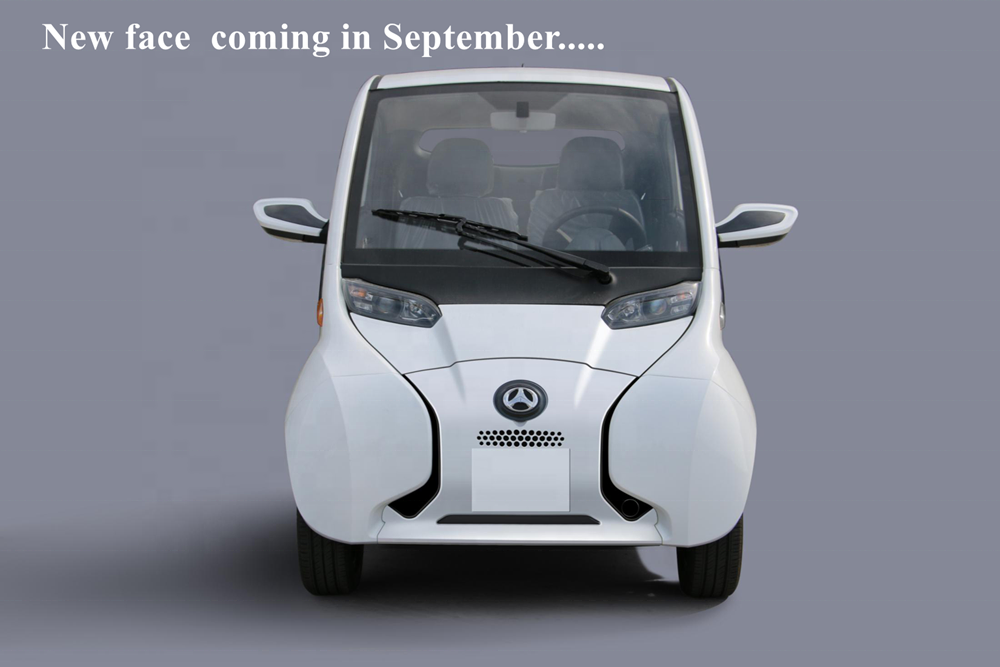

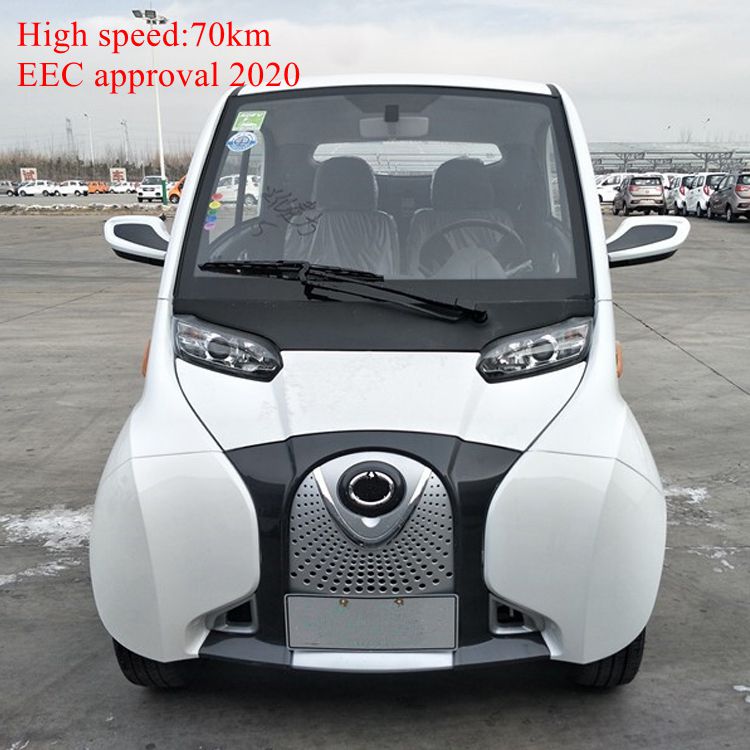

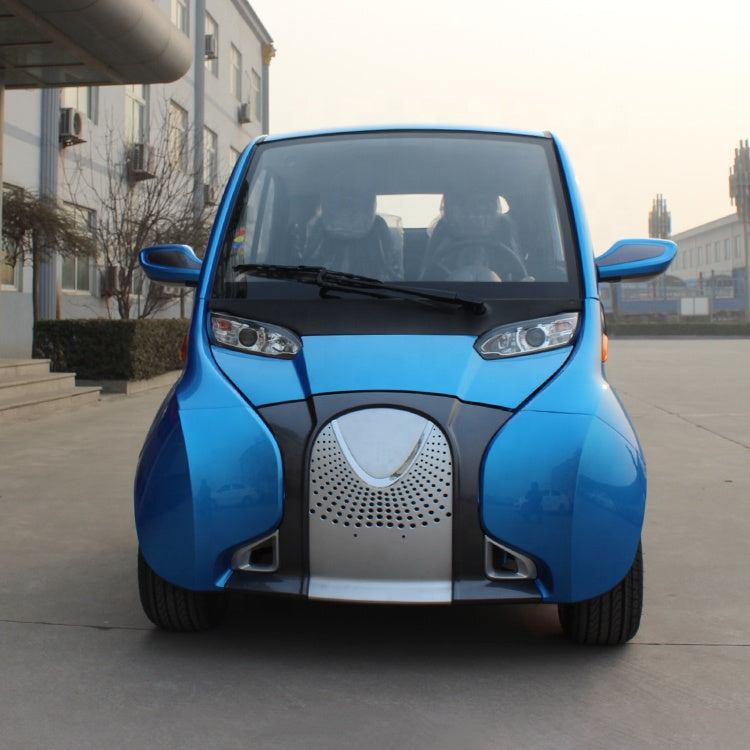

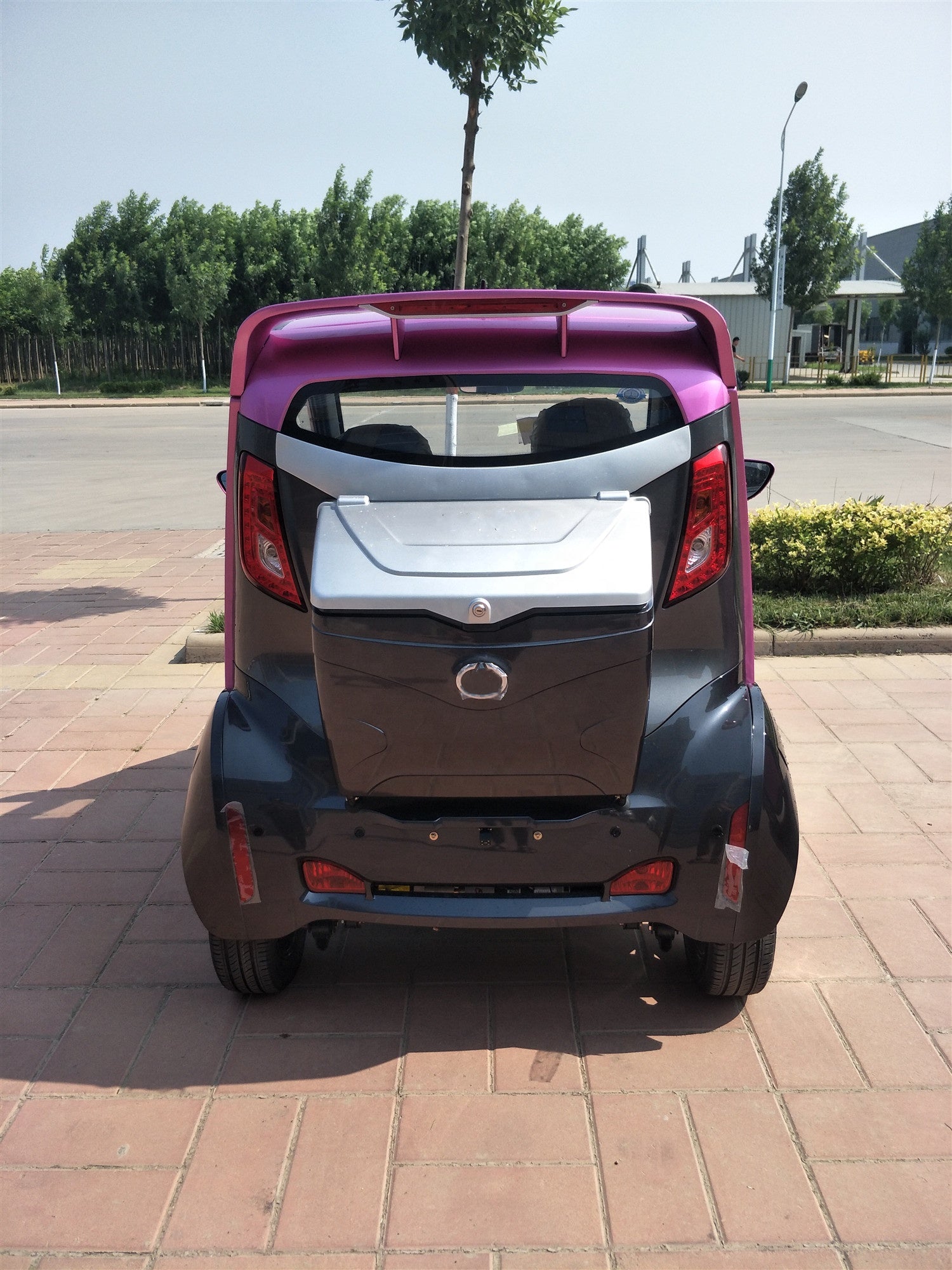

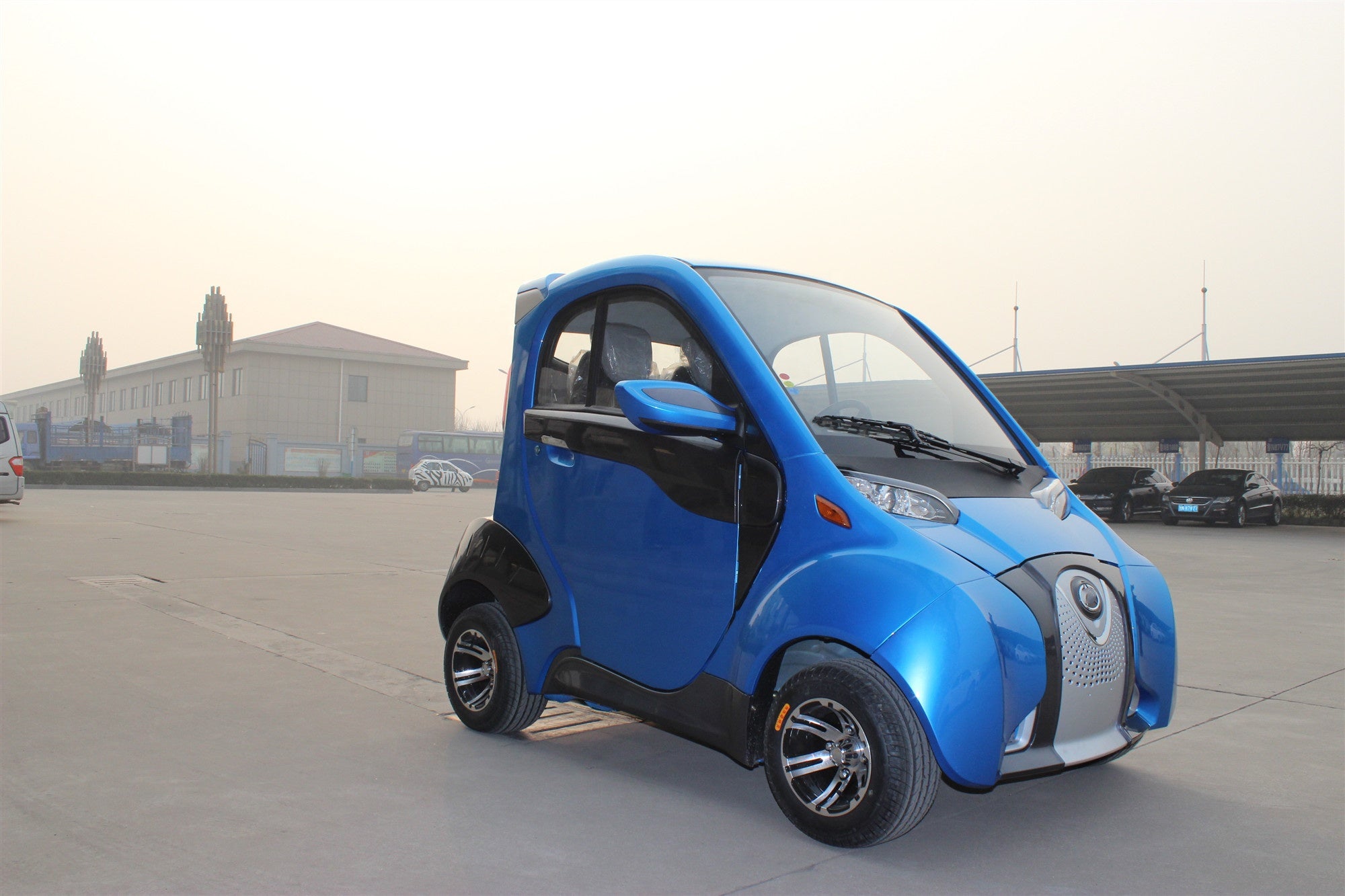

high speed EEC approved mini electric car with 2 seats
Specification of high speed version(Lithium battery):
EEC approval in 2020
|
Specifications |
A01(EEC)lithium version |
|
Dimensions: |
2250*1400*1642mm |
|
Wheelbase: |
1560mm |
|
Trackbase: |
1126mm/1146mm |
|
Rated passengers: |
2 persons |
|
Curbweight: |
600kgs |
|
Min.ground clearance: |
150mm |
|
Body structure: |
Self supporting body |
|
Suspended system: |
Front: MacPhersan type Independent suspension |
|
Rear:Semi drag rocker arm Independent suspension |
|
|
Brake system: |
Front disc/ rear drum |
|
Parking brake: |
Mechanical cable type |
|
Tire size(mm): |
162/55 R12 |
|
Battery(V/ah): |
9.22kw/h lithium battery group |
|
Charging time : |
6hours |
|
Motor control type: |
73V 7.5kw AC Motor |
|
Max.speed: |
70km(real speed) |
|
Max.cruising range: |
120km |
|
Min.turning radius: |
≤4.5m |
|
Grand ability: |
≥12º (20%) |
|
Qty/40' container: |
8 units |
|
Configuration: |
Air condition, Power windows, Central lock, Remote key, power brake,ABS, power steering, Aluminum-wheel, 7" display screen with reverse camera, Radio and blue-tooth, Anti-slip slope, EU STANDARD CHARGING PORT AND CHARGING GUN |
