High-Speed 8000W Electric Bike Conversion Kit - Gearless Brushless Hub Motor with Optional TFT Display for 18-19 Inch Motorcycle Wheels

Sale price $1,128.00 Regular price $1,368.00

High-Speed 8000W Electric Bike Conversion Kit - Gearless Brushless Hub Motor with Optional TFT Display for 18-19 Inch Motorcycle Wheels



Upgrade your electric bicycle to a high-speed and powerful machine with the Electric Bike Kits 8000W Conversion Kit. This kit features an 8000W gearless brushless rear hub motor, providing you with reliable and efficient performance.

The Electric Bike Kits 8000W Conversion Kit is designed for 18" and 19" motorcycle wheels and is available in 52V, 60V, 72V, and 96V voltage options, providing you with the flexibility to choose the power that best suits your riding style. The kit can reach speeds of up to 120 km/h, providing you with a fast and thrilling riding experience.

This electric bike conversion kit features a twist throttle for both side power off and two electric brake levers that can power off from both sides, providing you with added control and ease of use. The kit also includes a 150A sine wave controller, ensuring reliable and efficient power delivery to the motor.

The Electric Bike Kits 8000W Conversion Kit includes an optional TFT750C or TFT M6 display, allowing you to monitor your bike's performance, including speed, battery life, and motor output.

The kit is designed with durable materials that can withstand wear and tear, ensuring that your bike will last for years to come. Plus, with easy installation and compatibility with a range of motorcycle wheels, this kit is the perfect solution for your DIY electric bike project.

Upgrade your electric bicycle to a high-speed and powerful machine with the Electric Bike Kits 8000W Conversion Kit. Enjoy a fast, efficient, and thrilling riding experience with this high-performance conversion kit.

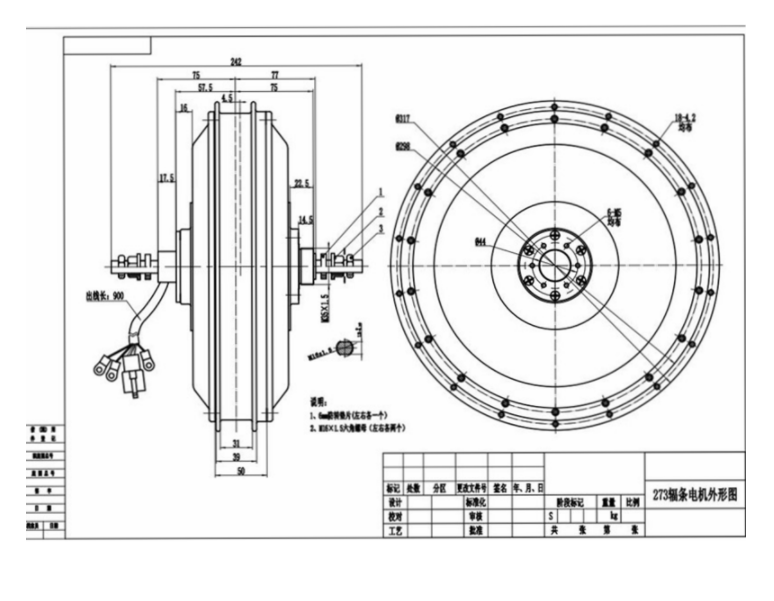

.QS273 8000W 40H Electric Bike Spoke Hub Motor V3 Type 150mm drop-outs
-Motor Type: BLDC Hub Motor with Permanent Magnet
-Motor design: Double axle out
-Spoke hole: 3.4mm x 36pcs
-Matching Rim:16inch-26inch
-Magnet Height: 40MM
-Pole Pairs: 16paris
-Rated Power: 4000W
-Peak Power: 8000W-12000W
-Rated Voltage: 72V as default( 48-96V,optional)
-Max Speed:80KPH as default(30-120kph,optional)
-kV:11.46/12.46/13.54/15.69 etc.
-Max Torque: 182N.M
-Max Efficiency: 90%
-Continious Battery current:55A at 72V
-Max Battery Current:110A
-Brake type: Disc brake ,PCD6*44MM
-Rear Fork width for installation: 152mm
-Winding Holder material: Aluminium
-Cross Section of Phase wire: 16 mm2
-14MM English thread length for single/3-speed freewheel
-10mm axle flats
-Hall sensor phasing angle: 120 degree
-Temperature Sensor: KTY83/122
-Max. Working Temperature: 70-120 degree, Peak 150 degree
-Waterproof Grade: IP66
Certifications
Detailed Images
                                   Brake Level
                                   Thumb Throttle
            Sine Wave Programmable Controller

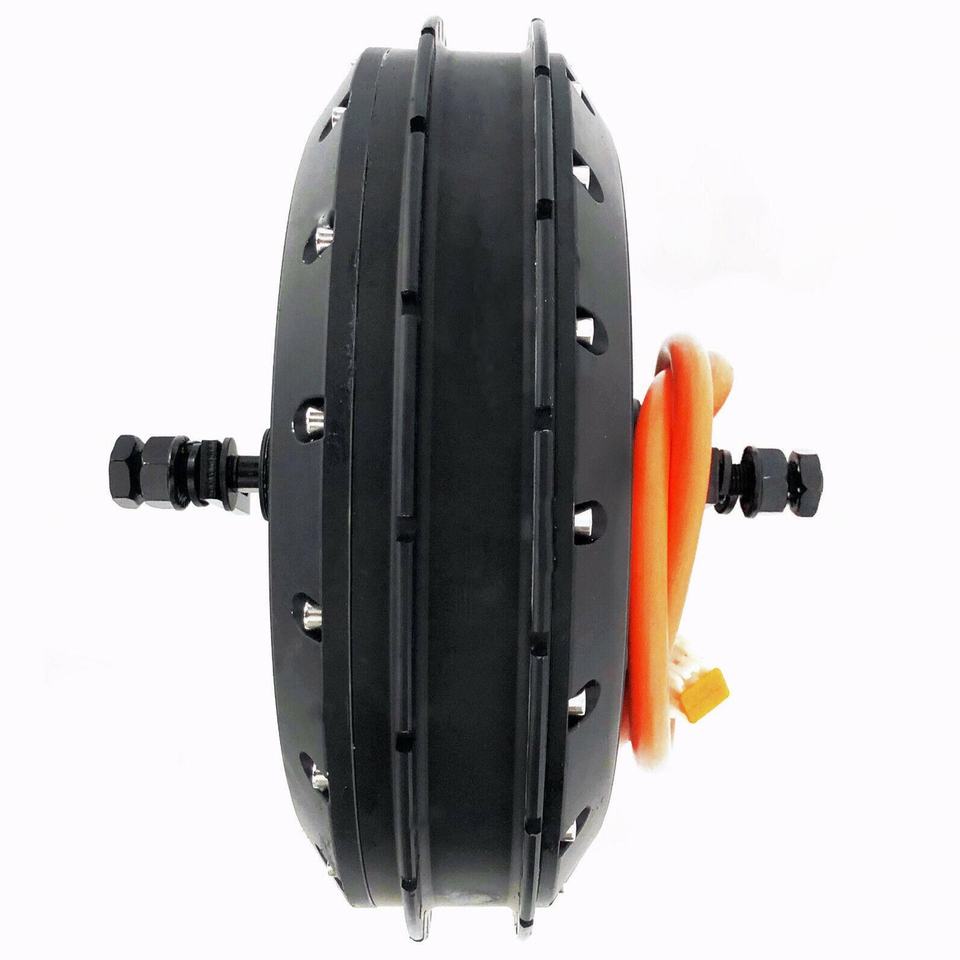

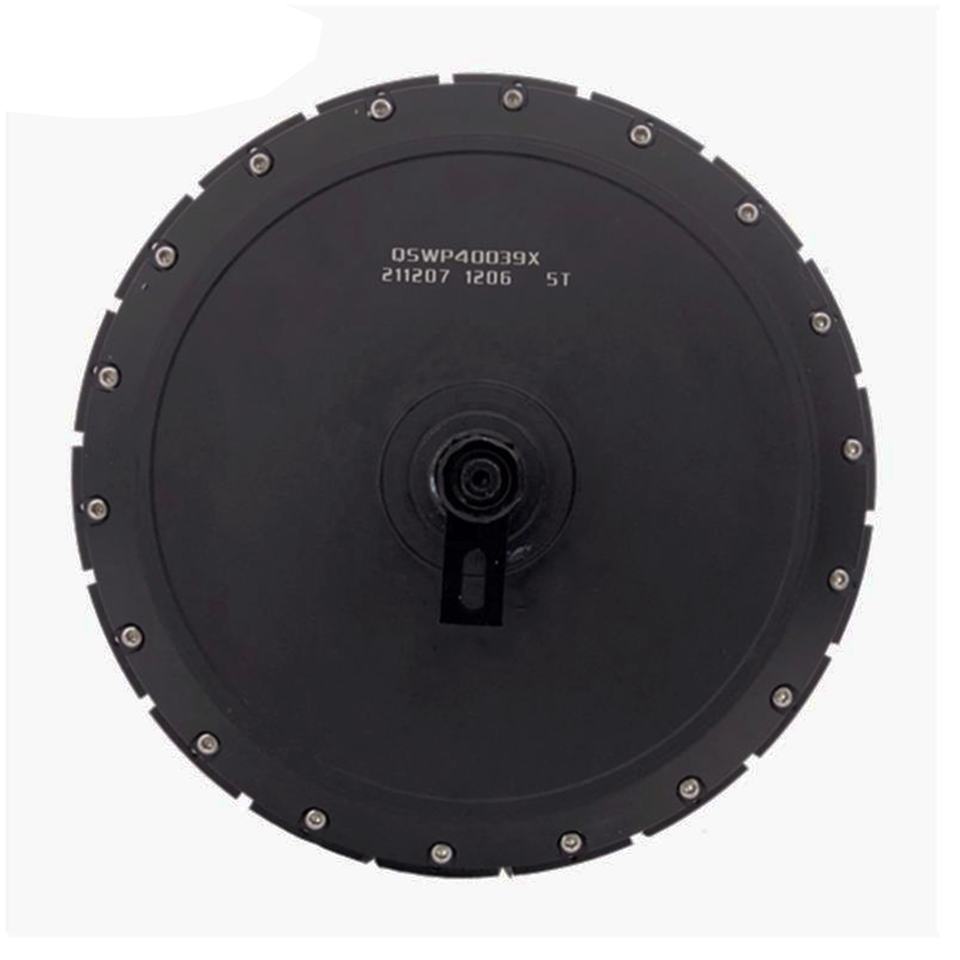

                                    BLDC Motor
Optional Display
           TFT UKC1 Colorful Display
                               SW900 Display
Opotional Battery
     60v 72v 26.1Ah-30Ah Lithium Battery
                          72v 28.5Ah Lithium Battery
             72v 38.4Ah Lithium Battery
                   72v 40Ah Lithium Battery
Exhibition

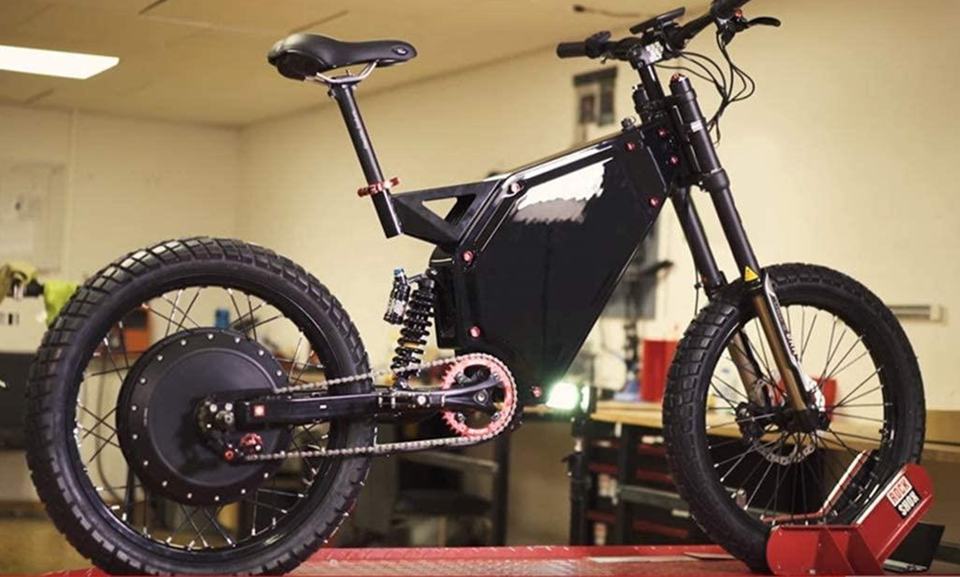

8000w electric motorcycle and bicycle hub wheel laced on
