HighQuality Hydraulic Brakes Electric Scooter Rear Disc Brake Assembly Set for E-motorcycle

There are two colors of this disc brake set, black and red.

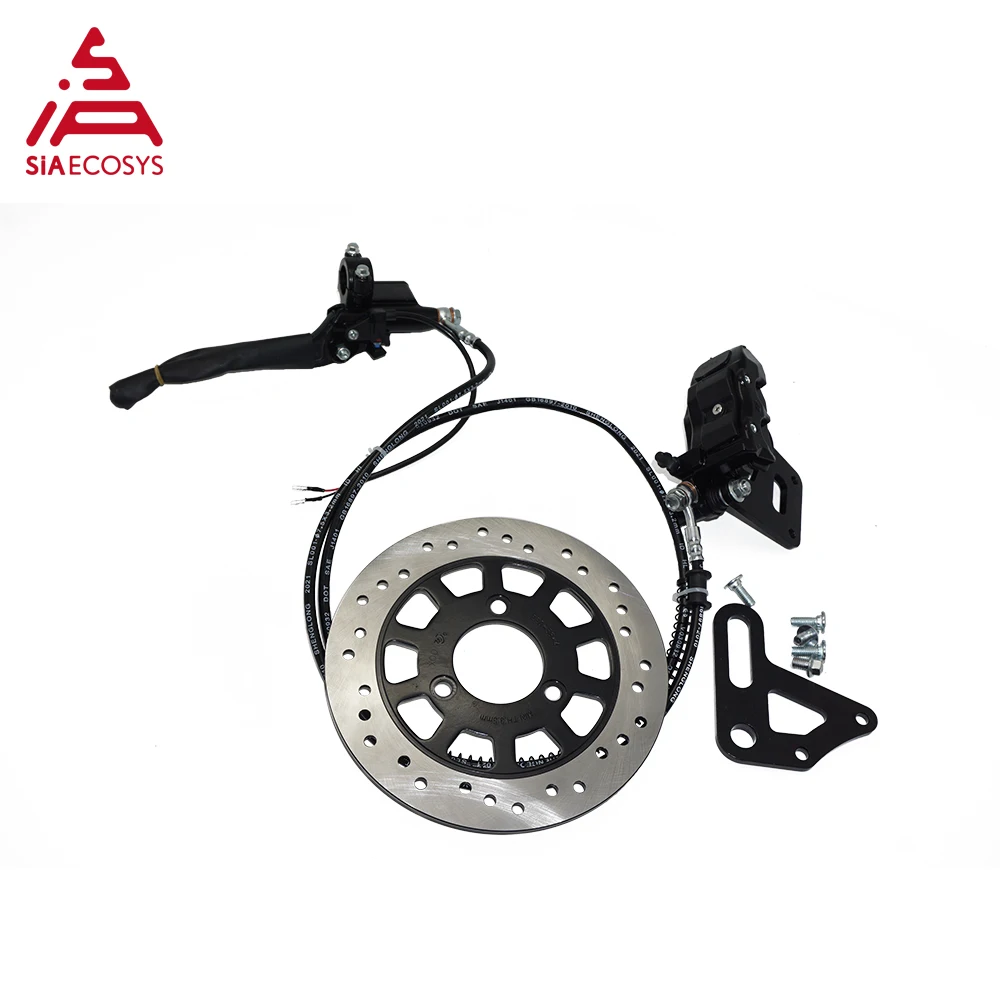

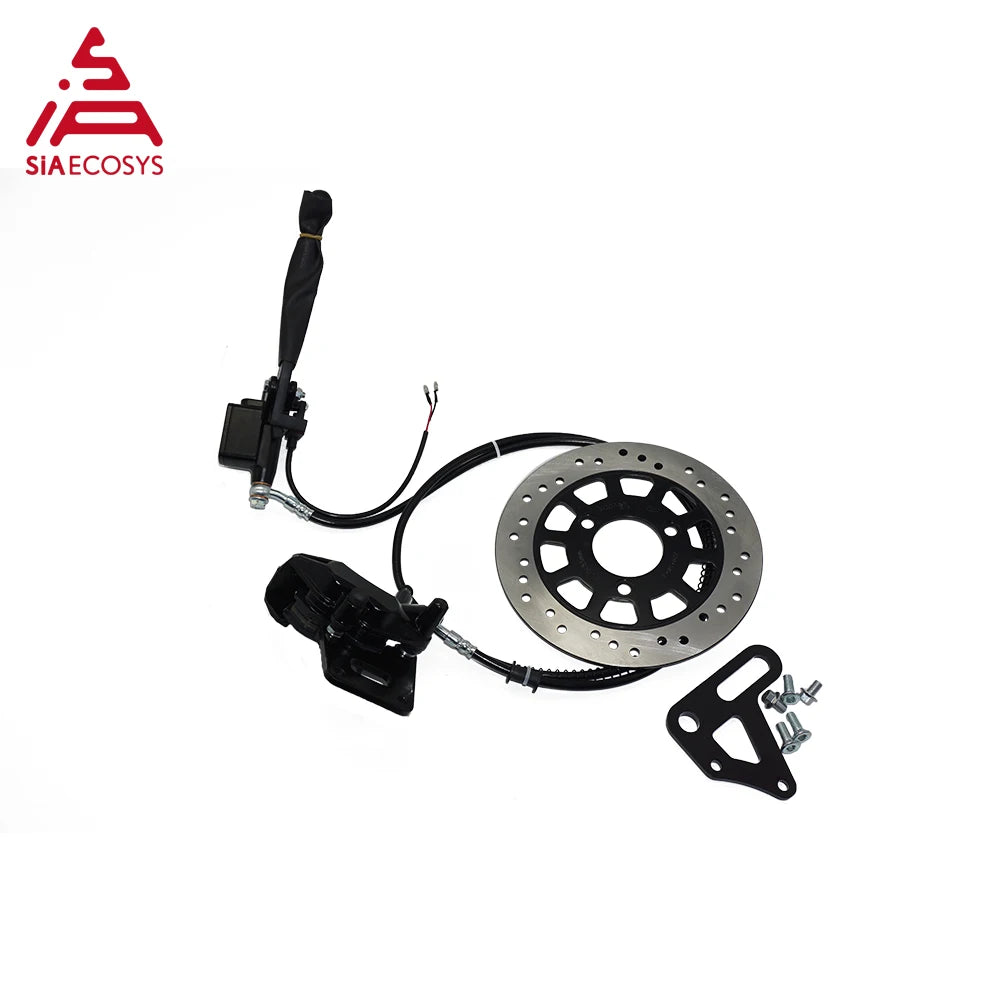

One set including below kits

1. 1pcs X Brake Crank

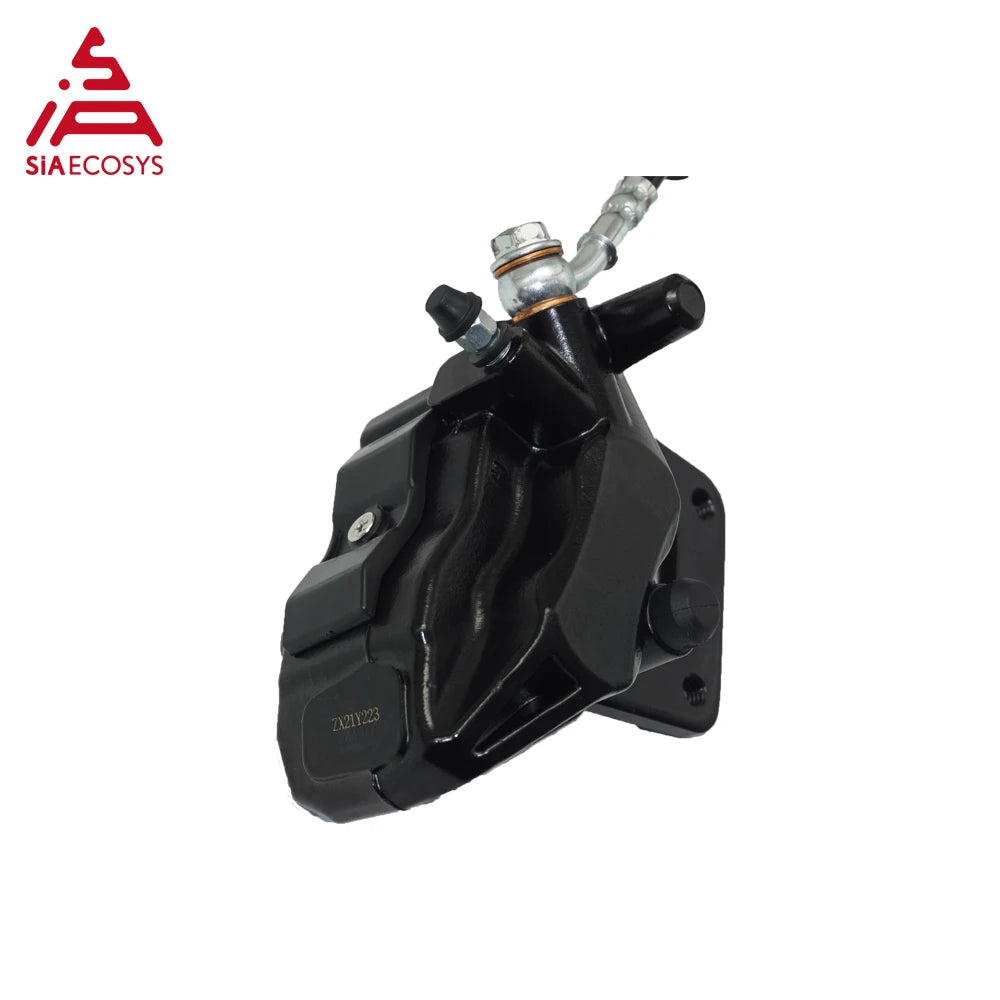

2. 1pcs X Black Caliper

3. 1pcs X 1.95m Oil Tube

4. 1pcs X 220mm Disc Brake Plate

Disc brake Plate for Rear

Diameter: 220mm

CB: 58mm

Thickness: 3.5mm

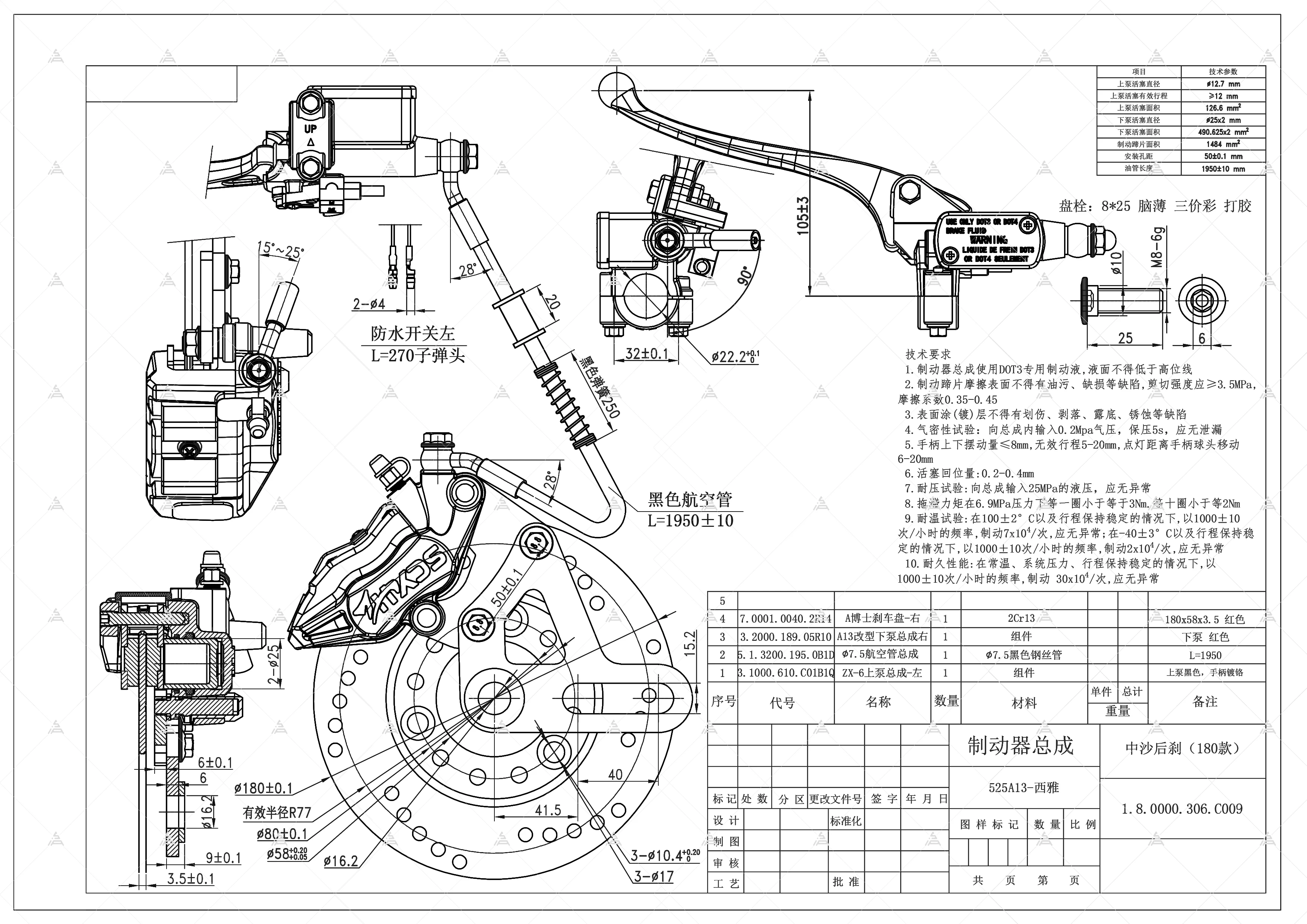

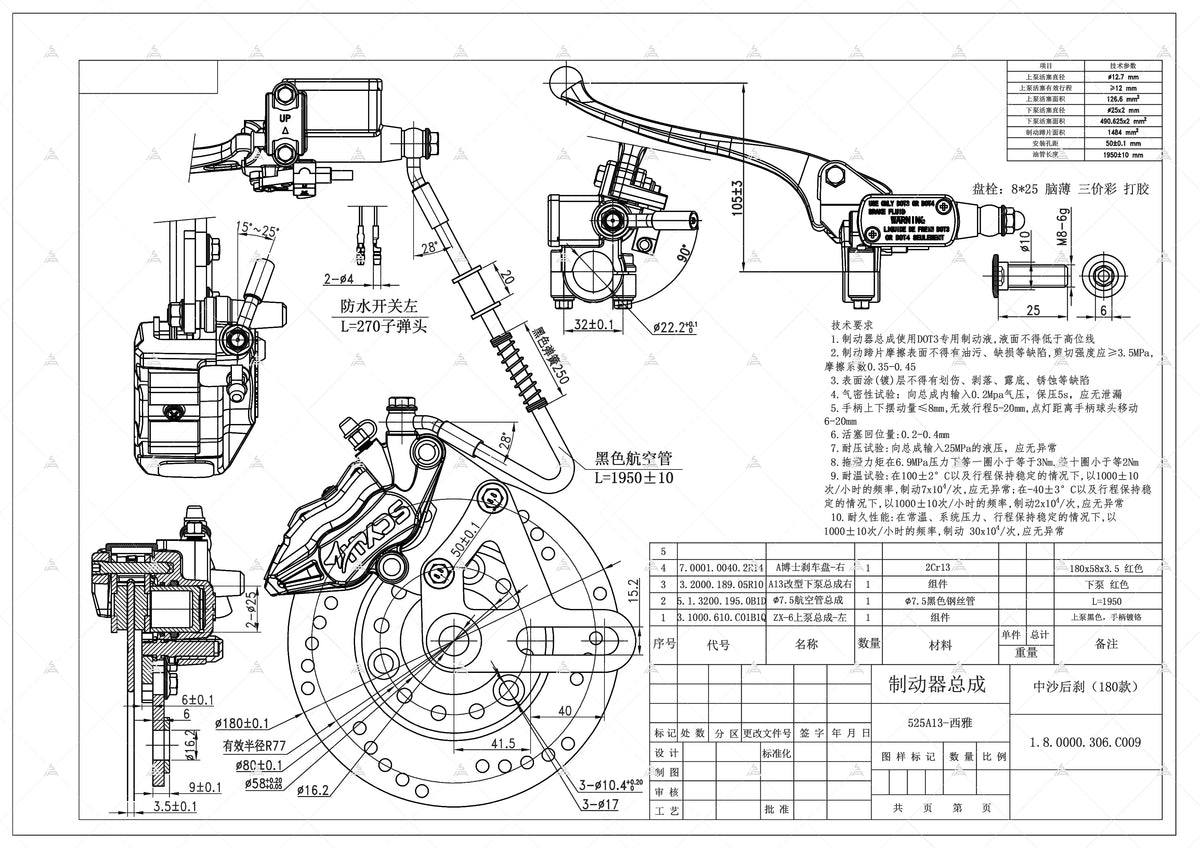

Drawing

This drawing is for 180mm disc brake plate, only for reference.

We're afraid that the disc brake may not fit with your fork, so before purchasing, pls. Kindly chech the above spec carefully.

Or you can leave message in our website, our salesman will contact you soonly. Thank you!
