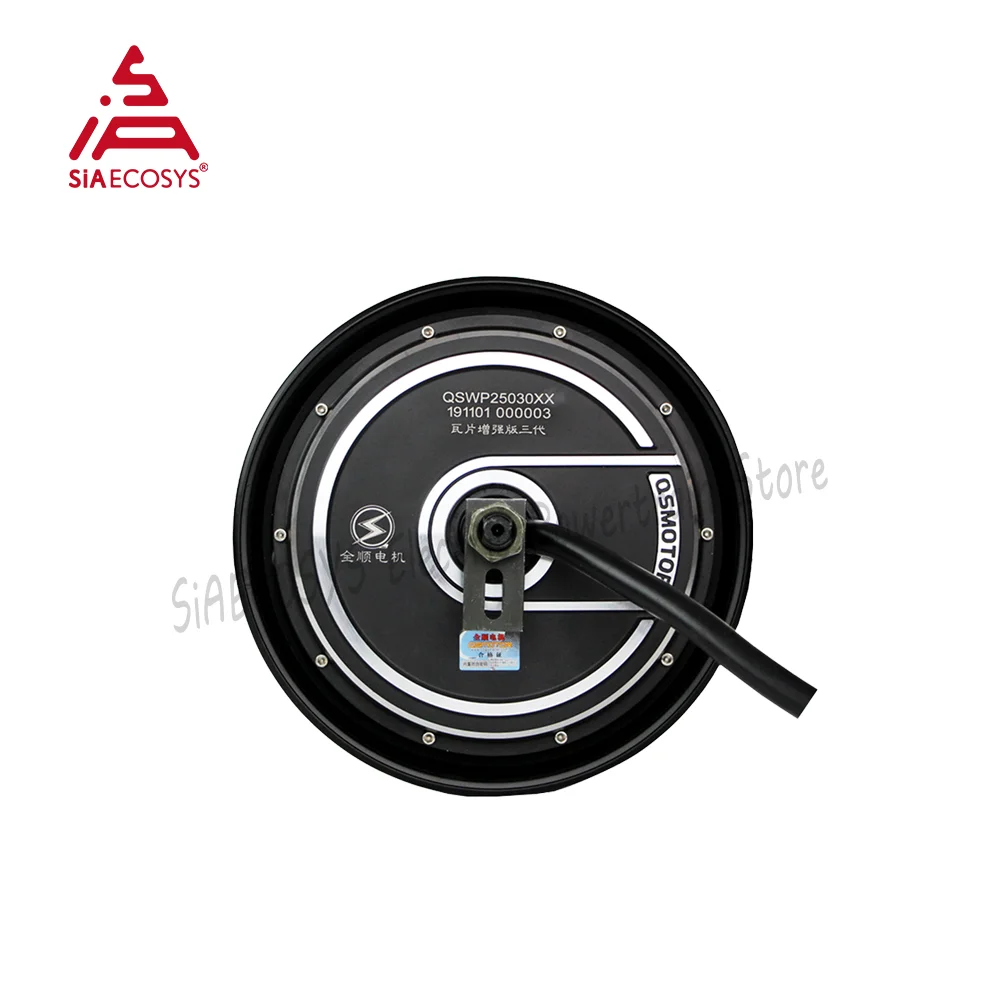

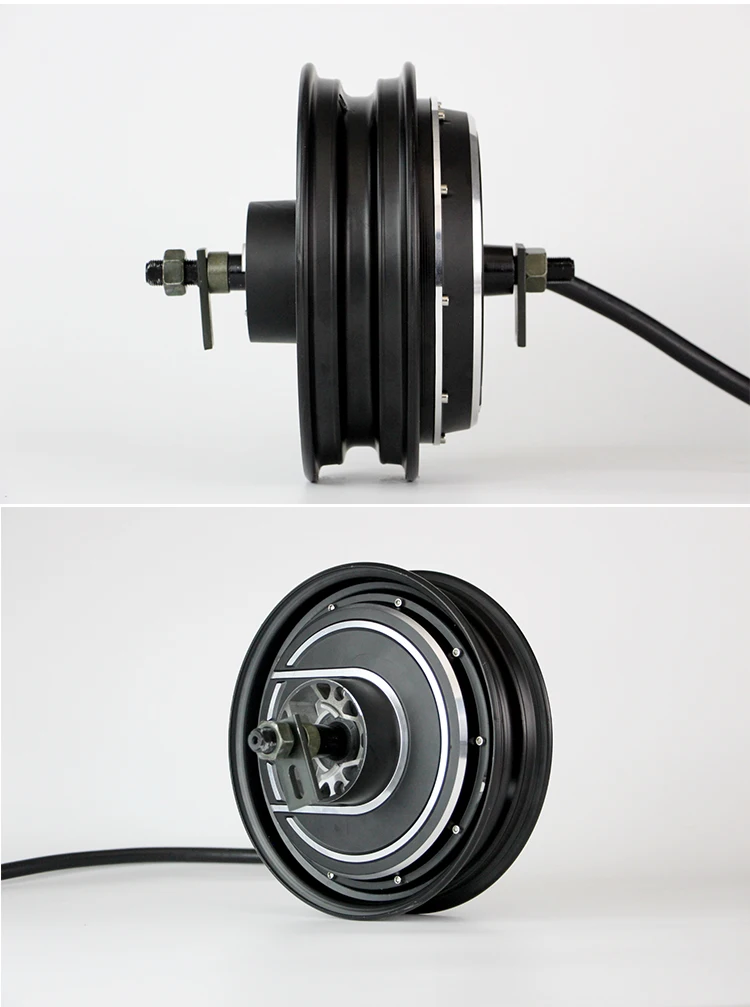

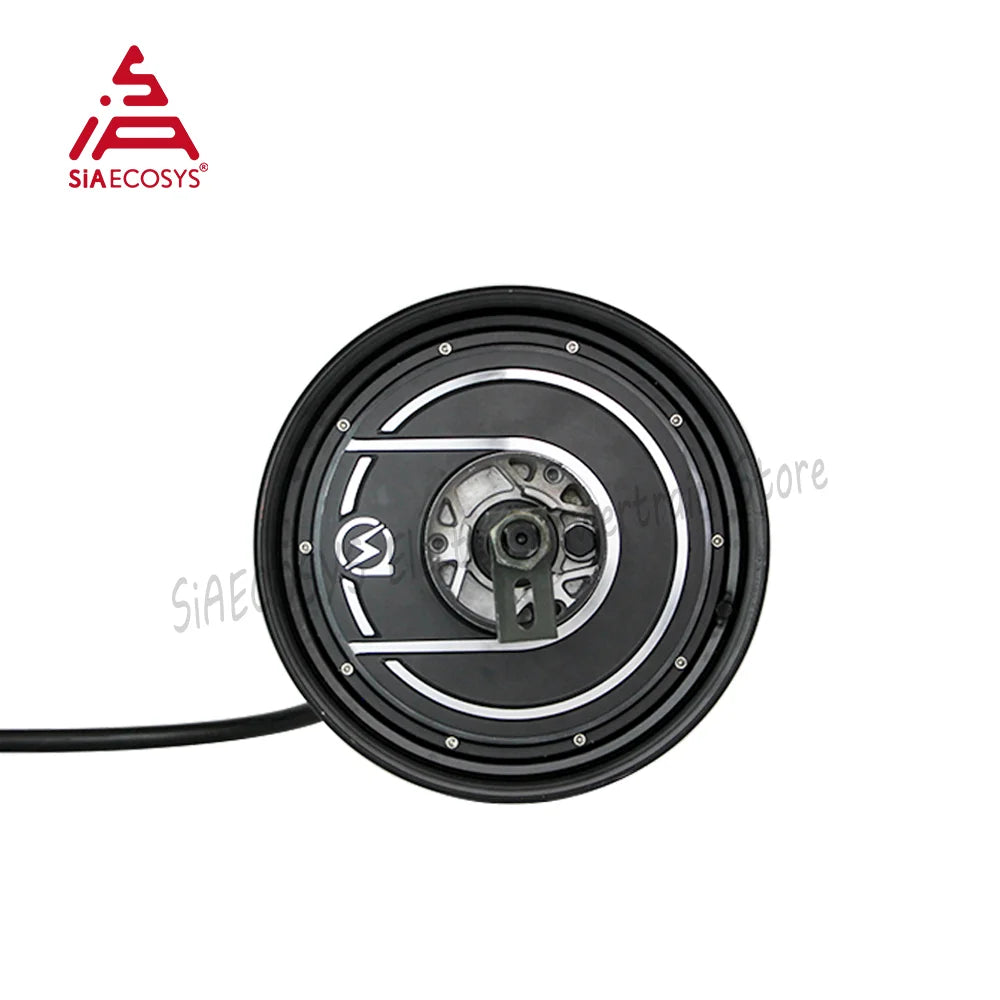

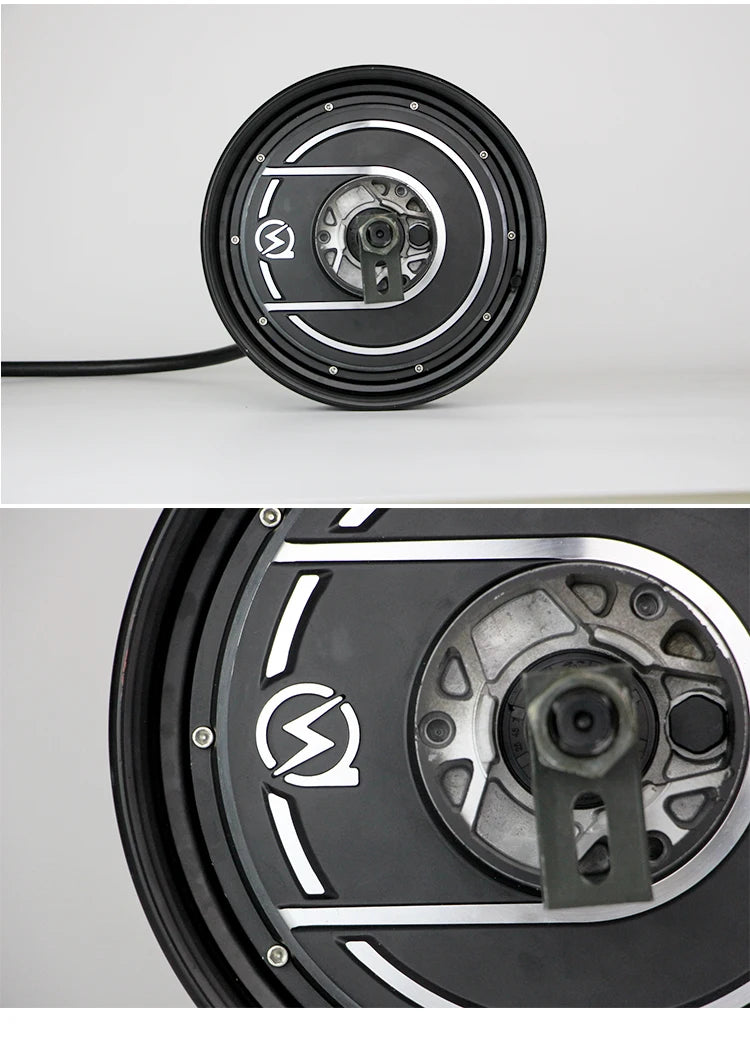

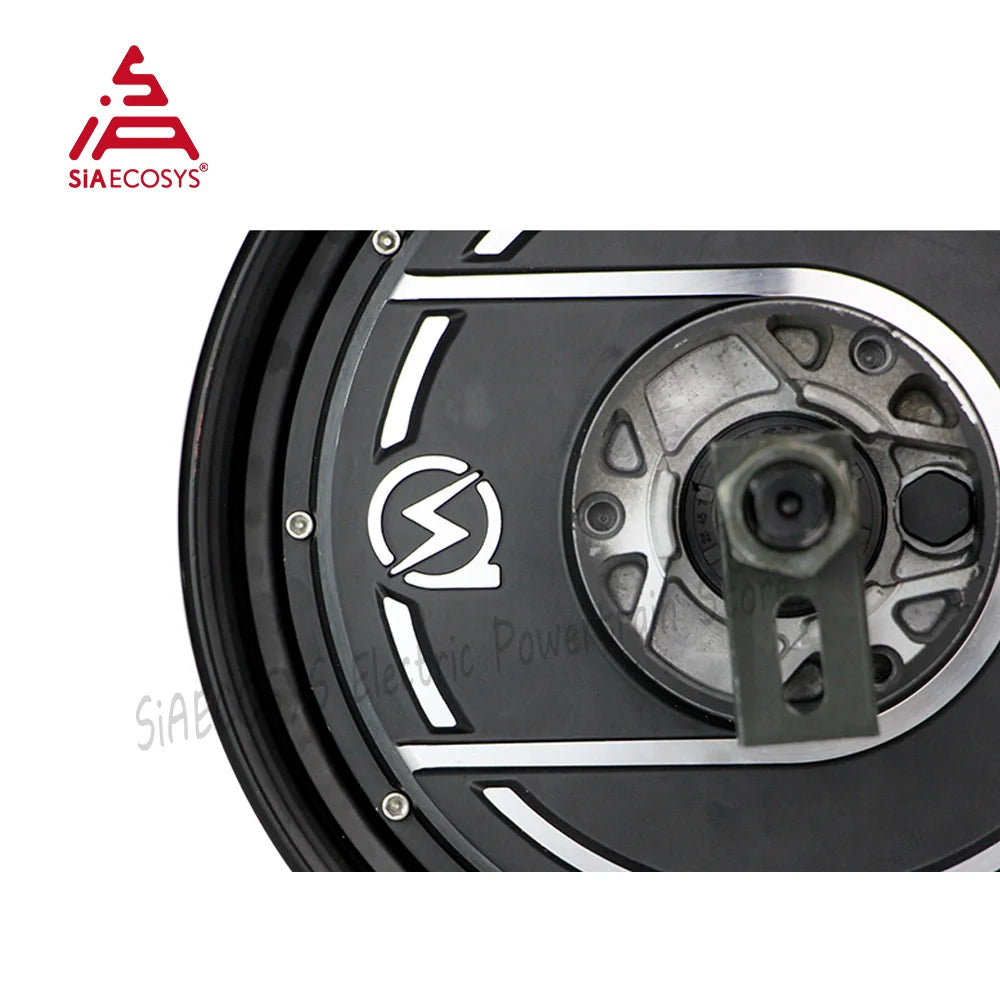

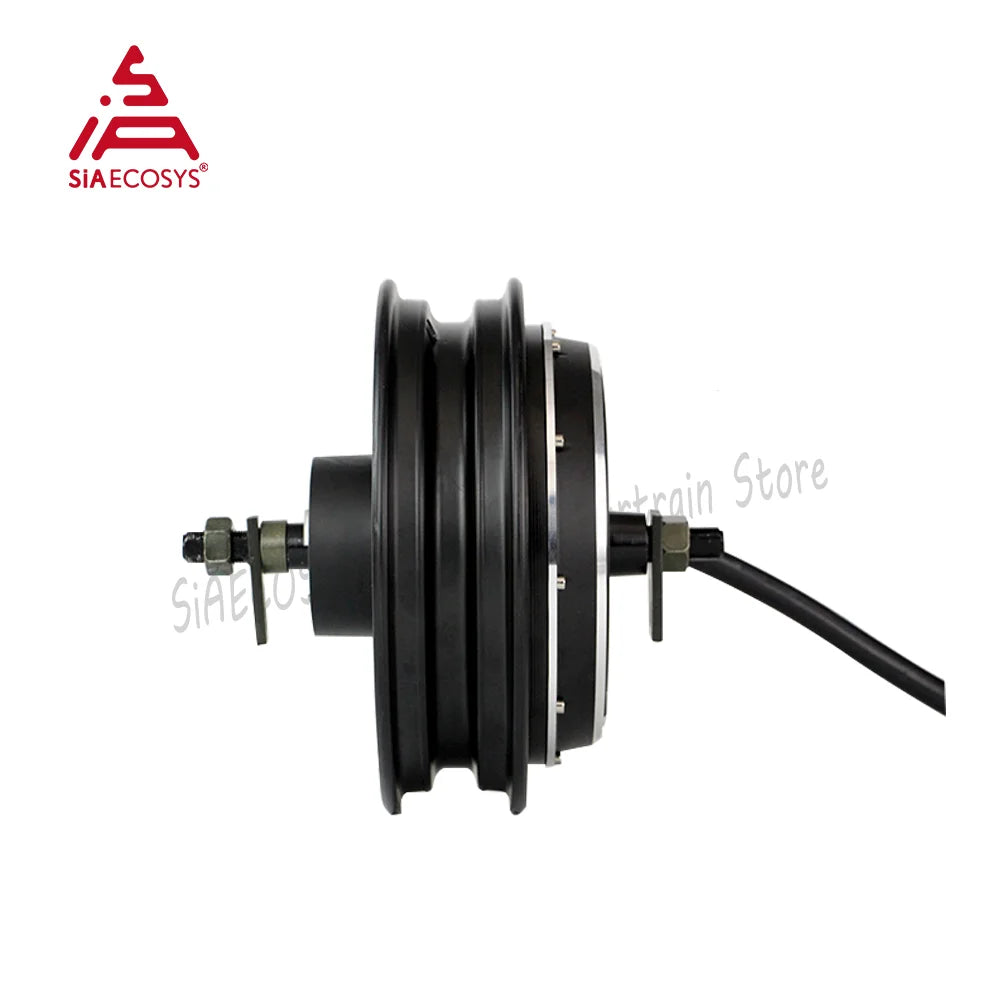

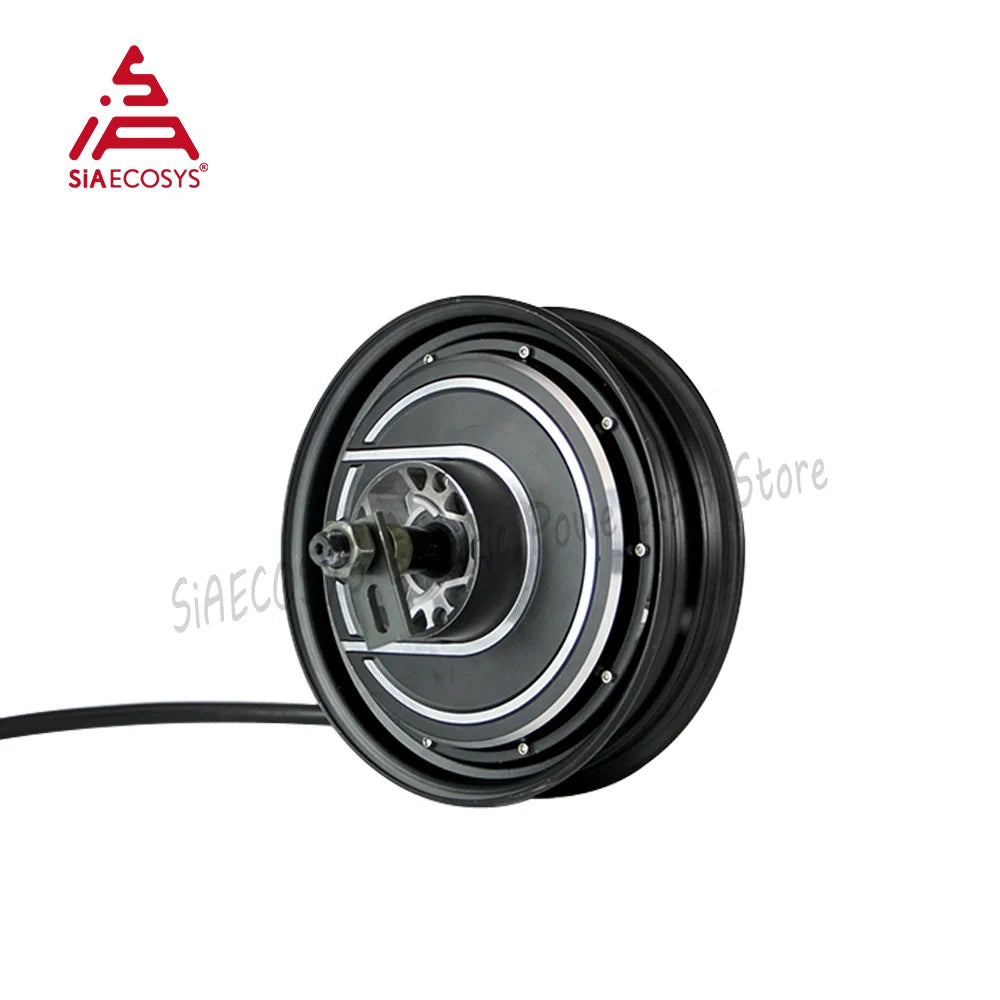

High Power QSMOTOR 10inch 2500w V4.2 72V 106kmh DC Brushless Racing Scooter Electric Hub Motor with CE

$616.00

High Power QSMOTOR 10inch 2500w V4.2 DC Brushless Racing Scooter Electric Hub Motor 72V with CE



For 10inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

We offer narrow tire,10×2.15inch as default.


Ps. for shipping cost, pls check with seller in advance.


NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)


All black cover



Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

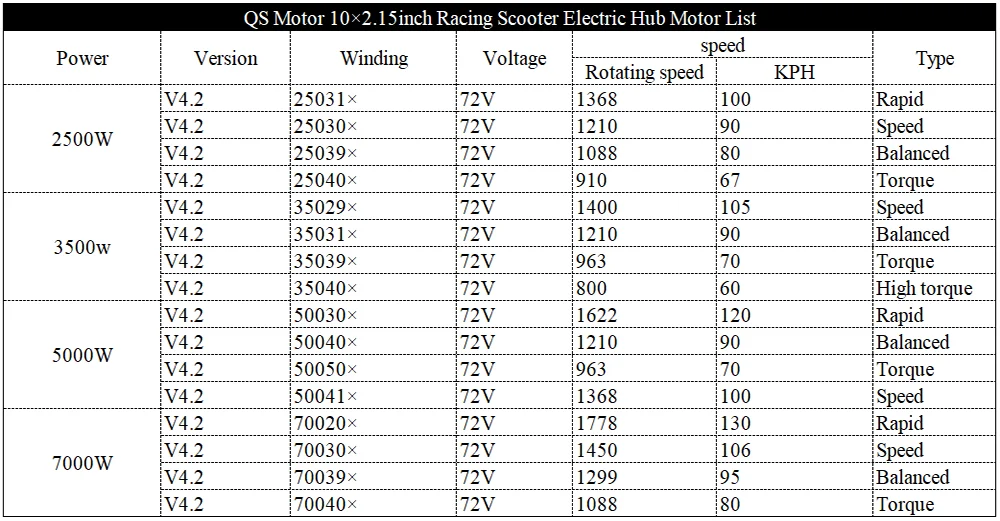

QS MOTOR 10×2.15inch Racing Scooter Electric Hub Motor List List



PS. When place order pls tell which speed you want?




Product description


Generally Spec:

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

  • Brand: QS Motor,QSMOTOR

  • Motor Design: Double axle with 10inch moped rim (integrated)

  • Rim Size:10x2.15inch(Narrow Tire as default), matched tire:3.0-10,3.5-10 etc

  • Magnet Height: 70mm

  • Stator: Aluminum Core

  • Rated Power: 7000W

  • Speed: 80KPH-130KPH, it can be customized, generally we will design as 72V 106KPH.

  • Work voltage range: 48V-96V, will be 72V as default.

  • Max Torque approx 200N.m

  • KV: 15/18/20(as default)/24.7

  • Thermic Probe: KTY83-122 (as default, optional)

  • Max Efficiency approx 88%

  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm

  • Drop-outs: 200mm (≤3000W); 230mm (≥5000W）

  • Dual Halls with waterproof connectos(One for spare, in case of damage)

  • 10mm² Phase Wire

  • Waterproof Grade: IP65

  • Color: Black (As default)

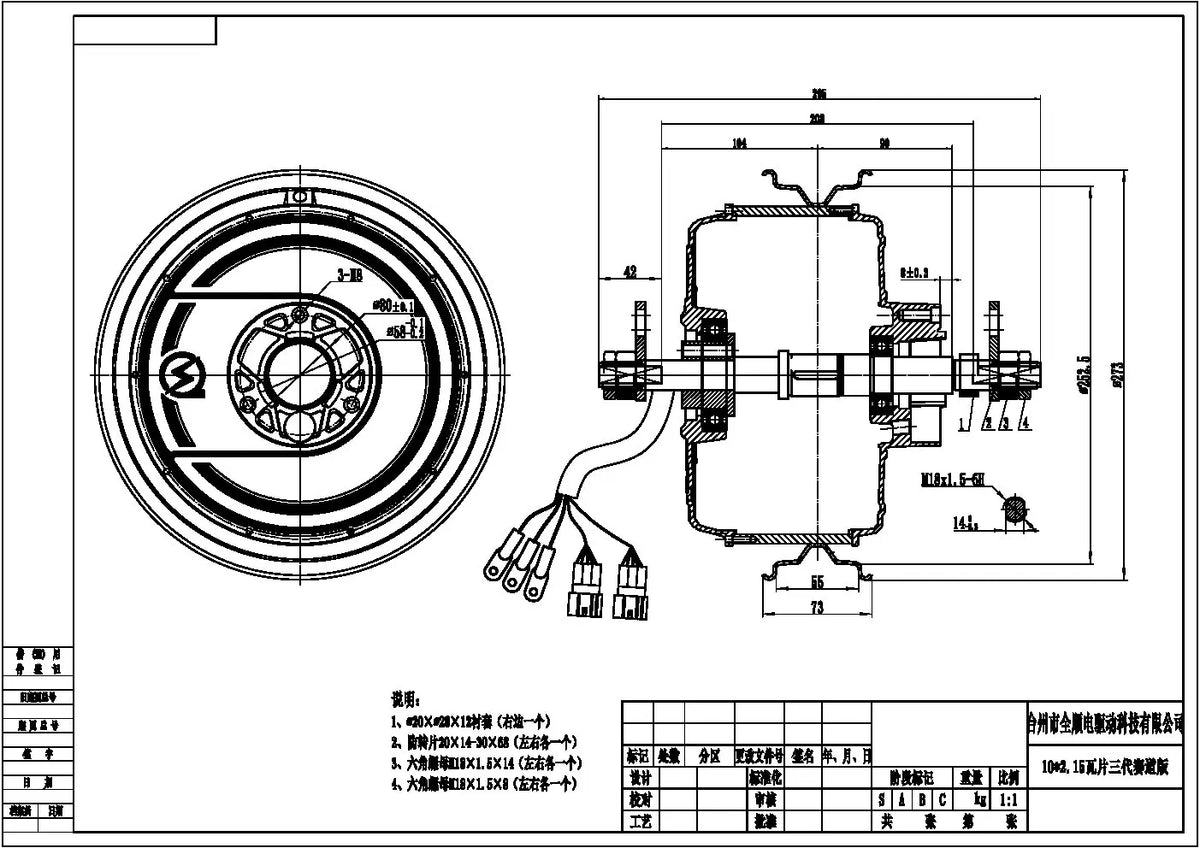

Drawing for 10inch in-wheel hub motor:




Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

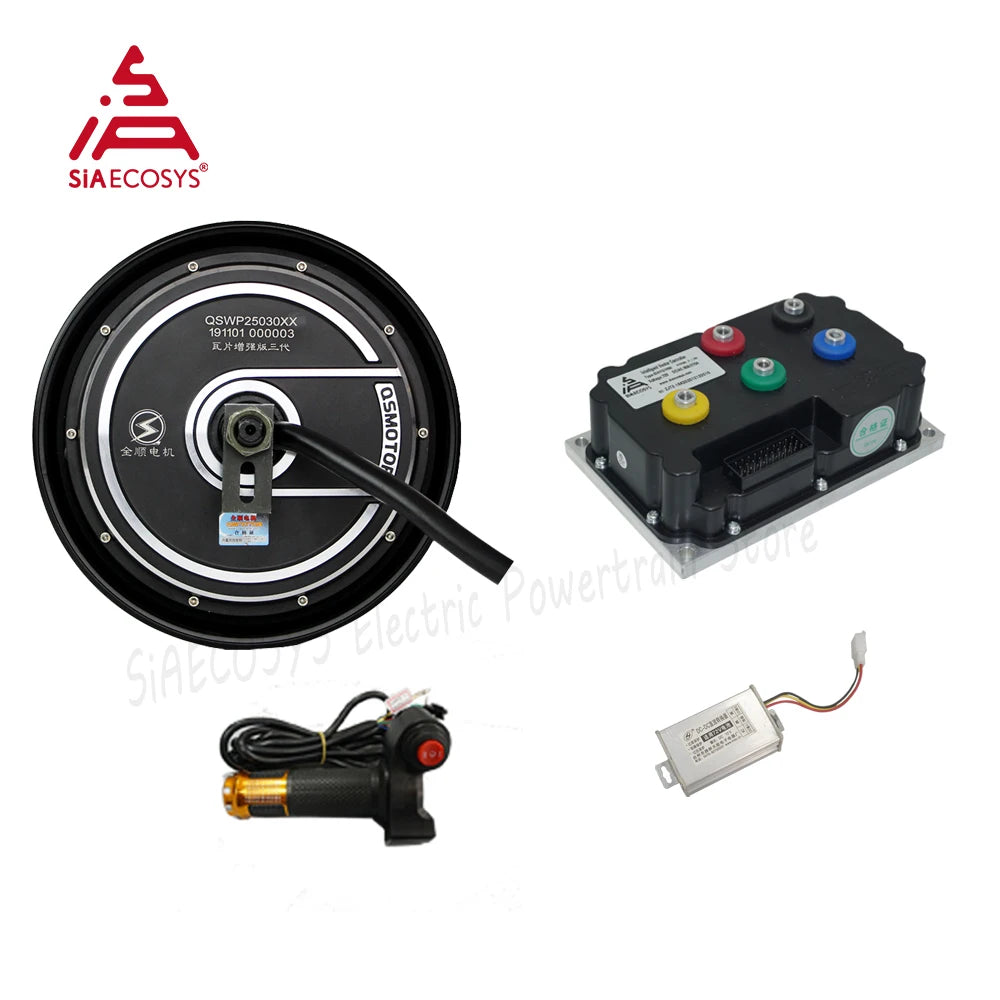

Conversion kits for 10inch in-wheel hub motor


We're able to supply Controller, dc-dc converter, twist throttle...etc.
