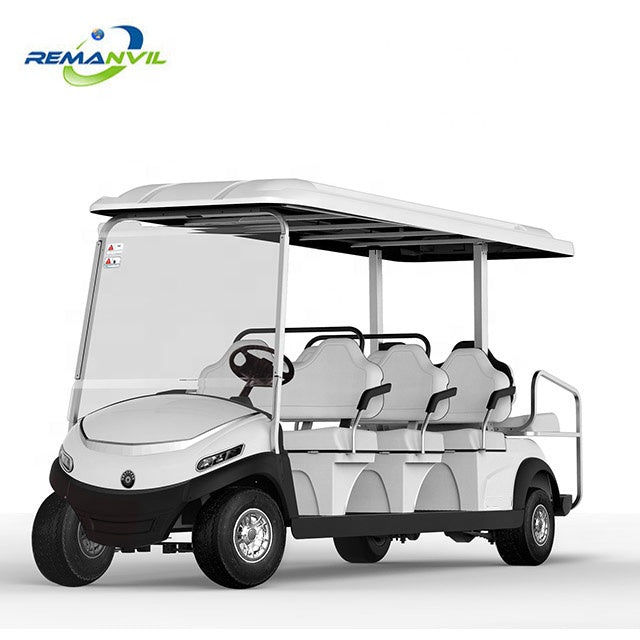

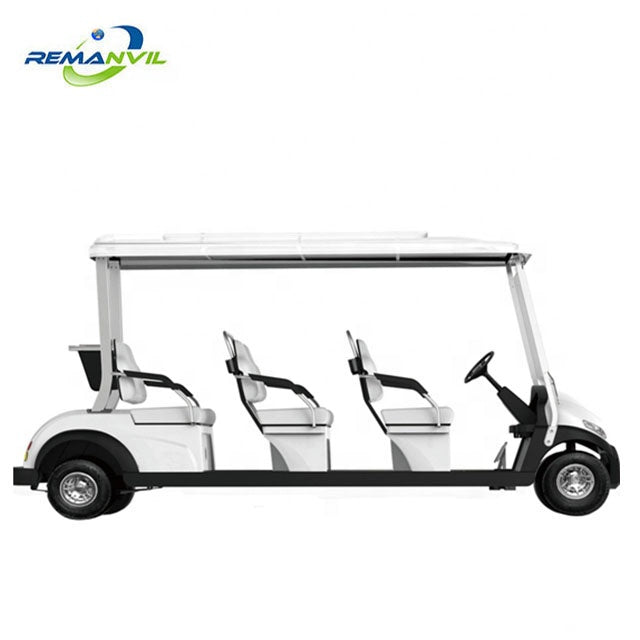

high performance electric sightseeing vehicle/6 seater electric sightseeing car for sale/modern classic electric car
High Performance
|
Product name
|
Electric Sightseeing Car(GVG8mi/48AC)
|
|
Max Speed
|
Forward≤25km/h; Reverse≤9km/h
|
|
Grade Ability
|
15%(≈8.5°)
|
|
Turning Radius
|
≤5.5m |
|
Wheelbase
|
3300mm |
|
Min. Ground Clearance
|
114mm
|
|
Weight
|
675kg(Battery Included)
|
|
Driving Range
|
60-70km(Flat terrain, no load)
|
|
Braking Distance
|
4m
|
|
Dimension
|
4150×1350×1950mm
|
|
Track
|
Front:880mm; Rear:1000mm
|
|
Payload
|
660kg(6persons)
|
|
Charge Time
|
8-10hrs(discharge rate 80%)
|
|
Motor
|
KDS(ADC)XP-2067,DC separate excitation,48V/4kw,S2-15min
|
|
Battery
|
Trojan 6×8V/225AH
|
|
Controller
|
Toyota 48M350, 48V/350A
|
|
Accelerator
|
Hall
|
|
Cable
|
Waterproofing grade IP67
|
|
Charger
|
TCCH-48-25,48V/25A,auto-power-off,overcurrent protection
|
|
Frame
|
High strength alloy chassis,welded trusswork,great antiseptic property,light,firm
|
|
Suspension
|
Front:McPherson independent suspension;Rear:Single leaf spring and hydraulic shock absorbers
|
|
Rear Axle
|
Banjo axle,reduction ratio 16:1,Italian technology,casting aluminium alloy gear box housing
|
|
Steering Gear
|
Bi-directional steering box and steel casted steering knuckle,easily and flexiably turn;High strength steel made cavel,bearing
steering,long life |
|
Brake
|
Integrated parking and braking system, mechanical drum brake and electromagnetic field excitation brake
|
|
Tire
|
Carlisle18×8.5-8(4 ply), vacuum tire,pressure≤22PSI
|
|
Canopy
|
Injection,form in one piece,rain guide function
|
|
Body
|
Modified PP injection cover,automobile grade color registers coating,UV proof ingredients
|
|
Seat Material
|
PU,waterproof rubber strip and high resilient soft polyurethane foam;Waterproof,anti-slip,high temperature resistant and split
resist |
|
Seat Direction
|
Forward,1 row,2 seats
|
|
Frame
|
High strength aluminum alloy chasis
|
|
Others
|
Bunker rake position block,basket,rear view mirror,scoreboard kit,no-board battery watering system
|
|
Color Options
|
White /Red /Green
|
|
Light
|
Headlight ,Taillight , Brake light
|
|
Optional Accessories II
|
Cooler box kit /Integrated instrument panel kit(speed indicator,mileage table) /Sand bottle /Ashtray /Bunker rake /Hubcap /Ball
cleaner /Rain curtain /Mobile phone anti-skid pad |
Detailed Images
Golf Car Production Line
Electric Sightseeing Car
Electric golf car/sightseeing cars
Our electric vehicle with good handling, comfort, leather durability and other characteristics to win the favor of users
Packing & Delivery
We provide standard, strong,protective package for our products to prevent it from outer damage, involve the whole car, battery charger, waterproof cushion,tool box, driver's manual and certificate. Our electric car will be shipped by sea or train.
The high performance electric sightseeing vehicle/6 seater electric sightseeing car for sale/modern classic electric car is the product you didn't think you need, but once you have it, something you won't want to live without.
