High Efficiency dual 8000W 273 50H V3 electric car hub motor conversion kits
1.Key feature:
1. Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2. It could be installed in wheels, and easy to be hybrid car.
3. 2wd, it could be 96V 120KPH, 2*350N.m peak torque.
4wd, it could be 96V 130KPH, 4*350N.m peak torque.
4. Easily to make 4-wheel drive, which could spot turn.
5. Support regenerative braking
6. High efficiency: 85~92%
2.Notes:
1. Battery and charger are not included in package.
2. The battery voltage depends on your application. (72-144V)

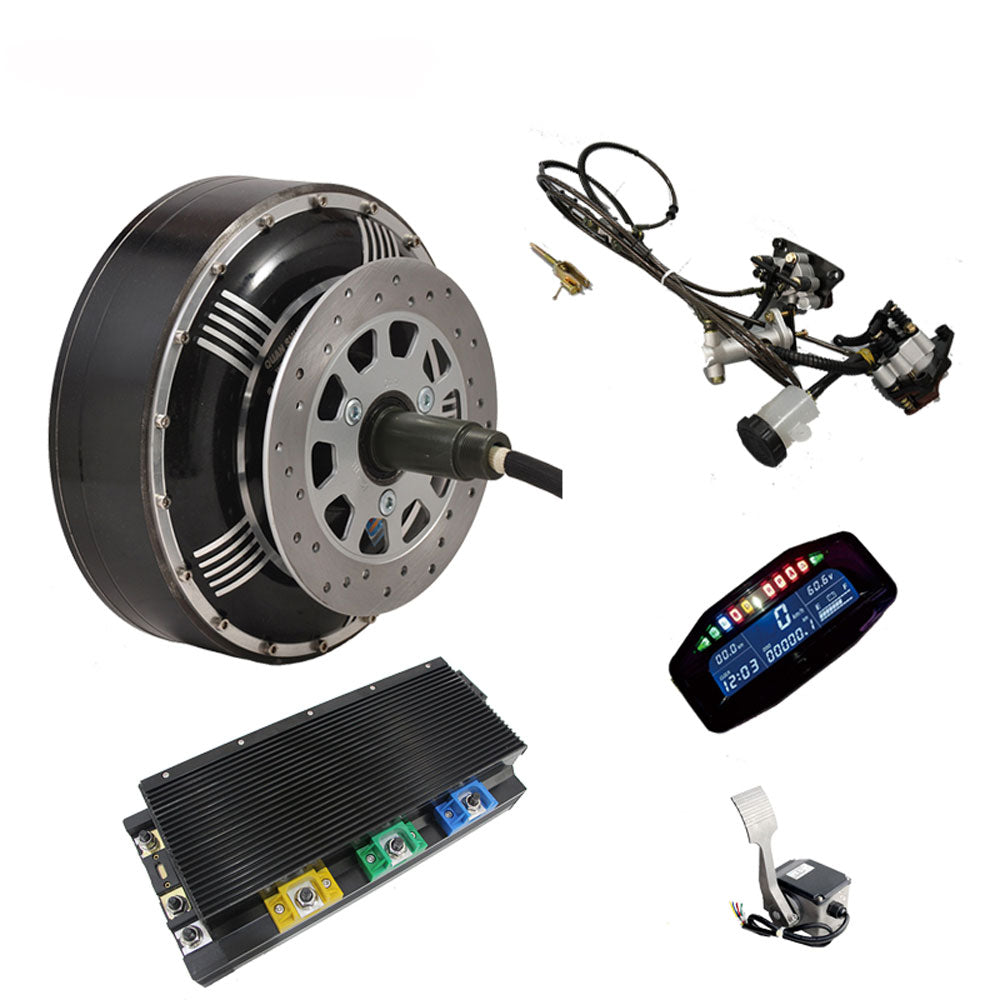

3.Package Includes:
2x 273 8000W 273 50H V3 E-Car Hub Motor
2x APT96601 Controller
1x Throttle Pedal
1x X8-E Speedometer
1x 1 tow 2 Hydraulic Disc brake system (with disc brake plate)

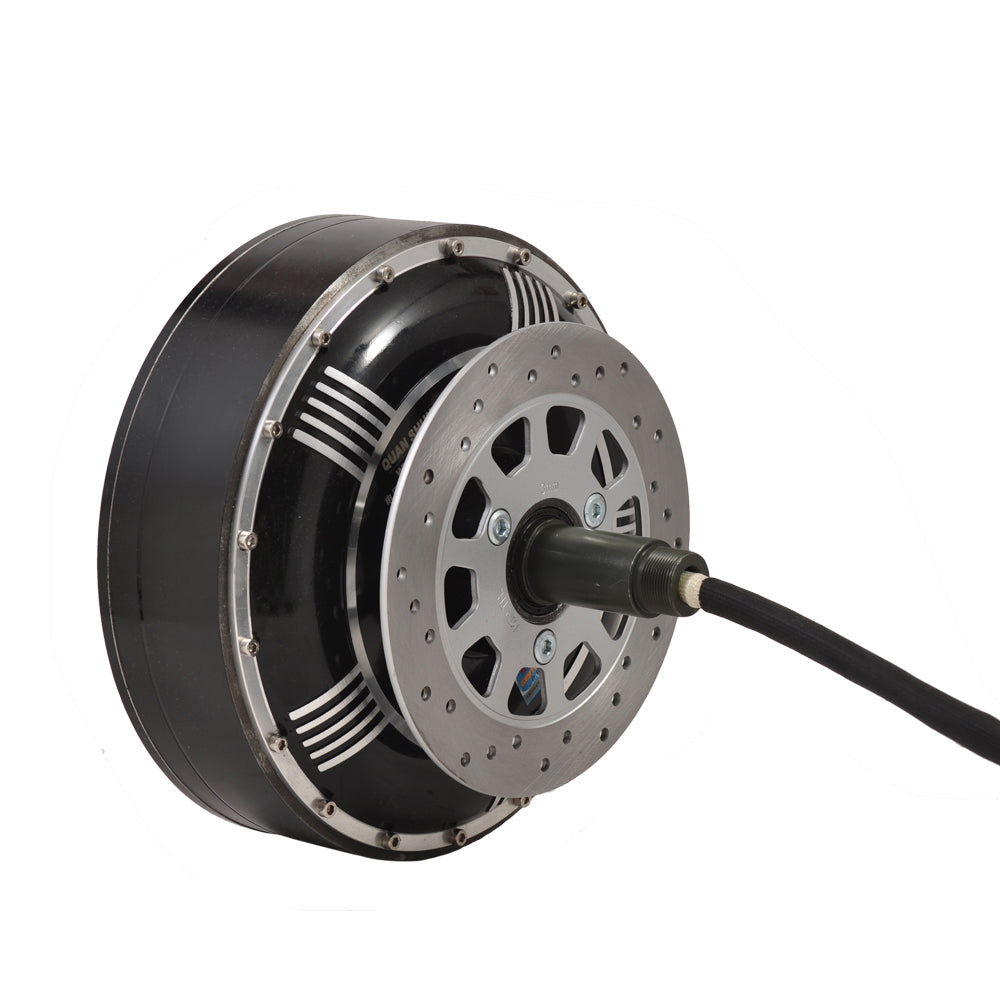

1. QS Motor Specification
- Motor Design: Singleh axle without rim
- Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
- Magnet Height: 50mm, 16 pole pairs
- Stator: Aluminmum Core
- Rated Power: 8000W (20kW peak in few seconds)
- Rated Voltage: 96V as default (48V-144V, optional)
- Speed: 120KPH as default (24-120KPH, optional)
- kV: 6.0/9.0/13.0 (as default)/14.9/18.0/19.4 etc.
- Max Torque: approx 350N.m
- Max Efficiency: 86-91%
- Continuous Battery Current: 104A (96V)
- Peak Battery Current: 210A (96V)
- Suggest Peak Phase Current: 530-660A
- Thermic Probe: KTY83/122 (as default, optional)
- Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
- Dual Hall Set with waterproof connectors
- 16mm⊃2; Cross Section of Phase Wire (not include insulation layer)
- Hall Sensor Phasing angle: 120 degree
- Waterproof Grade: IP54
- Color: Black
- N.W./G.W.: 23.0kg/24.7kg Package Dimension: 43cm*43cm*34cm/piece
PS. Normal Disc brakes is PCD3*80mm, PCD 58mm. It might get loose during driving, so we open new mold to be PCD4*114.3mm, M12.
Drawing

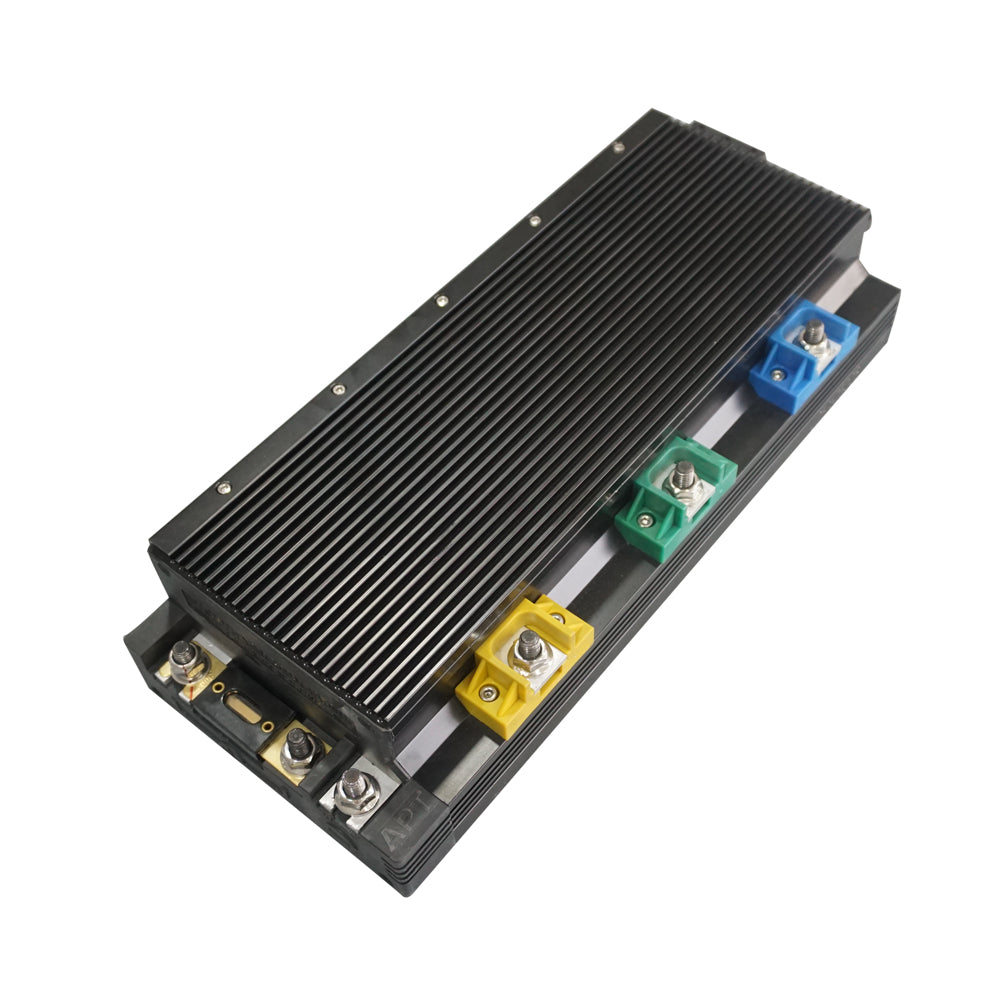

2. KLS96601-8080H, 24V-96V, 600A, Sinusoidal BLDC Motor Controller
- General Spec .:
- Programable, support regenerative braking
- Include function Cable, RS232 daptor, USB to RS232 connector
- Configurable battery voltage range, B+. Max operating range: 18V to 90V.
- Motor Current Limit, 10 seconds boost: 600A.
- Motor Current Limit, continuous: 240A

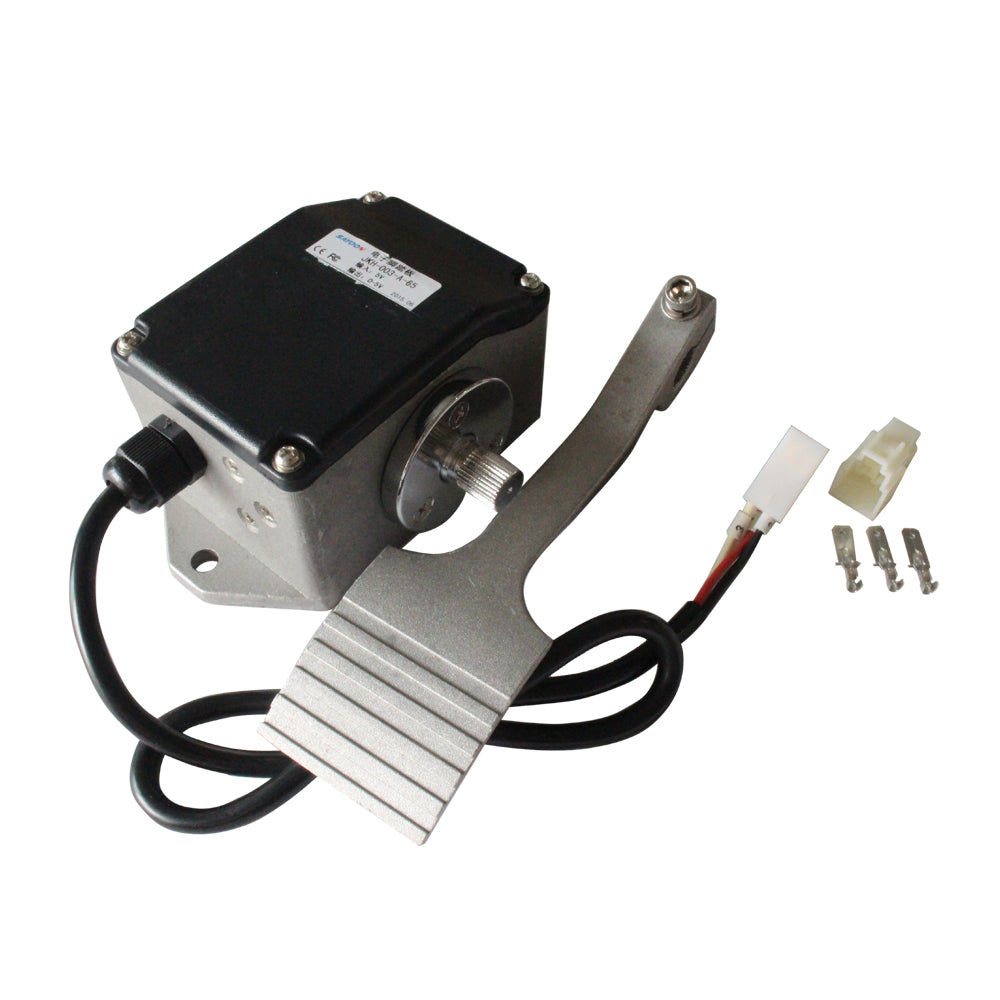

3. 0-5V Electric Car Throttle Pedal
- Throttle Pedal Hall type : JKH model (match with our motor & controller)
- Input voltage: 5V 12V 15V 24V 36V 48V 60V 72V 84V 96V 120V
- Output voltage: 0-5V5-0V1-4.2V4.2-1V0-10V10-0V
- Deafult: 5v input voltage (depends on controller design, for our matched controllers, youcan choose 5v input voltage), 0-5v output voltage.

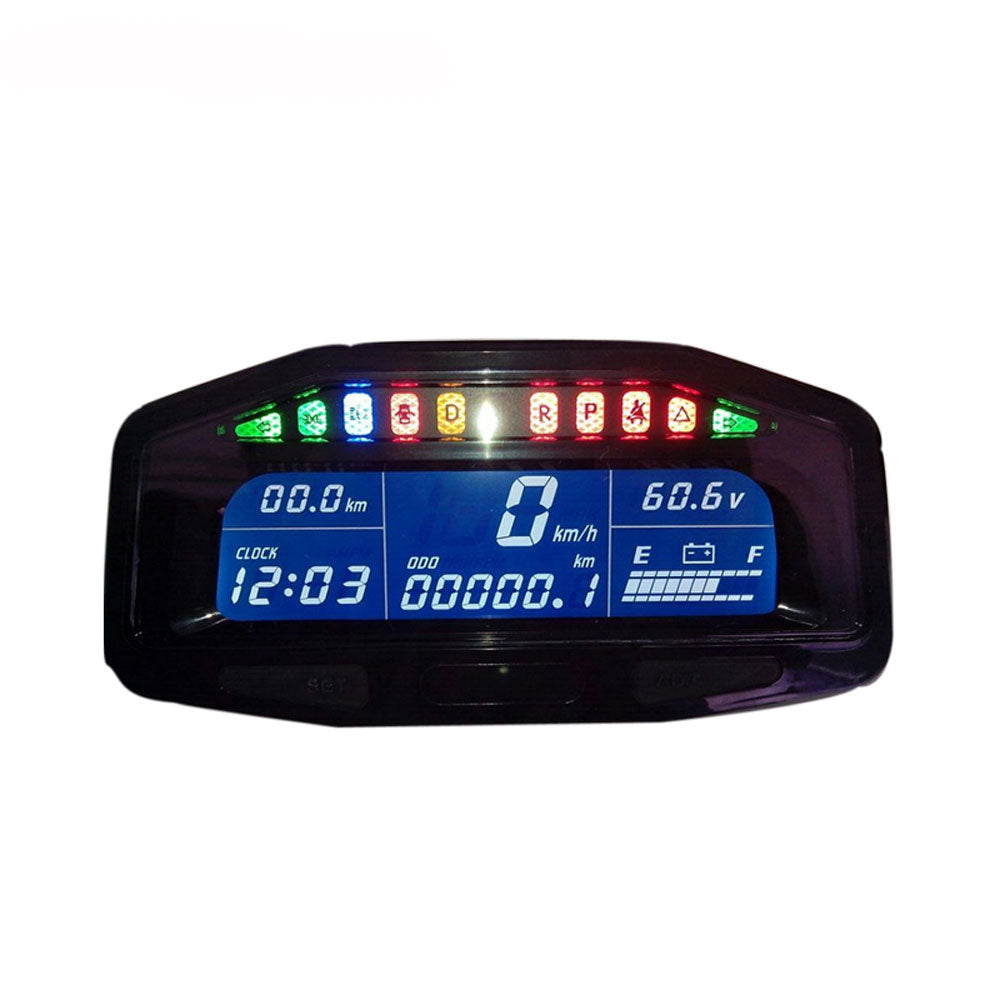

4. 48-100V Programmable Electric Car Speedometer
- Rated Voltage:48V-144V ProgrammableShow Time, driving distance, speed, voltage, electric quantityTest Speed Type: Hall Sensor

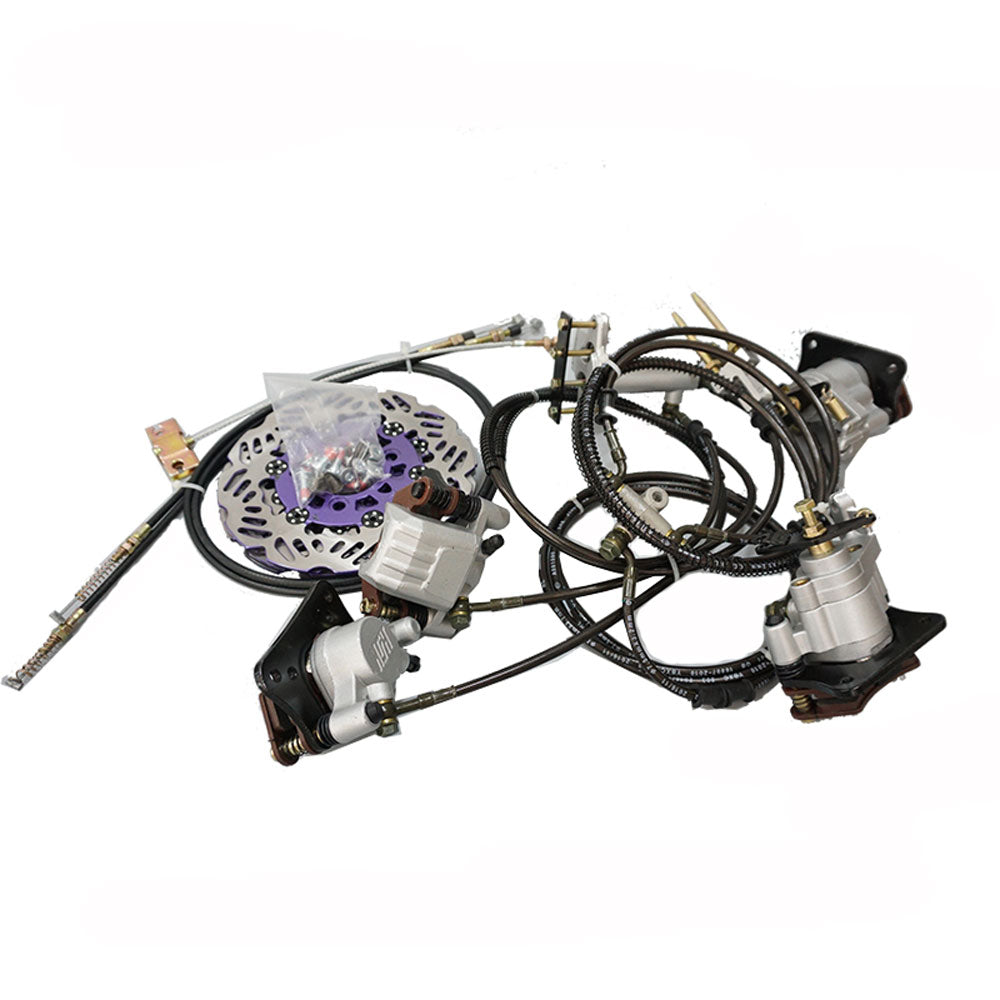

5. 1 tow 2 04 type Hydraulic Disc brake system (with disc brake plate)
- 04 dayang left & right 38mm piston caliper with mechanical parking brake (pull type)
- hydraulic service brake by foot
- pitch of mounting 80 & 103mm
- hoses 220cm + 2 x 80cm
- T-shape hose connector
- mechanical parking brake cable 95cm + 2 x 115cm (optional)
- 220mm disc brake plate and screws (PCD 3*80mm, CB58mm, thicknees 4mm)
- Suitable for QS Motor 273 Single Shaft Hub Motors
How to Recommend you suitable motors?
Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?
1. E-bike, E-scooter, E-tricycle or E-car?
2. Weight of vehicle with battery, loading weight (weight with load only)?
3. Tire model/diameter?
4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?
5. Battery nominal voltage, peak voltage, capacity and vehicle range?
6. What's the drop-outs/rear fork width of your frame?
Within your details information, we could make assessment and calculation accordingly for your project
