High cost performance qs 3.0kW V4 12*5.0inch in-wheel hub motor single shaft design for E-scooter

$868.00


High cost performance qs 3.0kW V4 12*5.0inch in-wheel hub motor single shaft design for E-scooter


NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

For 12inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

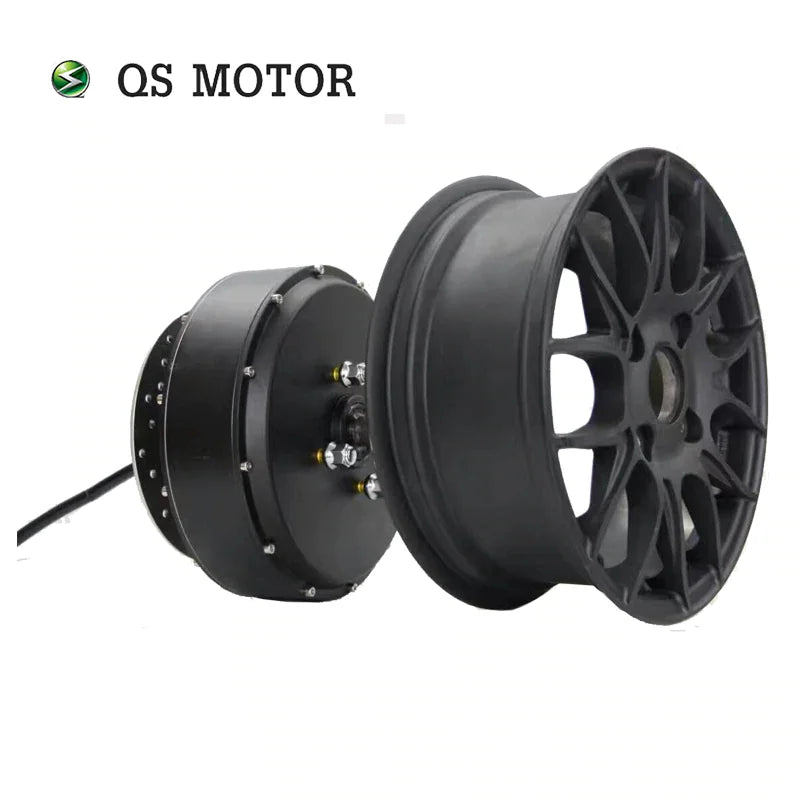

It's detachable design, can be double/single shaft.



Key Features


1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%





PS.1). Above quotation base on 12*5.0inch 260 electric scooter wheel hub motor, 48V~96V.

2). Above configuration is suggested for mass production,

for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).

Since 2019, all 260 V3 has updated to V4 version, it has better performance than previous V3, with higher speed and stronger torque.



Product description


1. Genearlly Spec:

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor

  • Brand: QS Motor, QSMOTOR

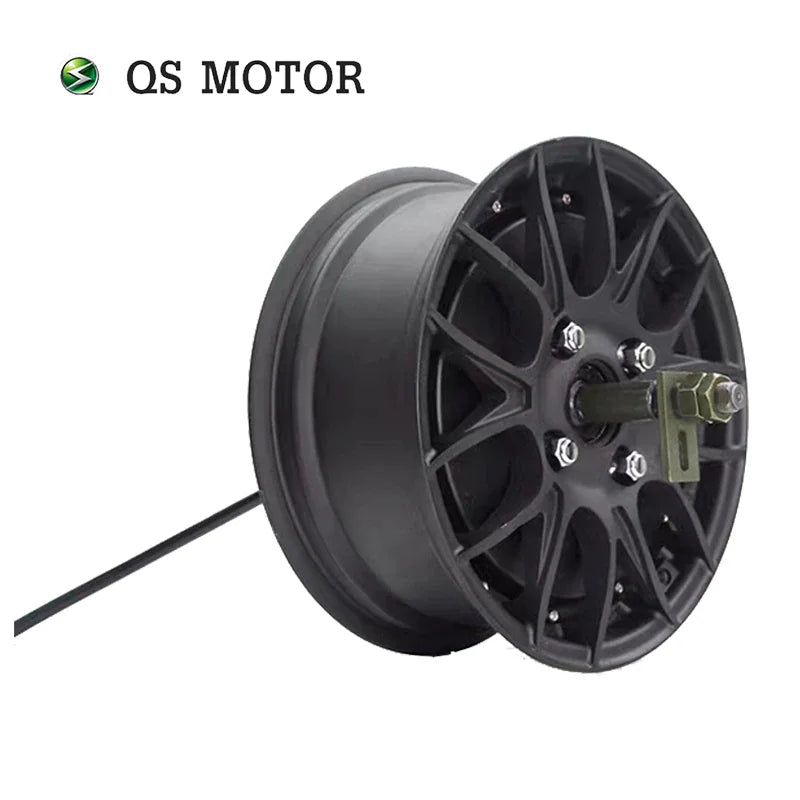

  • Motor Design: Single axle with 12inch moped rim (Detachable)

  • Rim Size:12x5.0inch, matched tire:150/90-12 etc

  • Magnet Height: 40mm, 16 pole pairs

  • Stator: Aluminum Core

  • Rated Power: 3000W

  • Speed: 30KPH-80KPH, it's customized, genearlly we will design as 72V70KPH.

  • Work Voltage range: 48V-96V, will be 72V as default.

  • Max Torque approx 223.0N.m

  • KV: 8.5/9.4/11.8/12.9/14.37/16.25 (Optional)

  • Thermic Probe: KTY83-122 (as default, optional)

  • Max Efficiency approx 88%

  • Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58m

  • Dual Halls with waterproof connectos(One for spare, in case of damage)

  • 10mm² Phase Wire

  • Waterproof Grade: IP54

  • Color: Black (As default)

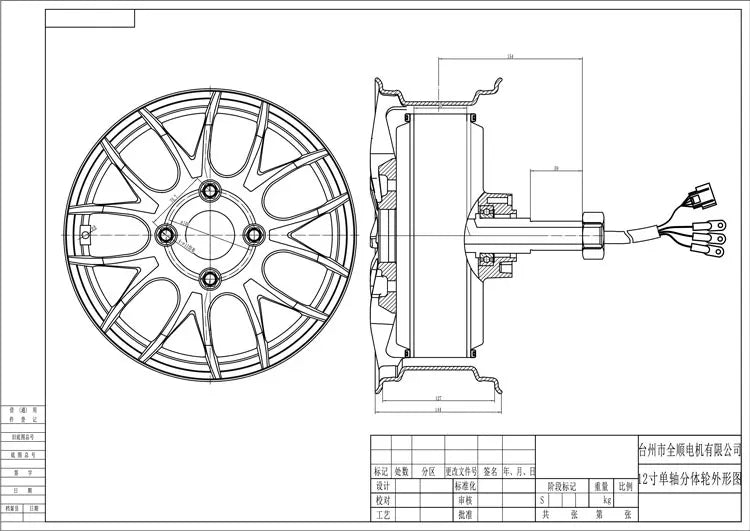

2. Dimension Drawing:

  • 1. 12*5.0inch detachable in-wheel hub motor:


Please noted:


Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.



Conversion kits for 12*5.0inch in-wheel hub motor


We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle...etc.
