Good Quality Electric Twist Throttle with Voltage Showing
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
(special countries list contact seller)
SPEC
1.Color:golden, silvery, red
2.Applied controller voltage:12v-72v
3.Number of core cable:7
4.Type of switch: three gear
5.Net weight:0.29kg
6.Inner diameter of throttle: 22mm
Function
1.Adjust speed.
2.Show the battery voltage.
3.Three gear switch( can be used as three speed )
Definition of line color
1.Black wire:Ground/GND
2.Red wire:+5V DC
3.Green wire:throttle Signal
4.Yellow wire:Battery voltage
5.Other three wire:Three gear shift or Steering switch
Notice
1.Connect the black wire first, then connect red and green in wires with controller. Red to red ,black to black ,green line to signal line of controller.
2.Voltage shown in“00” means throttle can work normally, then you could connect other wires.
3.The yellow line is battery voltage line.Connect the yellow line to battery positive wire.
4.DON’T CONNECT YELLOW LINE AND BLACK LINE TO CONTROLLER’S RED LINE OR GREEN LINE, WHICH WILL DAMAGE TWIST THROTTLE!
Packing Details
Package Weight:0.8kg
Package Size:13cm*6cm*10cm

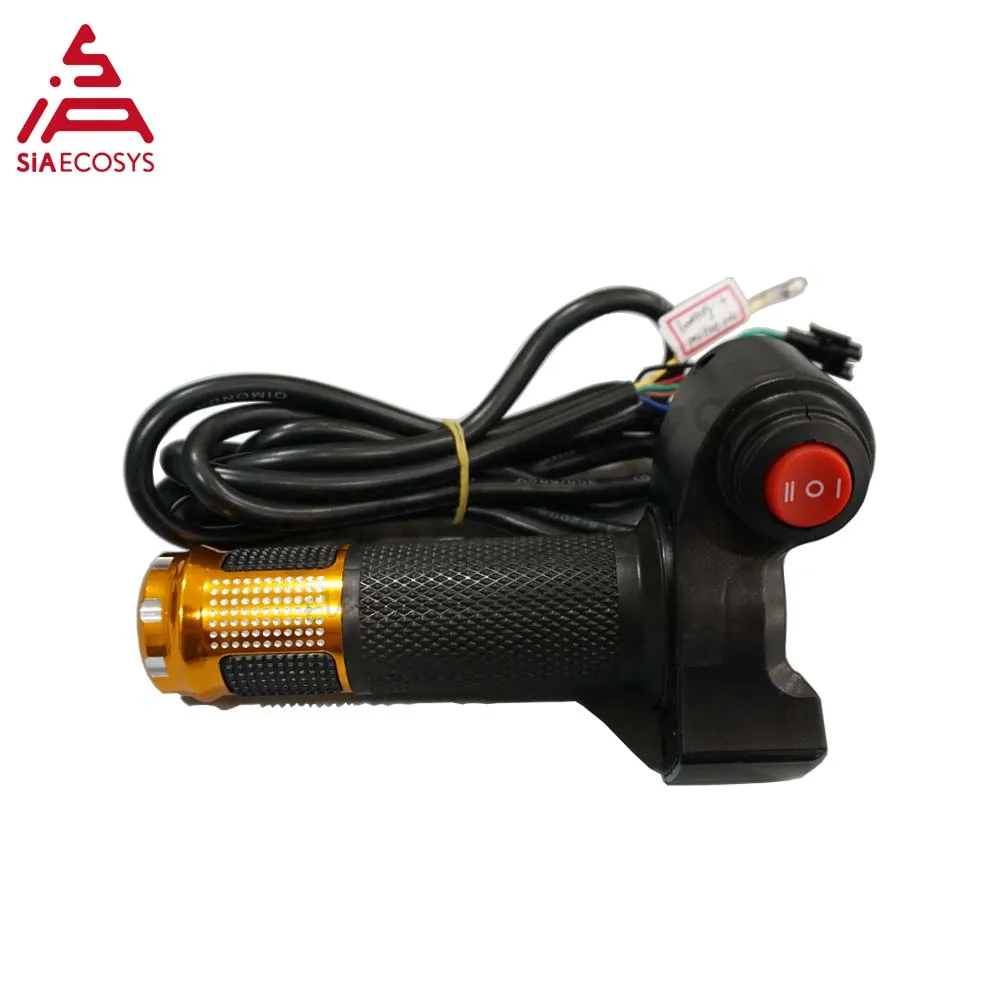

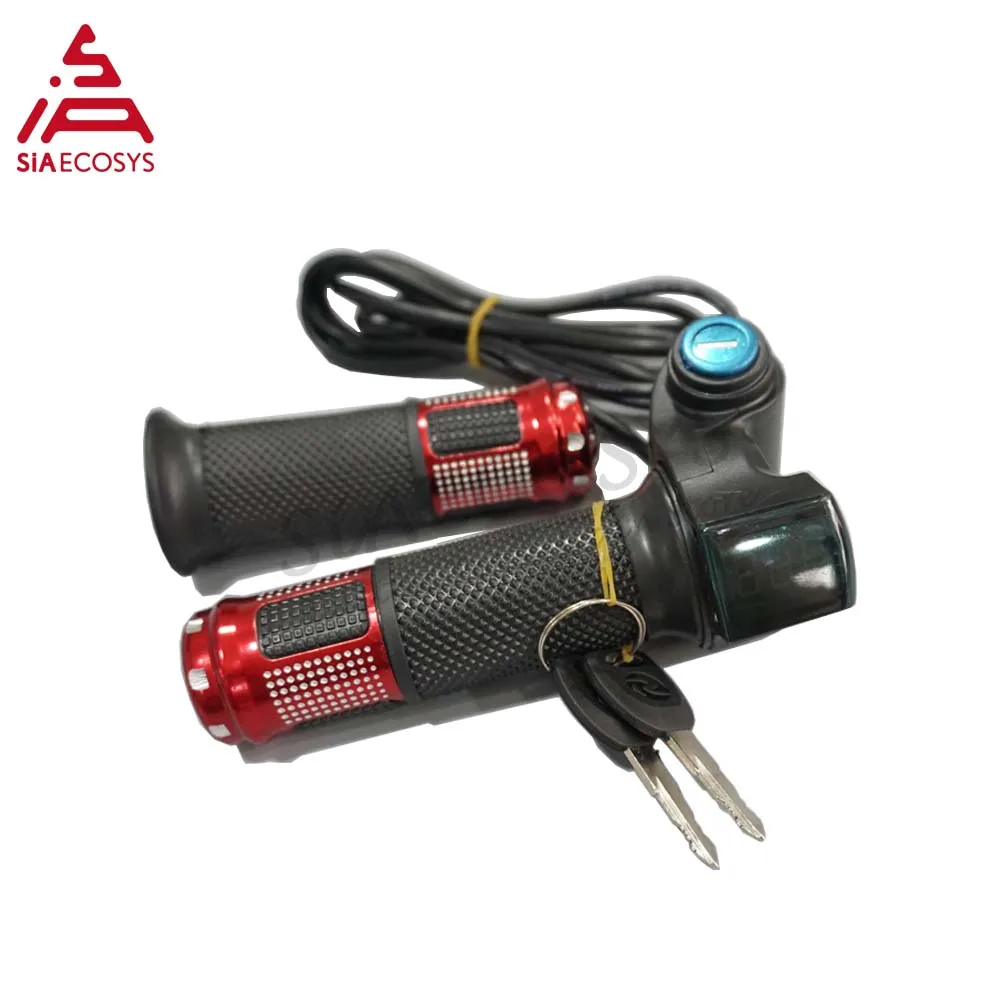

Product Picture
