Front 48v 500w e bike conversion kit with 48v 16ah TS lithium battery - E Smart Way

Free Shipping On All Orders Storewide



Front 48v 500w e bike conversion kit with 48v 16ah TS lithium battery pack

Sale price $705.68 Regular price $660.88

Front 48v 500w e bike conversion kit with 48v 16ah TS lithium battery pack

The opional battery for choose.

52V rear rack battery 188



20-28" wheels Front wheel 48v 500w e bike conversion kit with 48v 16ah TS lithium battery pack.

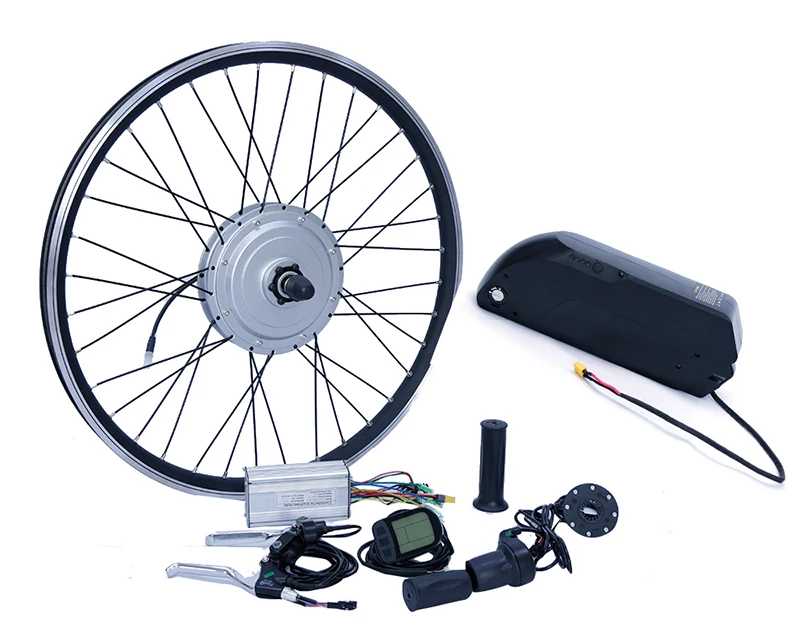

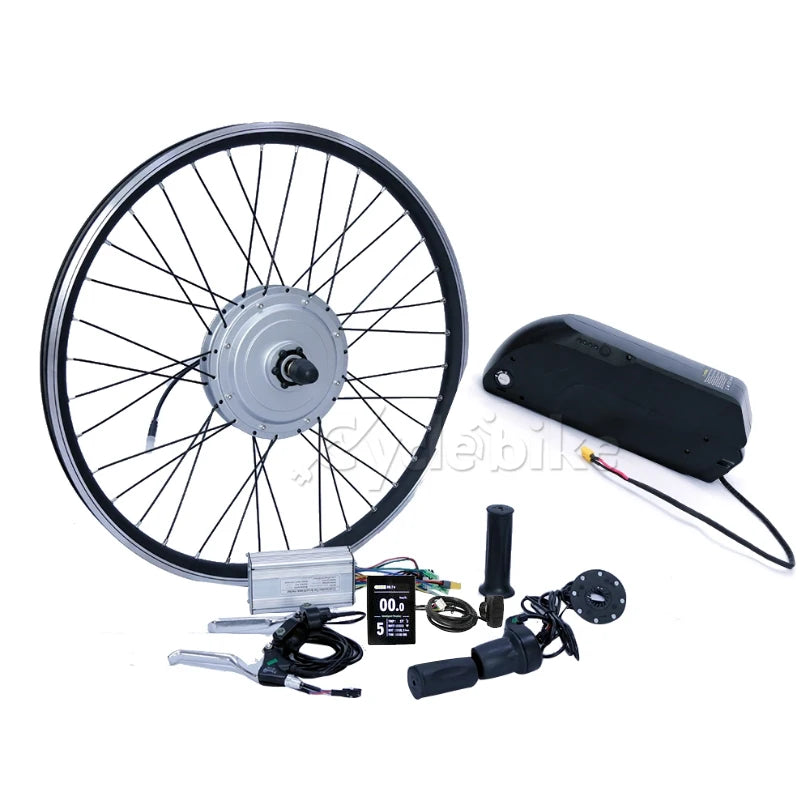

PRODUCT PICTURES For 48v 500w electric bike kit



500w front with 48v 16ah TS 2





PRODUCT SPECIFICATION

Specifications:

  • 48v 500w e bike conversion kit speed max : 40-45km/h
  • The 48v 500w e bike conversion kit with battery distance : 50km range @ throttle only, 100km range @ pas system
  • lcd display show speed, range, current, voltage, amp, watts, time, 5 pas levers, cruise switch and so on.
  • samsung brand cell , high discharge current for 1000w 48v motor
  • net weight : 12kgs for all
  • All in one e bike conversion kit kit, the controller, battery and controller bag

The 48v 16ah TS lithium battery pack is using the Imported LG cell .  It has the USB charging port to charge

the mobilephone, on/off switch, key and lock, XT 60 safety connector.

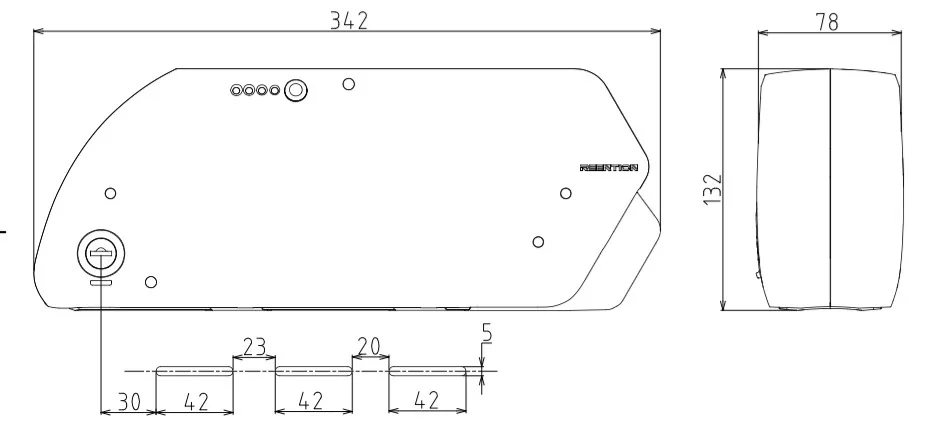

Drawing for 48v 16ah TS lithium battery, place check if your bike fit it or not!!!

TS drawing

Please see more details for 48v 16ah e bike battery below :

  • 48V 16AH battery48v 16ah battery 248V 16AH BATTERY 3

PACKING Content for 48v 500w e bike conversion kit and 48v 16ah battery.

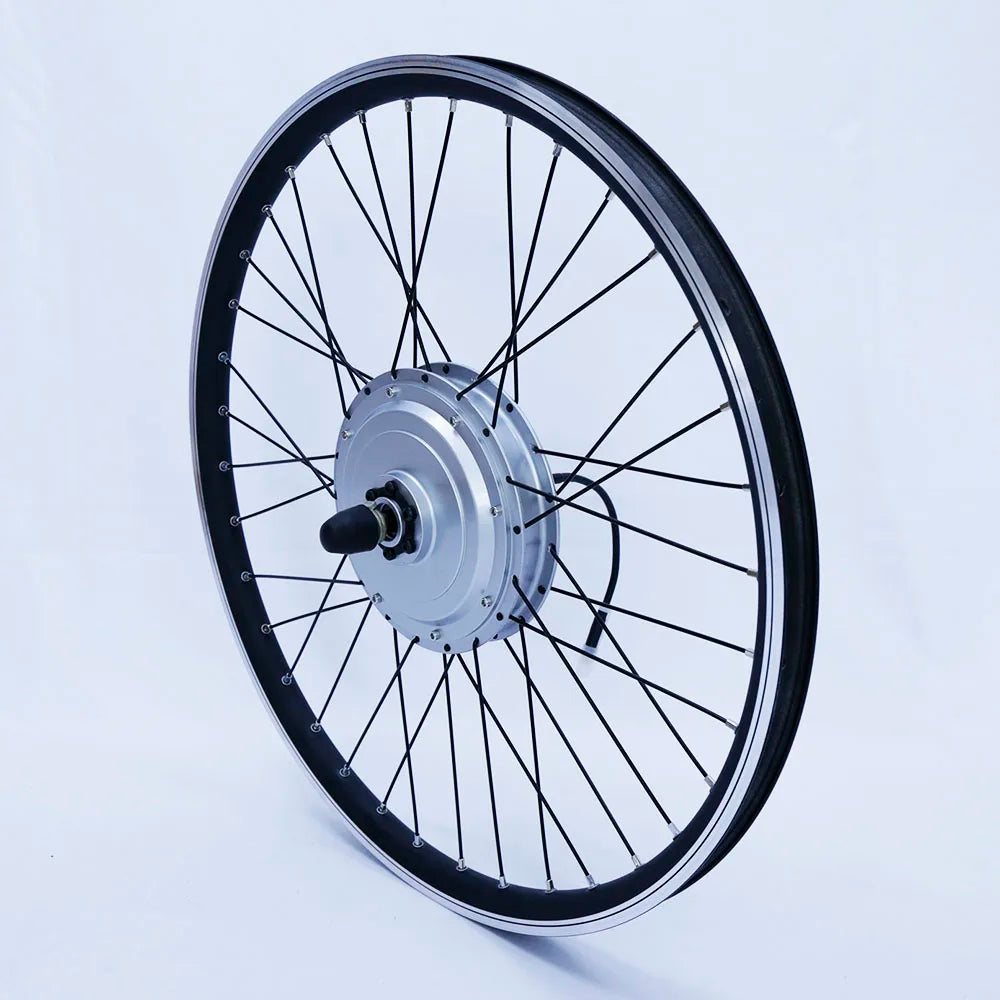

48V 500w Front wheel Burhsless gearless hub motor(180°C copper winding+ best magnet)*1SET

Assembled16"-28" 700c Double-wall alloy rims for choose,  and  spoke 12G (2.6mm spokes )*1SET

twist throttle or thumb throttle*1SET

2 electric brake levers (for both side power off)*1SET

48V 22A smart controller (12 MOZ tubes in it)*1SET

1:1 PAS*1SET

LCD display* 1SET

48v 16ah lithium battery pack with 48v 2a charger * 1SET

Use manual with ties also winding pipe * 1SET

good package can be delivered to customer directly














Process




Packing




Logistics












Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Front 48v 500w e bike conversion kit with 48v 16ah TS lithium battery pack is for you.

Inventory Last Updated: Oct 10, 2024
