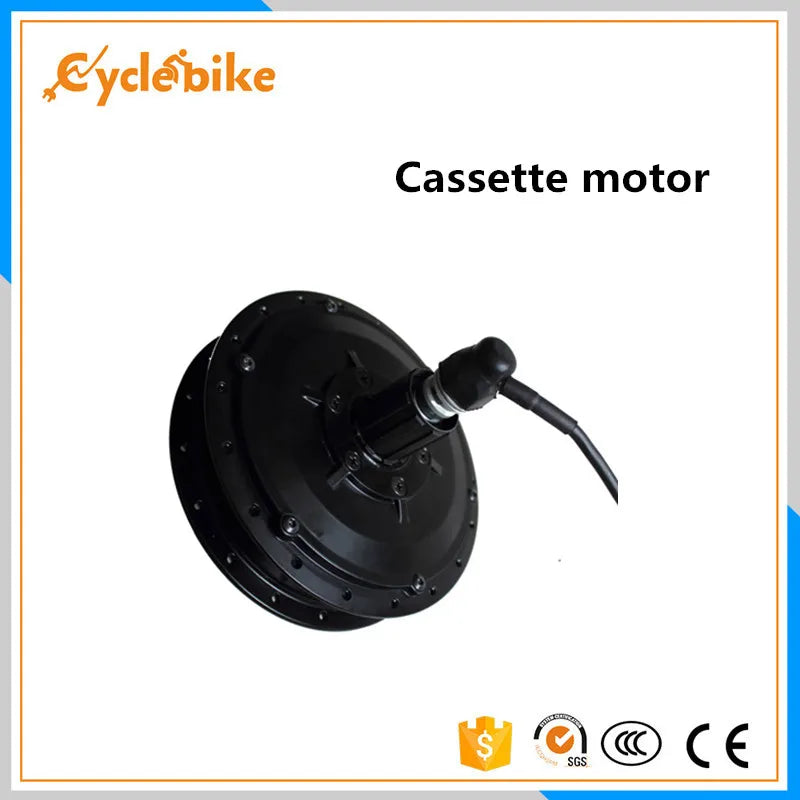

Free shipping BPM cassette 48v 500w ebike hub motor geared design 500w bpm
Free shipping BPM cassette 48v 500w ebike hub motor geared design 500w bpm
Free shipping BPM cassette 48v 500w ebike hub motor geared design 500w bpm
Note:The rear cassette motor wheel dropout is:142mm.

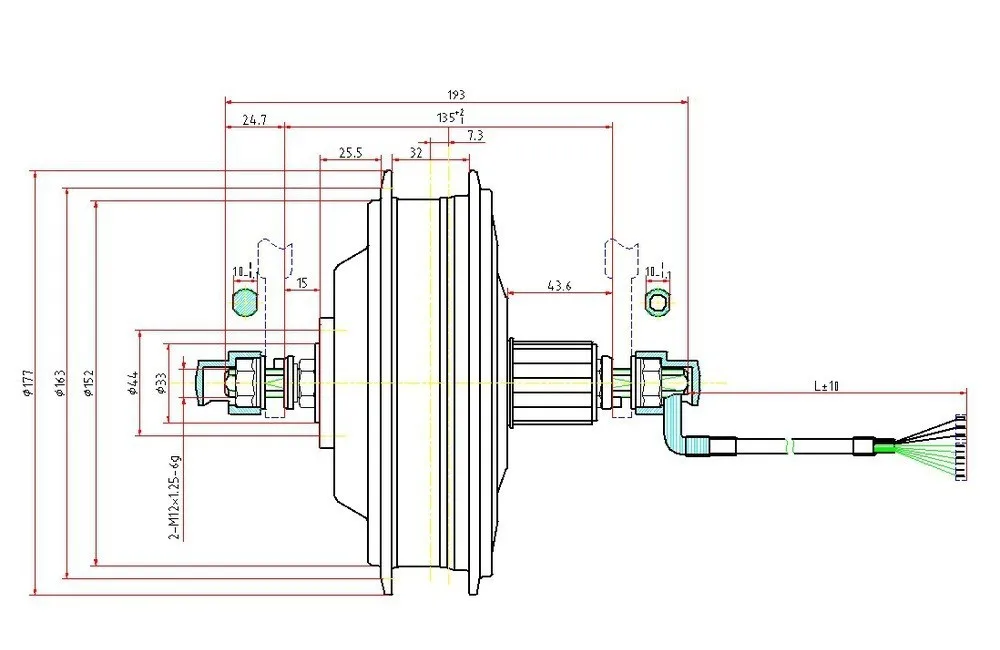

Drawing photo

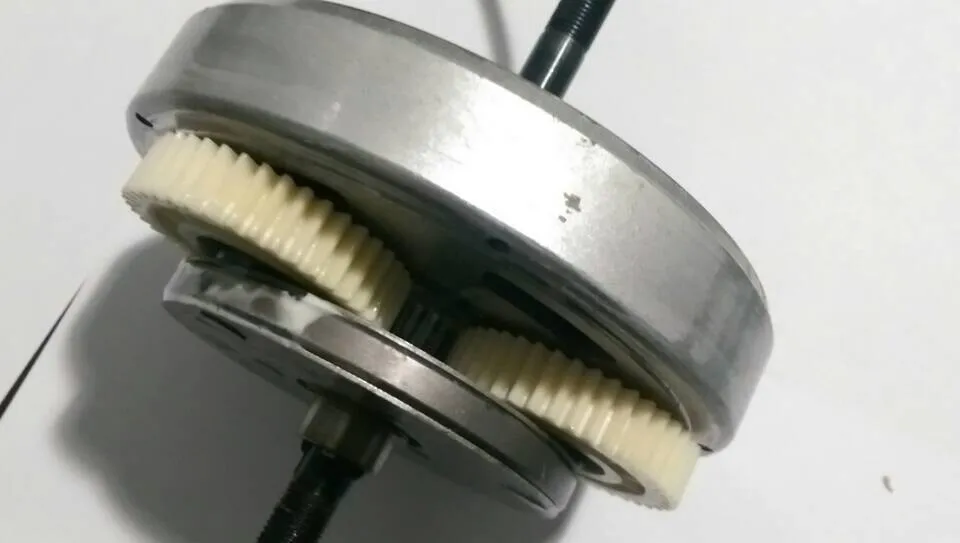

500W cassette motor inside photo
PRODUCT SPECIFICATIONS
|
Model |
Model |
|
Motor power |
500w |
|
Axle |
10mm* 12mm |
|
Freewheel |
8s or 9s |
|
Voltage |
48 v |
|
Magnet Height |
24mm |
|
Design |
Brushless geared dc motor |
|
Windings |
5*12 |
|
Waterproof grade |
IP54 |
|
RPM/min |
470 |
|
Cable size |
1.5mm2 |
|
Max torque |
60N.M |
|
Max Efficiency |
>=85% |
|
Open size |
100mm for front motor, 135mm for rear motor |
|
Wheel size |
16-28inch |
|
Hall sensor |
Optional |
|
Hall sensor angle |
120 degrees |
|
Integrate speed sensor |
Optional |
|
Brake |
Disc brake |
|
Surface color |
dark black |
|
Temperature sensor |
Yes |
|
N.W |
4.2kgs |
PRODUCT FEATURES
Ncycle NC48500,CE certifacte 48v500w electric ebike hub motor
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM
PRODUCT APPLICATION
NC36250,CE certifacte 48v 500w high quality electric ebike hub motor
PRODUCT PACKING
