Free shipping BPM 36v 500w Electric bicycle hub motor geared design front or rear 500w bpm motor
Free shipping BPM 36v 500w Electric bicycle hub motor geared design front or rear 500w bpm motor
Free shipping BPM 36v 500w Electric bicycle hub motor geared design front or rear 500w bpm motor

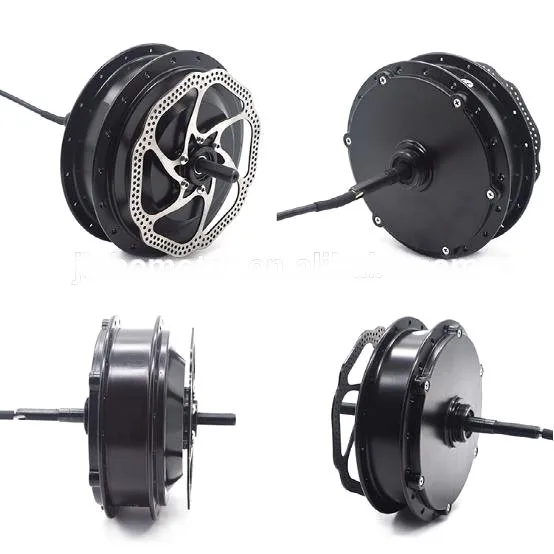

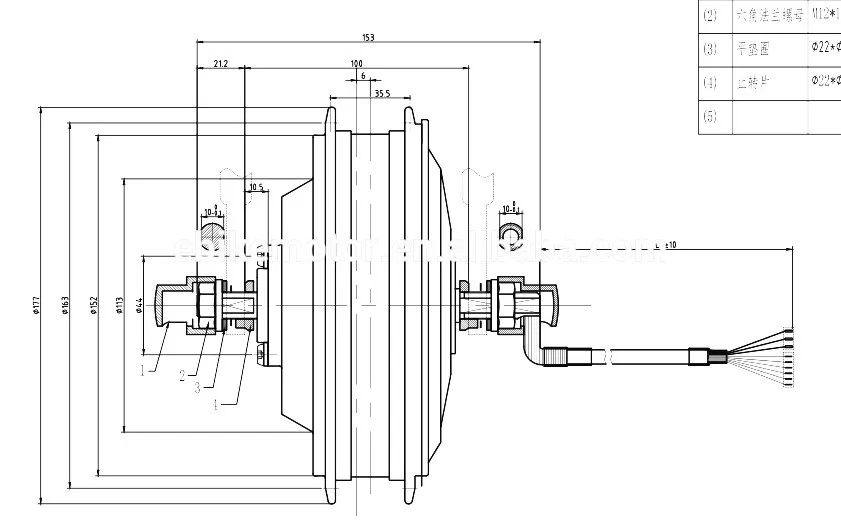

Drawing photo
PRODUCT SPECIFICATIONS
|
Model |
Model |
|
Motor power |
500w |
|
Axle |
10mm* 12mm |
|
Freewheel |
6s or 7s if you choose rear motr . |
|
Voltage |
36v |
|
Magnet Height |
24mm |
|
Design |
Brushless geared dc motor |
|
Windings |
5*12 |
|
Waterproof grade |
IP54 |
|
RPM/min |
360 |
|
Cable size |
1.5mm2 |
|
Max torque |
60N.M |
|
Max Efficiency |
>=85% |
|
Open size |
100mm for front motor, 135mm for rear motor |
|
Wheel size |
16-28inch |
|
Hall sensor |
Optional |
|
Hall sensor angle |
120 degrees |
|
Integrate speed sensor |
Optional |
|
Brake |
Disc brake |
|
Surface color |
dark black |
|
Temperature sensor |
Yes |
|
N.W |
4kgs |
PRODUCT FEATURES
Ncycle NC48500,CE certifacte 36v500w electric ebike hub motor
l Low noise
l Electricity saving
l High torque
l High strength
l High safety coefficient, high efficiency
l Long service life
l Not easy to be hot
l Big power
l Warranty : 2 years
l OEM
PRODUCT APPLICATION
NC36250,CE certifacte 36v 500w high quality electric ebike hub motor
PRODUCT PACKING
