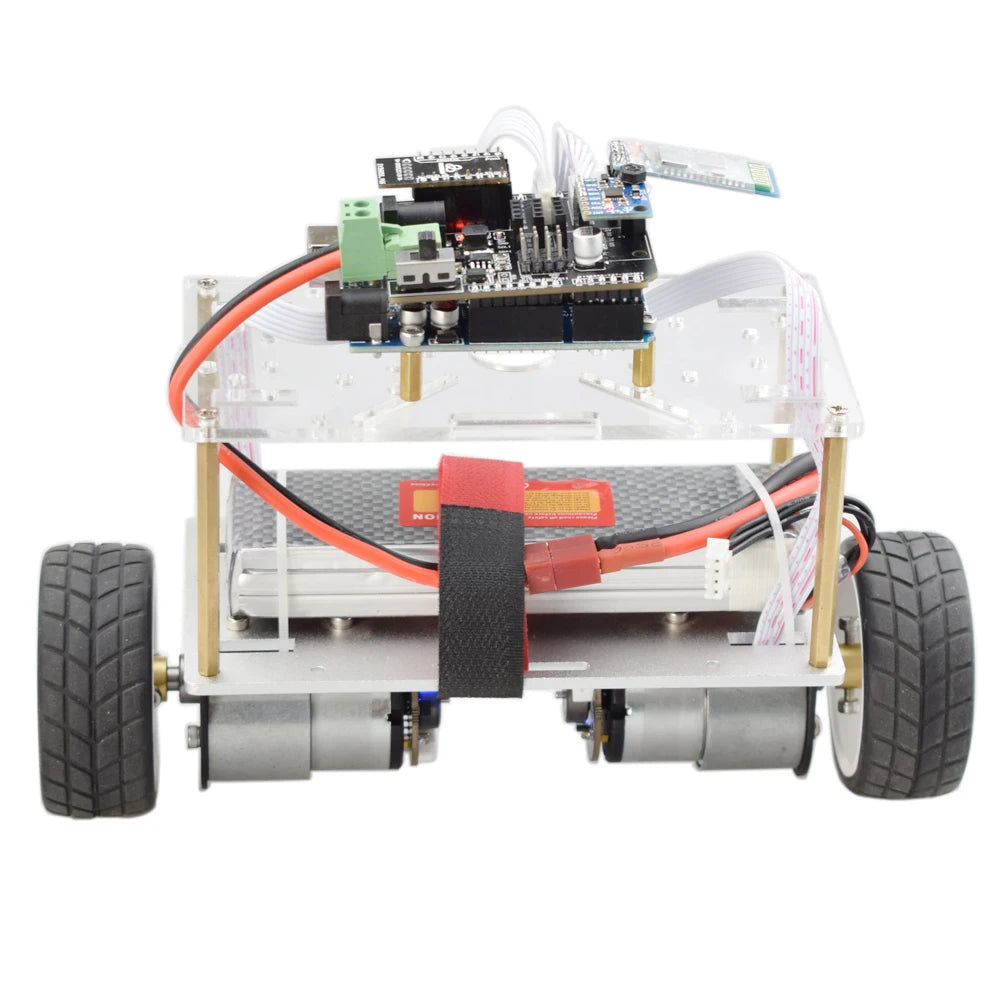

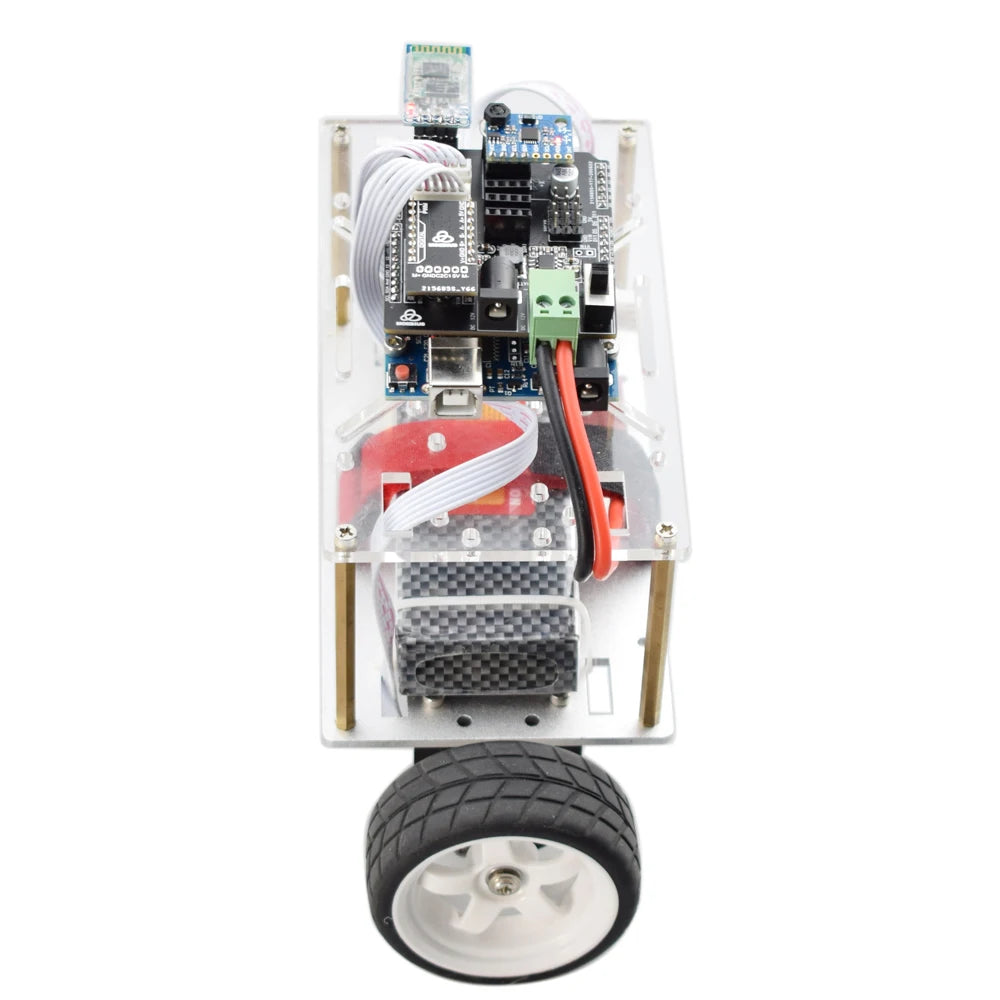

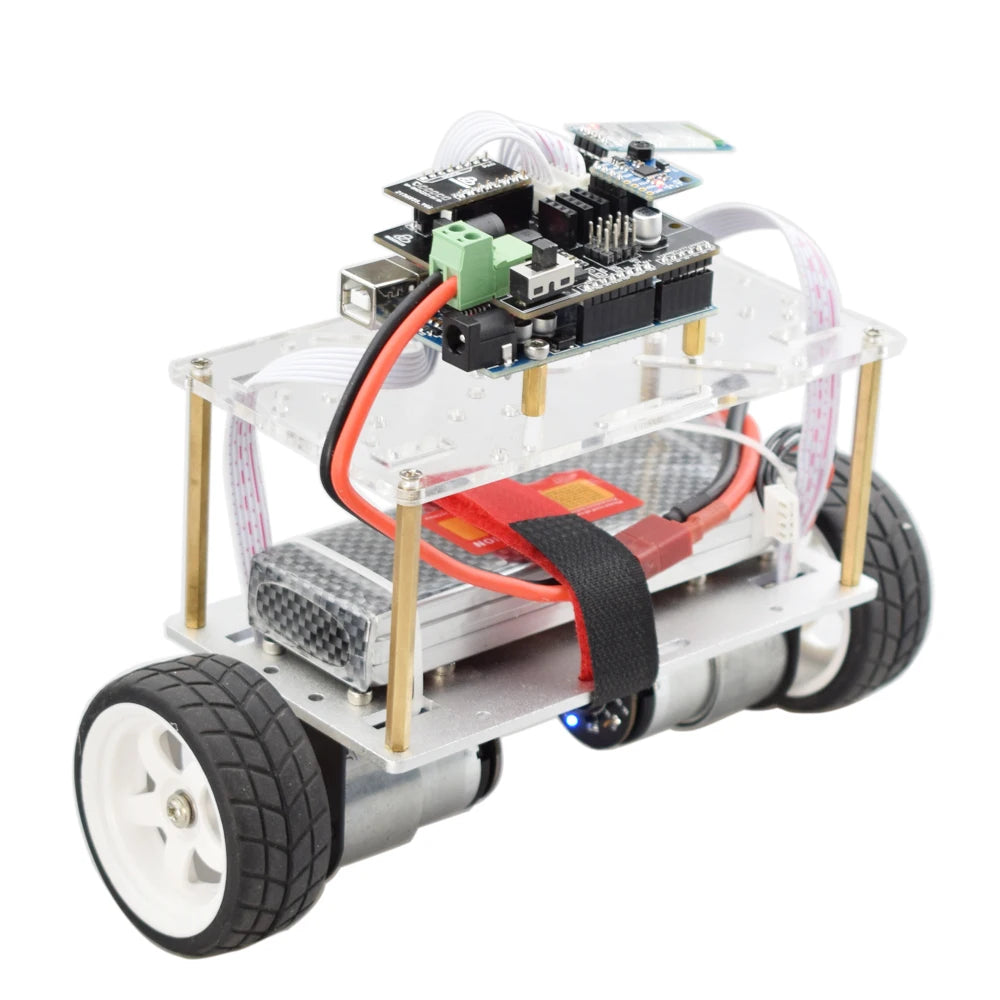

Arduino Two wheel Balancing Car Self-balancing Robot Kit with HC06 Bluetooth APP Control UNO R3 MPU6050 for DIY PID Automation
Note:
The product is unassembled ,we offer the manual and source code.
Not included the battery.
Features:
The chassis material is 3mm aluminum alloy plate, can load weight about 5kg.
The robot car is easy to assembled, we will send you a PDF installation manual.
The balancing car adopts the 12V motor, which has excellent horsepower performance.
The self-balancing robot kit has multiple functions, such as balances, moves, run with two wheels when add the controller, and controlled by Android APP.
Motor Parameters:
Model: GB37-520
Speed: 178RPM
Rated current: ≤0.7A
Rated voltage: DC12V
Rated power: ≈ 7.2W
Quality: 150g
Length L: 58mm
Maximum diameter R: 37mm
Maximum encoder accuracy: 1320CPR
Shipping List:
1pcs aluminum alloy chassis,
1pcs Acrylic chassis
2pcs motor with speed encoder,

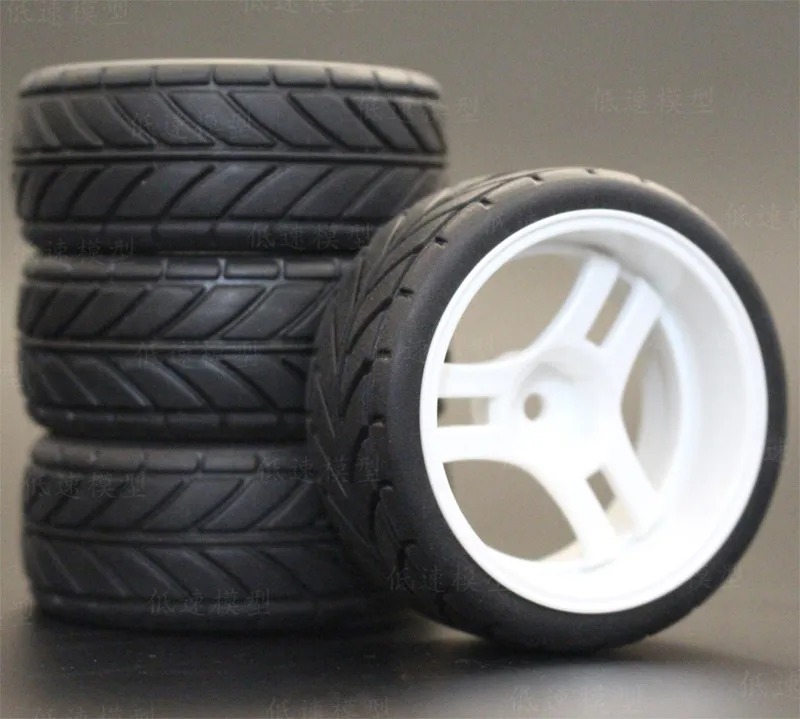

2pcs 65mm rubber wheel,
2pcs motor bracket,
2pcs motor cables
couplings and screws.
1pcs arduino uno board
1pcs motor driver board
1pcs HC06 bluetooth module
1pcs USB cable
1pcs MPU6050 module
Inventory Last Updated: Mar 14, 2025
