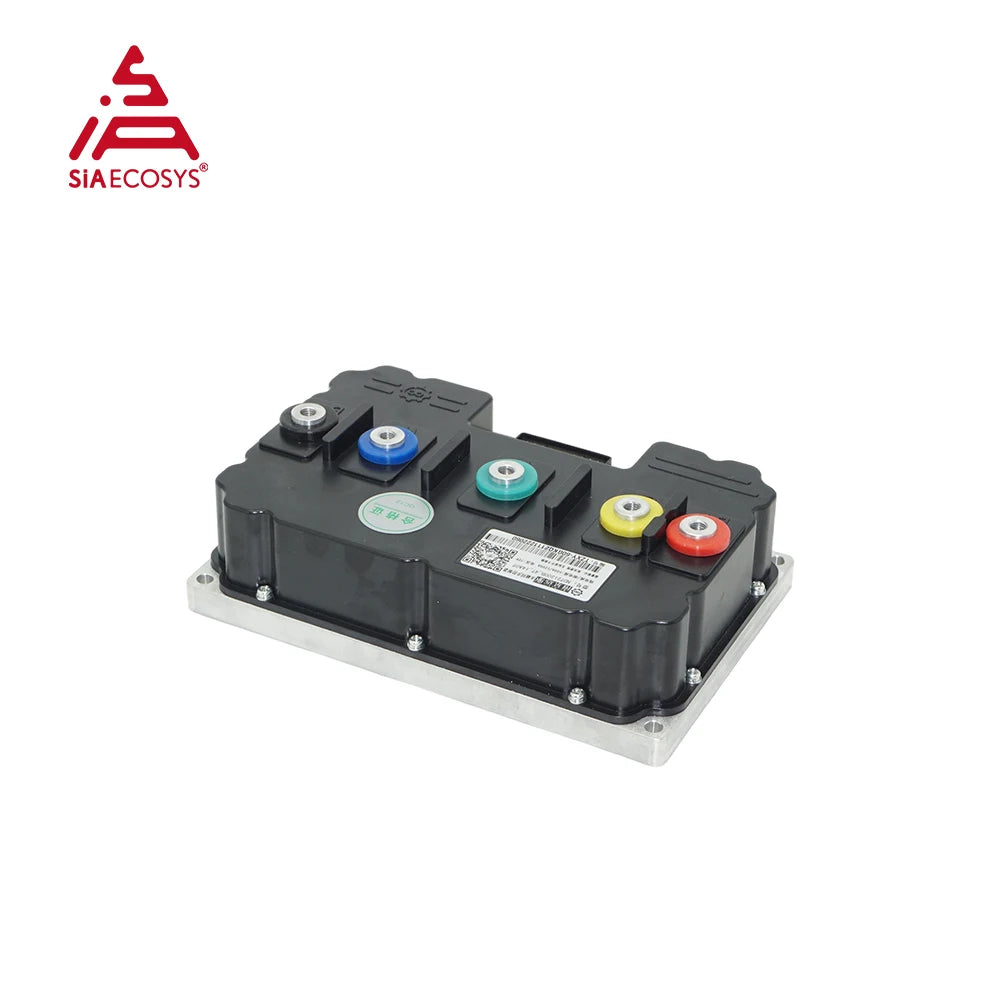

FarDriver ND841800HR ND961800HR 96V 84V 1300A Max DC Current Programmable Controller With Regenerative Braking Function

Far Driver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

NOTE:

1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).

2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do

customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not

support. (special countries list contact seller)

Combo1.

One set including below kits

1. 1pcs X ND841800HR sine wavecontroller

2. 1pcs X Bluetooth

Combo2.

One set including below kits

1. 1pcs X ND961800HR sine wave controller

2. 1pcs X Bluetooth

Key Features

1). All the raw materials are imported, using high-performance Moss tube,full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and IOS

7). With flux weakening function.(The product does not contain magnetism)

Product Description

HR Version is the advanced Version with higher phase current and DC current

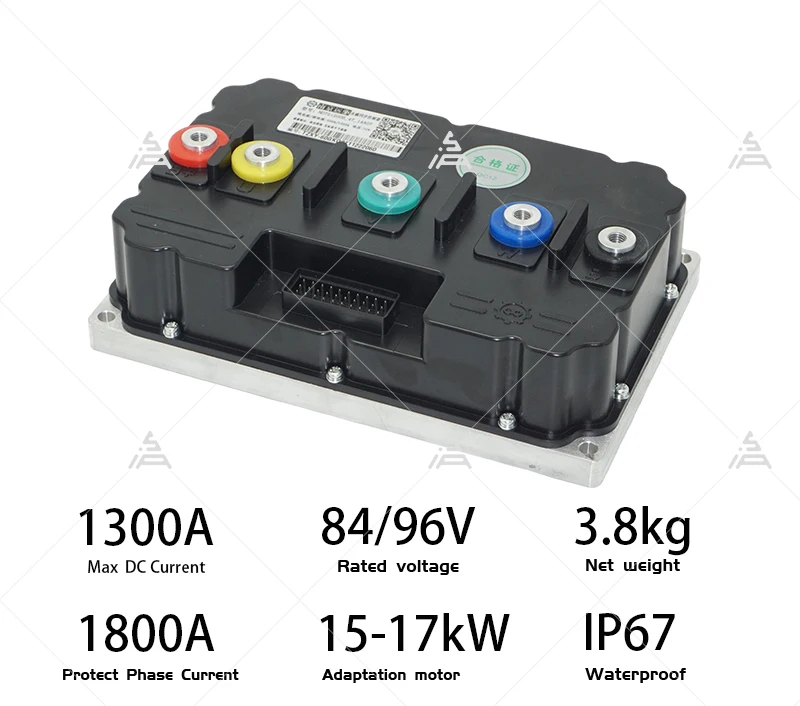

ND841800 and ND961800 are sine wave controller with waterproofing grade IP67, suit for 15-17kw motors.

It’s Hall version (as default) which suit with Hall motors.

It could also support Encoders, but please check with sales to order Encoder version.

ND841800HR/ND961800HR Spec

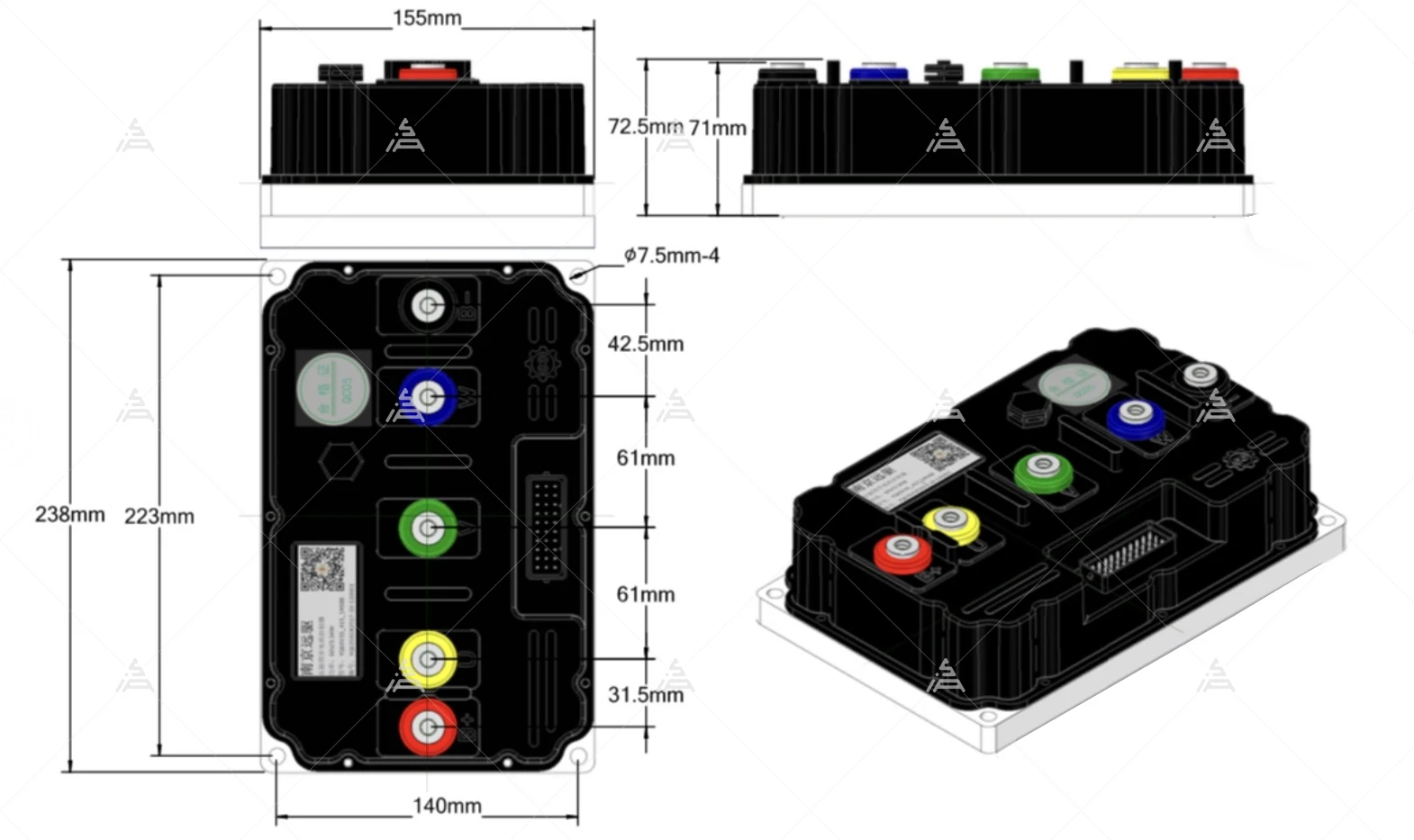

Drawing

The controller is without heatsink, please noted

If you want the heatsink, please contact seller to order it separately.

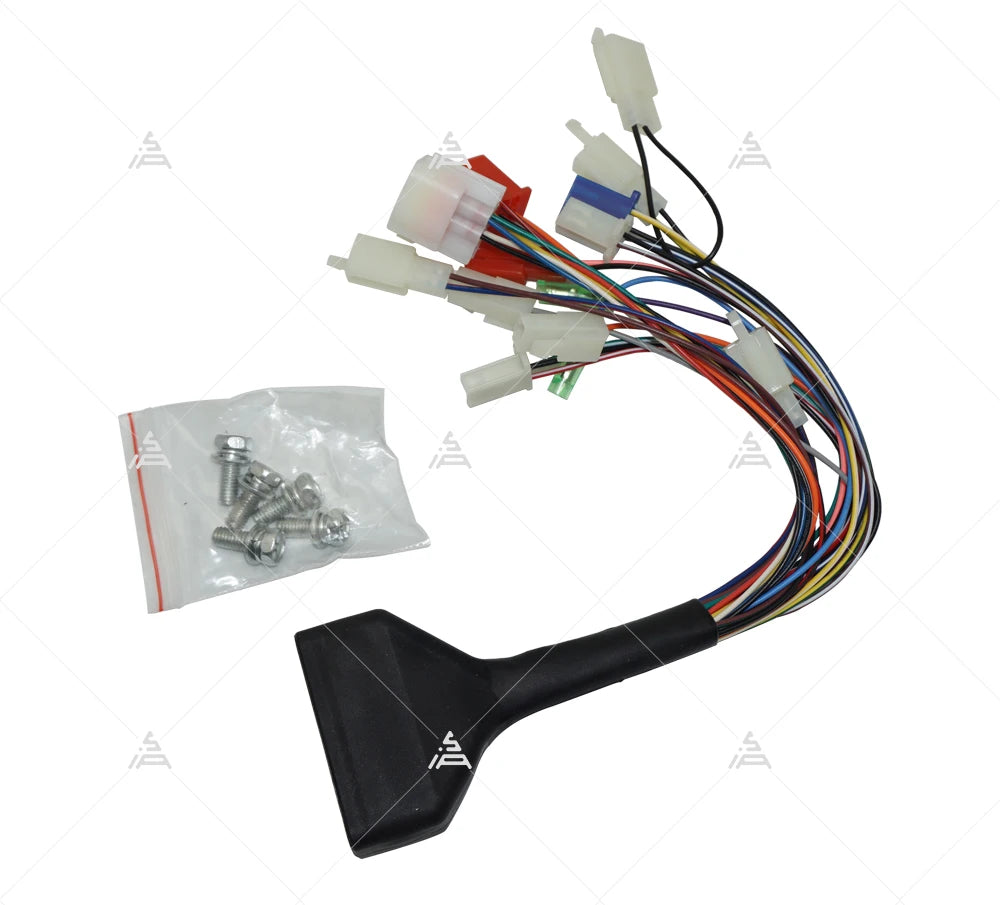

Adapter Cable

Bluetooth

Software interface（App）

Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.

Recommend motor

QSMOTOR 12*3.5inch 268 80H 20kW 72V Powerful Racing Hub Motor
