Fardriver controller far driver controller ND72360 ND84360 ND96360 ebike Controller with heat sink 360A 3-4KW BLDC Programmable
Fardriver controller far driver controller ND72360 ND84360 ND96360 ebike Controller with heat sink 360A 3-4KW BLDC Programmable
Fardriver controller far driver controller ND72360 ND84360 ND96360 ebike Controller with heat sink 360A 3-4KW BLDC Programmable
FarDriver controller is sine wave type controller, which is brushless DC controllerwith self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
NOTE:
1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).
2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)
Combo1.
One set including below kits
1. 1pcs X ND72360 sine wave controller with heat sink
2. 1pcs X USB cable
Combo2.
One set including below kits
1. 1pcs X ND84360 sine wave controller with heat sink
2. 1pcs X USB cable
Combo3.
One set including below kits
1. 1pcs X ND96360 sine wave controller with heat sink
2. 1pcs X USB cable
Key Features
1). All the raw materials are imported, using high-performance Moss tube
2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board
3). Small in size
4). High efficiency, low temperature rise, small running current
5). With self-learning function, excellent commonality
6). The app compatible with Android and Apple
7). With flux weakening function.(The product does not contain magnetism)
Product Description
ND72360 ，ND84360 and ND96360 are sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.
For ND72360, the peak voltage is 88V
For ND84360, the peak voltage is 100V
For ND96360, the peak voltage is 115V and the mosfet inside more resistant to temperature than ND72360and ND84360.
It’s hall version (as default) which suit with hall motors.
It could also support encoders, please check with sales.

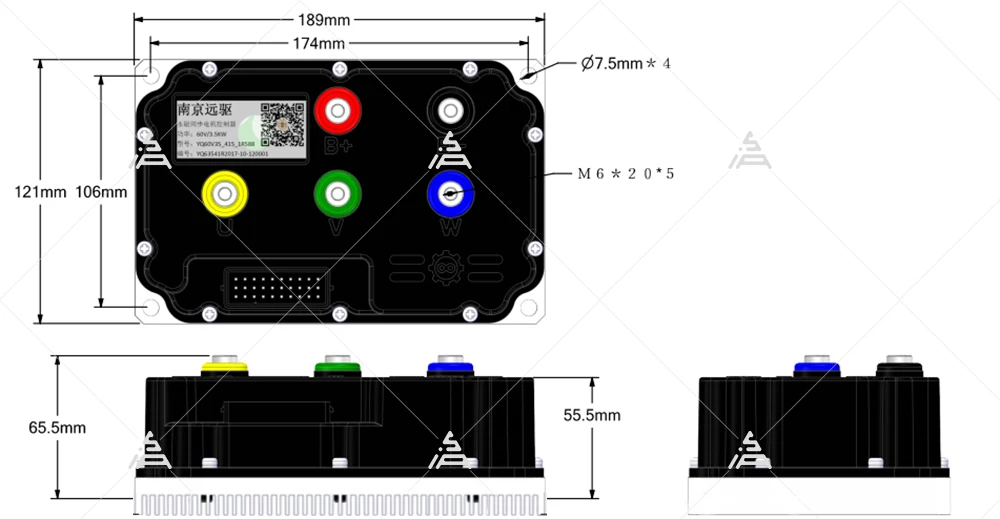

Drawing
Adapter Cable
USB cable
Software interface（PC）
Programmable Software & User manual (Before you received the controller)
Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
